TASK 72-60-24-300-010 Input Gearshaft - Chromium Plate The Rear Bearing Journal, Repair-010 (VRS5140)

DMC:V2500-A0-72-60-2401-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-24-300-010 Input Gearshaft - Chromium Plate The Rear Bearing Journal, Repair-010 (VRS5140)

Effectivity

FIG/ITEM

PART NO.

01-140

4P0175

01-140

4B0285

01-140

4P0287

01-140

4P0294

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Gearshaft

Wrought alloy steel

General

NOTE

To identify the consumable materials refer to the PCI.
Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Grinding machineLOCALGrinding machine
Hot oil tankLOCALHot oil tank
Pressure shotpeen systemLOCALPressure shotpeen system
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 5XLOCALMagnifying glass, 5X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-24-320-056 Machine the Rear Bearing Journal of the Gearshaft

    1. Refer to Figure.

      2. Machine the rear bearing journal.

      1. Remove all damage and wear.

      2. Keep the removal of material to the minimum necessary to remove the damage.

      3. The preplating diameter must be between 2.3623 to 2.3530 in. (60.003 to 59.776 mm).

      4. Surface roughness must be 32 microin. (0.8 micron) before plating.

      5. Use grinding machine.

    2. SUBTASK 72-60-24-240-052 Examine the Gearshaft

      1. Do the magnetic particle inspection for cracks.

      2. Cracks are not permitted.

    3. SUBTASK 72-60-24-210-051 Nital Etch the Rear Bearing Journal

      1. Do the nital etch on the rear bearing journal to find signs of burnt metal.

      1. Refer to the SPM TASK 70-21-02-210-501.

      2. Machine the rear bearing journal if there is signs of burnt metal.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    4. SUBTASK 72-60-24-370-053 Do the De-embrittle Treatment

      1. Put the gearshaft into oil at 284 deg F (140 deg C) for 2 hours.

      1. Use a hot oil tank.

      2. Do this procedure as soon as possible in less than 2 hours after the etch.

    5. SUBTASK 72-60-24-380-051 Shot-peen the Rear Bearing Journal

      1. Shot-peen the rear bearing journal surface to an intensity of 0.006A to 0.008Ain.

      1. Refer to the SPM TASK 70-38-04-300-503.

      2. Use Pressure shotpeen system.

    6. SUBTASK 72-60-24-110-051 Clean the Gearshaft

      1. Vapour degrease the gearshaft.

    7. SUBTASK 72-60-24-330-054 Chromium Plate the Rear Bearing Journal of the Gearshaft

    1. Refer to Figure.

      2. Mask the areas of the gear not to be plated.

      3. Chromium plate the rear bearing journal.

      1. Refer to the SPM TASK 70-33-02-330-501.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions.

      3. The plating out of the rear bearing journal area is permitted but must be removed.

      4. Use process plating tanks.

    4. Remove the mask.

      5. Clean and dry the gearshaft.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    8. SUBTASK 72-60-24-370-054 De-embrittle the Gearshaft

      1. Put the gearshaft into an oven at 284 to 392 deg F (140 to 200 deg C) for 5 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    9. SUBTASK 72-60-24-220-074 Examine the Gearshaft

      1. Visually examine the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. Cracks are not permitted.

      3. Bubbles or signs of burnt metal are not permitted.

    10. SUBTASK 72-60-24-320-057 Machine the Rear Bearing Journal of the Gearshaft

    1. Refer to Figure.

      2. Machine the rear bearing journal.

      1. The journal diameter must be between 2.3648 to 2.3643in. (60.066 to 60.053 mm).

      2. Chamfer where necessary.

      3. Use grinding machine.

    11. SUBTASK 72-60-24-220-075 Examine the Chromium Plated Area

    1. Refer to Figure.

      2. Visually examine the chromium plated area for cracks and adhesion.

      1. Use a 5x magnifying glass.

      2. The natural network crack, emphasized by grinding, is permiteed.

      3. Measure the thickness of the plating.

      1. Do not accept a thickness less than 0.001 in. (0.025 mm) after the last machining.

    12. SUBTASK 72-60-24-350-059 Record the Repair

      1. Vibro engrave VRS5140 adjacent to the part number.

      1. Use vibrating marking pencil.

      2. Remove the metal lifted by marking.

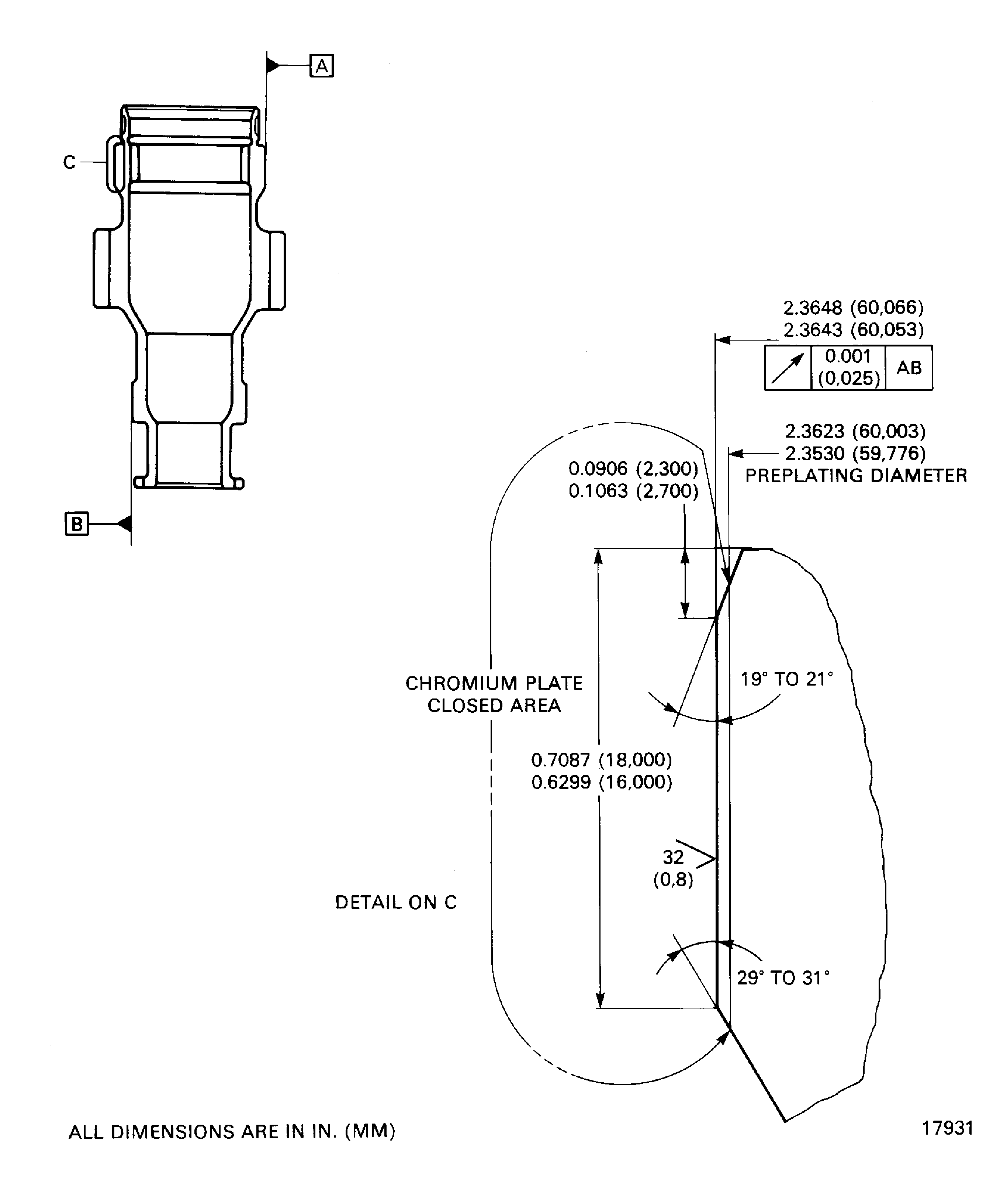

    13. Figure: Chromium plate the rear bearing journal of the gearshaft

    Chromium plate the rear bearing journal of the gearshaft
