TASK 72-60-25-300-014 Fuel Pump Drive Gear - Chromium Plate The Front Bearing Shoulder, Repair-014 (VRS5146)

DMC:V2500-A0-72-60-2501-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-25-300-014 Fuel Pump Drive Gear - Chromium Plate The Front Bearing Shoulder, Repair-014 (VRS5146)

Effectivity

FIG/ITEM

PART NO.

01-200

4P0264

01-200

4P0405

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Gearshaft

Wrought alloy steel

General

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to PCI.
Other consumable materials are given in SPM

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Magnetizing unitLOCALMagnetizing unit
Demagnetizing unitLOCALDemagnetizing unit
Hot oil tankLOCALHot oil tank
Pressure shotpeen systemLOCALPressure shotpeen system
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 5xLOCALMagnifying glass, 5x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-023 CHROMIUM TRIOXIDE CrO3(CHROM.ACID)LOCALCoMat 01-023
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-25-320-053 Machine the Front Bearing Shoulder of the Gearshaft

    1. Refer to Figure.

      2. Machine the front bearing shoulder.

      1. Remove all damage and wear.

      2. Do not remove more than 0.005 in. (0.127 mm) of material.

      3. The preplating dimension must be between 2.3632 to 2.3622 in. (60.025 to 60.000 mm) in relation to surface C.

      4. Surface rough must be 32 microin (0.8 micron) before plating.

    2. SUBTASK 72-60-25-240-052 Examine the Gearshaft

      1. Do the magnetic particle inspection for cracks.

      2. No cracks are permitted.

    3. SUBTASK 72-60-25-210-051 Nital Etch the Front Bearing Shoulder

      1. Do the nital etch on the front bearing shoulder to find sign of burning.

      1. Refer to the SPM TASK 70-21-02-210-501.

      2. Machine the front bearing shoulder if there are signs of burnt metal.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    4. SUBTASK 72-60-25-370-051 De-embrittle the Gearshaft

      1. Put the gearshaft into oil at 284 deg F (140 deg C) for 2 hours.

      1. Use a hot oil tank.

      2. Do this procedure as soon as possible in less than 2 hours after the etch.

    5. SUBTASK 72-60-25-380-051 Shot-peen the Front Bearing Shoulder

      1. Shot-peen the front bearing shoulder to an intensity of 6 to 8 A.

      1. Refer to the SPM TASK 70-38-04-300-503.

    6. SUBTASK 72-60-25-330-053 Chromium Plate the Front Bearing Shoulder of the Gearshaft

    1. Refer to Figure.

      2. Mask the areas not to be plated.

      3. Do the chromium plating.

      1. Refer to the SPM TASK 70-33-02-330-501.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions. The plating out of the front bearing shoulder is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the gearshaft.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    7. SUBTASK 72-60-25-370-052 De-embrittle the Gearshaft

      1. Put the gearshaft into the oven at 284 to 392 deg F (140 to 200 deg C) for 5 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    8. SUBTASK 72-60-25-220-061 Examine the Plating

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No bubbles or sign of burned metal are permitted.

    9. SUBTASK 72-60-25-320-054 Machine the Front Bearing Shoulder of the Gearshaft

    1. Refer to Figure.

      2. Machine the front bearing shoulder.

      1. The last dimension of the front bearing shoulder must be between 2.3681 to 2.3642 in. (60.150 to 60.050 mm) in relation to surface C.

      2. Clean up the edges of groove.

    10. SUBTASK 72-60-25-220-062 Examine the Chromium Plated Area

      1. Do the visual inspection of chromium plated area for cracks and adhesion.

      1. Use a 5x magnifying glass.

      2. The natural network crack, emphasized by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in. (0.025 mm) after the last machining.

    11. SUBTASK 72-60-25-350-060 Record the Repair

      1. Vibro engrave VRS5146 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

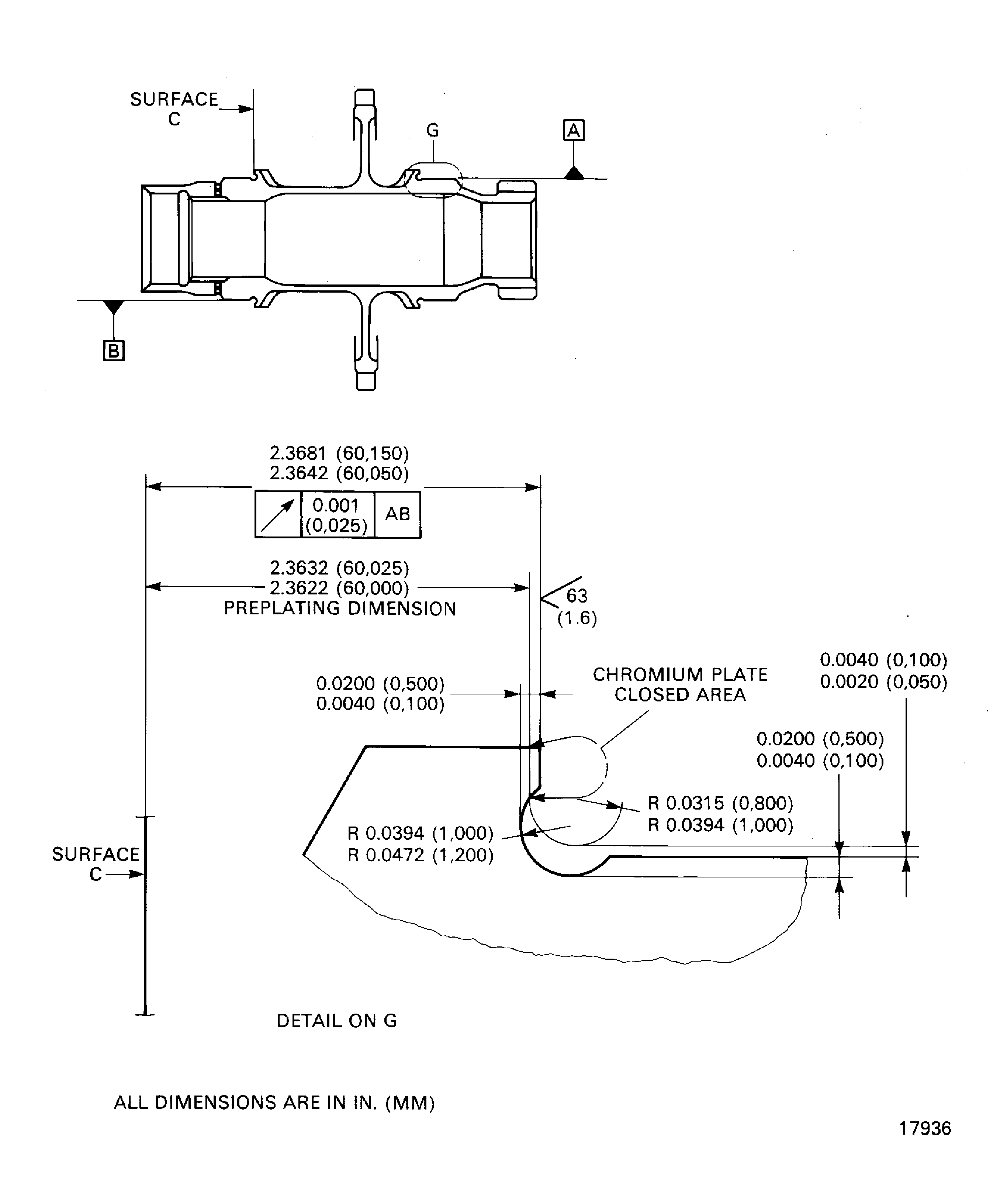

    12. Figure: Chromium plate the front bearing shoulder of the gearshaft

    Chromium plate the front bearing shoulder of the gearshaft
