TASK 72-60-28-300-021 Generator Drive Gear - Chromium Plate The Rear Bearing Journal, Repair-021 (VRS5164)

DMC:V2500-A0-72-60-2801-02A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-28-300-021 Generator Drive Gear - Chromium Plate The Rear Bearing Journal, Repair-021 (VRS5164)

Effectivity

FIG/ITEM

PART NO.

01-410

4P0207

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Drive gear

-

Non corrosion resistant steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Other consumable materials are given in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Magnetizing unitLOCALMagnetizing unit
Demagnetizing unitLOCALDemagnetizing unit
Hot oil tankLOCALHot oil tank
Pressure shotpeen systemLOCALPressure shotpeen system
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glassLOCALMagnifying glass
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 01-023 CHROMIUM TRIOXIDE CrO3(CHROM.ACID)LOCALCoMat 01-023
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030
CoMat 10-023 MINERAL OIL73277CoMat 10-023

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-28-320-069 Machine the Rear Bearing Journal

    1. Refer to Figure.

      2. Machine the rear bearing journal.

      1. Remove all damage and wear.

      2. Keep the removal of material to the minimum necessary to remove the damage.

      3. The preplating dimension must be between 2.1248 to 2.1157 in. (53.970 to 53.739 mm).

      4. Surface rough must be 32 microinch (0.8 micron) before plating.

    2. SUBTASK 72-60-28-240-059 Examine the Gear

      1. Do the magnetic particle inspection for cracks.

      1. Refer to the SPM TASK 70-24-01-240-501.

      2. No cracks are permitted.

    3. SUBTASK 72-60-28-210-055 Nital Etch the Rear Bearing Journal

      1. Do the nital etch on the rear bearing journal to find sign of burned metal.

      1. Refer to the SPM TASK 70-21-02-210-501.

      2. Machine the rear bearing journal if there are signs of burnt metal.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    4. SUBTASK 72-60-28-370-063 Do the De-embrittlement Treatment

      1. Put the gear into oil at 284 deg F (140 deg C) for 2 hours.

      1. Use a hot oil tank.

      2. Do this process as soon as possible in less than 2 hours after the etch.

    5. SUBTASK 72-60-28-380-055 Shot-peen the Rear Bearing Journal

      1. Shot-peen the rear bearing journal to an intensity of 6 to 8 A.

      1. Refer to the SPM TASK 70-38-04-300-503.

    6. SUBTASK 72-60-28-110-059 Clean the Gear

      1. Do the vapor degreasing.

      1. Refer to the SPM TASK 70-11-01-300-503.

    7. SUBTASK 72-60-28-230-063 Chromium Plate the Rear Bearing Journal

    1. Refer to Figure.

      2. Mask the areas of the gear not to be plated.

      3. Do the chromium plating.

      1. Refer to the SPM TASK 70-33-02-330-501.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions.

      3. The plating out of the bearing journal area is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the gear.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    8. SUBTASK 72-60-28-370-064 De-embrittle the Gear

      1. Put the gear into the oven at 284 to 320 deg F (140 to 160 deg C) for 5 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    9. SUBTASK 72-60-28-220-098 Examine the Plating

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No bubbles or sign of burned metal are permitted.

    10. SUBTASK 72-60-28-320-070 Machine the Rear Bearing Journal

    1. Refer to Figure.

      2. Machine the rear bearing journal.

      1. The last dimension must be between 2.1275 to 2.1268 in. (54.039 to 54.020 mm).

      2. Clean up the edges of groove and chamfers, where necessary.

    11. SUBTASK 72-60-28-220-099 Examine the Chromium Plated Area

      1. Do the visual inspection of chromium plated area for cracks and adhesion.

      1. Use a 5X magnifying glass.

      2. The natural network crack, emphasized by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in. (0.025 mm) after the last machining.

    12. SUBTASK 72-60-28-350-069 Record the Repair

      1. Vibro engrave VRS5164 adjacent to the part number.

      1. Remove metal lifted by marking.

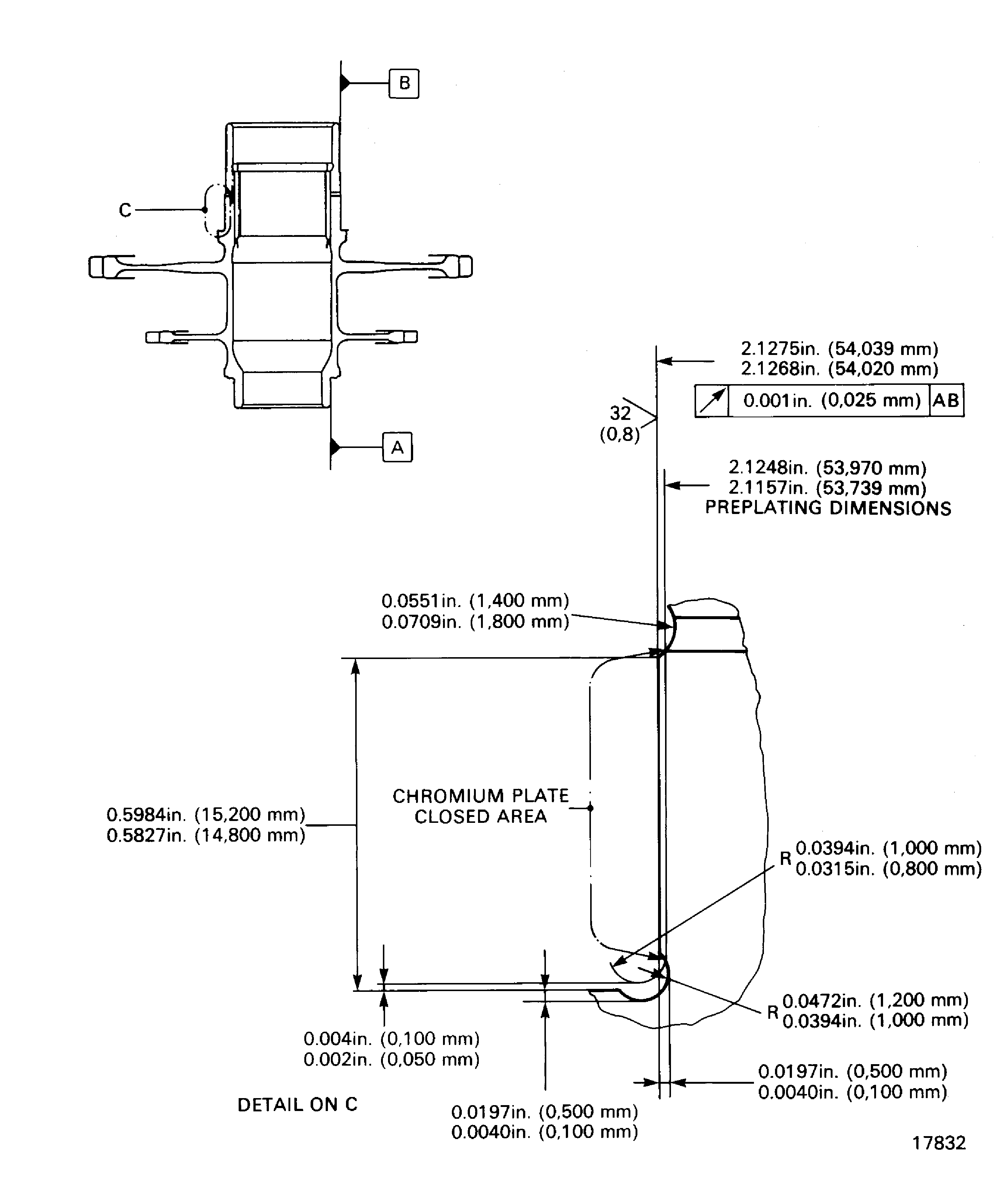

    13. Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
