TASK 72-60-29-200-008 Deoiler Nut - Examine, Inspection-008
General
This TASK gives the procedure for the inspection of the nut. For other parts of the deoiler gear and impeller refer to TASK 72-60-29-200-000 (INSPECTION).
Fig/item numbers in parentheses in the procedure agree with those used in the IPC.
The policy that is necessary is given in the SPM TASK 70-20-00-200-501.
All parts that must be cleaned before any part is examined refer to the SPM TASK 70-10-00-100-501.
All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.
A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.
All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
References
Refer to the SPM for data on these items.
Definition of Damage, TASK 70-02-02-350-501.
Record and Control of Lives of the Parts, TASK 70-05-00-220-501.
Inspection of Parts, TASK 70-20-00-200-501.
Some data on these items is contained in this TASK. For more data on these items refer to the SPM.
Surface protection.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Workshop inspection equipment | LOCAL | Workshop inspection equipment | ||
| Magnetizing unit | LOCAL | Magnetizing unit | ||
| Demagnetizing unit | LOCAL | Demagnetizing unit |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to TASK 72-60-29-100-000 (CLEANING-000).
Clean the parts.
Do the test for cracks on the parts below.
PART IDENT
PROCEDURE
CURRENT/INSPECT
TASK/SUBTASK
Nut
TB
300 amp
TASK 70-24-01-240-501 SUBTASK 70-24-01-240-011
SUBTASK 72-60-29-240-063 Do a Crack test of the Nut (01-170) (Magnetic)
Refer to Figure.
SUBTASK 72-60-29-220-151 Examine the Nut (01-170) Treads, Location 1
Refer to Figure.
Repair, VRS5666 TASK 72-60-29-300-039 (REPAIR-039).
Nicks, burrs, rolled metal, galling, flatness, scoring, damage on the surface
SUBTASK 72-60-29-220-152 Examine the Nut (01-170) Washer Face, Location 2
Refer to Figure.
Repair, VRS5666 TASK 72-60-29-300-039 (REPAIR-039)
Nicks, burrs, rolled metal, galling, flatness, scoring, damage on the surface.
SUBTASK 72-60-29-220-153 Examine the Nut (01-170) Wrenching slot, Location 3

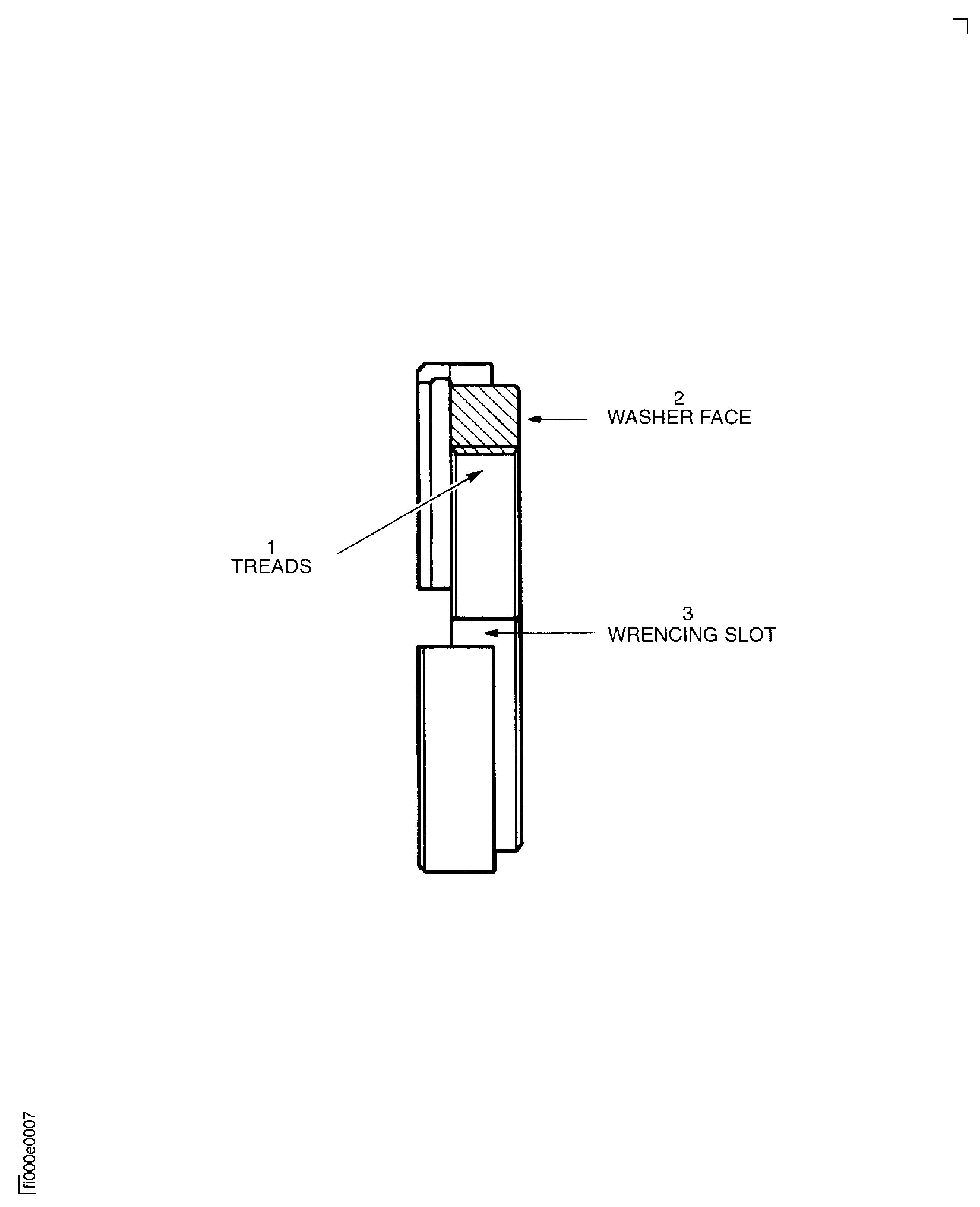

Figure: Locations - Nut
Locations - Nut
