TASK 72-60-31-300-003 Deoiler Casing - Replace The Damaged Or Loose Helicoil Inserts, Repair-003 (VRS5434)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to TASK 70-35-08-300-501, SUBTASK 70-35-08-350-001.
Remove the helicoil insert.
Continue with this helicoil replacement repair.
Not damaged:
Do a double helical insert repair. Refer to Repair,VRS5712 TASK 72-60-31-300-005 (REPAIR-005).
Damaged:
Examine the thread(s) of the hole(s) for damage.
SUBTASK 72-60-31-350-053 Remove the Helicoil Insert
Do the touch up process if the anodic treatment has been damaged by insert removal.
Refer to the SPM TASK 70-38-02-300-503 SUBTASK 70-38-02-350-002.
Inspect the casing in the area of the hole.
SUBTASK 72-60-31-330-052 Restore the Damaged Anodic Treatment
Refer to Figure.
Refer to the SPM TASK 70-35-08-300-501 SUBTASK 70-35-08-350-002.
Install the helicoil insert.
SUBTASK 72-60-31-350-054 Install the New Helicoil Insert
Refer to the SPM TASK 70-23-05-230-501.
Do a crack test on the repaired area.
SUBTASK 72-60-31-230-051 Crack Test the Repaired Area
Do the touch up process if the anodic treatment has been damaged by the insert installation.
Refer to the SPM TASK 70-38-02-300-503 SUBTASK 70-38-02-350-002.
Inspect the casing in the area of the hole.
SUBTASK 72-60-31-330-053 Restore the Damaged Anodic Treatment
Refer to the SPM TASK 70-35-08-300-501 SUBTASK 70-35-08-220-001.
Do an inspection of the new helicoil insert.
SUBTASK 72-60-31-220-074 Inspect the Insert

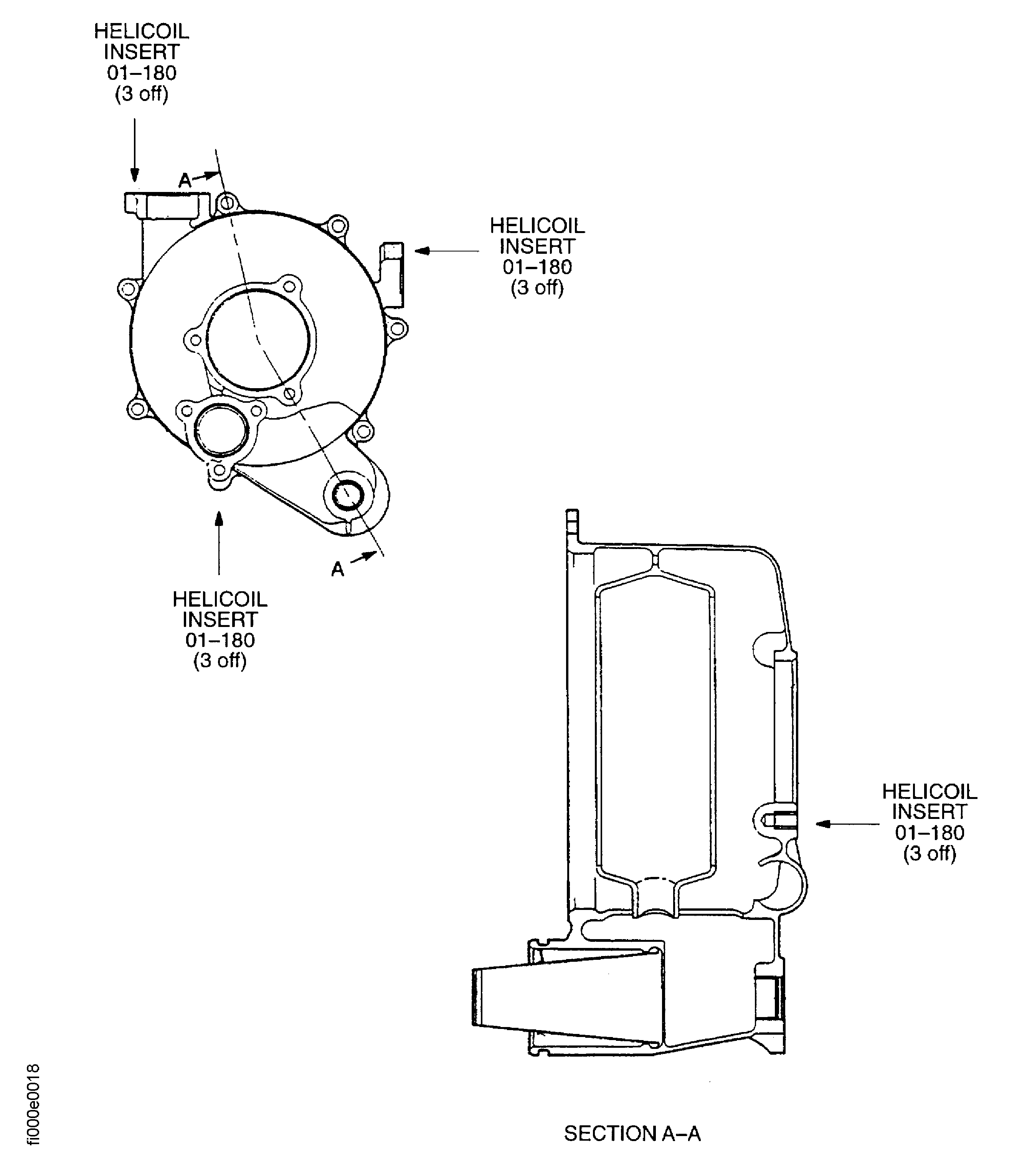

Figure: Repair details and dimensions
Repair details and dimensions
