TASK 72-60-33-300-011 PMA Support - Chromium Plate The Rear Snap Diameter, Repair-011 (VRS5184)

DMC:V2500-A0-72-60-3304-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-33-300-011 PMA Support - Chromium Plate The Rear Snap Diameter, Repair-011 (VRS5184)

Effectivity

FIG/ITEM

PART NO.

01-420

4B0289

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

PMA support

-

17-4PH

(AMS 5622)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Magnetizing unitLOCALMagnetizing unit
Demagnetizing unitLOCALDemagnetizing unit
Pressure shotpeen systemLOCALPressure shotpeen system
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
FurnaceLOCALFurnace
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 01-022 SODIUM HYDROXIDE NaOH (SOLID)LOCALCoMat 01-022
CoMat 01-023 CHROMIUM TRIOXIDE CrO3(CHROM.ACID)LOCALCoMat 01-023
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-33-320-053 Machine the Rear Snap Diameter

    1. Refer to Figure.

      2. Machine the rear snap diameter.

      1. Remove all damage and wear.

      2. Keep the removal of material to the minimum necessary to remove the damage.

      3. The preplating diameter must be between 3.1856 and 3.1772 in. (80.915 and 80.700 mm).

      4. Surface rough must be 32 micro in. (0.8 micron) before plating.

    2. SUBTASK 72-60-33-240-054 Examine the PMA Support

      1. Do the magnetic particle inspection for cracks.

      1. Refer to the SPM TASK 70-24-01-240-501.

      2. No cracks are permitted.

    3. SUBTASK 72-60-33-380-051 Shot-peen the Rear Snap Diameter

      1. Shot-peen the rear snap diameter to an intensity of 0.006A to 0.008A in.

      1. Refer to the SPM TASK 70-38-04-300-503.

    4. SUBTASK 72-60-33-110-054 Clean the PMA Support

      1. Do the vapor degreasing.

      1. Refer to the SPM TASK 70-11-01-300-503.

    5. SUBTASK 72-60-33-330-052 Chromium Plate the Rear Snap Diameter

    1. Refer to Figure.

      2. Apply a mask to the areas not to be plated.

      3. Do the chromium plating.

      1. Refer to the SPM TASK 70-33-02-330-501.

      2. Plate to a sufficient thickness to permit the machining to the last dimension.

      3. The plate out of the rear snap diameter area is permitted but must be removed.

    4. Remove the mask.

      5. Clean the dry the PMA support.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    6. SUBTASK 72-60-33-370-053 De-embrittle the PMA Support

      1. Put the PMA support into a furnace at 284 to 320 deg F (140 to 160 deg C) for 5 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    7. SUBTASK 72-60-33-220-076 Examine the Plating

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have constant color.

      2. No bubbles or sign of burned metal are permitted.

    8. SUBTASK 72-60-33-320-054 Machine the Rear Snap Diameter

    1. Refer to Figure.

      2. Machine the rear snap diameter.

      1. The last dimension of the rear snap diameter must be between 3.1890 and 3.1876 in. (81.000 and 80.965 mm).

      2. Clean up the edges of groove and chamfers, where necessary.

    9. SUBTASK 72-60-33-220-077 Examine the Chromium Plated Area

      1. Do the visual inspection of the chromium plated area for cracks and adhesion.

      2. The natural network crack, emphasized by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in. (0.025 mm) after the last machining.

    10. SUBTASK 72-60-33-350-055 Record the Repair

      1. Vibro engrave VRS5184 adjacent to the part number.

      2. Remove the metal lifted by marking the number.

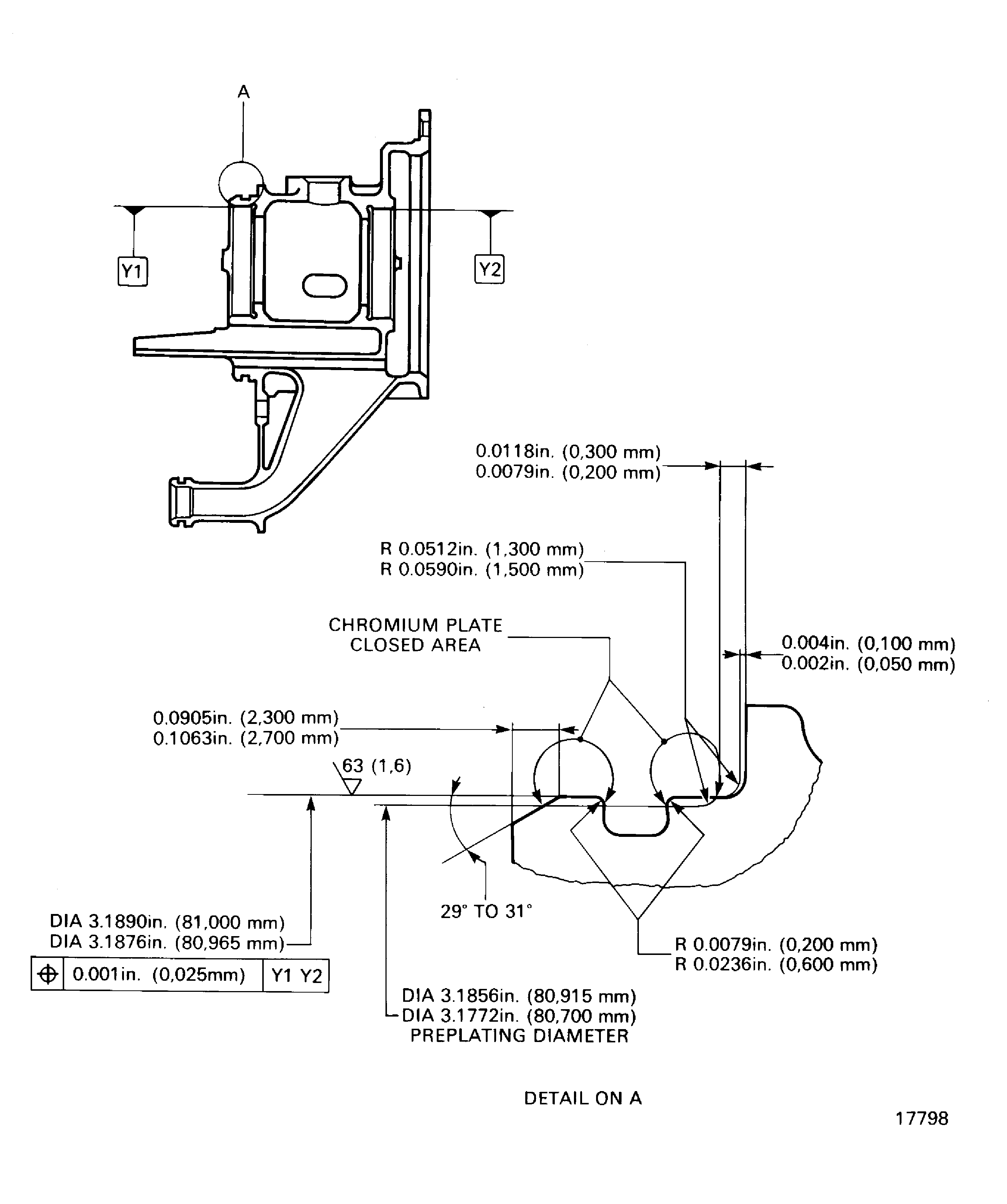

    11. Figure: Chromium plate the rear snap diameter

    Chromium plate the rear snap diameter

Requirements After Job Completion

Follow-On Conditions

NONE
