TASK 72-60-33-300-016 PMA Support - Chromium Plate The Scavenge Pipe Fitting Outer Diameter, Repair-016 (VRS5189)

DMC:V2500-A0-72-60-3304-05A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-33-300-016 PMA Support - Chromium Plate The Scavenge Pipe Fitting Outer Diameter, Repair-016 (VRS5189)

Effectivity

FIG/ITEM

PART NO.

01-420

4B0289

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

PMA support

-

17-4PH

(AMS 5622)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Magnetizing unitLOCALMagnetizing unit
Demagnetizing unitLOCALDemagnetizing unit
Pressure shotpeen systemLOCALPressure shotpeen system
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
FurnaceLOCALFurnace
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 01-022 SODIUM HYDROXIDE NaOH (SOLID)LOCALCoMat 01-022
CoMat 01-023 CHROMIUM TRIOXIDE CrO3(CHROM.ACID)LOCALCoMat 01-023
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-33-320-063 Machine the Outer Diameter of the Scavenge Pipe Fitting

    1. Refer to Figure and Figure.

      2. Machine the outer diameter.

      1. Remove all damage and wear.

      2. Keep the removal of material to the minimum necessary to remove the damage.

      3. The preplating diameter must be between 0.8169 and 0.8091 in. (20.750 and 20.550 mm).

      4. Surface rough must be 32 micro in. (0.8 micron) before plating.

    2. SUBTASK 72-60-33-240-059 Examine the PMA Support

      1. Do the magnetic particle inspection for cracks.

      1. Refer to the SPM TASK 70-24-01-240-501.

    3. SUBTASK 72-60-33-380-056 Shot-peen the Outer Diameter of the Scavenge Pipe Fitting

      1. Shot-peen the outer diameter of the scavenge pipe fitting to an intensity of 0.006A to 0.008A in.

      1. Refer to the SPM TASK 70-38-04-300-503.

    4. SUBTASK 72-60-33-110-059 Clean the PMA Support

      1. Do the vapor degreasing.

      1. Refer to the SPM TASK 70-11-01-300-503.

    5. SUBTASK 72-60-33-330-057 Chromium Plate the Outer Diameter of the Scavenge Pipe Fitting

    1. Refer to Figure and Figure.

      2. Mask the areas not to be plated.

      3. Do the chromium plate.

      1. Refer to the SPM TASK 70-33-02-330-501.

      2. Plate to a sufficient thickness to permit the machining to the last dimension.

      3. The plate out of the outer diameter is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the PMA support.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    6. SUBTASK 72-60-33-370-058 De-embrittle the PMA Support

      1. Put the PMA support into a furnace at 284 to 320 deg F (140 to 160 deg C) for 5 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    7. SUBTASK 72-60-33-220-086 Examine the Plating

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have constant color.

      2. No bubbles or sign of burned metal are permitted.

    8. SUBTASK 72-60-33-320-064 Machine the Outer Diameter Surface of the Scavenge Pipe Fitting

    1. Refer to Figure.

      2. Machine the outer diameter.

      1. The last dimensions of the outer diameter must be between 0.8209 and 0.8189 in. (20.850 and 20.800 mm).

      2. Clean up the edges of groove and chamfer where necessary.

    9. SUBTASK 72-60-33-220-087 Examine the Chromium Plated Area

      1. Do the visual inspection of chromium plated area for cracks and adhesion.

      2. The natural network crack, emphasized by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in. (0.025 mm) after the last machining.

    10. SUBTASK 72-60-33-350-058 Record the Repair

      1. Vibro engrave VRS5189 adjacent to the part number.

      2. Remove the metal lifted by marking the number.

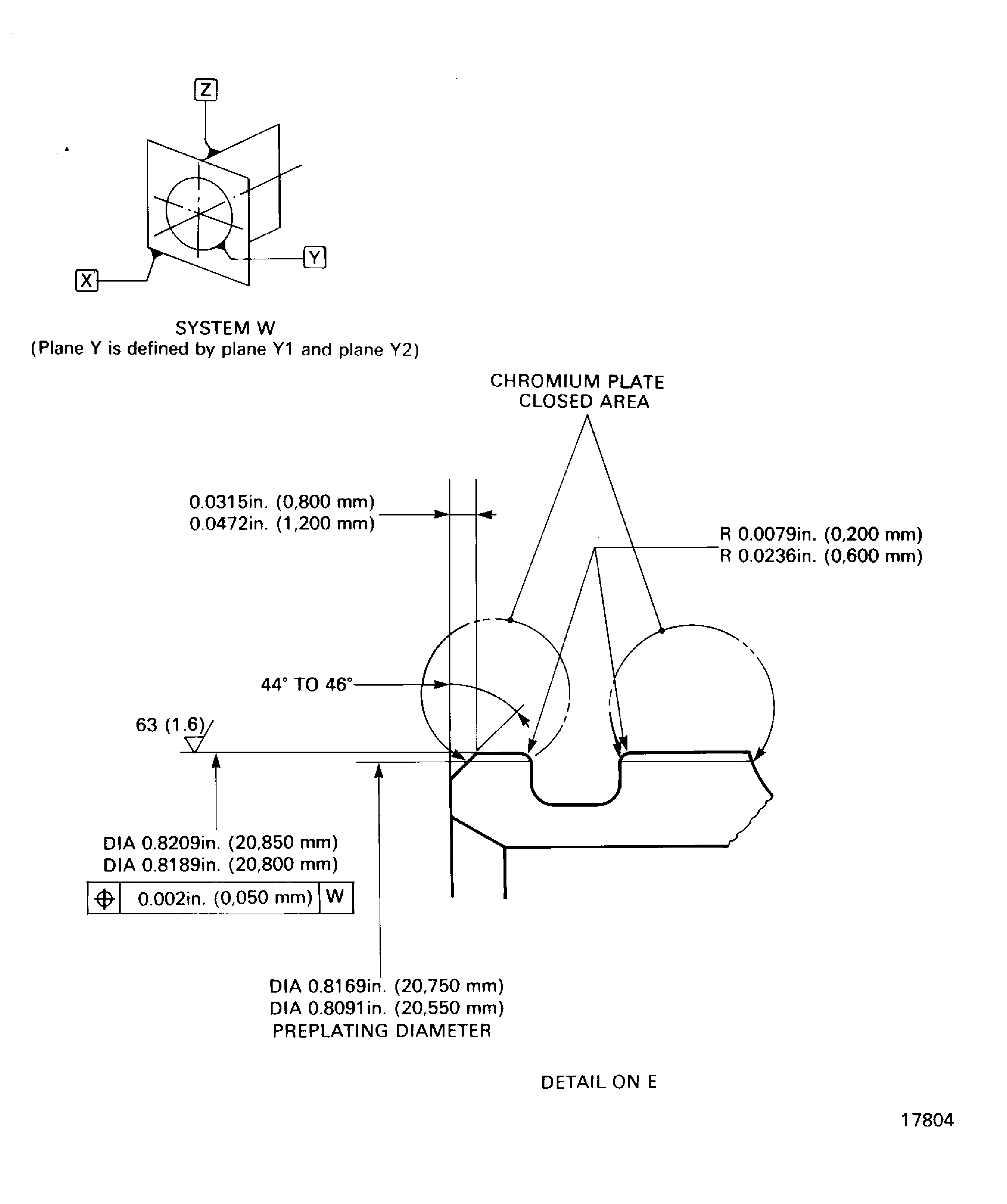

    11. Figure: Chromium plate the outer diameter

    Chromium plate the outer diameter

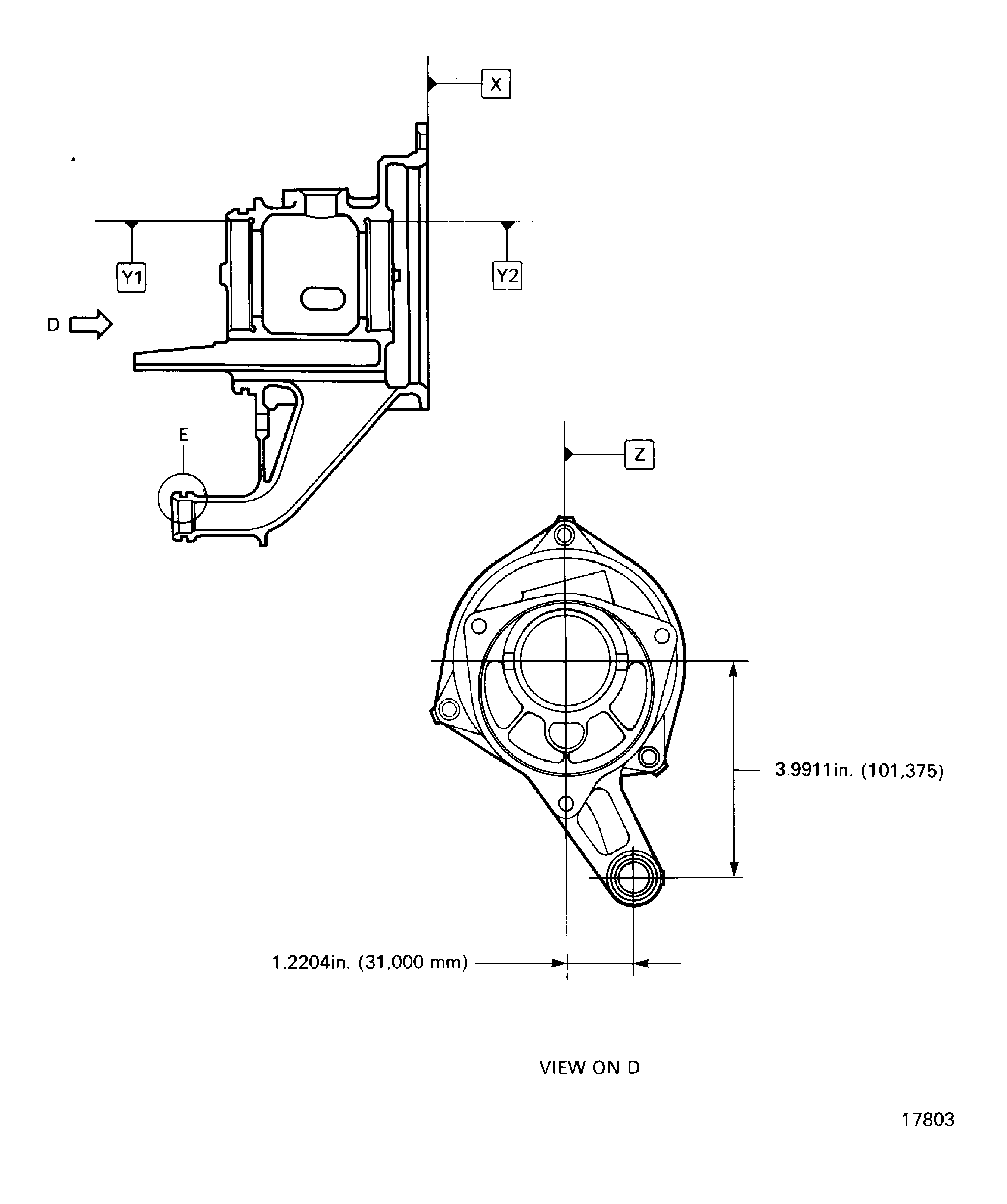

    Figure: Chromium plate the outer diameter

    Chromium plate the outer diameter
