TASK 72-60-41-300-006 Angle Gearbox Casing - Nickel Plate The Angle Gearbox Support Mating Surface, Repair-006 (VRS5102)

DMC:V2500-A0-72-60-4101-00A-647A-C|Issue No:003.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-41-300-006 Angle Gearbox Casing - Nickel Plate The Angle Gearbox Support Mating Surface, Repair-006 (VRS5102)

Effectivity

FIG/ITEM

PART NO.

01-300

4B0256

01-300

4B0354

Material of component

PART IDENT

SYMBOL

MATERIAL

Angle Gearbox Casing

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 4xLOCALMagnifying glass, 4x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-41-330-064 Remove the Studs or Helicoil Inserts

    1. Refer to Figure.

      2. Remove the studs and the lock rings or helicoil inserts.

      1. Refer to Repair, VRS5099 TASK 72-60-41-300-003 (REPAIR-003) for pre service bulletin 72-0492 parts.

      2. Refer to Repair, VRS5694 TASK 72-60-41-300-017 (REPAIR-017) for post service bulletin 72-0492 parts.

    2. SUBTASK 72-60-41-320-063 Machine the Angle Gearbox Support Mating Surface of the Angle Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the angle gearbox support mating surface.

      1. The dimension must be between 5.0748 in. to 5.1159 in (128.900 mm to 128.945 mm) in relation to point P.

      2. Remove all the damage and wear. Keep the removal of the material to the minimum necessary to remove the damage.

    3. SUBTASK 72-60-41-220-094 Examine the Angle Gearbox Casing

      1. Do the local fluorescent penetrant inspection for cracks.

      1. Refer to SPM TASK 70-23-05-230-501.

      2. No cracks are permitted.

    4. SUBTASK 72-60-41-330-065 Nickel Plate the Angle Gearbox Support Mating Surface of the Angle Gearbox Casing

    1. Refer to Figure and Figure.

      2. Mask the areas of the angle gearbox casing not to be plated.

      3. Do the nickel plating.

      1. Refer to SPM TASK 70-33-08-300-503.

      2. Plate to a sufficient thickness to permit machining to the last dimensions.

      3. The plating out of the casing mating surface is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the support.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    5. SUBTASK 72-60-41-370-005 De-embrittle the Angle Gearbox Casings

      1. Put the casing into the oven at 241 deg F to 260 deg F (116 deg C to 127 deg C) for 60 to 90 minutes.

      1. Do this process as soon as possible in less than 4 hours after the plating.

    6. SUBTASK 72-60-41-220-092 Examine the Angle Gearbox Casing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No roughness and blisters are permitted.

    7. SUBTASK 72-60-41-320-064 Machine the Angle Garbox Support Mating Surface of the Angle Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the angle gearbox support mating surface.

      1. The dimension of the angle gearbox casing must be between 5.0807 in. and 5.0768 in. (129.050 mm and 128.950 mm) in relation to point P.

      2. Chamfer where necessary.

    8. SUBTASK 72-60-41-220-093 Examine the Nickel Plated Area

    1. Refer to Figure and Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      1. Use a Magnifying glass, 4x. The natural network of crack, emphasized by grinding, is permitted.

    9. SUBTASK 72-60-41-350-073 Install the New Studs or Helicoils

    1. Refer to Figure.

      2. Install the new studs and the new lock rings or helicoils.

      1. Refer to Repair, VRS5099 TASK 72-60-41-300-003 (REPAIR-003) for pre service bulletin 72-0492 parts.

      2. Refer to Repair, VRS5694 TASK 72-60-41-300-017 (REPAIR-017) for post service bulletin 72-0492 parts.

    10. SUBTASK 72-60-41-350-074 Record the Repair

      1. Make a mark VRS5102 adjacent to the part number.

      1. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

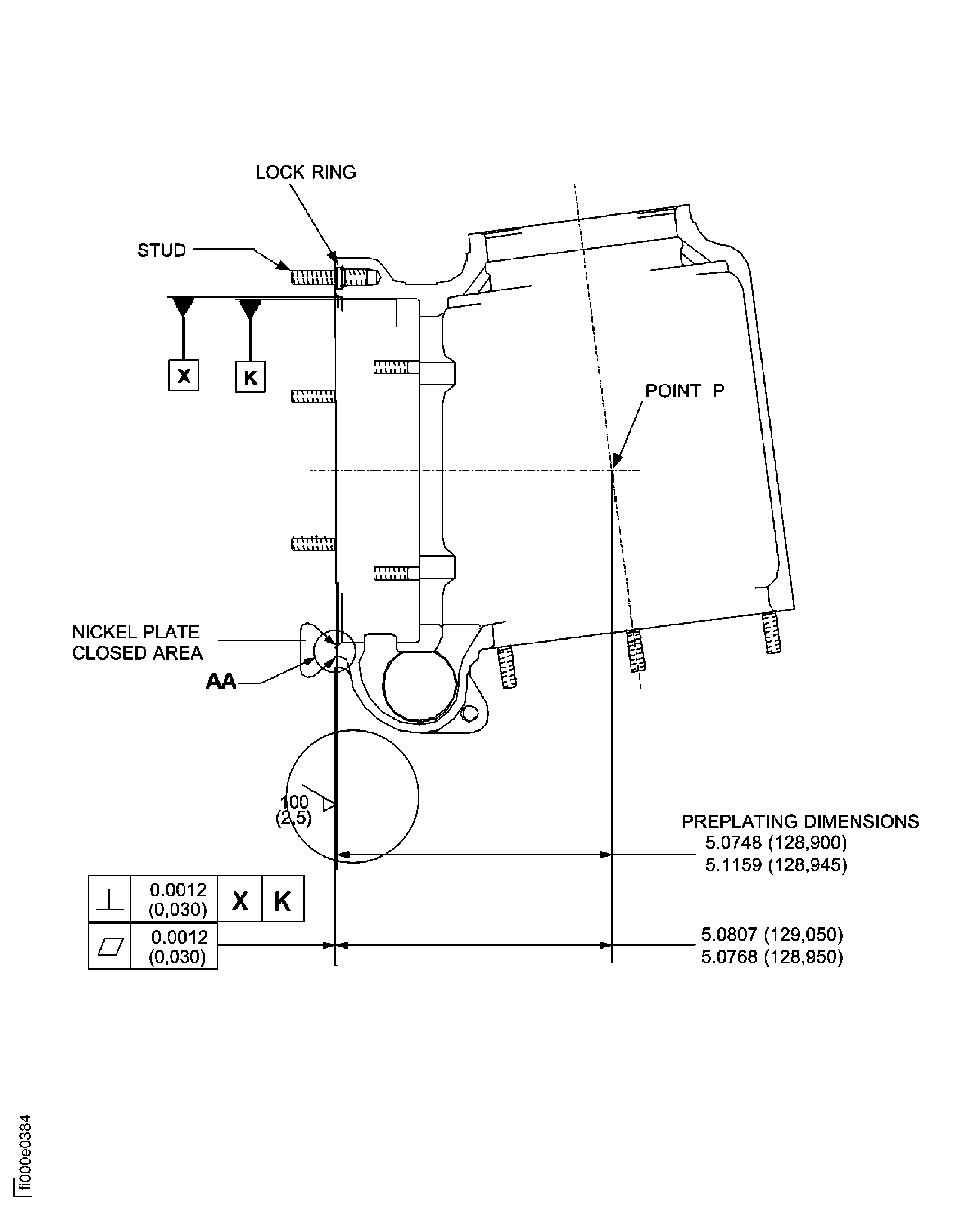

    11. Figure: Nickel plate the mating surface of the angle gearbox casing

    Nickel plate the mating surface of the angle gearbox casing

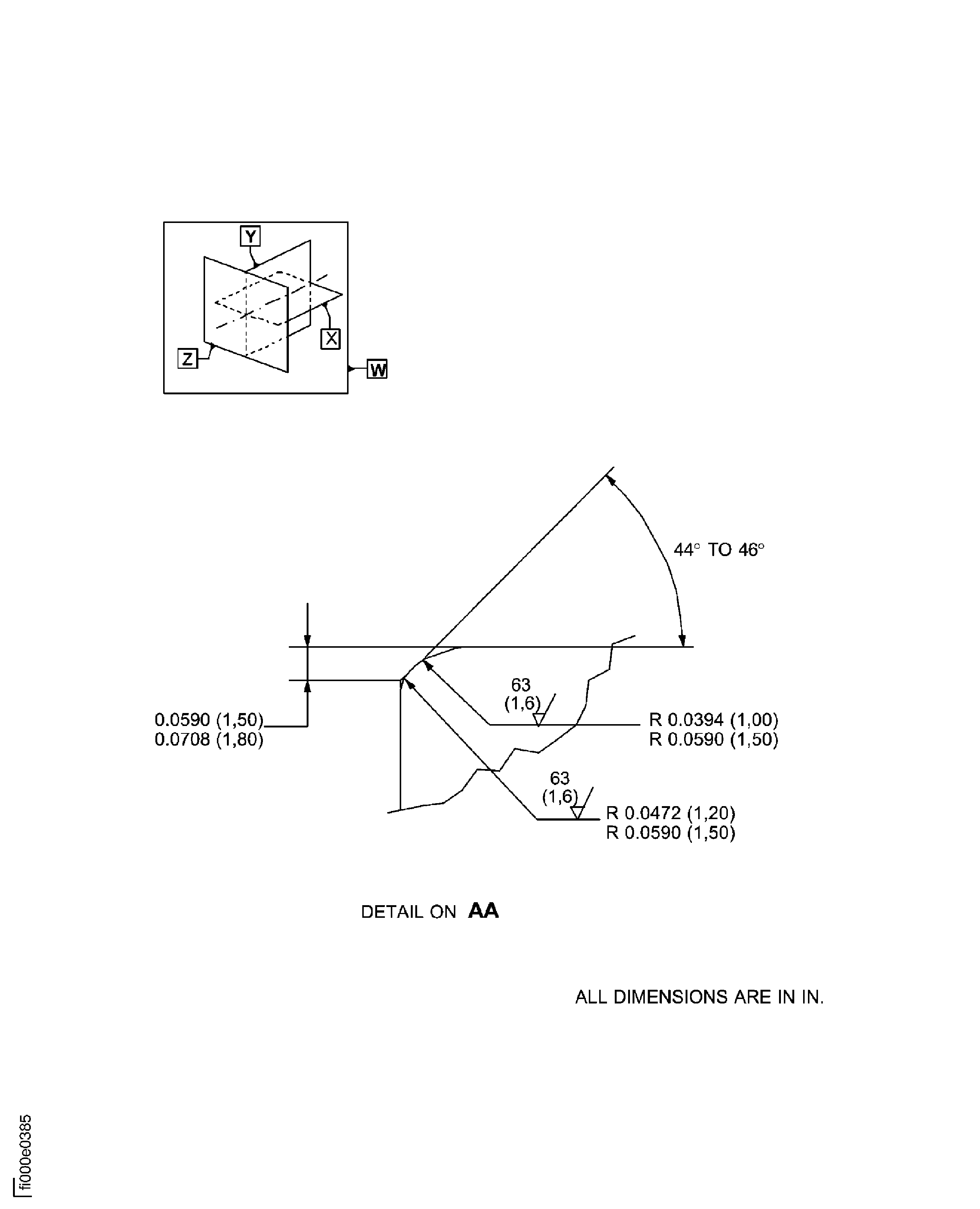

    Figure: Nickel plate the mating surface of the angle gearbox casing

    Nickel plate the mating surface of the angle gearbox casing

Requirements After Job Completion

Follow-On Conditions

NONE
