TASK 72-60-43-300-005 Angle Gearbox Driven Bevel Gearshaft - Chromium Plate The Roller Bearing Shoulder, Repair-005 (VRS5202)

DMC:V2500-A0-72-60-4301-02A-647A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-43-300-005 Angle Gearbox Driven Bevel Gearshaft - Chromium Plate The Roller Bearing Shoulder, Repair-005 (VRS5202)

Effectivity

FIG/ITEM

PART NO.

01-420

4P0224

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Bevel radial gearshaft

Wrought alloy steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.
Other consumable materials are given in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Magnetizing unitLOCALMagnetizing unit
Demagnetizing unitLOCALDemagnetizing unit
Hot oil tankLOCALHot oil tank
Pressure shotpeen systemLOCALPressure shotpeen system
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
OvenLOCALOven
Process Plating TanksLOCALProcess plating tanks
Magnifying glassLOCALMagnifying glass
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 01-023 CHROMIUM TRIOXIDE CrO3(CHROM.ACID)K6835CoMat 01-023
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 05-029 CAST STEEL SHOT, S110LOCALCoMat 05-029
CoMat 10-023 MINERAL OIL73277CoMat 10-023

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-43-320-057 Machine the Roller Bearing Shoulder

    1. Refer to Figure.

      2. Measure dimension D.

      1. Measure dimension D and record it.

      3. Machine the roller bearing shoulder.

      2. Remove all of the damage and wear.

      3. Keep the removal of material to the minimum necessary to remove the damage.

      4. Do not remove more than 0.0053 in. (0.135 mm).

      5. Surface rough must be 32 microinch (0.8 micron) before plating.

      4. Measure dimension D.

      1. The value must be 1.2860 in. (32.665 mm) minimum.

      2. Reject the gearshaft if the dimension D is less than the minimum value.

    2. SUBTASK 72-60-43-240-056 Examine the Bevel Gearshaft

      1. Do the magnetic particle inspection for cracks.

      2. Refer to the SPM TASK 70-24-01-240-501.

      3. No cracks are permitted.

    3. SUBTASK 72-60-43-210-053 Nital Etch the Roller Bearing Shoulder

      1. Do the nital etch on the roller bearing shoulder to find sign of burning.

      1. Refer to the SPM TASK 70-21-02-210-501.

      2. Machine the roller bearing journal if there are signs of burnt metal.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    4. SUBTASK 72-60-43-370-056 De-embrittle the Bevel Gearshaft

      1. Put the bevel gearshaft onto oil at 284 deg F (140 deg C) for 2 hours.

      1. Use a hot oil tank.

      2. Do this procedure as soon as possible in less than 2 hours after the etch.

    5. SUBTASK 72-60-43-380-053 Shot-peen the Roller Bearing Shoulder

      1. Shot-peen the roller bearing shoulder to an intensity of 0.006A to 0.008A in.

      2. Refer to the SPM TASK 70-38-04-300-503.

    6. SUBTASK 72-60-43-110-055 Clean the Bevel Gearshaft

      1. WARNING

        WHEN YOU USE COMAT 01-001 INHIBITED AND STABILIZED TRICHLOROETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Do the vapor degreasing.

      2. Refer to the SPM TASK 70-11-01-300-503.

    7. SUBTASK 72-60-43-330-054 Chromium Plate the Roller Bearing Shoulder

    1. Refer to Figure.

      2. Mask the areas not to be plated.

      3. Do the chromium plate.

      2. Refer to the SPM TASK 70-33-02-330-501.

      3. Plate to a sufficient thickness to permit the machining to the last dimension.

      4. The plating out of the roller bearing shoulder is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the bevel gearshaft.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    8. SUBTASK 72-60-43-370-057 De-embrittle the Bevel Gearshaft

      1. Put the bevel gearshaft into an oven at 284 to 320 deg F (140 to 160 deg C) for 5 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    9. SUBTASK 72-60-43-220-067 Examine the Plating

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Use process plating tanks.

      2. Plating must have constant color.

      3. No bubbles or sign of burnt metal are permitted.

    10. SUBTASK 72-60-43-420-058 Machine the Roller Bearing Shoulder

    1. Refer to Figure.

      2. Machine the roller bearing shoulder.

      1. The new value must be within plus or minus 0.0006 in. (0.015 mm) in relation to dimension D measured in Step.

      2. The new value must be more than 1.2913 in. (32.800 mm).

      3. Clean up the edges of the groove and chamfer where necessary.

    11. SUBTASK 72-60-43-220-068 Examine the Chromium Plated Area

      1. Do the visual inspection of the chromium plated area for cracks and adhesion.

      2. The natural network crack, emphazied by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in. (0.025 mm) after the last machining.

    12. SUBTASK 72-60-43-350-055 Record the Repair

      1. Vibro engrave VRS5202 adjacent to the part number.

      2. Remove the metal lifted by marking the number.

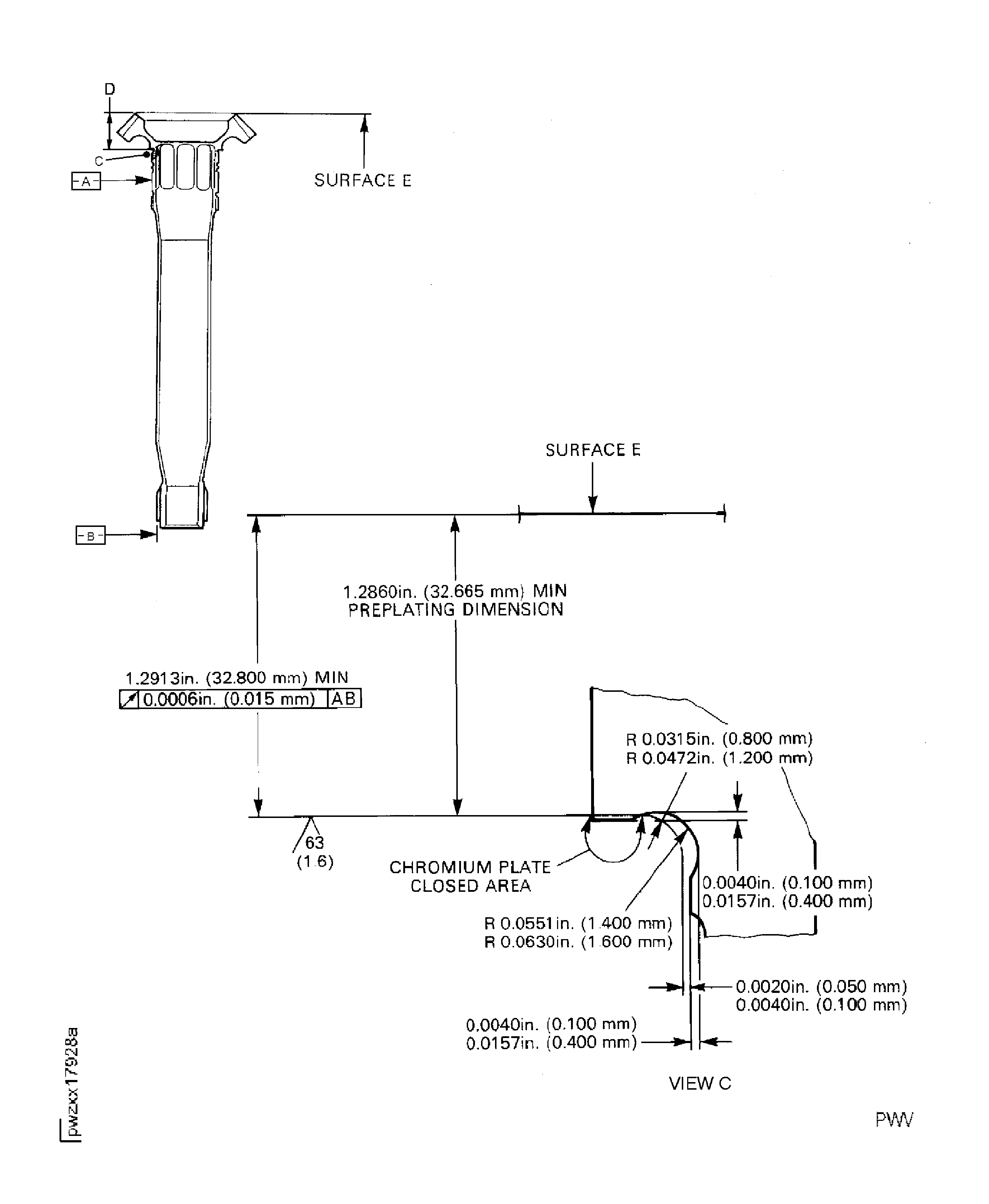

    13. Figure: Chromium Plate the Roller Bearing Shoulder

    Chromium Plate the Roller Bearing Shoulder

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised figure 1. (15VC769)
