TASK 73-13-41-200-404 Fuel Nozzle And Support Assembly - Related Parts - Examine The Brackets, Inspection-004

DMC:V2500-A0-73-13-4100-04A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-13-41-200-404 Fuel Nozzle And Support Assembly - Related Parts - Examine The Brackets, Inspection-004

Effectivity

FIG/ITEM

PART NO.

01-260

5W8360

01-260

6A5555

General

This TASK gives the procedure for the inspection of the brackets.

Fig/item numbers in parentheses in the procedure agree with those used in IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All parts must be cleaned before any part is examined. Refer to Cleaning-000 TASK 73-13-41-100-400.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step

Do the test before the parts are visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-13-41-230-053 Examine the Brackets (01-260) for Cracks

    1. Clean the parts. Refer to Cleaning-000 TASK 73-13-41-100-400.

      For the method to clean the parts, refer to the SPM TASK 70-11-14-300-503.

      2. Do the test for cracks on parts that are given below.

        1. Bracket

          1. Refer to SPM TASK 70-23-01-230-501.

            1. Cracked

            1. Reject

    2. SUBTASK 73-13-41-220-071 Examine the Brackets (01-260) Bolt Holes

    1. Refer to Figure.

      2. Worn

        1. The worn hole is less than one point two times of nominal diameter and the distance between the worn hole and the edge of the bracket is more than 0.066 in. (1.68 mm).

        1. Accept

        2. Other than in Step.

        1. Reject

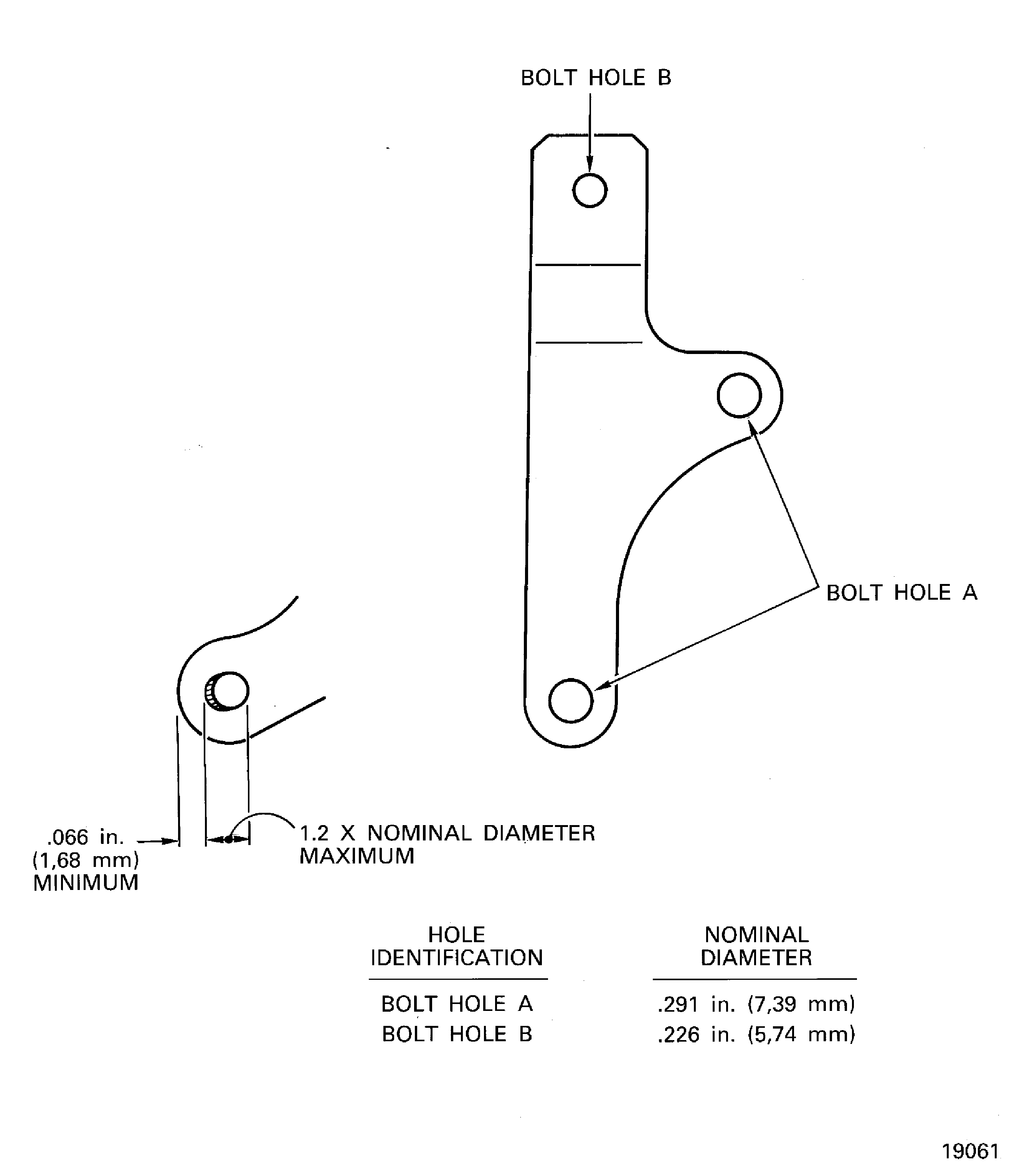

    3. Figure: Bolt Holes

    Bolt Holes

Requirements After Job Completion

Follow-On Conditions

NONE
