TASK 73-22-34-840-001 EEC And Terminal Block Assembly - Related Parts - Rework The EEC Support Assembly Alignment Holes, Rework-001 - SBE 73-0016

DMC:V2500-A0-73-22-3400-00A-933A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-22-34-840-001 EEC And Terminal Block Assembly - Related Parts - Rework The EEC Support Assembly Alignment Holes, Rework-001 - SBE 73-0016

Effectivity

FIG/ITEM

PART NO.

01-010

2A1349-01

01-060

2A0954-01

01-120

2A0955-01

01-180

2A0956-01

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Refer to the indicated Service Bulletin for special application requirements.

Expendable Parts

73-22-34,01-020

Rivet

4 off

73-22-34,01-100

Rivet

4 off

73-22-34,01-160

Rivet

4 off

73-22-34,01-198

Rivet

4 off

73-22-34,01-040

Nut option

4 off

73-22-34,01-080

Nut option

4 off

73-22-34,01-140

Nut option

4 off

73-22-34,01-200

Nut option

4 off

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-22-34-390-051 Remove the Floating Nut Plate (01-010)

      1. Remove the two rivets that hold the floating nut plate lugs on the support assembly.

      1. Refer to Figure.

      2. Remove the rivets by the procedure given in Repair, VRS3348 (Repair-005) TASK 73-22-34-300-005.

    2. SUBTASK 73-22-34-320-051 Machine the Support Alignment Hole Diameter (01-010)

      1. Set-up and machine the support to Diameter G given the figure

      1. Refer to Figure requirements.

    3. SUBTASK 73-22-34-390-052 Install the New Floating Nut Plate (01-010)

      1. Install the PN 744382 floating nut plate 1 off on the support with PN AS3228-102 rivets 2 off.

      1. Refer to Figure.

      2. Install the rivets by the procedure given in Repair, VRS3348 (Repair-005) TASK 73-22-34-300-005.

    4. SUBTASK 73-22-34-350-059 Identify the EEC Support Assembly (01-010) with the New Part Number

    1. Mark the new part number adjacent to the part number that was there before. Use the vibration peen method.

      2. Refer to Figure.

        NUMBER BEFORE - 2A1349-01

        NEW NUMBER - 2A1370-01

      1. Refer to procedure given in SPM TASK 70-09-00-400-501.

    5. SUBTASK 73-22-34-390-053 Remove the Floating Nut Plate (01-060)

      1. Remove the two rivets that hold the floating nut plate lugs on the support assembly.

      1. Refer to Figure.

      2. Remove the rivets by the procedure given in Repair, VRS3349 (Repair-006) TASK 73-22-34-300-006.

    6. SUBTASK 73-22-34-320-052 Machine the Support Alignment Hole Diameter (01-060)

      1. Set-up and machine the support to Diameter D given the figure.

      1. Refer to Figure requirements.

    7. SUBTASK 73-22-34-390-054 Install the New Floating Nut Plate (01-060)

      1. Install the PN 744382 floating nut plate 1 off on the support with PN AS3228-102 rivets 2 off.

      1. Refer to Figure.

      2. Install the rivets by the procedure given in Repair, VRS3349 (Repair-006) TASK 73-22-34-300-006.

    8. SUBTASK 73-22-34-350-060 Identify the EEC Support Assembly (01-060) with the New Part Number

    1. Mark the new part number adjacent to the part number that was there before. Use the vibration peen method.

      2. Refer to Figure.

        NUMBER BEFORE - 2A0954-01

        NEW NUMBER - 2A1367-01

      1. Refer to procedure given in SPM TASK 70-09-00-400-501.

    9. SUBTASK 73-22-34-390-055 Remove the Floating Nut Plate (01-120)

      1. Remove the two rivets that hold the floating nut plate lugs on the support assembly.

      1. Refer to Figure.

      2. Remove the rivets by the procedure given in Repair, VRS3350 (Repair-007) TASK 73-22-34-300-007.

    10. SUBTASK 73-22-34-320-053 Machine the Support Alignment Hole Diameter (01-120)

      1. Set-up and machine the support to Diameter E given the figure.

      1. Refer to Figure requirements.

    11. SUBTASK 73-22-34-390-056 Install the New Floating Nut Plate (01-120)

      1. Install the PN 744382 floating nut plate 1 off on the support with PN AS3230-102 rivets 2 off

      1. Refer to Figure.

      2. Install the rivets by the procedure given in Repair, VRS3350 (Repair-007) TASK 73-22-34-300-007.

    12. SUBTASK 73-22-34-350-061 Identify the EEC Support Assembly (01-060) with the New Part Number

    1. Mark the new part number adjacent to the part number that was there before. Use the vibration peen method.

      2. Refer to Figure.

        NUMBER BEFORE - 2A0955-01

        NEW NUMBER - 2A1368-01

      1. Refer to procedure given in SPM TASK 70-09-00-400-501.

    13. SUBTASK 73-22-34-390-057 Remove the Floating Nut Plate (01-180)

      1. Remove the two rivets that hold the floating nut plate lugs on the support assembly

      1. Refer to Figure.

      2. Remove the rivets by the procedure given in Repair, VRS3351 (Repair-008) TASK 73-22-34-300-008.

    14. SUBTASK 73-22-34-320-054 Machine the Support Alignment Hole Diameter (01-180)

      1. Set-up and machine the support to Diameter F given the figure.

      1. Refer to Figure requirements.

    15. SUBTASK 73-22-34-390-058 Install the New Floating Nut Plate (01-180)

      1. Install the PN 744382 floating nut plate 1 off on the support with PN AS3230-102 rivets 2 off.

      1. Refer to Figure.

      2. Install the rivets by the procedure given in Repair, VRS3351 (Repair-008) TASK 73-22-34-300-008.

    16. SUBTASK 73-22-34-350-062 Identify the EEC Support Assembly (01-180) with the New Part Number

    1. Mark the new part number adjacent to the part number that was there before. Use the vibration peen method.

      2. Refer to Figure.

        NUMBER BEFORE - 2A0956-01

        NEW NUMBER - 2A1369-01

      1. Refer to procedure given in SPM TASK 70-09-00-400-501.

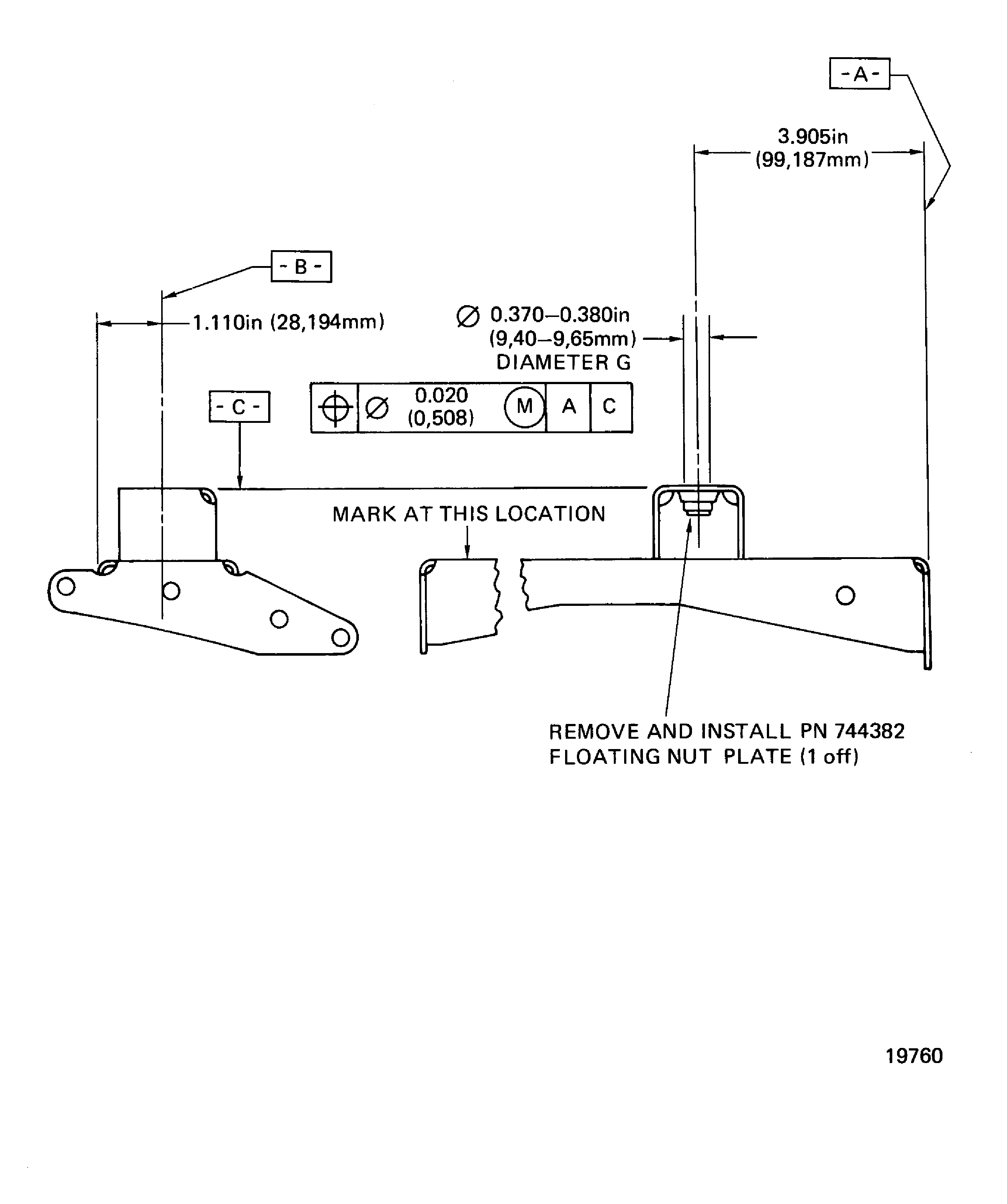

    17. Figure: Rework of PN 2A1349-01 (01-010) EEC Support Assembly

    Rework of PN 2A1349-01 (01-010) EEC Support Assembly

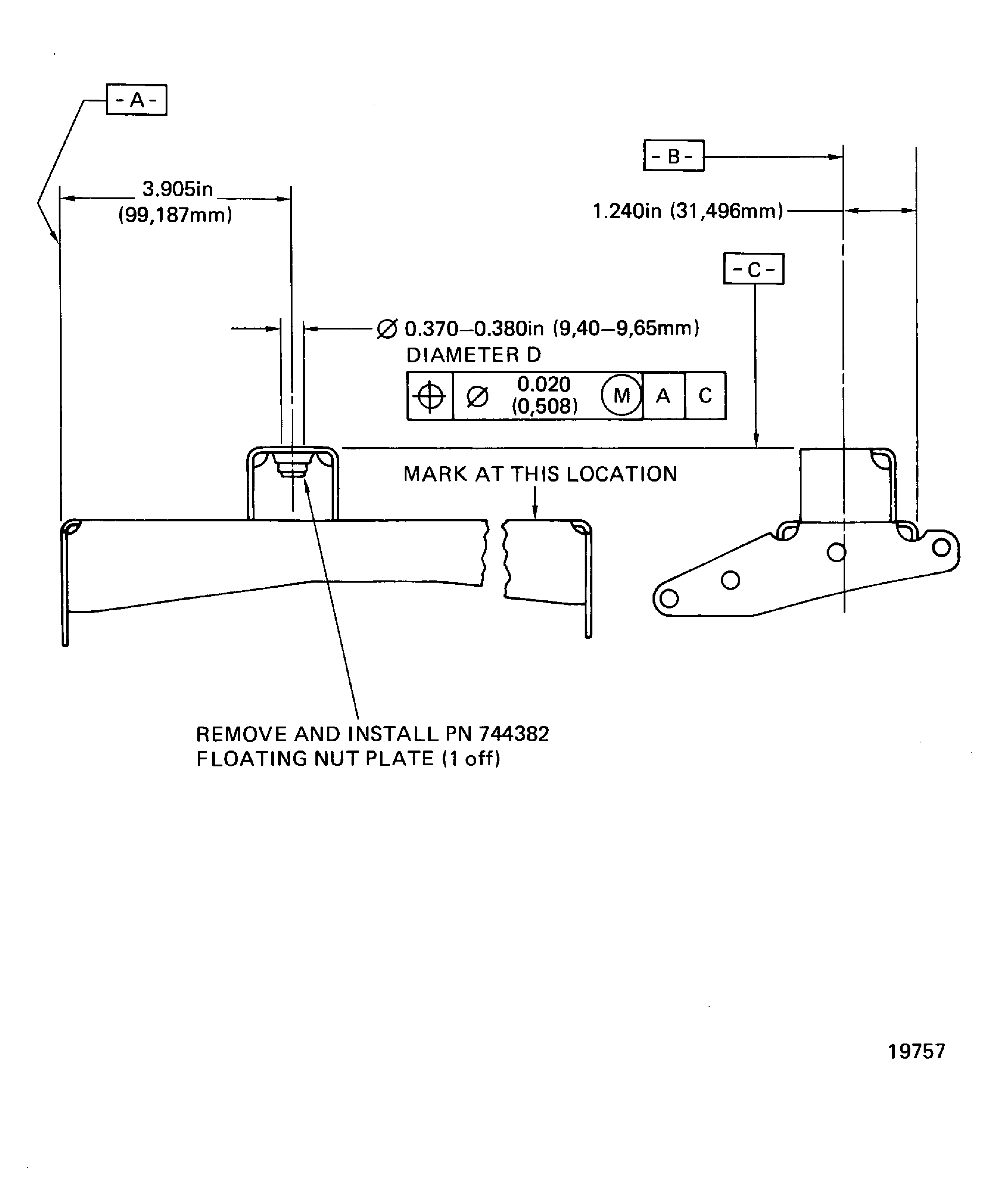

    Figure: Rework of PN 2A0954-01 (01-060) EEC Support Assembly

    Rework of PN 2A0954-01 (01-060) EEC Support Assembly

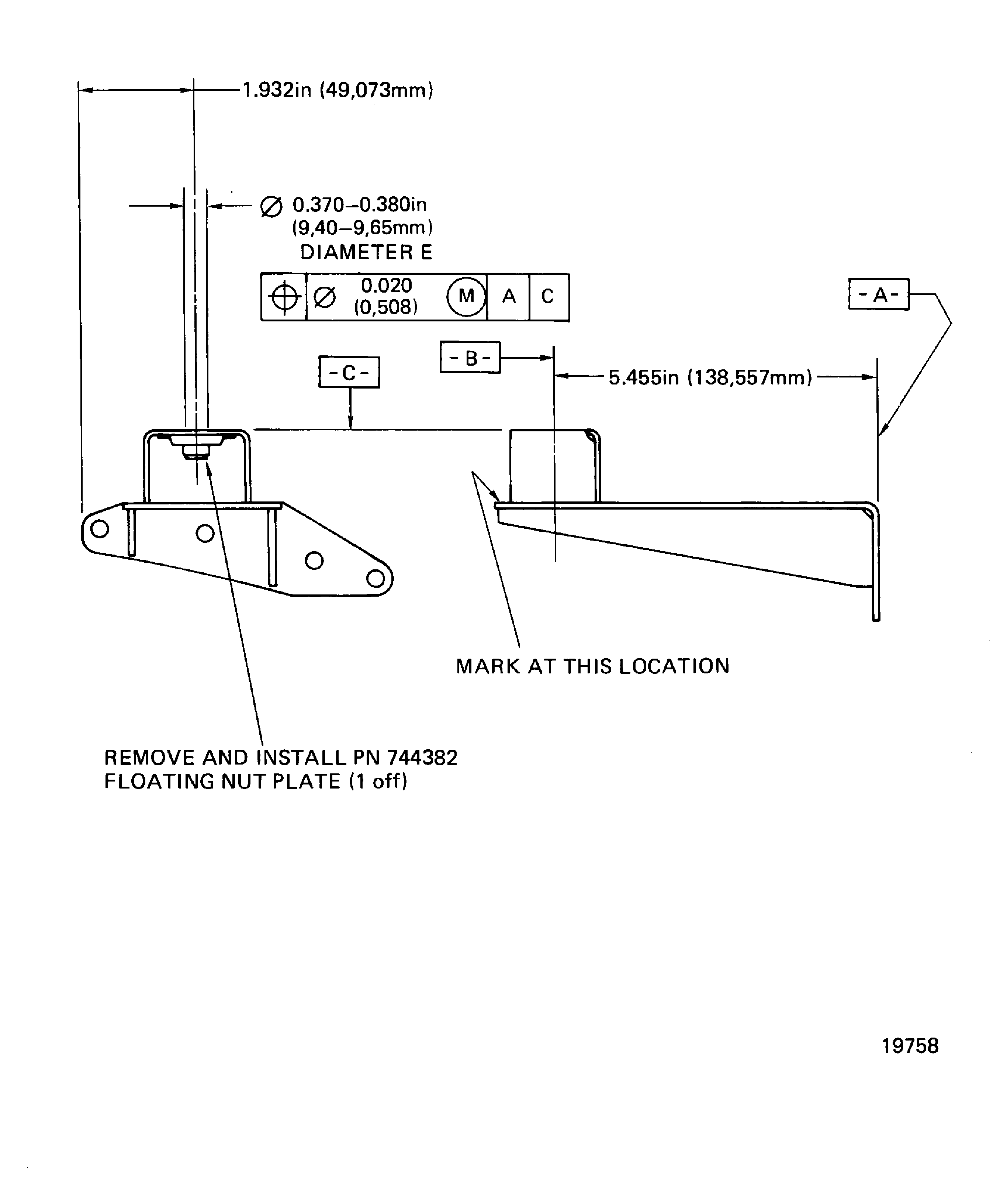

    Figure: Rework of PN 2A0955-01 (01-120) EEC Support Assembly

    Rework of PN 2A0955-01 (01-120) EEC Support Assembly

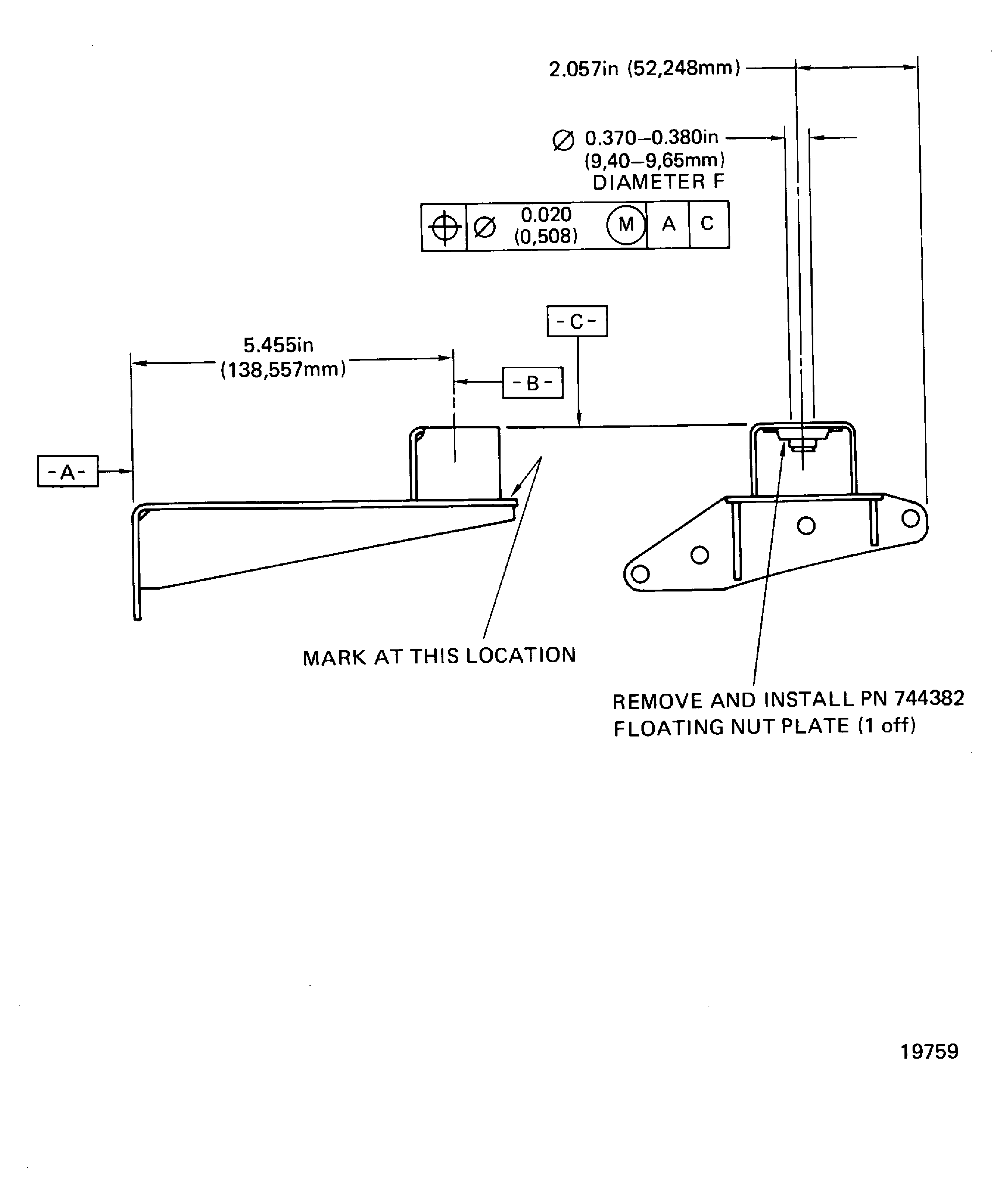

    Figure: Rework of PN 2A0956-01 (01-180) EEC Support Assembly

    Rework of PN 2A0956-01 (01-180) EEC Support Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
