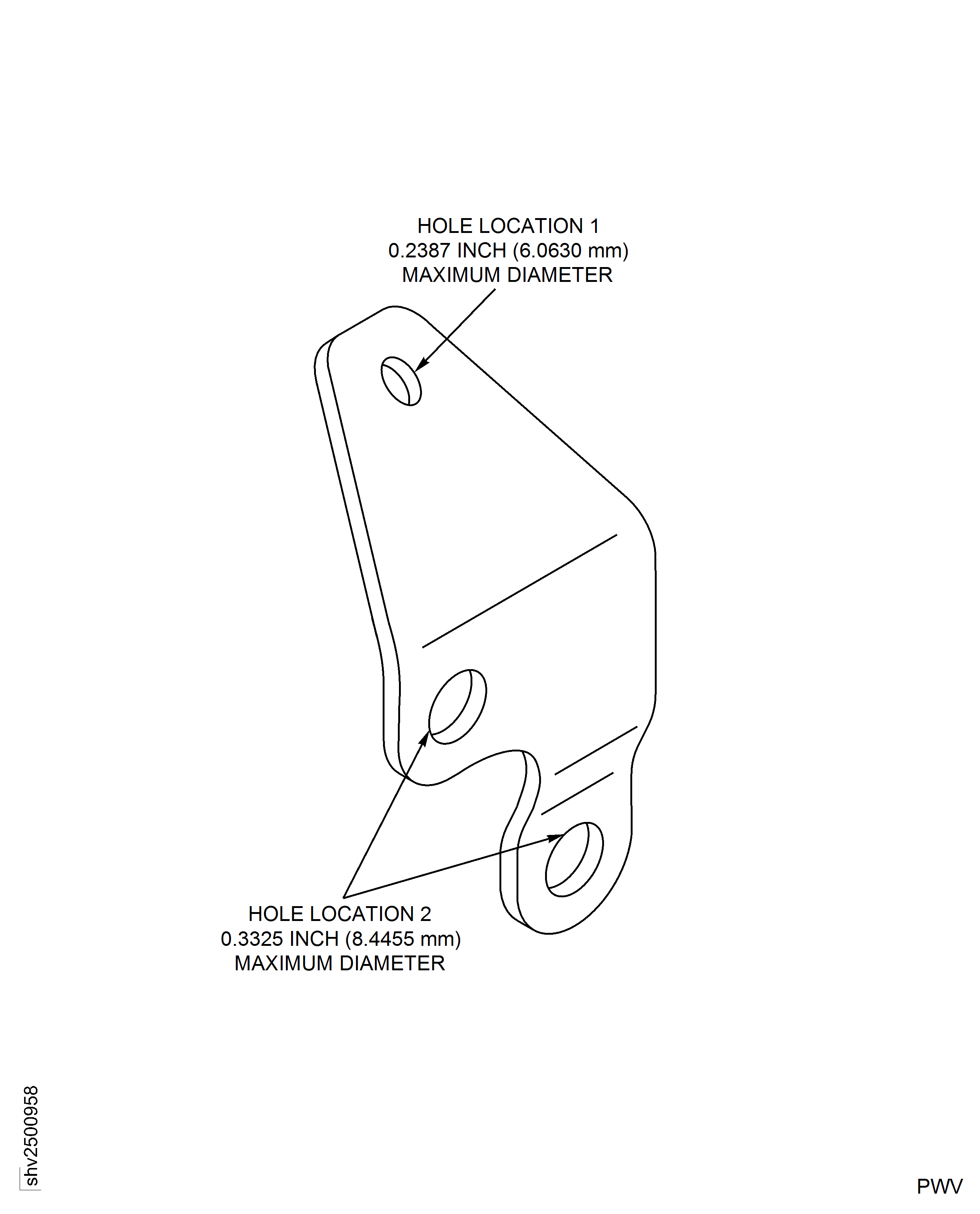

This TASK gives the procedure for the inspection of the bearing compartment and sealing tubes steel brackets. For the bearing compartment and sealing tubes and other parts, refer to TASK 75-22-49-200-400 (INSPECTION-000) and TASK 75-22-49-200-100 (INSPECTION-000) in Component Maintenance Manual (CMM-THD-V2500-1IA).

Fig./item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig./item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before the part is examined. Refer to TASK 75-22-49-100-400 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in relevant SUBTASK. Do the crack test before the part is visually examined.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which must be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in SPM.

The consumable materials are given in the related SPM TASK.

Refer to SPM for data on these items:

Some data on these items is contained in this TASK. For more data on these items refer to SPM.
