TASK 75-23-49-200-101 Turbine Cooling Air (TCA) Supply Air Tubes - Examine The Nickel Alloy Tubes, Inspection-001

DMC:V2500-A0-75-23-4900-03A-310A-C|Issue No:002.00|Issue Date:2016-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-23-49-200-101 Turbine Cooling Air (TCA) Supply Air Tubes - Examine The Nickel Alloy Tubes, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

2A1492

01-100

6A8597

01-500

2A0711

02-100

2A0749

02-100

6A8596

02-500

2A1493

02-500

6A8598

General

This TASK gives the procedure to clean the PS3 cooling air tube. For the other turbine cooling controlled air tube parts, refer to Inspection-000 TASK 75-23-49-200-100 and Inspection-000 in the Component Maintenance Manual (CMM-MECH-V2500-1IA).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to Cleaning-000 TASK 75-23-49-100-100.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which must be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

NOTE

To identify consumable materials refer to the PCI.

References

Refer to the SPM for data on these items.

Definitions of Damage - Specified Types of Damage, SPM TASK 70-02-02-350-501.

Inspection Policy and Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of testing for crack indications

Chemical processes

Surface protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-018 FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)37676CoMat 06-018

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-23-49-230-051 Examine the PS3 Cooling Tubes for Cracks

    1. Clean the part. Refer to Cleaning-000 TASK 75-23-49-100-100.

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

      1. TCA supply tubes (75-23-49,01-100), (75-23-49,01-500), (75-23-49,02-100) and (75-23-49,02-500)

        2. Refer to SPM TASK 70-23-05-230-501.

          1. Use CoMat 06-018 FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY) all butt welded joints and brazed sleeves.

            1. Cracked

            1. Reject

    2. SUBTASK 75-23-49-220-055 Examine the TCA Supply Tubes Surfaces

    1. Refer to Figure.

      2. Examine all the surfaces

        1. Pitted

          1. Not more than 0.0010 in. (0.025 mm) in depth, 0.062 in. (1.57 mm) in length and 0.010 in. (0.25 mm) in width.

          1. Accept

          2. Maximum of three pits per each 2.00 in. (50.8 mm) in length of tubing, not more than 0.0030 in. (0.076 mm) in depth, 0.062 in. (1.60 mm) in length, 0.010 in. (0.25 mm) in width and no other pits in 0.1250 in. (3.175 mm) area.

          1. Accept

          3. Other than Step or Step.

          1. Repair, VRS1600, (Repair-001) TASK 75-23-49-300-001.

        2. Scratched/Scored

          1. Not more than 0.0030 in. (0.075 mm) in depth.

          1. Accept

          2. More than Step.

          1. Reject

        3. Dented

          1. Maximum of two dents per each 12.00 in. (304.8 mm) in length of tubing, not more than five percent of the nominal tube OD in depth.

          1. Accept

          2. Other than Step.

          1. Repair, VRS1600, (Repair-001) TASK 75-23-49-300-001.

        4. Wrinkle

          1. Maximum of three wrinkles per part, not more than 0.020 in. (0.50 mm) from height of peak to depth of valley distance.

          1. Accept

          2. More than Step.

          1. Reject

    3. SUBTASK 75-23-49-220-056 Examine the TCA Supply Tubes Flanges

    1. Refer to Figure.

      2. Examine the flanges at locations 1 and 2.

        1. Damaged

          1. On the flat face flange.

          1. Repair, VRS1600, (Repair-001) TASK 75-23-49-300-001.

          2. On the spot facing flange.

          1. Repair, VRS1600, (Repair-001) TASK 75-23-49-300-001.

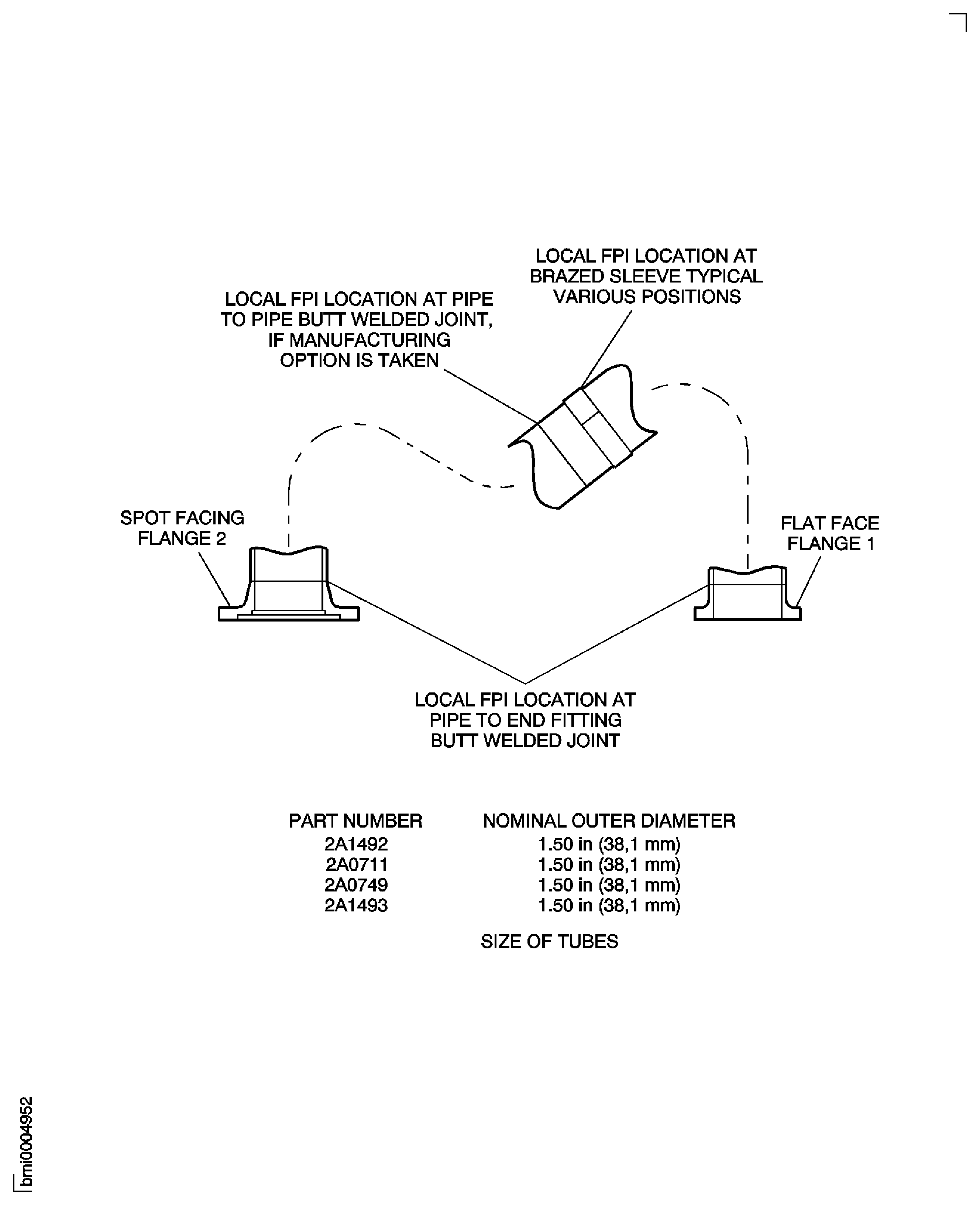

    4. Figure: Inspection Of The TCA Supply Tubes

    Inspection Of The TCA Supply Tubes

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Updated typo errors in repair call outs, changed VRS1660 to VRS1600 (CAS-23037-T4K7K7)

Manufacturer Code:37676
Enterprise Name:ITW MAGNAFLUX
BU Name:MAGNAFLUX CORPORATION
Street:155 HARLEM AVE
City:GLENVIEW
State:IL
Zip Code:60025
Country:USA
Phone Number:1-847-657-5300
Fax Number:1-847-867-5388
Internet:www.magnaflux.com
Manufacturer Code:X222X
Supply Number:CoMat 06-018
Type:sp01
Supply Short Name:CoMat 06-018FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)
Supply Name:CoMat 06-018 FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)
Specification Groups:
Doc NumberType
It is not permitted to mix the selected CoMat 06‐018 letter suffix material with other CoMat 06‐018 letter suffix materials. Where CoMat 06‐018 is specified with no suffix, use one of the CoMat 06‐018 letter suffix materials.
