TASK 75-24-47-200-101 ACC Supply (Front) Air Duct - Examine, Inspection-001

DMC:V2500-A0-75-24-4701-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-47-200-101 ACC Supply (Front) Air Duct - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

2A0788

General

This TASK gives the procedure for the inspection of the ACC front duct. For the other HP/LP ACC duct parts, refer to Inspection-000 TASK 75-24-47-200-100.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes.

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-47-230-051 Examine the ACC Front Duct (01-100) for Cracks

    1. Clean the part. Refer to Cleaning - 000 TASK 75-24-47-100-100.

      2. Do the crack test on the part that is given below.

        1. ACC front duct, Refer to SPM TASK 70-23-02-230-501.

          1. Cracked

          1. Reject

    2. SUBTASK 75-24-47-220-052 Examine the ACC Front Duct (01-100)

    1. Refer to Figure.

      2. Examine the flange at location 1.

        1. Out-of-flatness.

          1. Not more than 0.014 in. (0.35 mm) in out-of-flat.

          1. Accept

          2. More than in Step.

          1. Reject

        2. Worn

          1. More than 0.039 in. (1.00 mm) in remaining thickness.

          1. Accept

          2. Less than in Step.

          1. Reject

      3. Examine all the surface (Include the flanges).

        1. Dented

          1. Not more than 0.025 in. (0.63 mm) in depth.

          1. Accept

          2. From 0.025 in. (0.63 mm) to 0.04 in. (1.01 mm) in depth.

          1. Repair, VRS1505 (Repair - 001) TASK 75-24-47-300-001.

          3. More than 0.04 in. (1.01 mm) in depth.

          1. Reject

        2. Nicked

          1. Not more than 0.008 in. (0.2 mm) in depth.

          1. Accept

          2. More than in Step.

          1. Repair, VRS1505 (Repair - 001) TASK 75-24-47-300-001.

        3. Scratched

          1. Not more than 0.008 in. (0.2 mm) in depth.

          1. Accept

          2. More than in Step.

          1. Repair, VRS1505 (Repair - 001) TASK 75-24-47-300-001.

        4. Chafed

          1. Not more than 0.008 in. (0.2 mm) in depth.

          1. Accept

          2. More than in Step.

          1. Repair, VRS1505 (Repair - 001) TASK 75-24-47-300-001.

        5. Scored

          1. Not more than 0.008 in. (0.2 mm) in depth.

          1. Accept

          2. More than in Step.

          1. Repair, VRS1505 (Repair - 001) TASK 75-24-47-300-001.

        6. Distorted

          1. Not more than 0.008 in. (0.2 mm) in depth.

          1. Accept

          2. From 0.008 in. (0.2 mm) to 0.02 in. (0.5 mm) in depth.

          1. Repair, VRS1505 (Repair - 001) TASK 75-24-47-300-001.

          3. More than 0.02 in. (0.5 mm) in depth.

          1. Reject

        7. Cracked

        1. Reject

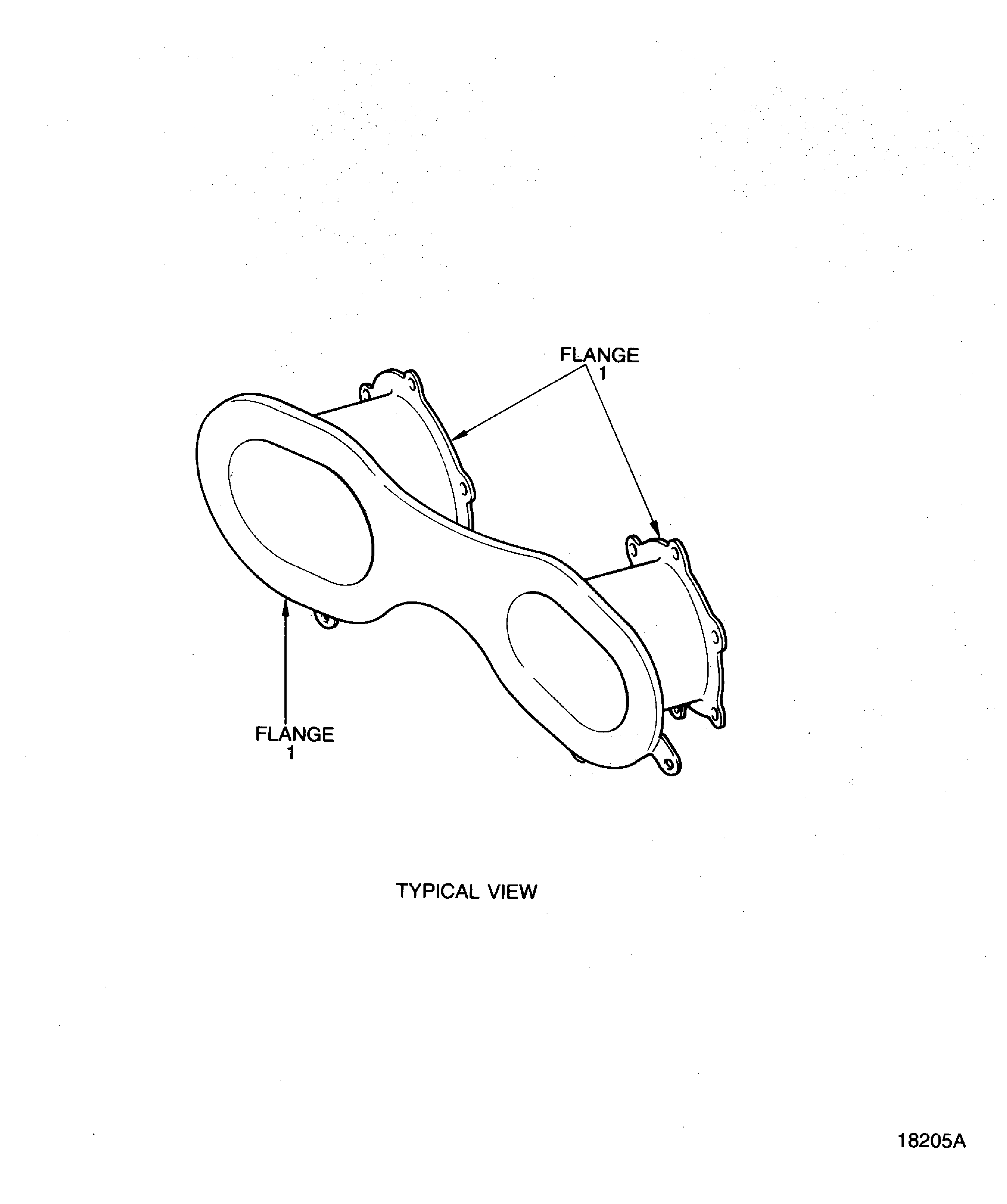

    3. Figure: Inspection of the ACC front Duct

    Inspection of the ACC front Duct

Requirements After Job Completion

Follow-On Conditions

NONE
