TASK 75-24-49-300-013 LPT ACC Support Assemblies - Replace the Inserts, Repair-013 (VRS4257)

DMC:V2500-A0-75-24-4915-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-49-300-013 LPT ACC Support Assemblies - Replace the Inserts, Repair-013 (VRS4257)

Effectivity

FIG/ITEM

PART NO.

03-490

3A0573

03-720

3A0677

02-490

3A0564

04-010

3A0568

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

Support assemblies

C 263

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

03-500

MS21209F1- 10

Screw thread insert

4

03-721

MS21209F1- 10

Screw thread insert

2

02-500

MS21209F1- 10

Screw thread insert

2

04-120

MS21209F1- 10

Screw thread insert

2

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Kit, Insert screw threadLOCALKit, Insert screw thread
Helicoil insert tapLOCALHelicoil insert tap

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-49-350-053 Remove the Damaged Screw Thread Inserts (03-500, 03-721, 02-500 and 04-120) of the Support Assemblies (03-490, 03-720, 02-490 and 04-010)

    1. Refer to Figure

      2. Remove the damaged screw thread inserts.

      1. Refer to SPM TASK 70-35-08-300-501.

    2. SUBTASK 75-24-49-220-077 Examine the Threads

    1. Refer to Figure

      2. Examine the threads in the support assemblies for damage and raised material.

      1. Damage, which does not permit the installation of the new screw thread insert is not permitted.

      2. Remove raised metal.

    3. SUBTASK 75-24-49-350-054 Install the New Screw Thread Inserts (03-500, 03-721, 02-500 and 04-120)

    1. Refer to Figure

      2. Install the new screw thread inserts to the support assemblies.

      1. Refer to SPM TASK 70-35-11-300-501.

    4. SUBTASK 75-24-49-220-078 Do the Post Repair Inspection

      1. Examine screw thread inserts for correct installation.

      1. Refer to SPM TASK 70-35-11-300-501.

      2. Use thread gage (part of the screw thread insert).

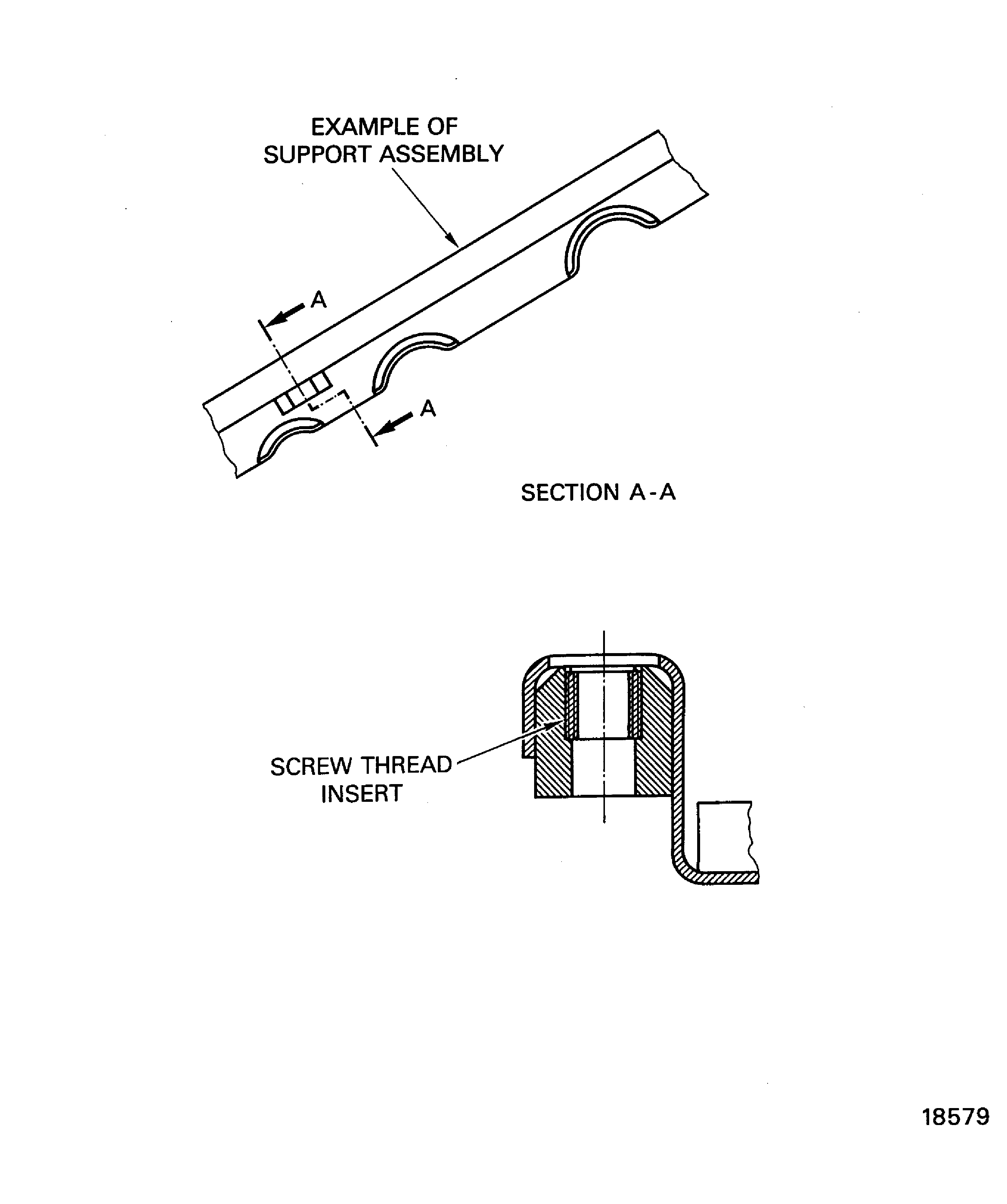

    5. Figure: Replace the Screw Thread Inserts of the Support Assemblies (ACC System)

    Replace the Screw Thread Inserts of the Support Assemblies (ACC System)

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Helicoil insert tap
Tool Name:Helicoil insert tap
Manufacturer Code:LOCAL
Tool Number:Kit, Insert screw thread
Tool Name:Kit, Insert screw thread
