TASK 75-24-51-200-403 Active Clearance Control (ACC) Valve - Related Parts - Examine The Actuator Rod, Inspection-003
General
This TASK gives the procedure for the inspection of the actuator rod. For the other active clearance control valve parts, refer to Inspection-000 TASK 75-24-51-200-400.
Fig/item numbers in parentheses in the procedure agree with those used in the IPC.
The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.
All the parts must be cleaned before the part is examined. Refer to Cleaning-000 TASK 75-24-51-100-400.
All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.
The procedure for those parts which must have a crack test is given in Step Do the test before the part is visually examined.
Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.
Parts which must be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.
All parts must be examined to make sure that all the repairs have been completed satisfactorily.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
References
Refer to the SPM for data on these items.
Definitions of Damage, SPM TASK 70-02-02-350-501.
Inspection of Parts, SPM TASK 70-20-01-200-501.
Some data on these items is contained in this TASK. For more data on these items refer to the SPM.
Method of Testing for Crack Indications
Chemical Processes
Surface Protection
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Clean the part. Refer to Cleaning-000 TASK 75-24-51-100-400.
NOTE
For the method to clean the part, refer to the SPM TASK 70-11-01-300-503.Reject
Cracked
Actuator rod. Refer to SPM TASK 70-23-05-230-501.
Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.
SUBTASK 75-24-51-230-053 Examine the Actuator Rod for Cracks
Refer to Figure.
Reject
Worn
Examine the holes at location 1.
SUBTASK 75-24-51-220-059 Examine the Actuator Rod Holes
Refer to Figure.
Repair, VRS1665 (Repair-001) TASK 75-24-51-300-001.
Any nicks
Nicked
Repair, VRS1665 (Repair-001) TASK 75-24-51-300-001.
Any dents
Dented
Repair, VRS1665 (Repair-001) TASK 75-24-51-300-001.
Any scratches
Scratched
Examine the rod surface at location 2.
Repair, VRS1665 (Repair-001) TASK 75-24-51-300-001.
Any nicks
Nicked
Repair, VRS1665 (Repair-001) TASK 75-24-51-300-001.
Any scratches
Scratched
Repair, VRS1665 (Repair-001) TASK 75-24-51-300-001.
Any galls
Galled
Examine the clevis at location 3.
SUBTASK 75-24-51-220-060 Examine the Actuator Rod Surface and Clevis

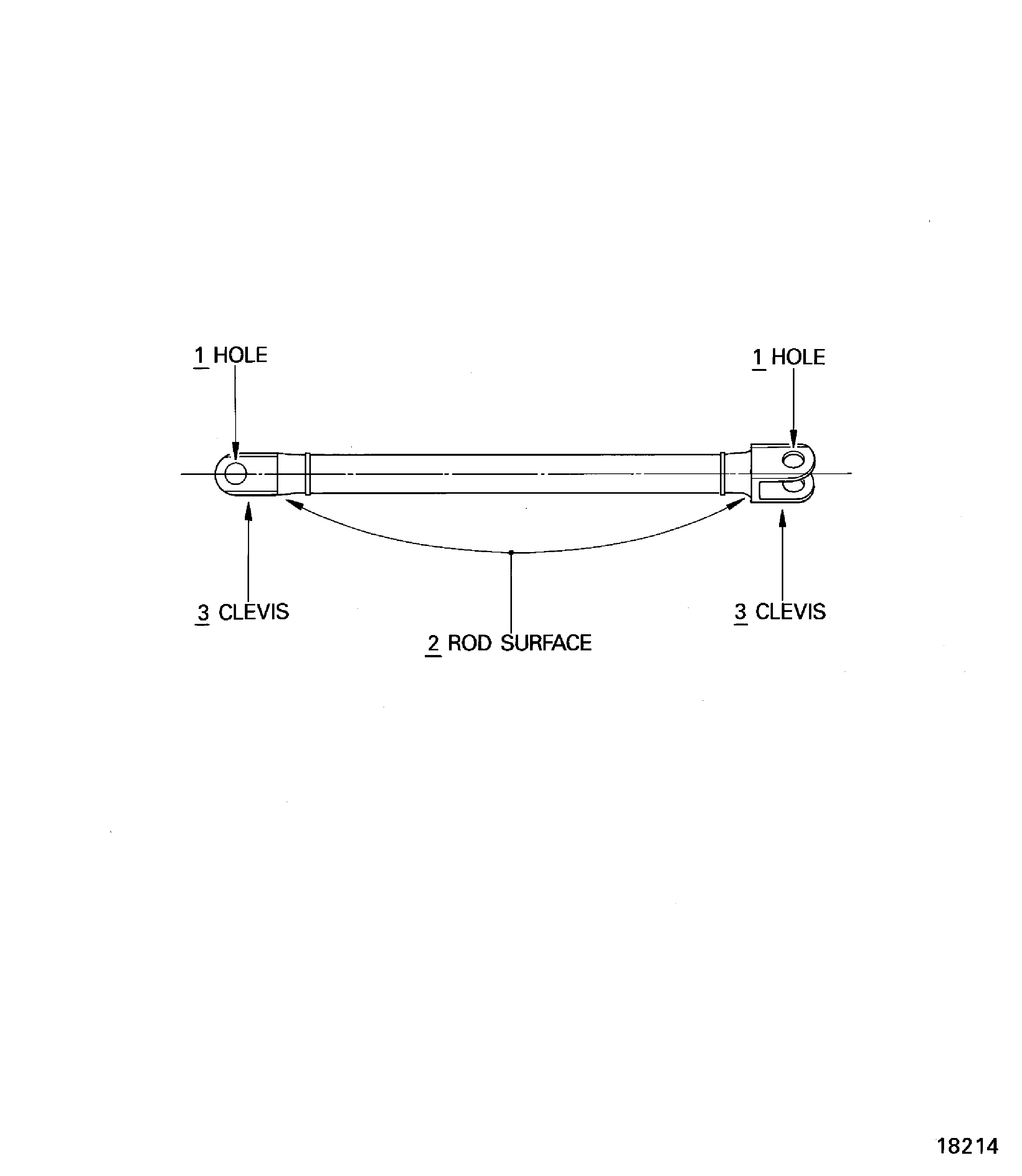

Figure: Inspection of the Actuator Rod
Inspection of the Actuator Rod
