TASK 79-22-43-300-022 Scavenge Oil Filter Housing - Related Parts - Repair The Thread Insert In The Oil Scavenge Filter Housing - Repair-022 (VRS5656)

DMC:V2500-A0-79-22-4300-07A-664A-C|Issue No:003.00|Issue Date:2015-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 79-22-43-300-022 Scavenge Oil Filter Housing - Related Parts - Repair The Thread Insert In The Oil Scavenge Filter Housing - Repair-022 (VRS5656)

Effectivity

FIG/ITEM

PART NO.

01-550

4B7215

01-550

4B7382

Material of component

PART IDENT

SYMBOL

MATERIAL

Scavenge Filter Housing

Aluminum alloy

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Twist DrillLOCALTwist Drill

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)LOCALCoMat 06-063

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
INSERT0AM53KU37022
Insert, Screw Lock0AM53AGS3732

Safety Requirements

NONE

Procedure

    1. SUBTASK 79-22-43-350-071 Remove the Insert

    1. Refer to Figure, Figure, Figure.

      2. Remove the damaged insert.

      1. Refer to SPM TASK 70-35-08-300-501, SUBTASK SPM TASK 70-35-09-350-501.

    2. SUBTASK 79-22-43-325-051 Machine the Hole

    1. Refer to Figure, Figure, Figure.

      2. Machine the damaged hole.

      1. Refer to SPM TASK 70-35-08-300-501, SUBTASK SPM TASK 70-35-09-350-501.

    3. SUBTASK 79-22-43-350-082 Crack Test the Repaired Area

    4. SUBTASK 79-22-43-350-072 Repair the Damaged Anodic Treatment

      1. Check the surface.

      1. Do the touch-up process if the anodic treatment has been damaged.

      2. Refer to SPM TASK 70-38-02-300-503.

    5. SUBTASK 79-22-43-350-073 Install the Repair Insert

      1. Install the new KU37022 repair insert.

      1. Refer to SPM TASK 70-35-08-300-501 SUBTASK 70-35-08-350-003.

    6. SUBTASK 79-22-43-350-074 Insert the Screw Lock Insert

      1. Install the new AGS3732 screw lock insert.

      1. Refer to SPM TASK 70-35-08-300-501 SUBTASK 70-35-08-350-004.

    7. SUBTASK 79-22-43-350-075 Do an Inspection of the New Insert

      1. Do an inspection of the new insert.

      1. Refer to SPM TASK 70-35-08-300-501 SUBTASK 70-35-08-220-003.

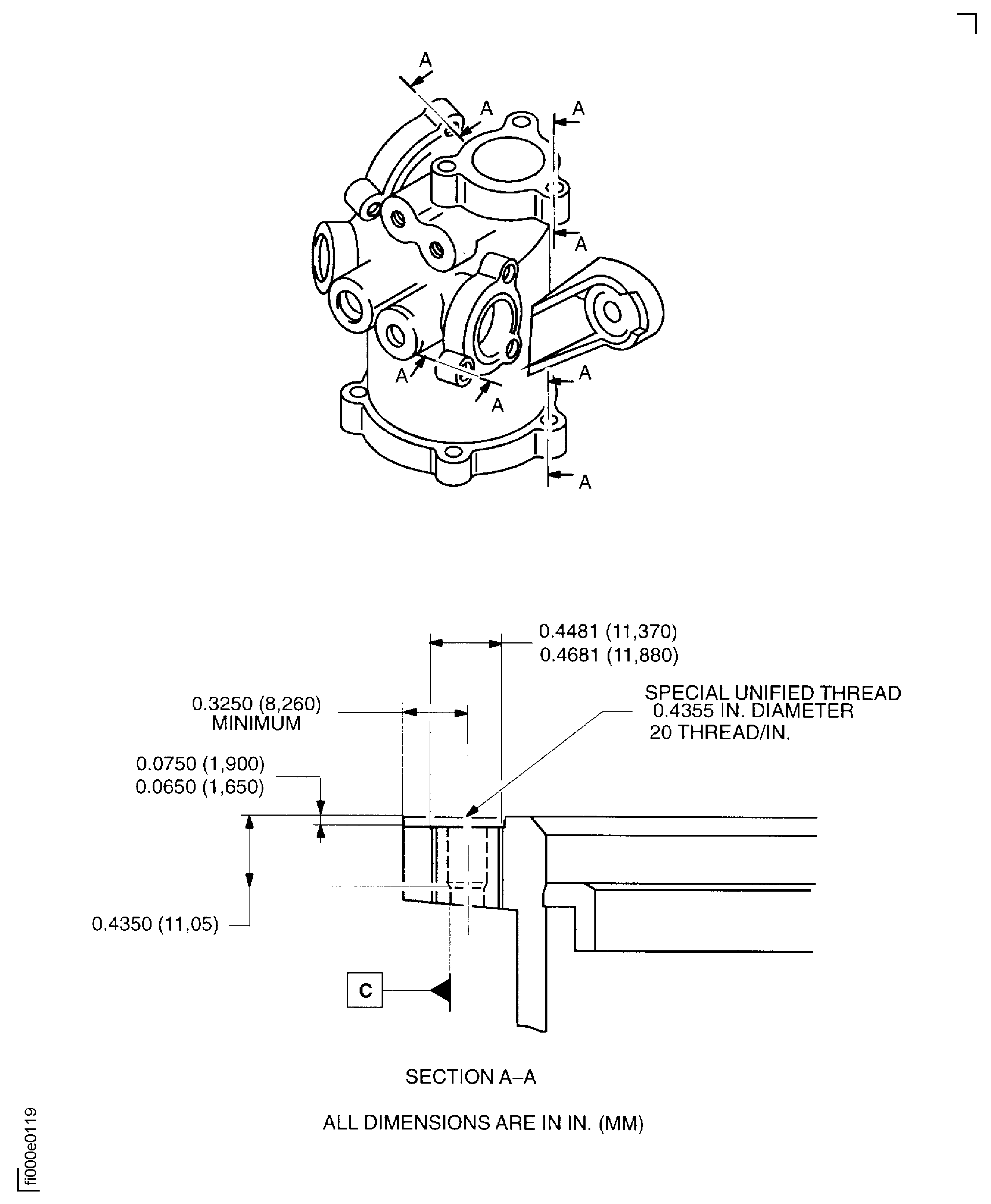

    8. Figure: Repair Details And Dimensions (Pre SBE 79-0101)

    Repair Details And Dimensions (Pre SBE 79-0101)

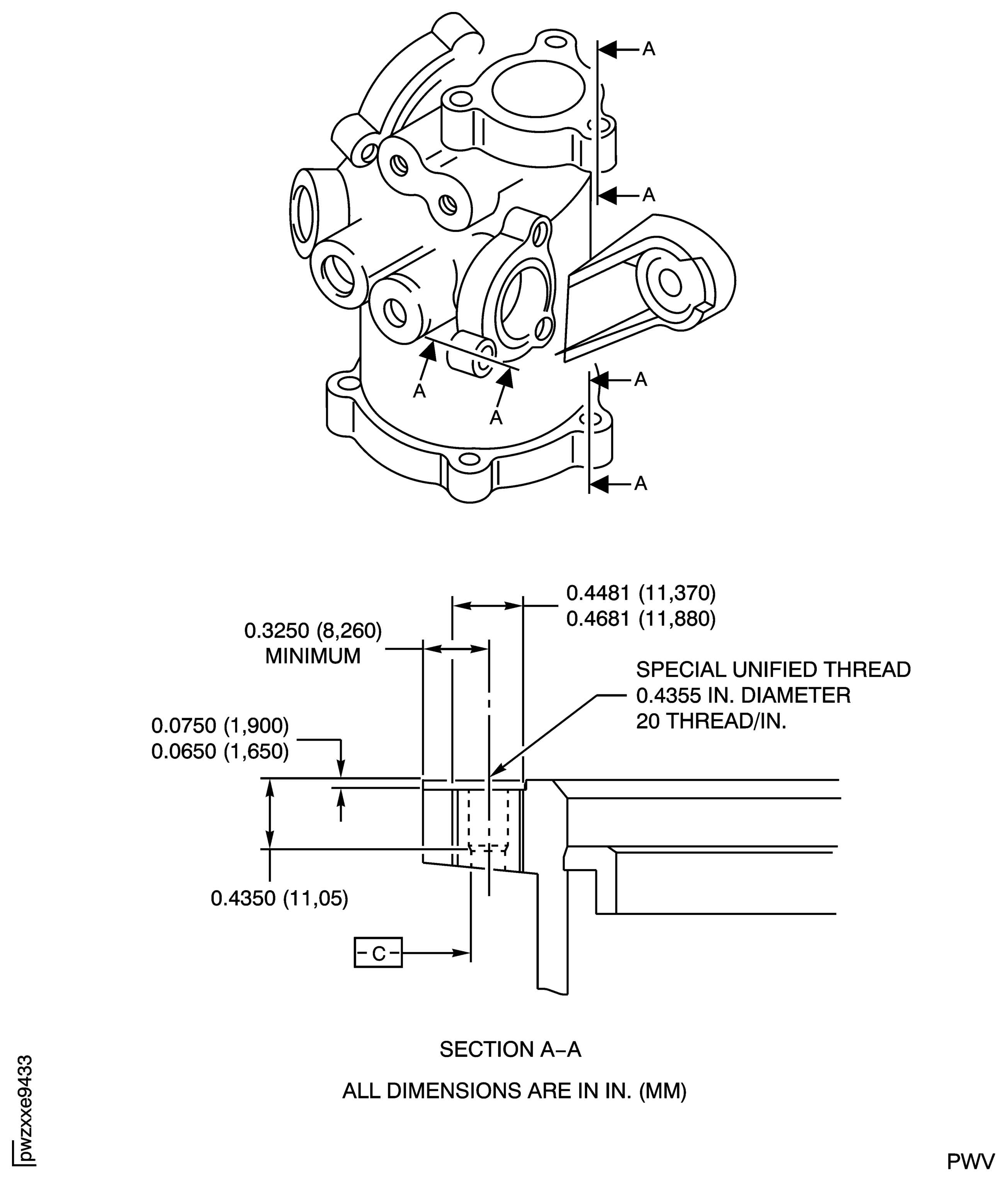

    Figure: Repair Details And Dimensions (Post SBE 79-0101)

    Repair Details And Dimensions (Post SBE 79-0101)

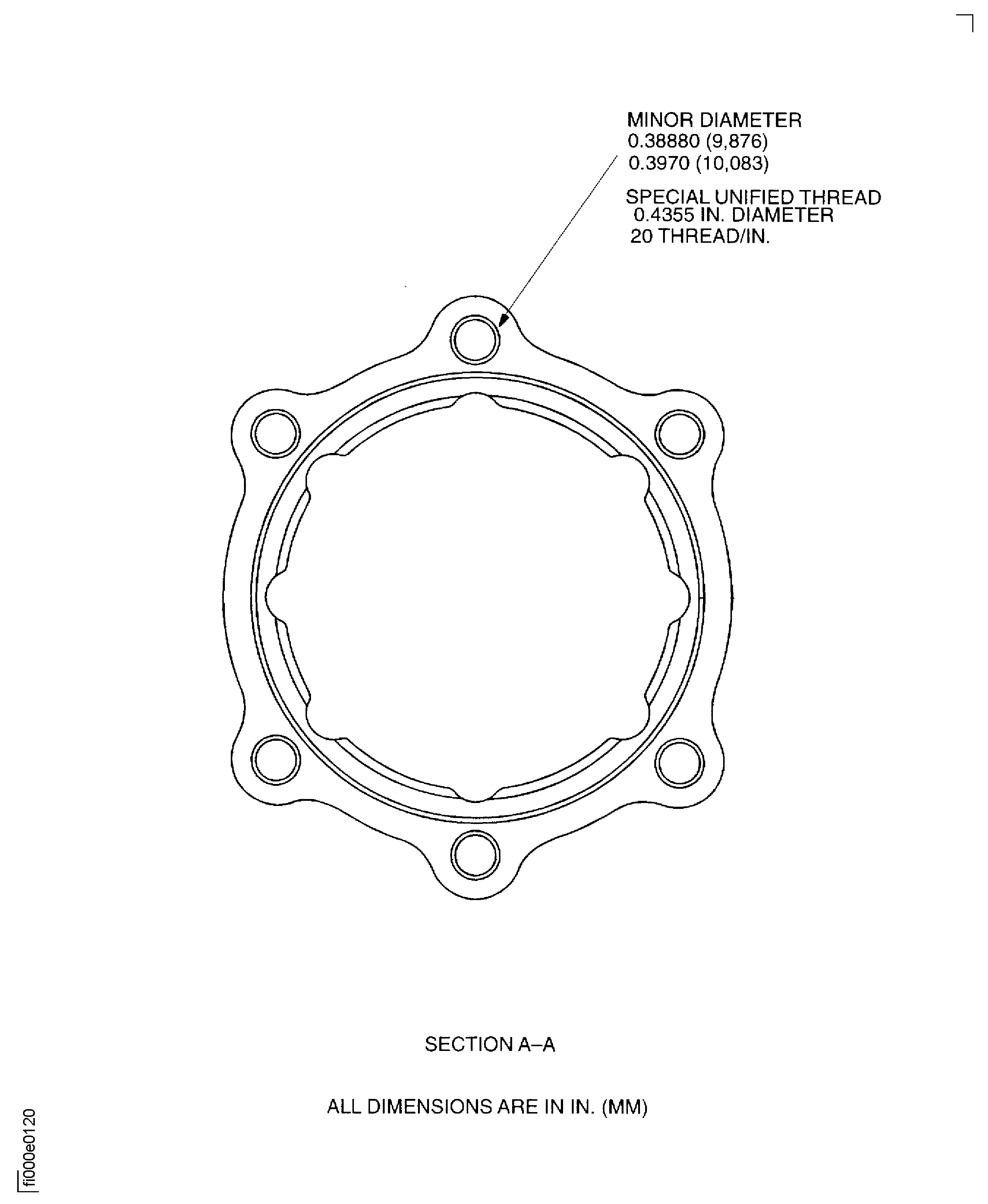

    Figure: Repair Details And Dimensions

    Repair Details And Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Update part numbers. Revise figure to add post SBE 79-0101. (EC 14VF868)
