FIRE PROTECTION-CORE ZONE FIRE DETECTOR

DMC:V2500-A1-26-12-17-01A-941A-D|Issue No:004|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B26121701	FIRE PROTECTION - CORE ZONE FIRE DETECTOR, PRE SBE71-0021	aa
000	SBE0021-01	FIRE PROTECTION - CORE ZONE FIRE DETECTOR, PRE SBN71-0145	ab
000	SBN0145-01	FIRE PROTECTION - CORE ZONE FIRE DETECTOR, PRE SBN26-0013	ac
000	SBN0013-01	FIRE PROTECTION - CORE ZONE FIRE DETECTOR, PRE SBN71-0272	ad
000	SBN0272-01	FIRE PROTECTION - CORE ZONE FIRE DETECTOR	ae
100100	7827-02	• DETECTOR - FIRE, ASSEMBLY OF 25693	aa-ae	1

125125	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ae	1
125125A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ae	1
-125125B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ae	REF

126126	C10GT3-08	• CLAMP - ASSEMBLY OF 83930 POST SBN26-0013	ad-ae	1

127127	471-8	• CLIP 26940 PRE SBN26-0013	aa-ac	1
128128	BACC10GT2-08	• CLAMP 81205 PRE SBN26-0013	aa-ac	1
129129	SP155D	• WASHER - FLAT K7766	aa-ae	1
131131	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653	aa-ae	1
132132	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ae	1
132132A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ae	1
-132132B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ae	REF
133133	471-8	• CLIP 26940 PRE SBN26-0013	aa-ac	1
134134	BACC10GT2-08	• CLAMP 81205 PRE SBN26-0013	aa-ac	1
135135	SP155D	• WASHER - FLAT K7766	aa-ae	1
137137	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653	aa-ae	1

138138	C10GT3-08	• CLAMP - ASSEMBLY OF 83930 POST SBN26-0013	ad-ae	1

140140	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ae	1
140140A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ae	1
-140140B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ae	REF
141141	471-8	• CLIP 26940 PRE SBN26-0013	aa-ac	1
142142	BACC10GT2-08	• CLAMP 81205 PRE SBN26-0013	aa-ac	1
143143	SP155D	• WASHER - FLAT K7766	aa-ae	1
145145	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653	aa-ae	1

146146	C10GT3-08	• CLAMP - ASSEMBLY OF 83930 POST SBN26-0013	ad-ae	1

148148	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ae	1
148148A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ae	1
-148148B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ae	REF
149149	471-8	• CLIP 26940 PRE SBN26-0013	aa-ac	1
150150	BACC10GT2-08	• CLAMP 81205 PRE SBN26-0013	aa-ac	1
151151	SP155D	• WASHER - FLAT K7766	aa-ae	1
153153	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653	aa-ae	1

154154	C10GT3-08	• CLAMP - ASSEMBLY OF 83930 POST SBN26-0013	ad-ae	1

156156	AS21420	• BOLT - 0.19 DIA X 1.250 U1653 PRE SBN26-0004	*****	1
157157	ST1698D50	• SPACER K4585 PRE SBN26-0004	*****	1

158158	C10GT3-08	• CLAMP - ASSEMBLY OF 83930 POST SBN26-0013	ad-ae	1

159159	471-8	• CLIP 26940 PRE SBN26-0013	aa-ac	1
160160	BACC10GT2-08	• CLAMP 81205 PRE SBN26-0013	aa-ac	1
161161	SP155D	• WASHER - FLAT K7766 PRE SBN26-0004	*****	1
163163	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653 PRE SBN26-0004	*****	1
164164	AS21408	• BOLT - .190 DIA X .500 U1653 PRE SBN71-0145	aa-ab	1
165165	471-8	• CLIP 26940 PRE SBN71-0145	aa-ab	1
166166	BACC10GT2-08	• CLAMP 81205 PRE SBN71-0145	aa-ab	1
167167	SP155D	• WASHER - FLAT K7766 PRE SBN71-0145	aa-ab	1
169169	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653 PRE SBN71-0145	aa-ab	1

170170	C10GT3-08	• CLAMP - ASSEMBLY OF 83930 POST SBN26-0013	ad-ae	1

172172	AS21420	• BOLT - 0.19 DIA X 1.250 U1653 PRE SBN71-0145	aa-ab	1
173173	SP155D	• WASHER - FLAT K7766 PRE SBN71-0145	aa-ab	1
175175	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653 PRE SBN71-0145	aa-ab	1
180180	AS21420	• BOLT - 0.19 DIA X 1.250 U1653 PRE SBN71-0145	aa-ab	1
181181	SP155D	• WASHER - FLAT K7766 PRE SBN71-0145	aa-ab	1
183183	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653 PRE SBN71-0145	aa-ab	1

190190	740-5287-501	• BRACKET 51563 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

192192	AS21418	• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125 U1653 POST SBN71-0145 PRE SBN71-0272	ac-ad	1
194194	SP155D	• WASHER - FLAT K7766 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

196196	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

198198	AS21428	• BOLT - 0.190 DIA X 1.750 U1653 POST SBN71-0145 PRE SBN71-0272	ac-ad	1
200200	ST1698D50	• SPACER K4585 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

202202	ST1698D48	• SPACER (10MM) K4585 POST SBN71-0145 PRE SBN71-0272	ac-ad	1
204204	TA025074-03	• CLAMP - LOOP, CUSHION, 4.78 MM (0.188) 84971 ALT AS61933 POST SBN71-0145 PRE SBN71-0272	ac-ad	1
-204204A	AS61933	• CLAMP - LOOP, CUSHION U1653 ALT TA025074-03 POST SBN71-0145 PRE SBN71-0272	ac-ad	REF

206206	SP155D	• WASHER - FLAT K7766 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

208208	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

210210	AS21418	• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125 U1653 POST SBN71-0145 PRE SBN71-0272	ac-ad	1
212212	SP155D	• WASHER - FLAT K7766 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

214214	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

216216	4W0103	• BOLT - .190 DIA X .500 POST SBN71-0145 PRE SBN71-0272	ac-ad	1
218218	SP155D	• WASHER - FLAT K7766 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

220220	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBN71-0145 PRE SBN71-0272	ac-ad	1

230230	AS21408	• BOLT - .190 DIA X .500 U1653 POST SBN71-0272	ae	1
230230A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ae	1
-230230B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ae	REF

231231	SP155D	• WASHER - FLAT K7766 POST SBN71-0272	ae	1
233233	C10GT3-08	• CLAMP - ASSEMBLY OF 83930 POST SBN71-0272	ae	1
237237	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBN71-0272	ae	1
240240	AS21418	• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125 U1653 POST SBN71-0272	ae	1
241241	SP155D	• WASHER - FLAT K7766 POST SBN71-0272	ae	1
247247	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBN71-0272	ae	1
250250	AS21418	• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125 U1653 POST SBN71-0272	ae	1
251251	SP155D	• WASHER - FLAT K7766 POST SBN71-0272	ae	1
257257	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBN71-0272	ae	1
900900	740-5035-501	• BRACKET 51563	ae	1

902902	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ae	6
902902A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	aa-ae	6
-902902B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	aa-ae	REF
904904	SP155D	• WASHER - FLAT K7766	aa-ae	6
905905	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653	aa-ae	6

-910910	740-5034-503	• BRACKET 51563	aa-ae	REF
-910910A	740-5034-505	• BRACKET 51563 POST SBE71-0021 PRE SBN71-0145	ab	REF
-910910B	740-5286-501	• BRACKET 51563 POST SBN71-0145	ac-ae	REF
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	25693
Enterprise Name:	MEGGITT - SAFETY SYSTEMS INC
BU Name:	MEGGITT - SAFETY SYSTEMS INC
Street:	1915 VOYAGER AVENUE
City:	SIMI VALLEY
State:	CALIFORNIA
Zip Code:	93063-3349
Country:	USA

Manufacturer Code:	26940
Enterprise Name:	MICRO-OHM CORP
BU Name:	MICRO-OHM CORP
Street:	1088 HAMILTON ROAD
City:	DUARTE
State:	CALIFORNIA
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	81205
Enterprise Name:	BOEING SPARES DEPT
BU Name:	BOEING SPARES DEPT
Street:	MAILSTOP 36-65
P.O. Box:	3707
City:	SEATTLE
State:	WA
Zip Code:	98124
Country:	USA

FIRE PROTECTION-CORE ZONE FIRE DETECTOR

Export Control

Copyright

Applicability

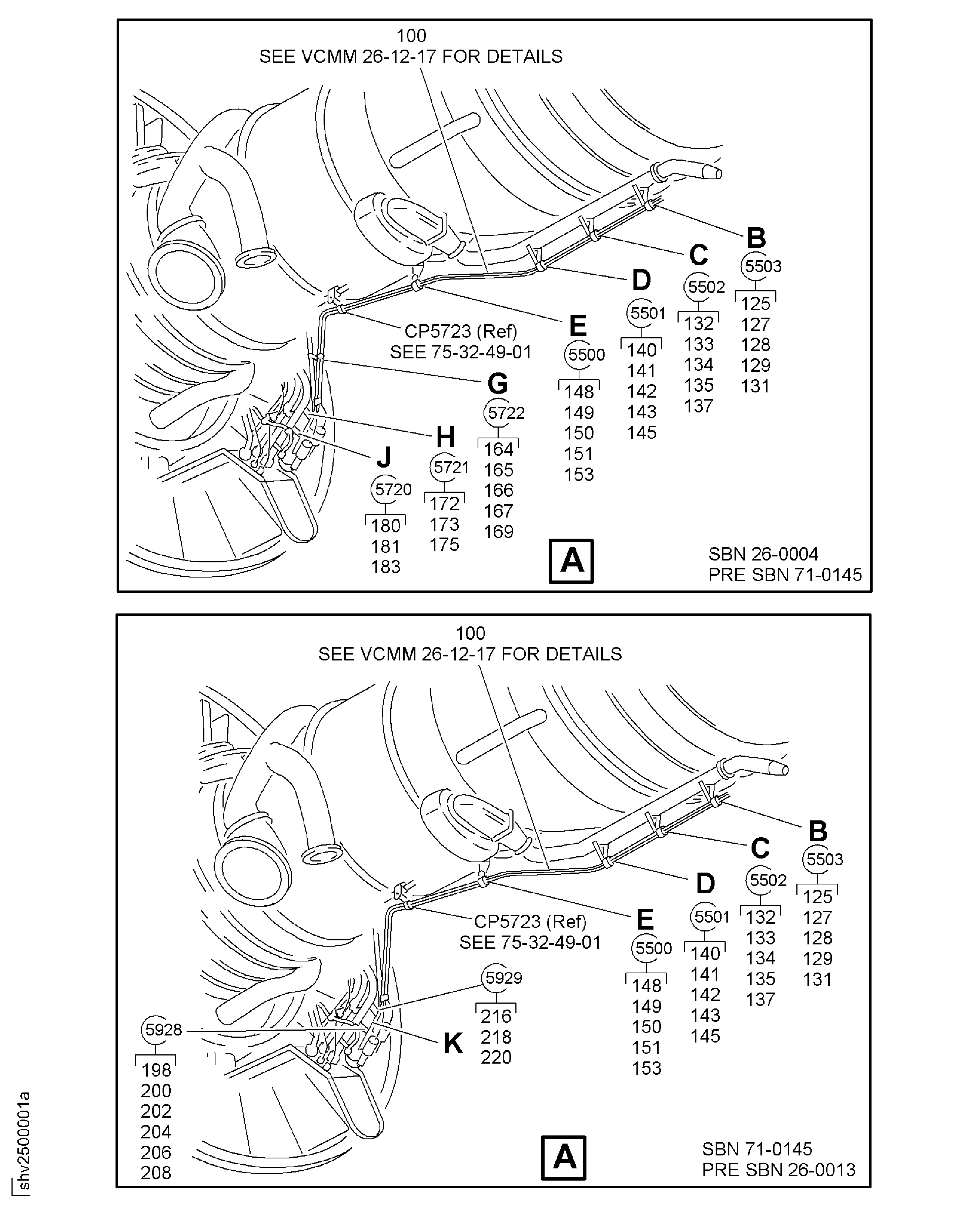

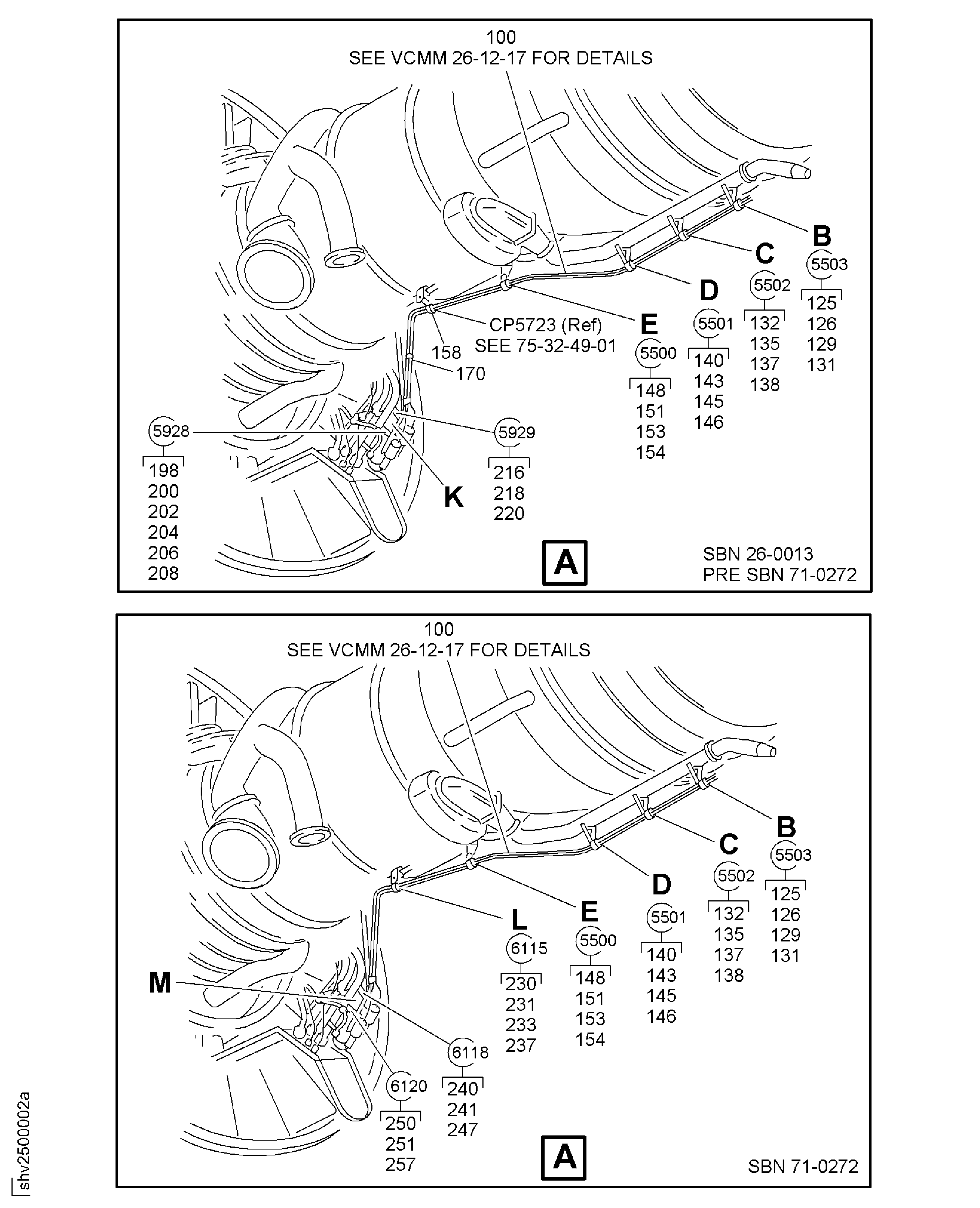

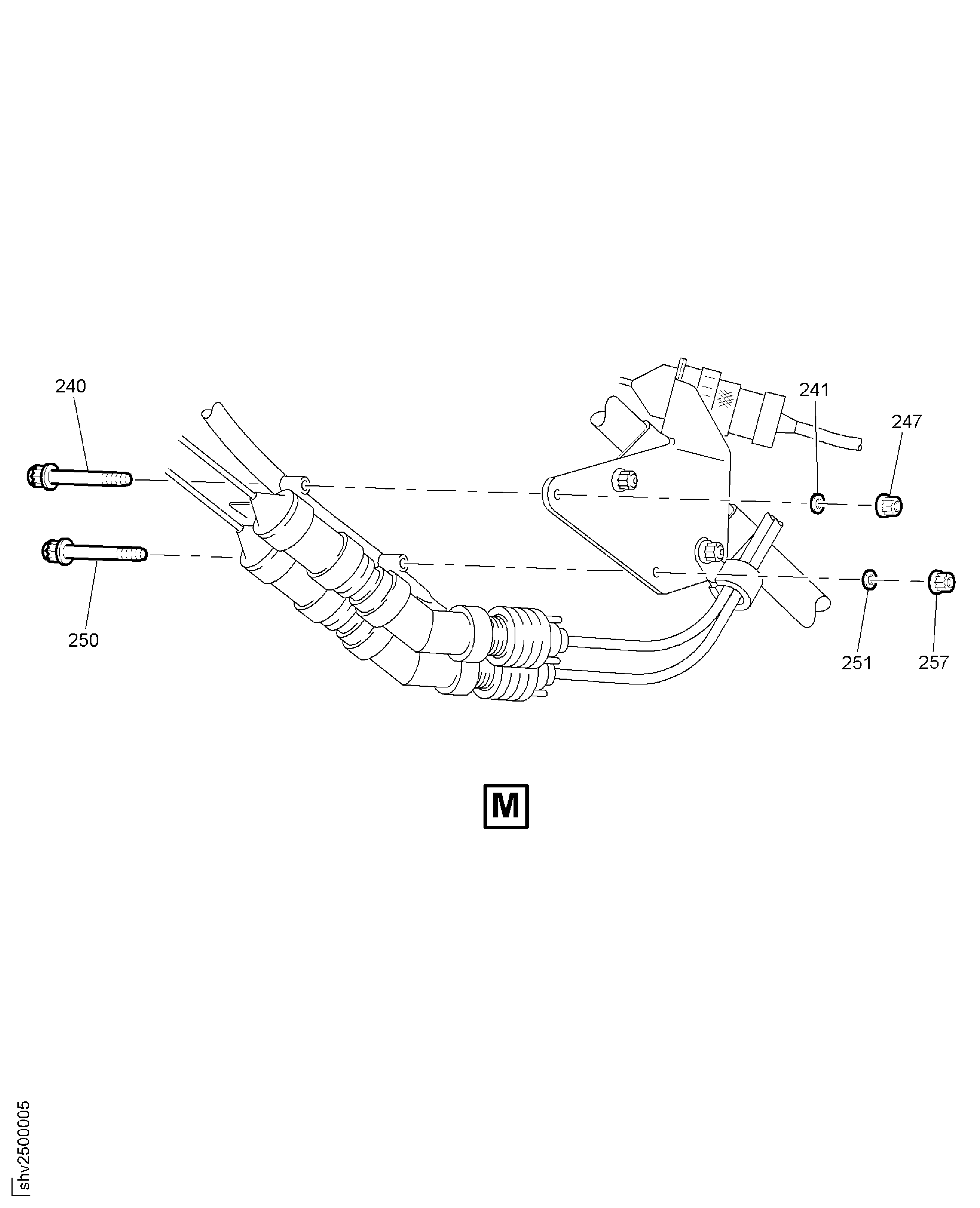

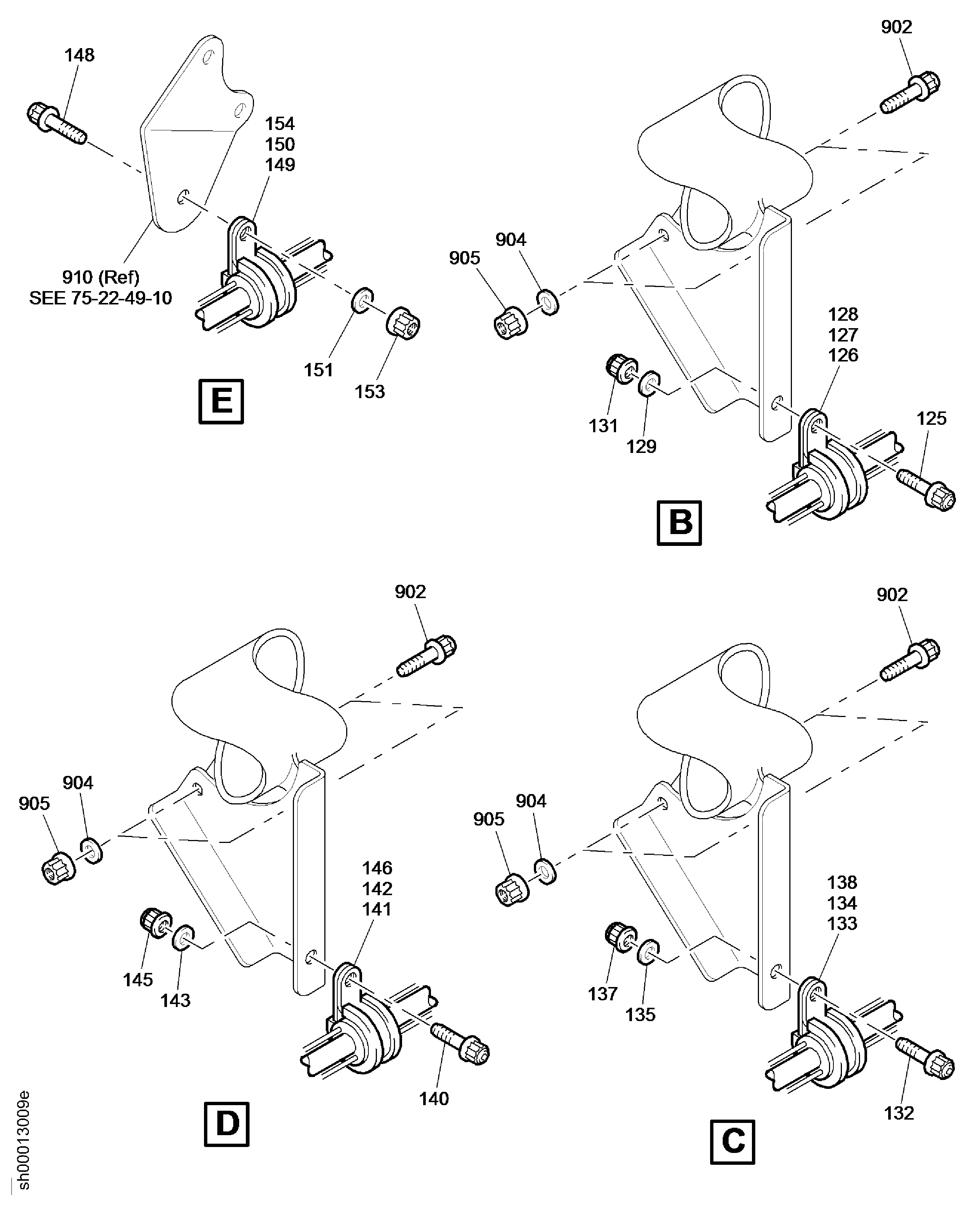

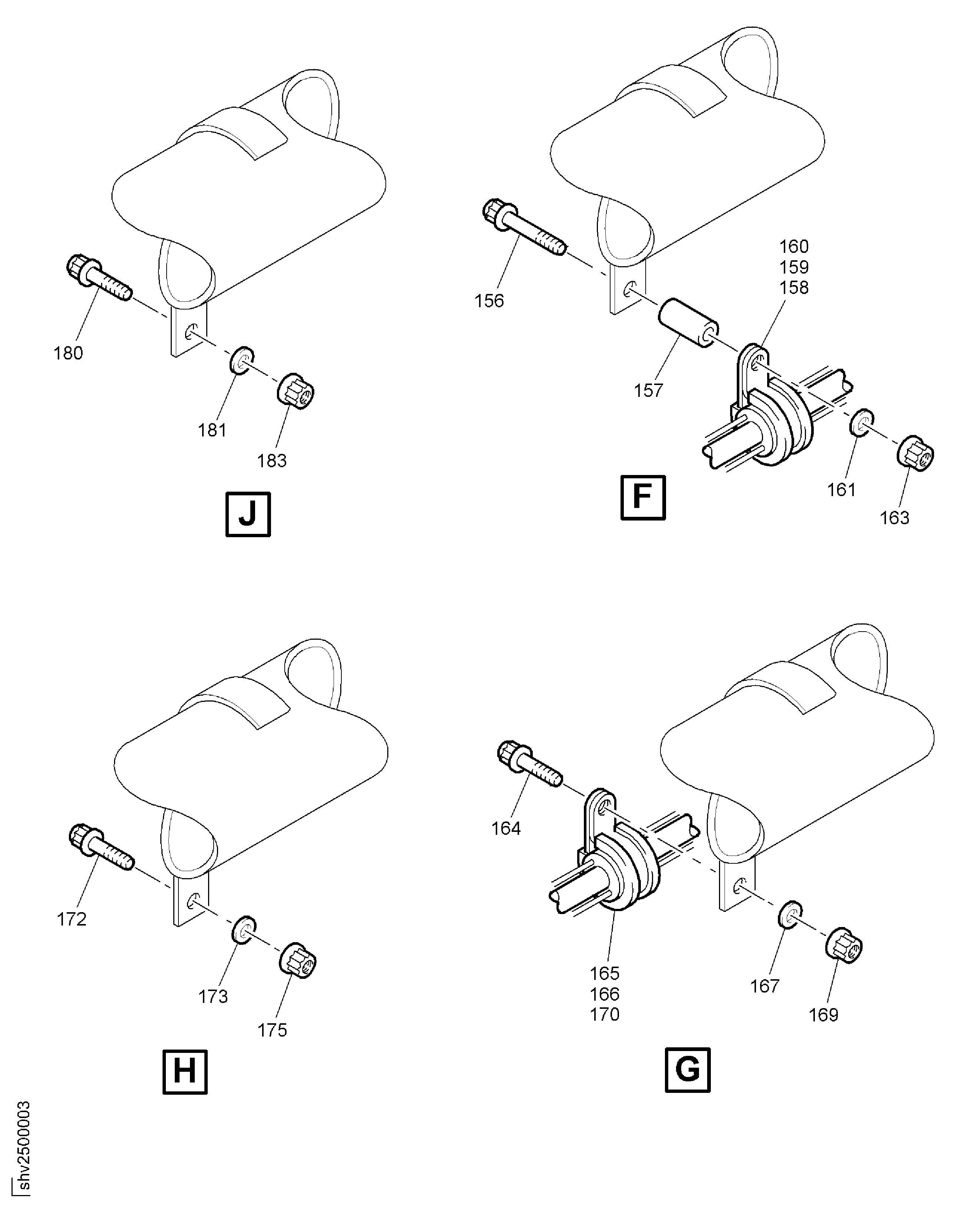

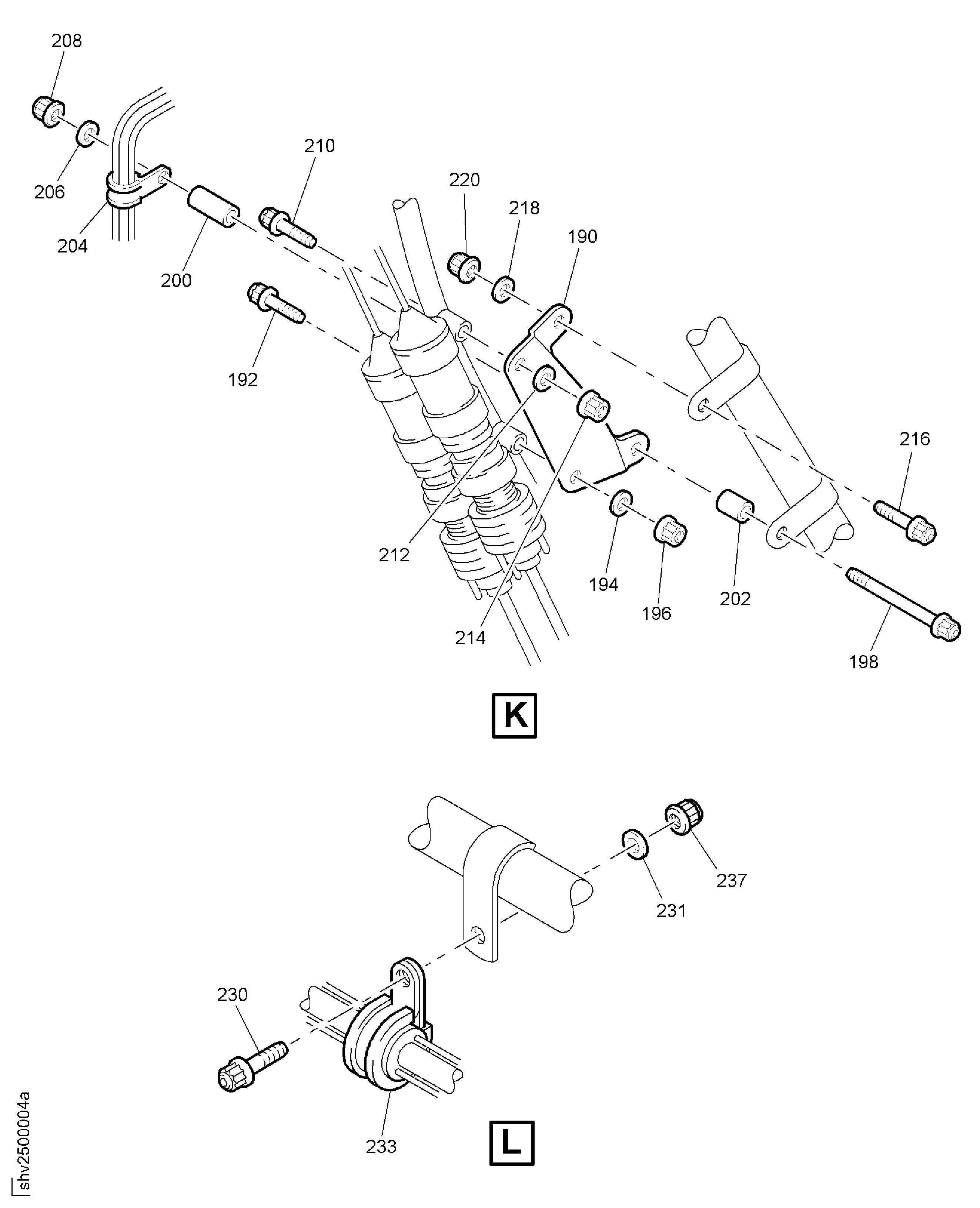

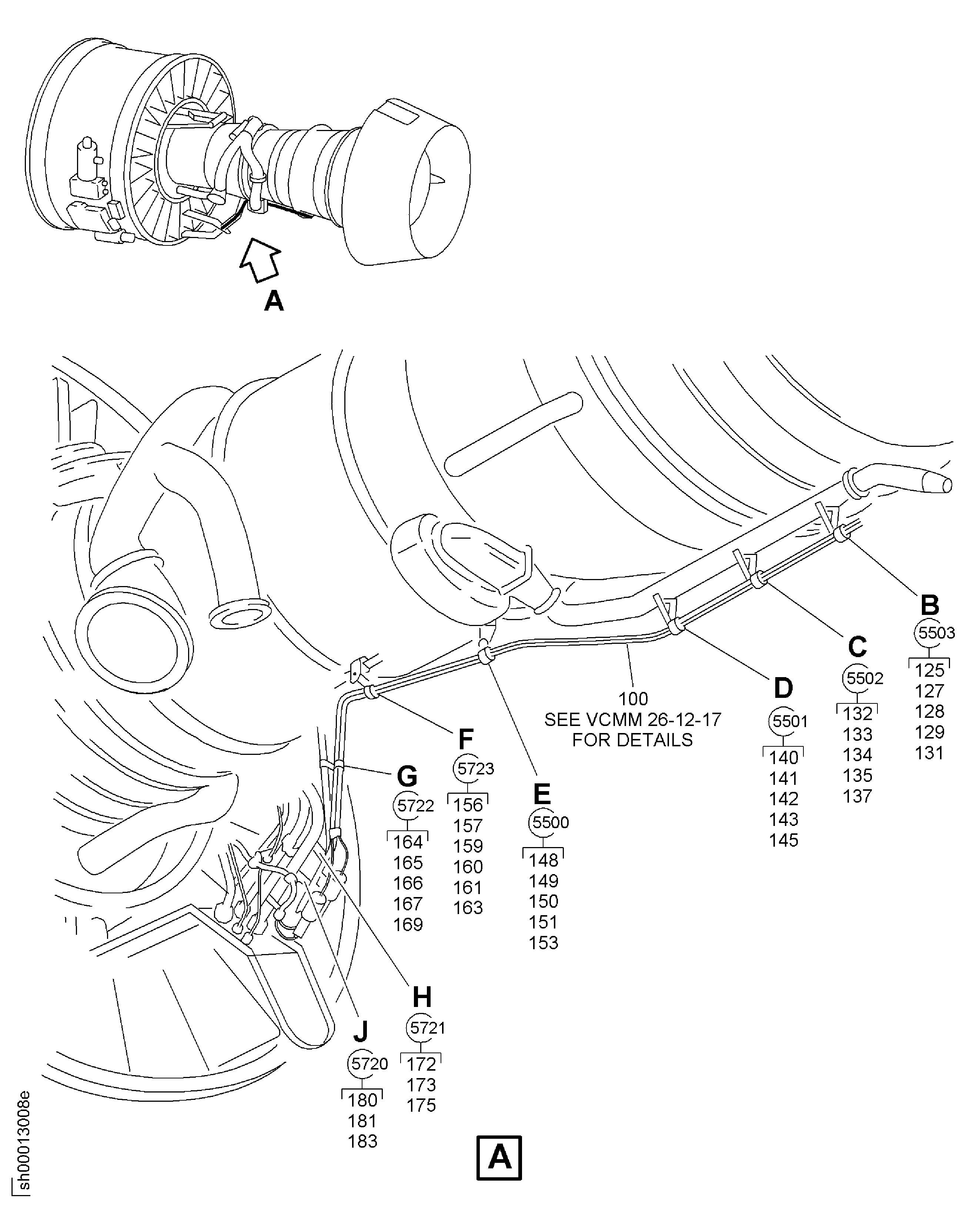

Figure: FIRE PROTECTION-CORE ZONE FIRE DETECTOR
