TASK 71-00-00-700-053-A02 Normal Engine Manual Start Procedure, Testing-000
Normal Engine Manual Start Procedure
General
If the engine was shutdown for more than 10 hours, motor the engine with the starter for a minimum of two minutes. Check the oil level after the rotor stops. Fill the oil tank as necessary. Refer to TASK 71-00-00-700-064-A00 (TESTING-000, CONFIG-001).
If the engine was shutdown for less than 10 hours, check the oil level. Fill the oil tank as necessary. Refer to TASK 71-00-00-700-064-A00 (TESTING-000, CONFIG-001).
Before the first start after an overhaul, or if you drained the fuel or oil compartments to repair the engine, prime the oil and fuel systems. Refer to TASK 71-00-00-700-061-A00 (TESTING-000, CONFIG-001)
Before you start the engine, refer to procedure for a Bowed Rotor Start Prevention. Refer to TASK 71-00-00-700-065-A00 (TESTING-000, CONFIG-001).
Do the manual start.
Set the Electronic Engine Control (EEC) in the SHUTDOWN mode. Refer to Figure.
Turn on the test stand starter air.
Turn on the EEC ground test power.
Turn on the 400 Hz igniter power.
Turn on the fuel supply system.
Set the thrust lever to the idle flat.
Set the necessary Engine Interface Unit (EIU) inputs to the MANUAL START/FUEL OFF as shown in Figure.
Make sure that N2 increases.
At 2500 RPM N2, set the EIU inputs to the MANUAL START/FUEL ON mode shown in Figure. The EEC automatically turns off the ignition. The test stand operator should manually cut out the starter at 5500 RPM N2.
Monitor the EGT and N2 carefully during the start. If the EGT increases rapidly to 1175 deg F (635 deg C) and N2 is sluggish, abort the manual start. Refer to TASK 71-00-00-700-054-A00 (TESTING-000, CONFIG-001).
If the EGT is more than the start temperature limits, shut the engine down immediately. Write the length of time and the highest temperature during overtemperature. Refer to the Fault Isolation TASK 71-00-00-810-017 (FAULT ISOLATION-017).
Abort the start if:
There is no N1 turn immediately after the EGT increases or when N2 is more than 5070 RPM.
More than 90 seconds is necessary to accelerate from FUEL ON to IDLE N2.
The EGT does not increase in less than 20 seconds after FUEL ON.
The fuel or ignition is accidentally stopped.
The oil pressure does not increase.
If you aborted the start, motor the engine for 60 seconds to remove caught fuel or gases, or until the EGT decreases below 482 deg F (250 deg C).
Engine warm-up
Before you start the engine, refer to procedure for a Bowed Rotor Start Prevention. Refer to TASK 71-00-00-700-065-A00 (TESTING-000, CONFIG-001).
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure

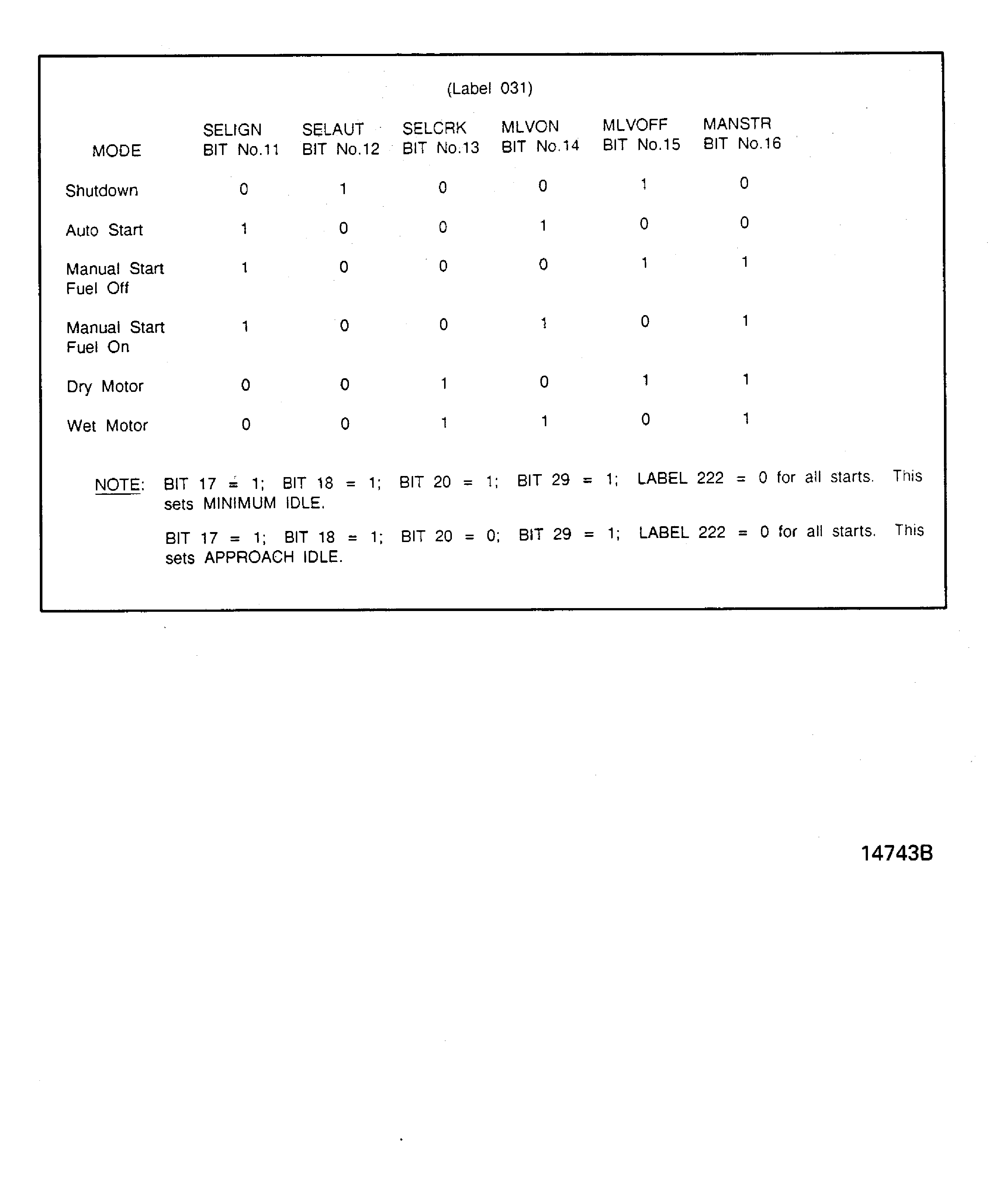

Figure: Engine interface unit (EIU) inputs
Engine interface unit (EIU) inputs
Figure: Start fault diagnostics
Start fault diagnostics

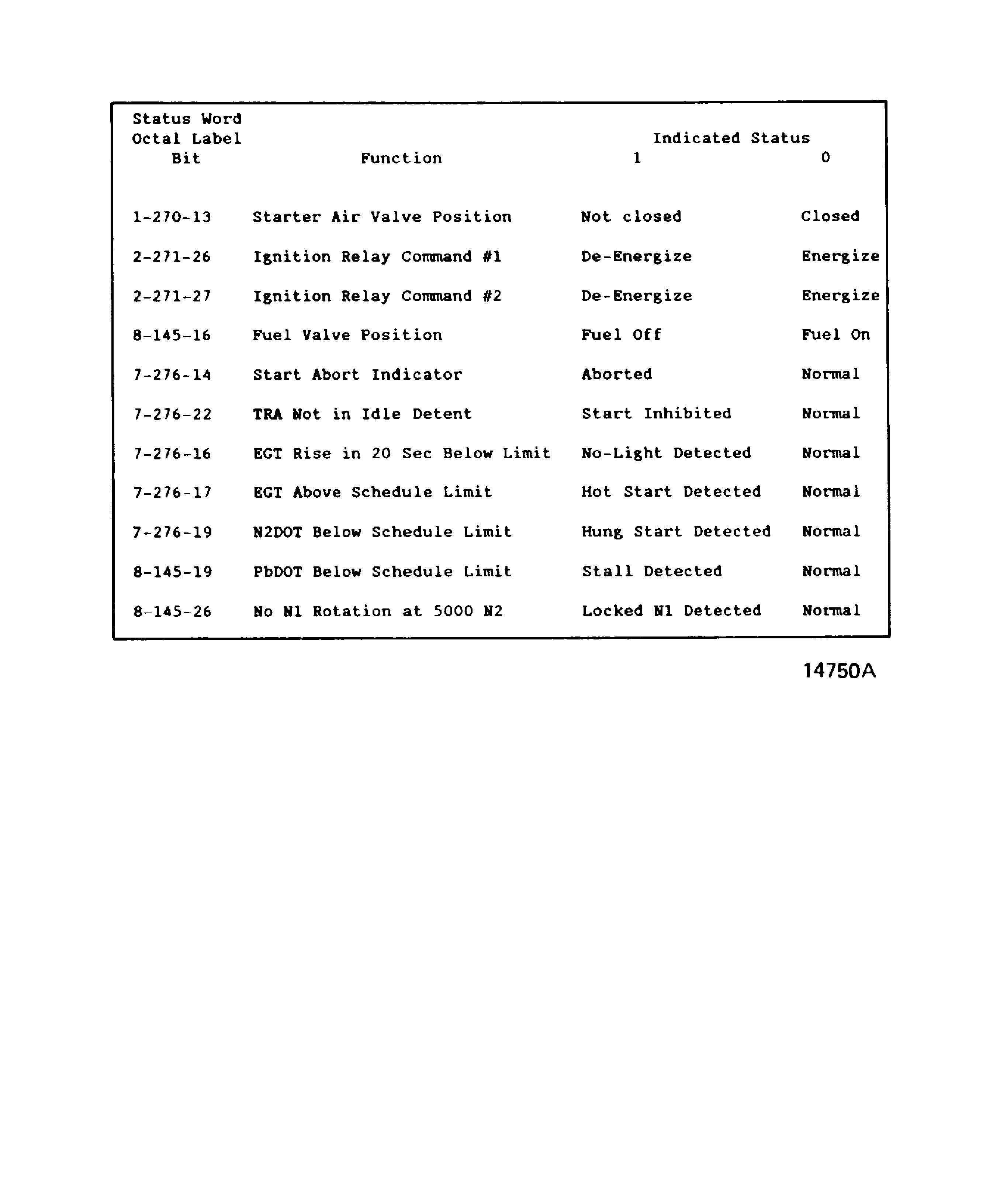

Figure: ARINC status messages
ARINC status messages
