DMC:V2500-A1-71-13-13-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71131301 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0015 | aa | ||
| SBN0015-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN70-0134 | ab | ||
| SBN0134-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0037 | ac | ||
| SBN0037-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0096 | ad | ||
| SBN0096-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN70-0313 | ae | ||
| SBN0313-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES | af | ||
| -002 | 740-4001-575 | COWL - LEFT FAN 51563 POST SBN71-0015 PRE SBN70-0134 | ab-ac | REF |
| -002A | 740-4001-579 | COWL - LEFT FAN 51563 POST SBN70-0134 PRE SBN71-0037 | ab-ad | REF |
| -002B | 740-4001-583 | COWL - LEFT FAN 51563 POST SBN71-0037 PRE SBN71-0096 | ab-ae | REF |
| -002C | 740-4001-589 | COWL - LEFT FAN 51563 POST SBN71-0096 PRE SBN70-0313 | ab-af | REF |
| -002D | 740-4001-601 | COWL - LEFT FAN 51563 POST SBN70-0313 | ab-af | REF |
| 010 | H2800-9 | • LATCH - ADJUSTER KEEPER 83014 | aa-af | 4 |
| 015 | MS20500-1032 | • NUT 96906 | aa-af | 16 |
| 020 | AN960C10 | • WASHER 81352 | aa-af | 16 |
| 025 | NAS6303U9 | • BOLT 80205 | aa-af | 16 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

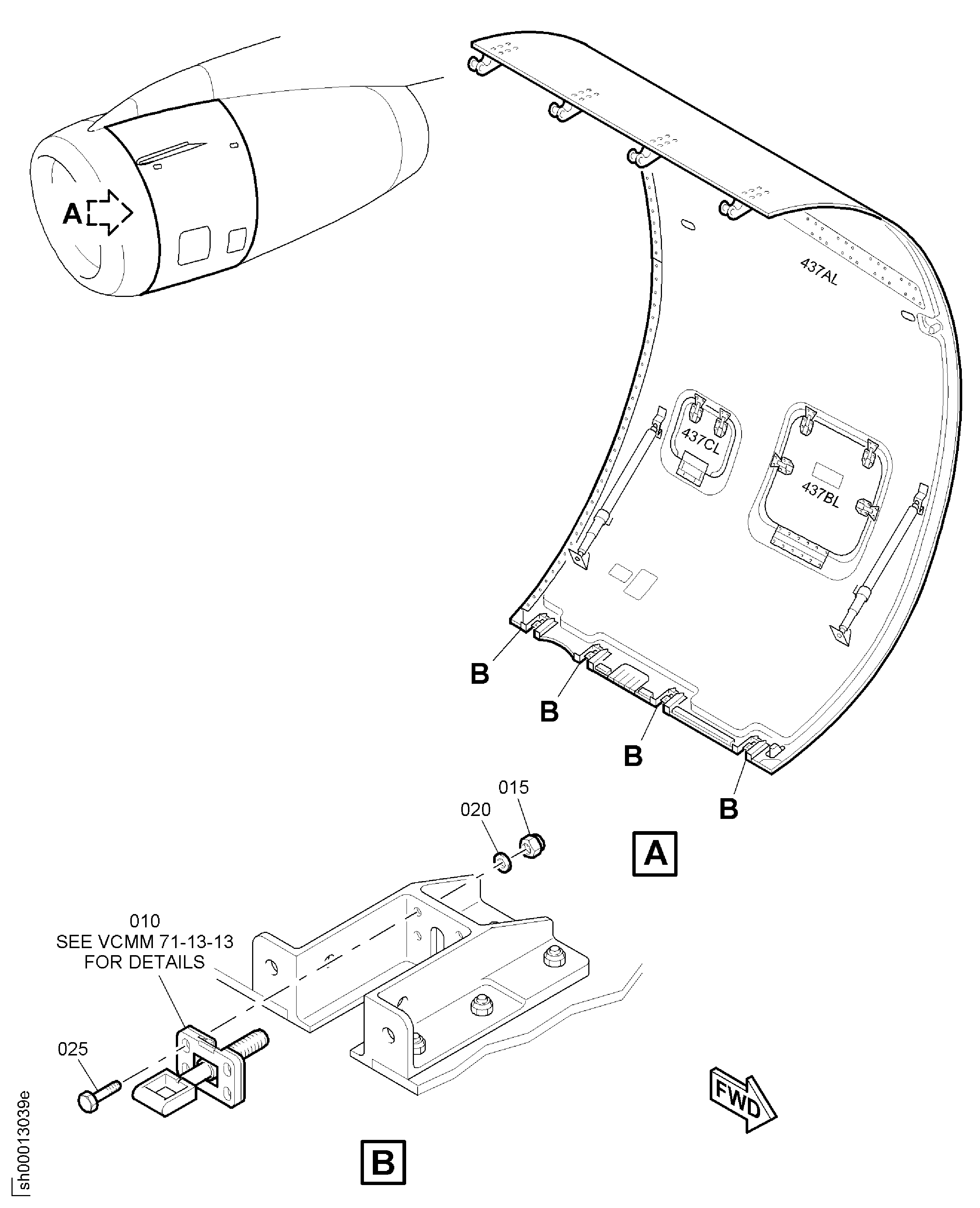

Figure: POWER PLANT-FAN COWL DOOR SUPPORT LATCHES
LATCHES FAN COWL DOOR SUPPORT
