| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B71131302 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0015 | aa | ||
| SBN0015-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN70-0147 | ab | ||
| SBN0147-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0046 | ac | ||
| SBN0046-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0128 | ad | ||
| SBN0128-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN70-0190 | ae | ||
| SBN0190-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN70-0313 | af | ||
| SBN0313-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN70-0621 | ag | ||
| SBN0621-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0227 | ah | ||
| SBN0227-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0256 | ai | ||
| SBN0256-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0285 | aj | ||
| SBN0285-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN70-0739 | ak | ||
| SBN0739-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES, PRE SBN71-0293 | al | ||
| SBN0293-01 | POWER PLANT-FAN COWL DOOR SUPPORT LATCHES | am | ||
| -002 | 740-4002-563 | COWL - RIGHT FAN 51563 PRE SBN71-0015 | aa-ab | REF |
| -002A | 740-4002-567 | COWL - RIGHT FAN 51563 POST SBN71-0015 PRE SBN70-0147 | aa-ac | REF |
| -002B | 740-4002-571 | COWL - RIGHT FAN 51563 POST SBN70-0147 PRE SBN71-0046 | aa-ad | REF |
| -002C | 740-4002-575 | COWL - RIGHT FAN 51563 POST SBN71-0046 PRE SBN71-0128 | aa-af | REF |
| -002D | 740-4002-585 | COWL - RIGHT FAN 51563 POST SBN71-0128 PRE SBN70-0313 | aa-ag | REF |
| -002E | 740-4002-597 | COWL - RIGHT FAN 51563 POST SBN70-0313 PRE SBN70-0621 | aa-aj | REF |
| -002F | 745-4002-507 | COWL 51563 POST SBN70-0621 PRE SBN71-0285 | aa-aj | REF |
| -002G | 745-4002-511 | COWL 51563 POST SBN71-0285 PRE SBN71-0293 | ak-am | REF |
| -002H | 740-4002-601 | COWL 51563 POST SBN71-0285 PRE SBN71-0285 | ***** | REF |
| -002J | 745-4002-515 | COWL - RIGHT HAND (PAINTED) 51563 POST SBN71-0293 | ak-am | REF |
| 010 | H3187-3 | • LATCH U0181 PRE SBN70-0313 | aa-af | 4 |
| 010A | H3187-1 | • LATCH - CURVED U0181 POST SBN70-0313 PRE SBN71-0227 | ag-am | 4 |
| 010B | H3187-9 | • • LATCH - CURVED U0181 POST SBN71-0227 | ag-am | 1 |
| 010C | H3187-11 | • • LATCH - CURVED U0181 POST SBN70-0739 | al-am | 1 |
| 015 | 740-4026-505 | • COLLAR 51563 | aa-am | 4 |
| 020 | 5SP4ZD28 | • PIN PRE SBN70-0313 | aa-af | 4 |
| 020A | 740-4132-501 | • PIN 51563 POST SBN70-0313 | ag-am | 4 |
| 030 | SP90C4 | • PIN K7766 | aa-am | 4 |
| 040 | 740-4027-505 | • PLATE 51563 PRE SBN70-0190 | aa-ae | 4 |
| 040A | 740-4027-507 | • • PLATE 51563 POST SBN70-0190 PRE SBN71-0256 | aa-ai | 4 |
| 04040B | 745-4081-501 | • • 51563 | 2 | |
| 045 | 745-4082-501 | • • PLATE - ANTI-SWIVEL (1 & 2) 51563 POST SBN71-0256 | aj-am | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

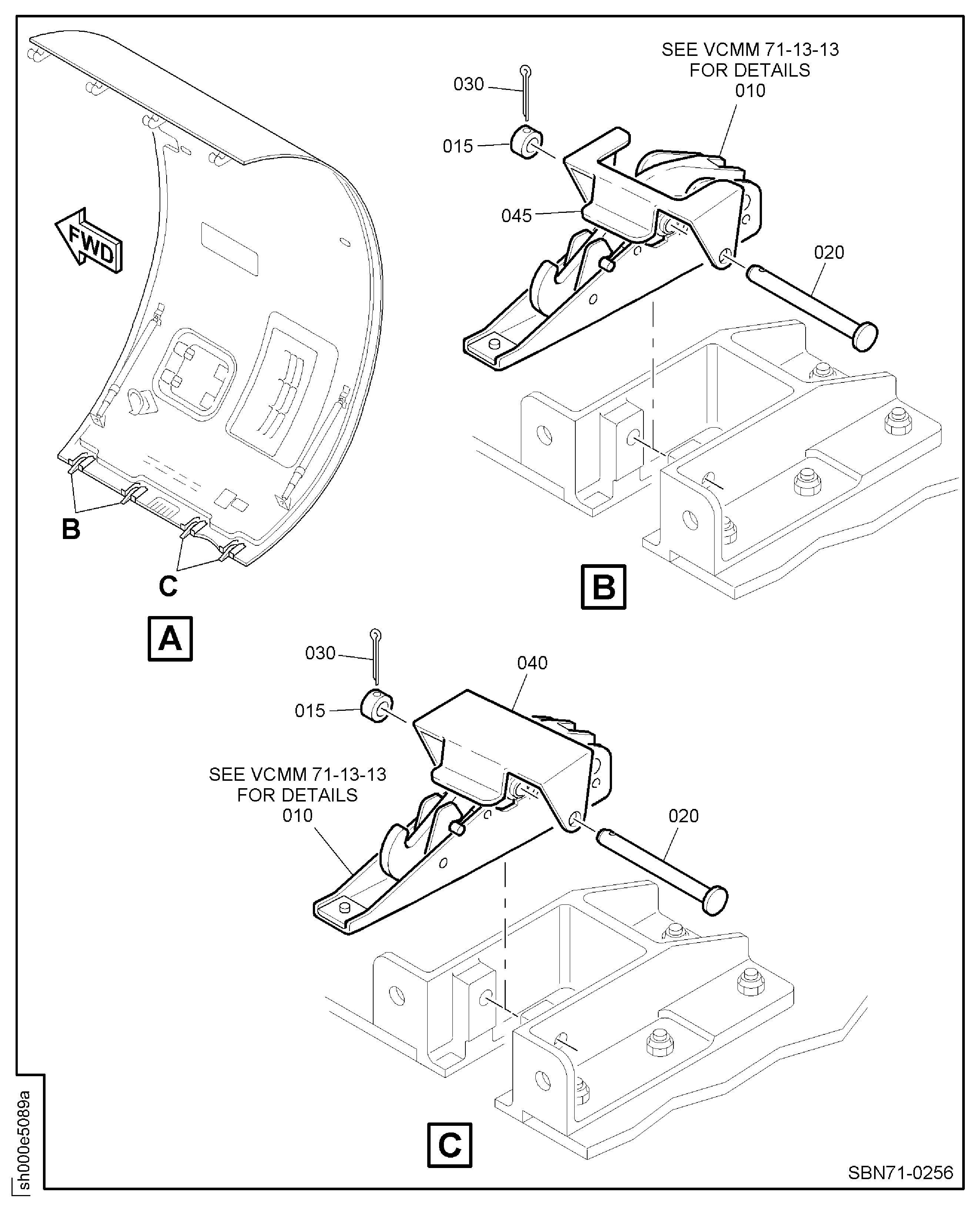

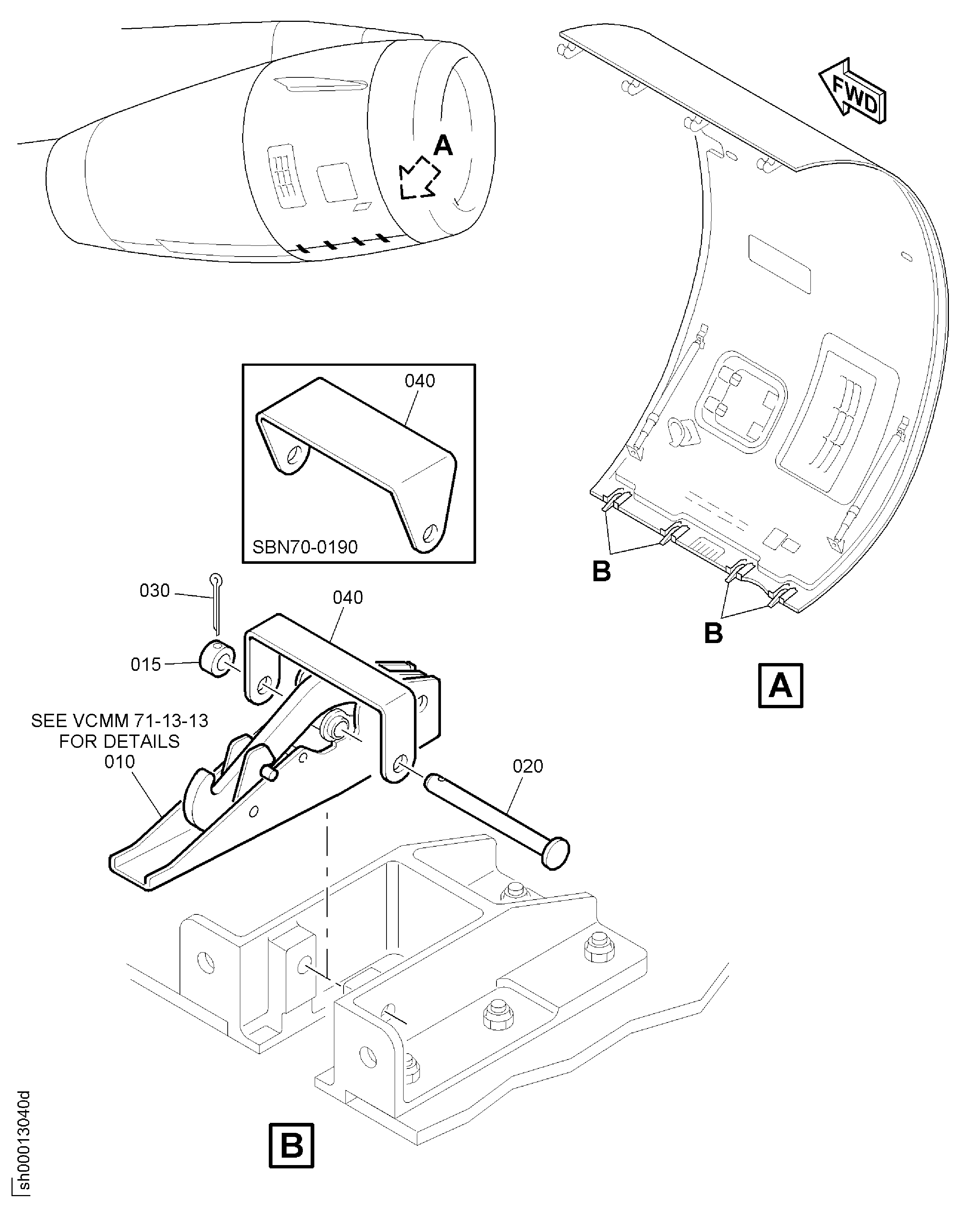

Figure: POWER PLANT-FAN COWL DOOR SUPPORT LATCHES
LATCHES FAN COWL DOOR SUPPORT
LATCHES FAN COWL DOOR SUPPORT
