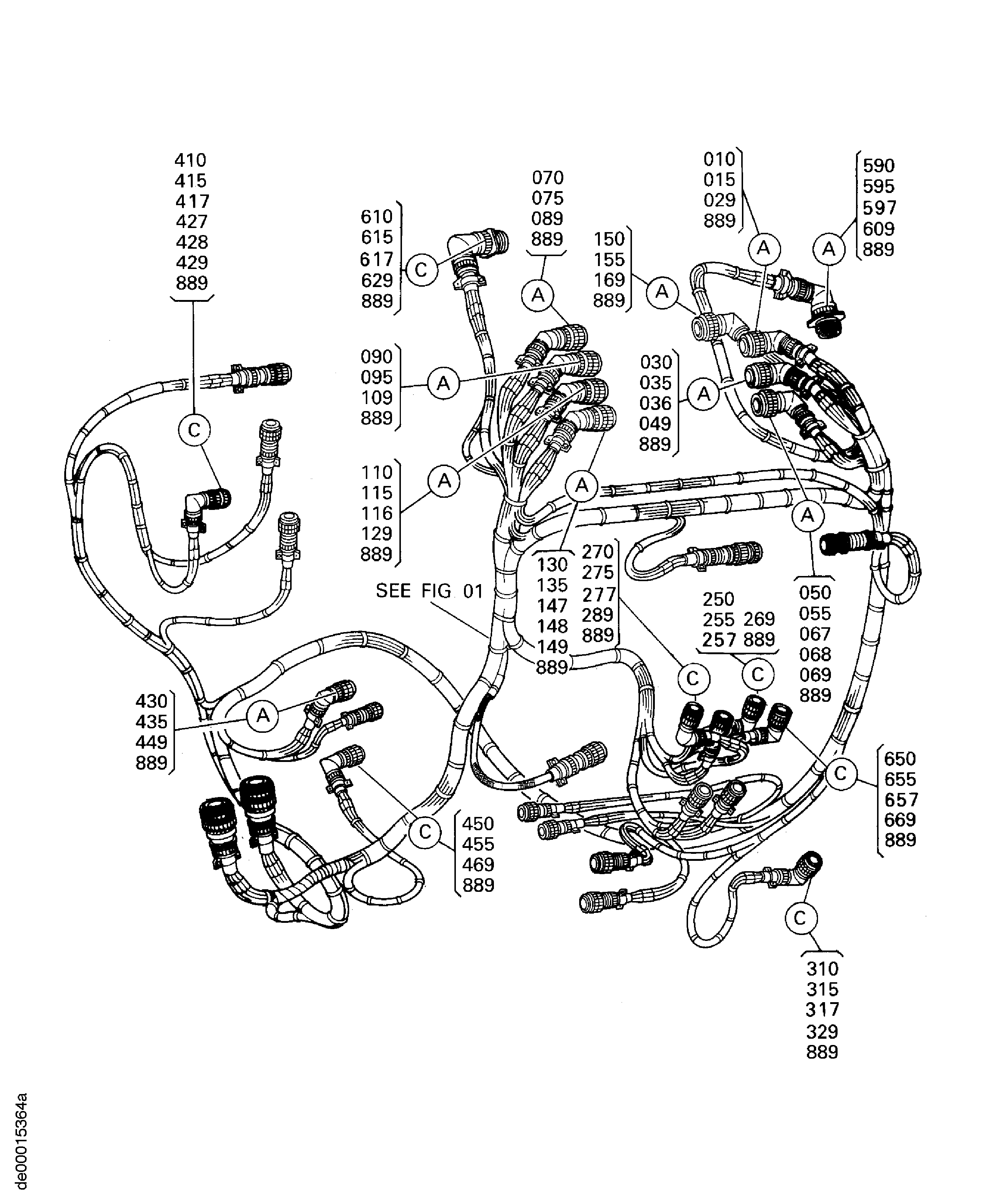

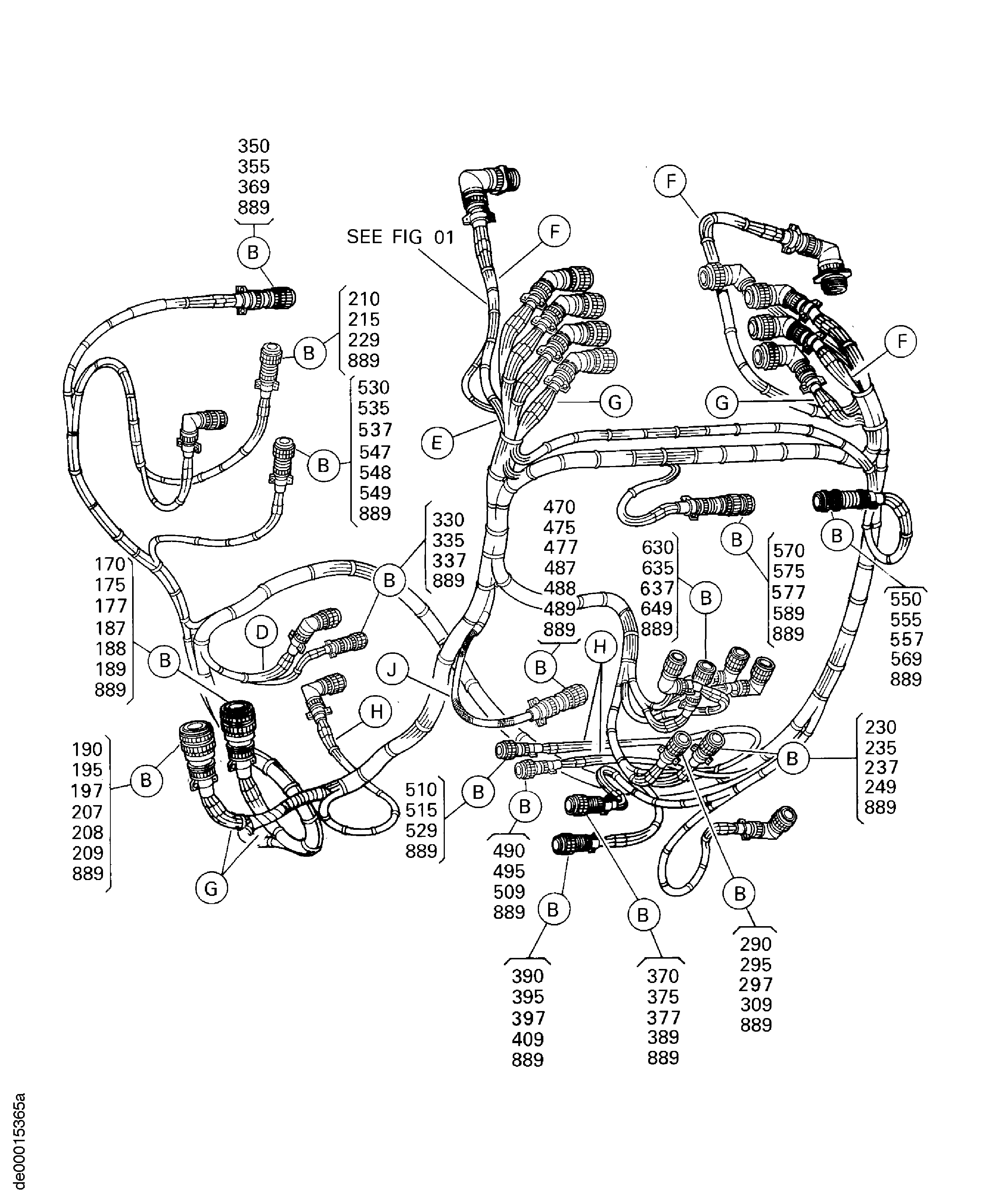

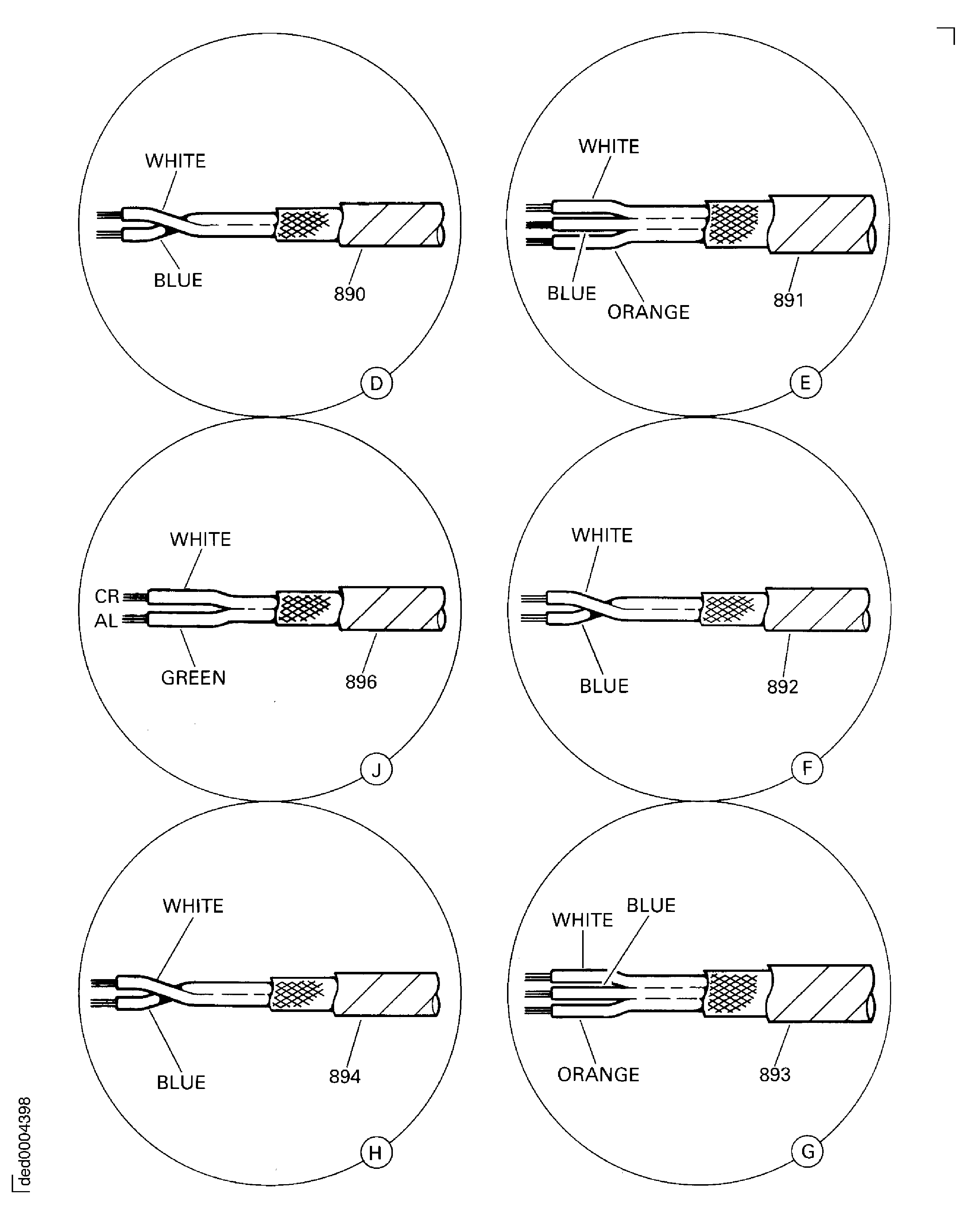

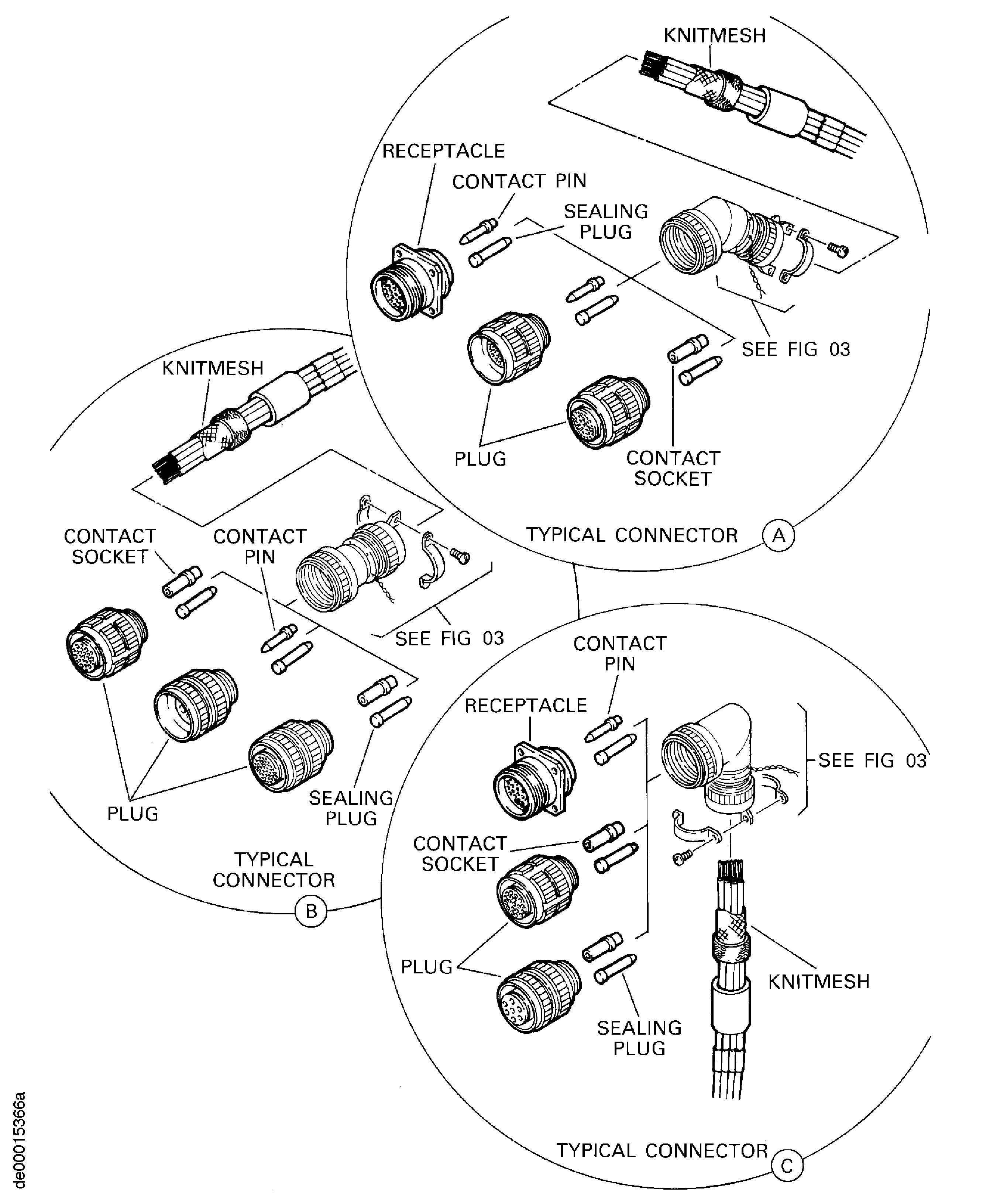

POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

DMC:V2500-A1-71-51-41-04A-941A-D|Issue No:002.00|Issue Date:2020-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
04
000B71514104POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0156aa
000SBE0156-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0111ab
000SBE0111-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0288ac
000SBE0288-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0324ad
000SBE0324-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0367ae
000SBE0367-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0638af
000SBE0638-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0642ag
000SBE0642-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0219ah
000SBE0219-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0221ai
000SBE0221-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE73-0250aj
000SBE0250-01POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FANak
0100105A9282• • PLUG
(FIN 400OKS-J2)		aa-ac1
010010A5A9282• • PLUG
ALT MT938T21K41PA
(FIN 4000KS-J2)		aa-ac1
-010010BMT938T21K41PA• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1221-41PA
POST SBE70-0156
PRE SBE70-0288		aa-acREF
010010CT3K1221-41PA• • PLUG - ASSY (FIN 4000KS-J2)
49367
ALT MT938T21K41PA
POST SBE70-0288		aa-ac1
-010010DMT938T21K41PA• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9282
POST SBE70-0288		aaREF
0150155A9288• • • CONTACT
PRE SBE70-0156		aa41
015015A5A9288• • • CONTACT
ALT 5000-068-0020
POST SBE70-0156
PRE SBE70-0288		ab-aj41
-015015B5000-068-0020• • • CONTACT - PIN
14283
ALT T3-4020-36LD
POST SBE70-0156
PRE SBE70-0288		aaREF
015015CT3-4020-36LD• • • CONTACT - PIN
49367
ALT 5000-068-0020
POST SBE70-0288		aa41
-015015D5000-068-0020• • • CONTACT - PIN
14283
ALT 5A9288
POST SBE70-0288		aaREF
015015ET3-4020-36LD• • • CONTACT - PIN
49367
POST SBE70-0288		ab-aj41
029029MS27488-20• • PLUG - SEALING
96906		aa-aj11
0300305A9280• • PLUG
(FIN 400KS-J3)		aa-ac1
030030A5A9280• • PLUG
ALT T3K1221-39SD
(FIN 400KS-J3)		aa-ac1
-030030BMT938T21K39SD• • PLUG - CONNECTOR, ASSEMBLY OF
14283
POST SBE70-0156
PRE SBE70-0288		aa-acREF
030030CT3K1221-39SD• • PLUG - ASSY CONNECTOR (FIN 400KS-J3)
49367
ALT MT938T21K39SD
POST SBE70-0288		aa-ac1
-030030DMT938T21K39SD• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9280
POST SBE70-0288		aaREF
0350355A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa37
035035A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac37
-035035B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
035035CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj37
-035035D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-035035EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
0360365A9291• • • CONTACT - SOCKET
PRE SBE70-0156		aa-ac2
036036A5A9291• • • CONTACT - SOCKET
ALT 5100-101-0116
POST SBE70-0156
PRE SBE70-0288		aa-ac2
-036036B5100-101-0116• • • CONTACT - SOCKET
14283
ALT T3-4116-36LD
POST SBE70-0156
PRE SBE70-0288		aa-acREF
036036CT3-4116-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0116
POST SBE70-0288		aa-ac2
-036036D5100-101-0116• • • CONTACT - SOCKET
14283
ALT 5A9291
POST SBE70-0288		aaREF
049049MS27488-20• • PLUG - SEALING
96906		aa-aj11
0500505A9286• • PLUG
(FIN 4000KS-J4)		aa-ac1
050050A5A9286• • PLUG
ALT MT938T21K41S
(FIN 4000KS-J4)		aa-ac1
-050050BMT938T21K41S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1221-41SN
POST SBE70-0156
PRE SBE70-0288		aa-acREF
050050CT3K1221-41SN• • PLUG - ASSY (FIN 4000KS-J4)
49367
ALT MT938T21K41S
POST SBE70-0288		aa-ac1
-050050DMT938T21K41S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9286
POST SBE70-0288		aaREF
0550555A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa29
055055A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac29
-055055B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
055055CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj41
-055055D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-055055EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
0670675A9292• • CONTACT - SOCKET
PRE SBE70-0156		aa-ac6
067067A5A9292• • CONTACT - SOCKET
ALT 5100-299-0220
POST SBE70-0156
PRE SBE70-0288		aa-ac6
-067067B5100-299-0220• • CONTACT
14283
ALT T3-4120-10P
POST SBE70-0156
PRE SBE70-0288		aa-acREF
067067CT3-4120-10P• • CONTACT
49367
ALT 5100-299-0220
POST SBE70-0288
PRE SBE70-0642		aa-ac6
-067067D5100-299-0220• • CONTACT
14283
ALT 5A9292
POST SBE70-0288
PRE SBE70-0642		aaREF
067067EM39029-88-488• • SOCKET - CONTACT
81349
ALT 5100-299-0220
POST SBE70-0642		aa6
067067F5100-299-0220• • CONTACT
14283
ALT M39029-88-488
POST SBE70-0642		aa6
067067GT3-4120-10P• • CONTACT
49367
POST SBE70-0642		ah-aj6
0680685A9293• • CONTACT - SOCKET
PRE SBE70-0156		aa-ac6
068068A5A9293• • CONTACT - SOCKET
ALT 5100-299-0120
POST SBE70-0156
PRE SBE70-0288		aa-ac6
-068068B5100-299-0120• • CONTACT
14283
ALT T3-4120-10R
POST SBE70-0156
PRE SBE70-0288		aa-acREF
068068CT3-4120-10R• • CONTACT
49367
ALT 5100-299-0120
POST SBE70-0288		aa-ac6
-068068D5100-299-0120• • CONTACT
14283
ALT 5A9293
POST SBE70-0288		aaREF
069069MS27488-20• • PLUG - SEALING
96906		aa-aj12
0700705A9287• • PLUG
(FIN 4000KS-J5)		aa-ac1
070070A5A9287• • PLUG
ALT MT938T21K41SB
(FIN 4000KS-J5)		aa-ac1
-070070BMT938T21K41SB• • PLUG - ASSEMBLY OF
14283
ALT T3K1221-41SB
POST SBE70-0156
PRE SBE70-0288		aa-acREF
070070CT3K1221-41SB• • PLUG - ASSY CONNECTOR (FIN 4000KS-J5)
49367
ALT MT938T21K41SB
POST SBE70-0288		aa-ac1
-070070DMT938T21K41SB• • PLUG - ASSEMBLY OF
14283
ALT 5A9287
POST SBE70-0288		aaREF
0750755A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa41
075075A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac41
-075075B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
075075CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj41
-075075D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-075075EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
089089MS27488-20• • PLUG - SEALING
96906		aa-aj17
0900905A9283• • PLUG
(FIN 4000KS-J8)		aa-ac1
090090A5A9283• • PLUG
ALT MT938T21K41PE
(FIN 4000KS-J8)		aa-ac1
-090090BMT938T21K41PE• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1221-41PE
POST SBE70-0156
PRE SBE70-0288		aa-acREF
090090CT3K1221-41PE• • PLUG - ASSY (FIN 4000KS-J8)
49367
ALT MT938T21K41PE
POST SBE70-0288		aa-ac1
-090090DMT938T21K41PE• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9283
POST SBE70-0288		aaREF
0950955A9288• • • CONTACT
PRE SBE70-0156		aa-ac41
095095A5A9288• • • CONTACT
ALT 5000-068-0020
POST SBE70-0156
PRE SBE70-0288		aa-ac41
-095095B5000-068-0020• • • CONTACT - PIN
14283
ALT T3-4020-36LD
POST SBE70-0156
PRE SBE70-0288		aa-acREF
095095CT3-4020-36LD• • • CONTACT - PIN
49367
ALT 5000-068-0020
POST SBE70-0288		aa-ac41
-095095D5000-068-0020• • • CONTACT - PIN
14283
ALT 5A9288
POST SBE70-0288		aaREF
109109MS27488-20• • PLUG - SEALING
96906		aa-aj14
1101105A9281• • PLUG
(FIN 4000KS-J9)		aa-ac1
110110A5A9281• • PLUG
ALT MT938T21K39SE
(FIN 4000KS-J9)		aa-ac1
-110110BMT938T21K39SE• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1221-39SE
POST SBE70-0156
PRE SBE70-0288		aa-acREF
110110CT3K1221-39SE• • PLUG - ASSY (FIN 4000KS-J9)
49367
ALT MT938T21K39SE
POST SBE70-0288		aa-ac1
-110110DMT938T21K39SE• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9281
POST SBE70-0288		aaREF
1151155A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa37
115115A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac37
-115115B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
115115CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj37
-115115D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-115115EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
1161165A9291• • • CONTACT - SOCKET
PRE SBE70-0288		aa-aj2
116116AT3-4116-36LD• • • CONTACT - SOCKET
49367
POST SBE70-0288		aa-aj2
129129MS27488-20• • PLUG - SEALING
96906		aa-aj11
1301305A9284• • PLUG
(FIN 4000KS-J10)		aa-ac1
130130A5A9284• • PLUG
ALT MT938T21K41SA
(FIN 4000KS-J10)		aa-ac1
-130130BMT938T21K41SA• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1221-41SA
POST SBE70-0156
PRE SBE70-0288		aa-acREF
130130CT3K1221-41SA• • PLUG - ASSY (FIN 4000KS-J10)
49367
ALT MT938T21K41SA
POST SBE70-0288		aa-ac1
-130130DMT938T21K41SA• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9284
POST SBE70-0288		aaREF
1351355A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa29
135135A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac29
-135135B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
135135CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj41
-135135D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-135135EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
1471475A9292• • CONTACT - SOCKET
PRE SBE70-0156		aa-ac6
147147A5A9292• • CONTACT - SOCKET
ALT 5100-299-0220
POST SBE70-0156
PRE SBE70-0288		aa-ac6
-147147B5100-299-0220• • CONTACT
14283
ALT T3-4120-10P
POST SBE70-0156
PRE SBE70-0288		aa-acREF
147147CT3-4120-10P• • CONTACT
49367
ALT 5100-299-0220
POST SBE70-0288		aa-ac6
-147147D5100-299-0220• • CONTACT
14283
ALT 5A9292
POST SBE70-0288		aaREF
1481485A9293• • CONTACT - SOCKET
PRE SBE70-0156		aa-aj6
148148A5A9293• • CONTACT - SOCKET
ALT 5100-299-0120
POST SBE70-0156
PRE SBE70-0288		aa-aj6
-148148B5100-299-0120• • CONTACT
14283
ALT 5100-299-0120
POST SBE70-0156
PRE SBE70-0288		ab-acREF
148148CT3-4120-10R• • CONTACT
49367
POST SBE70-0288		aa-aj6
-148148D5100-299-0120• • CONTACT
14283
ALT 5A9293
POST SBE70-0288		aaREF
149149MS27488-20• • PLUG - SEALING
96906		aa-aj10
1501505A9285• • PLUG
(FIN 4000KS-J11)		aa-ac1
150150A5A9285• • PLUG
ALT MT938T21K41SC
(FIN 4000KS-J11)		aa-ac1
-150150BMT938T21K41SC• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1221-41SC
POST SBE70-0156
PRE SBE70-0288		aa-acREF
150150CT3K1221-41SC• • PLUG - ASSY (FIN 4000KS-J11)
49367
ALT MT938T21K41SC
POST SBE70-0288		aa-ac1
-150150DMT938T21K41SC• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9285
POST SBE70-0288		aaREF
1551555A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa41
155155A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac41
-155155B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
155155CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj41
-155155D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-155155EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
169169MS27488-20• • PLUG - SEALING
96906		aa-aj17
1701705A9266• • PLUG
PRE SBE70-0156		aa-aj1
170170AESC10SE62842SN0• • CONNECTOR - PLUG, ASSEMBLY OF
U1653
POST SBE70-0156		aa-aj1
1751755A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa38
177177ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj38
1871875A9304• • CONTACT - SOCKET
U4287
PRE SBE70-0156		aa2
187187AESC30S16NC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj2
1881885A9303• • CONTACT - SOCKET
PRE SBE70-0156		aa2
188188AESC30S16NA• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj2
189189MS3187-16-2• • PLUG - SEALING
96906		aa-aj16
1901905A9267• • PLUG
PRE SBE70-0156		aa-aj1
190190AESC10SE62842S60• • CONNECTOR - PLUG, ASSEMBLY OF
U1653
POST SBE70-0156		aa-aj1
1951955A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa36
197197ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj36
2072075A9304• • CONTACT - SOCKET
U4287
PRE SBE70-0156		aa3
207207AESC30S16NC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj3
2082085A9303• • CONTACT - SOCKET
PRE SBE70-0156		aa3
208208AESC30S16NA• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj3
209209MS3187-16-2• • PLUG - SEALING
96906		aa-aj12
2102105A9278• • PLUG
(FIN 4018KS-A)		aa-ac1
210210A5A9278• • PLUG
ALT MT938T15K19S
(FIN 4018KS-A)		aa-ac1
-210210BMT938T15K19S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1215-19SN
POST SBE70-0156
PRE SBE70-0288		aa-acREF
210210CT3K1215-19SN• • PLUG - ASSY (FIN 4000KC-B)
49367
ALT MT938T15K19S
POST SBE70-0288		aa-ac1
-210210DMT938T15K19S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9278
POST SBE70-0288		aaREF
2152155A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa19
215215A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac19
-215215B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
215215CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj19
-215215D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-215215EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
229229MS27488-20• • PLUG - SEALING
96906		aa-aj11
2302305A9262• • PLUGaa-aj1
230230AESC10SE61407S80• • CONNECTOR
U1653
(FIN 4028KS-A)		ab-aj1
2352355A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa7
237237ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj7
249249MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
2502505A9260• • RECEPTACLEaa-aj1
250250AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4020KS3-A)		ab-aj1
2552555A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa7
257257ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj7
269269MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
2702705A9260• • RECEPTACLE
PRE SBE70-0156		aa-aj1
270270AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4029KS-A)		aa-aj1
2752755A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa7
277277ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj7
289289MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
2902905A9260• • RECEPTACLE
PRE SBE70-0156		aa-aj1
290290AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4023KS-A)		aa-aj1
2952955A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa7
297297ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj7
309309MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
3103105A9265• • PLUG
PRE SBE70-0156		aa-aj1
310310AESC10SE61610S90• • CONNECTOR - PLUG, ASSEMBLY OF
U1653
POST SBE70-0156		aa-aj1
3153155A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa10
317317ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj10
329329MS3187-16-2• • PLUG - SEALING
96906		aa-aj2
3303305A9259• • PLUG
PRE SBE70-0156		aa-aj1
330330AESC10SE61203PN0• • CONNECTOR - PLUG, ASSEMBLY OF
U1653
POST SBE70-0156		aa-aj1
3353355A9269• • • CONTACT - SOCKET
PRE SBE70-0156		aa3
337337ESC30P16BC• • CONTACT - PLUG
U1653
POST SBE70-0156		ab-aj3
3503505A9279• • PLUG
(FIN 4018KS-B)		aa-ac1
350350A5A9279• • PLUG
ALT MT938T17K26S
(FIN 4018KS-B)		aa-ac1
-350350BMT938T17K26S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1217-26SN
POST SBE70-0156
PRE SBE70-0288		aa-acREF
350350CT3K1217-26SN• • PLUG - ASSY CONNECTOR (FIN 4018KS-B)
49367
ALT MT938T17K26S
POST SBE70-0288		aa-ac1
-350350DMT938T17K26S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9279
POST SBE70-0288		aaREF
3553555A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa26
355355A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac26
-355355B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
355355CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj26
-355355D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-355355EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
369369MS27488-20• • PLUG - SEALING
96906		aa-aj14
3703705A9260• • RECEPTACLE
PRE SBE70-0156		aa-aj1
370370AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4019KS-A)		aa-aj1
3753755A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa7
377377ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj7
389389MS3187-16-2• • PLUG - SEALING
96906		aa-aj1
3903905A9261• • RECEPTACLE
PRE SBE70-0156		aa-aj1
390390AESC10SE61407S60• • CONNECTOR
U1653
(FIN 4019KS-B)		aa-aj1
3953955A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa7
397397ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj7
409409MS3187-16-2• • PLUG - SEALING
96906		aa-aj1
4104105A9260• • RECEPTACLEaa-aj1
410410AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4017KS-A)		ab-aj1
4154155A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa3
417417ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj3
4274275A9304• • CONTACT - SOCKET
U4287		aa-aj2
427427AESC30S16NC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj2
4284285A9303• • CONTACT - SOCKETaa-aj2
428428AESC30S16NA• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj2
429429MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
4304305A9278• • PLUG
(FIN 4000KC-B)		aa-ac1
430430A5A9278• • PLUG
ALT MT938T15K19S
(FIN 4000KC-B)		aa-ac1
-430430BMT938T15K19S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1215-19SN
POST SBE70-0156
PRE SBE70-0288		aa-acREF
430430CT3K1215-19SN• • PLUG - ASSY (FIN 4000KC-B)
49367
ALT MT938T15K19S
POST SBE70-0288		aa-ac1
-430430DMT938T15K19S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9278
POST SBE70-0288		aaREF
4354355A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa19
435435A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac19
-435435B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
435435CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj19
-435435D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-435435EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
449449MS27488-20• • PLUG - SEALING
96906		aa-aj4
4504505A9277• • PLUG
(FIN 4000KC-C)		aa-ac1
450450A5A9277• • PLUG
ALT MT938T15K19SA
(FIN 4000KC-C)		aa-ac1
-450450BMT938T15K19SA• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT T3K1215-19SA
POST SBE70-0156
PRE SBE70-0288		aa-acREF
450450CT3K1215-19SA• • PLUG - ASSY CONNECTOR (FIN 4000KC-C)
49367
ALT MT938T15K19SA
POST SBE70-0288		aa-ac1
-450450DMT938T15K19SA• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9277
POST SBE70-0288		aaREF
4554555A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa19
455455A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE70-0288		ab-ac19
-455455B5100-101-0120• • • CONTACT - SOCKET
14283
ALT T3-4120-36LD
POST SBE70-0156
PRE SBE70-0288		ab-acREF
455455CT3-4120-36LD• • • CONTACT - SOCKET
49367
ALT 5100-101-0120
POST SBE70-0288
PRE SBE73-0250		ad-aj19
-455455D5100-101-0120• • • CONTACT - SOCKET
14283
ALT M39029-56-351
POST SBE70-0288
PRE SBE73-0250		ad-ajREF
-455455EM39029-56-351• • • CONTACT - SOCKET
81349
ALT T3-4120-36LD
POST SBE73-0250		akREF
469469MS27488-20• • PLUG - SEALING
96906		aa-aj4
4704705A9260• • RECEPTACLE
PRE SBE70-0156		aa-aj1
470470AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4016KS-A)		aa-aj1
4754755A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa3
477477ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj3
4874875A9304• • CONTACT - SOCKET
U4287
PRE SBE70-0156		aa2
487487AESC30S16NC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj2
4884885A9303• • CONTACT - SOCKET
PRE SBE70-0156		aa2
488488AESC30S16NA• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj2
489489MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
4904905A9276• • PLUG
PRE SBE70-0156		aa-aj1
490490A5A9276• • PLUG
ALT MT938T13K98S
POST SBE70-0156		aa-aj1
-490490BMT938T13K98S• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9276
POST SBE70-0156
PRE SBE71-0111		ab-ajREF
490490CT3K121398SN1259• • CONNECTR - ASSY (FIN 4005EV-A)
49367
ALT MT938T13K98S901
POST SBE71-0111
PRE SBE71-0221		ac-ai1
-490490DMT938T13K98S901• • CONNECTOR - ASSEMBLY OF
14283
ALT T3K121398SN1259
POST SBE71-0111
PRE SBE71-0221		ac-aiREF
490490EESC10SE61212SN0• • CONNECTOR
U1653
POST SBE71-0219		ai-aj1
490490FESC10SE61212SN0• • CONNECTOR
U1653
POST SBE71-0221		ac-aj1
4954955A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa-ai10
495495A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE71-0221		aa-ai10
-495495B5100-101-0120• • • CONTACT - SOCKET
14283
ALT 5A9290
POST SBE70-0156
PRE SBE71-0221		ab-aiREF
495495CESC30S20BC• • CONTACT - SOCKET
U1653
POST SBE71-0219		ai-aj12
495495DESC30S20BC• • CONTACT - SOCKET
U1653
POST SBE71-0221		aj12
509509MS27488-20• • PLUG - SEALING
96906
PRE SBE71-0221		aa-ai4
509509AESC36-20• • PLUG - SEALING
U1653
POST SBE71-0219		ai-aj6
509509BESC36-20• • PLUG - SEALING
U1653
POST SBE71-0221		aj6
5105105A9300• • PLUG
PRE SBE70-0156		aa-ab1
510510A5A9300• • PLUG
ALT MT938T13K98SA
POST SBE70-0156
PRE SBE71-0111		aa-ab1
-510510BMT938T13K98SA• • PLUG - CONNECTOR, ASSEMBLY OF
14283
ALT 5A9300
POST SBE70-0156
PRE SBE71-0111		abREF
510510CT3K121398SA1259• • CONNECTR - ASSY (FIN 4005EV-B)
49367
ALT 1017689
POST SBE71-0111
PRE SBE71-0221		aa-ai1
-510510D1017689• • CONNECTOR - ASSEMBLY OF
14283
ALT T3K121398SA1259
POST SBE71-0111
PRE SBE71-0221		ab-aiREF
510510EESC10SE61212S60• • CONNECTOR
U1653
POST SBE71-0219		ai-aj1
510510FESC10SE61212S60• • CONNECTOR
U1653
POST SBE71-0221		aj1
5155155A9290• • • CONTACT - SOCKET
PRE SBE70-0156		aa-ai10
515515A5A9290• • • CONTACT - SOCKET
ALT 5100-101-0120
POST SBE70-0156
PRE SBE71-0221		aa-ai10
-515515B5100-101-0120• • • CONTACT - SOCKET
14283
ALT 5A9290
POST SBE70-0156
PRE SBE71-0221		ab-aiREF
515515CESC30S20BC• • CONTACT - SOCKET
U1653
POST SBE71-0219		ai-aj12
515515DESC30S20BC• • CONTACT - SOCKET
U1653
POST SBE71-0221		aj12
529529MS27488-20• • PLUG - SEALING
96906
PRE SBE71-0221		aa-ai2
529529AESC36-20• • PLUG - SEALING
U1653
POST SBE71-0219		ai-aj4
529529BESC36-20• • PLUG - SEALING
U1653
POST SBE71-0221		aj4
5305305A9260• • RECEPTACLE
PRE SBE70-0156		aa-aj1
530530AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4015KS-A)		aa-aj1
5355355A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa3
537537ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj3
5475475A9304• • CONTACT - SOCKET
U4287
PRE SBE70-0156		aa2
547547AESC30S16NC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj2
5485485A9303• • CONTACT - SOCKET
PRE SBE70-0156		aa2
548548AESC30S16NA• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj2
549549MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
5505505A9263• • PLUG
PRE SBE70-0156		aa-aj1
550550AESC10SE61610SN0• • CONNECTOR
U1653
(FIN 4100KS-A)		aa-aj1
5555555A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa10
557557ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj10
569569MS3187-16-2• • PLUG - SEALING
96906		aa-aj2
5705705A9264• • PLUG
PRE SBE70-0156		aa-aj1
570570AESC10SE61610S60• • CONNECTOR - PLUG, ASSEMBLY OF
U1653
POST SBE70-0156		aa-aj1
5755755A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa10
577577ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj10
589589MS3187-16-2• • PLUG - SEALING
96906		aa-aj2
5905905A9250• • RECEPTACLE
PRE SBE70-0156		aa-aj1
590590AESC10KE02430PN0• • CONNECTOR - RECEPTACLE
U1653
POST SBE70-0156		aa-aj1
5955955A9269• • • CONTACT - SOCKET
PRE SBE70-0156		aa30
597597ESC30P16BC• • CONTACT - PLUG
U1653
POST SBE70-0156		ab-aj30
609609MS3187-16-2• • PLUG - SEALING
96906		aa-aj17
6106105A9251• • RECEPTACLE
PRE SBE70-0156		aa-aj1
610610AESC10KE02430P60• • CONNECTOR - RECEPTACLE
U1653
POST SBE70-0156		aa-aj1
6156155A9269• • • CONTACT - SOCKET
PRE SBE70-0156		aa30
617617ESC30P16BC• • CONTACT - PLUG
U1653
POST SBE70-0156		ab-aj30
629629MS3187-16-2• • PLUG - SEALING
96906		aa-aj13
6306305A9260• • RECEPTACLE
PRE SBE70-0156		aa-aj1
630630AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4020KS1-A)		aa-aj1
6356355A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa7
637637ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj7
649649MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
6506505A9260• • RECEPTACLE
PRE SBE70-0156		aa-aj1
650650AESC10SE61407SN0• • CONNECTOR
U1653
(FIN 4020KS2-A)		aa-aj1
6556555A9271• • • CONTACT - SOCKET
PRE SBE70-0156		aa7
657657ESC30S16BC• • CONTACT - SOCKET
U1653
POST SBE70-0156		ab-aj7
669669MS3187-16-2• • PLUG - SEALING
96906		aa-aj3
8898895A9189• • KNIT MESH
PRE SBE70-0367		aa-ae1
8908905A9190• • CABLE - F/R 20 AWG (2C)
PRE SBE70-0367		aa-ae1
-890890AESW1202-022-006• • CABLE - ELECTRICAL
U1653
POST SBE70-0367
PRE SBE70-0638		aa-ajREF
890890BU440176• • CABLE
ALT ESW1202-022-006
(BLK ESW1202-022-006)		aa-aj1
-890890CESW1202-022-006• • CABLE - ELECTRICAL
U1653
ALT U440176
POST SBE70-0638		aa-ajREF
8918915A9191• • CABLE - F/R 20 AWG (3C)
PRE SBE70-0367		aa-ae1
8928925A9192• • CABLE - 20 AWG (2C)
PRE SBE70-0324		aa-aj1
-892892AESW1202-022-006• • CABLE - ELECTRICAL
U1653
ALT 5A9192
POST SBE70-0324
PRE SBE70-0367		aa-ajREF
-892892B5A9192• • CABLE - 20 AWG (2C)
ALT ESW1202-032-006
POST SBE70-0324
PRE SBE70-0367		aa-ajREF
-892892CESW1202-032-006• • CABLE
U1653
POST SBE70-0367		aa-ajREF
892892DU440176• • CABLE
ALT ESW1202-022-006
(BLK ESW1202-022-006)		aa-aj1
-892892EESW1202-022-006• • CABLE - ELECTRICAL
U1653
ALT U440176
POST SBE70-0638		aa-ajREF
8938935A9193• • CABLE - 20 AWG (3C)
PRE SBE70-0324		aa-af1
-893893AESW1202-032-006• • CABLE
U1653
ALT 5A9193
POST SBE70-0324
PRE SBE70-0367		aa-afREF
-893893B5A9193• • CABLE - 20 AWG (3C)
ALT ESW1202-032-006
POST SBE70-0324
PRE SBE70-0367		aa-afREF
-893893CESW1202-032-006• • CABLE
U1653
POST SBE70-0367
PRE SBE70-0638		aa-afREF
893893DU440177• • CABLE - 30 ME, 100 FT REEL
ALT ESW1202-032-006
(BLK ESW1202-032-006)		aa-af1
-893893EESW1202-032-006• • CABLE
U1653
ALT U440177
POST SBE70-0638		aa-afREF
8948945A9194• • CABLE
PRE SBE70-0324		aa-ae1
894894AESW1202-022-012• • CABLE - ELECTRICAL
U1653
ALT 5A9194
POST SBE70-0324
PRE SBE70-0367		aa-ae1
-894894B5A9194• • CABLE
ALT ESW1202-022-012
POST SBE70-0324
PRE SBE70-0367		aeREF
894894CESW1202-022-012• • CABLE - ELECTRICAL
U1653
POST SBE70-0367
PRE SBE70-0638		af1
894894DU440179• • CABLE - 30 ME, 100 FT REEL
ALT ESW1202-022-012
(BLK ESW1202-022-012)		af1
-894894EESW1202-022-012• • CABLE - ELECTRICAL
U1653
ALT U440179
POST SBE70-0638		afREF
8968965A9196• • CABLE - THERMOCOUPLE 20 AWG
PRE SBE70-0367		aa-ae1
-896896AESW1602-022-006• • CABLE
U1653
POST SBE70-0367
PRE SBE70-0638		aa-ajREF
896896BU440180• • CABLE - 30 ME, 100 FT REEL
ALT ESW1602-022-006
(BLK ESW1602-022-006)		aa-aj1
-896896CESW1602-022-006• • CABLE
U1653
ALT U440180
POST SBE70-0638		aa-ajREF
-898898U324020• • CABLE - ELECTRICAL
POST SBE70-0156
PRE SBE70-0638		ab-aj1
-898898AU440181• • CABLE - 30ME, 100 FT REEL
ALT U324020
(BULK STOCK U324020)		ab-aj1
-898898BU324020• • CABLE - ELECTRICAL
ALT U440181
POST SBE70-0638		ab-ajREF
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

EEC HARNESS FAN

EEC HARNESS FAN

EEC HARNESS FAN

EEC HARNESS FAN

Change Type:

Incorporated SBE 73-0250.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:14283
Enterprise Name:MATRIX SCIENCE CORP
BU Name:MATRIX SCIENCE CORP
Street:455 MAPLE AVENUE
City:TORRANCE
State:CA
Zip Code:90503-3807
Country:USA
Manufacturer Code:49367
Enterprise Name:PYLE NATIONAL CONNECTORS
BU Name:PYLE NATIONAL CONNECTORS
Street:40-60 DELAWARE AVENUE
City:SIDNEY
State:N.Y
Zip Code:13838-1395
Country:USA
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Manufacturer Code:U4287
Enterprise Name:TRW AERONAUTICAL SYSTEMS
BU Name:TRW AERONAUTICAL SYSTEMS
Department:EQUIPMENT SERVICES
Street:YORK ROAD
City:BIRMINGHAM
State:NEW JERSEY
Province:HALL GREEN
Zip Code:B28 8LN
Country:ENGLAND
Part Number:1017689
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:14283
Part Number:5000-068-0020
Part Name:CONTACT - PIN
Manufacturer Code:14283
Part Number:5100-101-0116
Part Name:CONTACT - SOCKET
Manufacturer Code:14283
Part Number:5100-101-0120
Part Name:CONTACT - SOCKET
Manufacturer Code:14283
Optional Parts
Part NumberPart NameManufacturer
T3-4120-36LDCONTACT - SOCKETCONTACT, SOCKET49367
Part Number:5100-299-0120
Part Name:CONTACT
Manufacturer Code:14283
Part Number:5100-299-0220
Part Name:CONTACT
Manufacturer Code:14283
Part Number:5A9189
Part Name:KNIT MESH
Manufacturer Code:0AM53
Part Number:5A9190
Part Name:CABLE - F/R 20 AWG (2C)
Manufacturer Code:0AM53
Part Number:5A9191
Part Name:CABLE - F/R 20 AWG (3C)
Manufacturer Code:0AM53
Part Number:5A9192
Part Name:CABLE - 20 AWG (2C)
Manufacturer Code:0AM53
Part Number:5A9193
Part Name:CABLE - 20 AWG (3C)
Manufacturer Code:0AM53
Part Number:5A9194
Part Name:CABLE
Manufacturer Code:0AM53
Part Number:5A9196
Part Name:CABLE - THERMOCOUPLE 20 AWG
Manufacturer Code:0AM53
Part Number:5A9250
Part Name:RECEPTACLE
Manufacturer Code:0AM53
Part Number:5A9251
Part Name:RECEPTACLE
Manufacturer Code:0AM53
Part Number:5A9259
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9260
Part Name:RECEPTACLE
Manufacturer Code:0AM53
Part Number:5A9261
Part Name:RECEPTACLE
Manufacturer Code:0AM53
Part Number:5A9262
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9263
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9264
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9265
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9266
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9267
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9269
Part Name:CONTACT - SOCKET
Manufacturer Code:0AM53
Part Number:5A9271
Part Name:CONTACT - SOCKET
Manufacturer Code:0AM53
Part Number:5A9276
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9277
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9278
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9279
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9280
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9281
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9282
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9283
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9284
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9285
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9286
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9287
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9288
Part Name:CONTACT
Manufacturer Code:0AM53
Part Number:5A9290
Part Name:CONTACT - SOCKET
Manufacturer Code:0AM53
Part Number:5A9291
Part Name:CONTACT - SOCKET
Manufacturer Code:0AM53
Part Number:5A9292
Part Name:CONTACT - SOCKET
Manufacturer Code:0AM53
Part Number:5A9293
Part Name:CONTACT - SOCKET
Manufacturer Code:0AM53
Part Number:5A9300
Part Name:PLUG
Manufacturer Code:0AM53
Part Number:5A9303
Part Name:CONTACT - SOCKET
Manufacturer Code:0AM53
Part Number:5A9304
Part Name:CONTACT - SOCKET
Manufacturer Code:U4287
Part Number:ESC10KE02430P60
Part Name:CONNECTOR - RECEPTACLE
Manufacturer Code:U1653
Part Number:ESC10KE02430PN0
Part Name:CONNECTOR - RECEPTACLE
Manufacturer Code:U1653
Part Number:ESC10SE61203PN0
Part Name:CONNECTOR - PLUG, ASSEMBLY OF
Manufacturer Code:U1653
Part Number:ESC10SE61212S60
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC10SE61212SN0
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC10SE61407S60
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC10SE61407S80
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC10SE61407SN0
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC10SE61610S60
Part Name:CONNECTOR - PLUG, ASSEMBLY OF
Manufacturer Code:U1653
Part Number:ESC10SE61610S90
Part Name:CONNECTOR - PLUG, ASSEMBLY OF
Manufacturer Code:U1653
Part Number:ESC10SE61610SN0
Part Name:CONNECTOR
Manufacturer Code:U1653
Part Number:ESC10SE62842S60
Part Name:CONNECTOR - PLUG, ASSEMBLY OF
Manufacturer Code:U1653
Part Number:ESC10SE62842SN0
Part Name:CONNECTOR - PLUG, ASSEMBLY OF
Manufacturer Code:U1653
Part Number:ESC30P16BC
Part Name:CONTACT - PLUG
Manufacturer Code:U1653
Part Number:ESC30S16BC
Part Name:CONTACT - SOCKET
Manufacturer Code:U1653
Part Number:ESC30S16NA
Part Name:CONTACT - SOCKET
Manufacturer Code:U1653
Part Number:ESC30S16NC
Part Name:CONTACT - SOCKET
Manufacturer Code:U1653
Part Number:ESC30S20BC
Part Name:CONTACT - SOCKET
Manufacturer Code:U1653
Part Number:ESC36-20
Part Name:PLUG - SEALING
Manufacturer Code:U1653
Part Number:ESW1202-022-006
Part Name:CABLE - ELECTRICAL
Manufacturer Code:U1653
Part Number:ESW1202-022-012
Part Name:CABLE - ELECTRICAL
Manufacturer Code:U1653
Part Number:ESW1202-032-006
Part Name:CABLE
Manufacturer Code:U1653
Part Number:ESW1602-022-006
Part Name:CABLE
Manufacturer Code:U1653
Part Number:M39029-56-351
Part Name:CONTACT - SOCKET
Manufacturer Code:81349
Part Number:M39029-88-488
Part Name:SOCKET - CONTACT
Manufacturer Code:81349
Part Number:MS27488-20
Part Name:PLUG, SEALING
Manufacturer Code:96906
Unit Of Issue:EA
Part Number:MS3187-16-2
Part Name:PLUG - SEALING
Manufacturer Code:96906
Part Number:MT938T13K98S901
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T13K98SA
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T13K98S
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T15K19SA
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T15K19S
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T17K26S
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T21K39SD
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T21K39SE
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T21K41PA
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T21K41PE
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T21K41SA
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T21K41SB
Part Name:PLUG - ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T21K41SC
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:MT938T21K41S
Part Name:PLUG - CONNECTOR, ASSEMBLY OF
Manufacturer Code:14283
Part Number:T3-4020-36LD
Part Name:CONTACT - PIN
Manufacturer Code:49367
Part Number:T3-4116-36LD
Part Name:CONTACT - SOCKET
Manufacturer Code:49367
Part Number:T3-4120-10P
Part Name:CONTACT
Manufacturer Code:49367
Part Number:T3-4120-10R
Part Name:CONTACT
Manufacturer Code:49367
Part Number:T3-4120-36LD
Part Name:CONTACT, SOCKET
Manufacturer Code:49367
Optional Parts
Part NumberPart NameManufacturer
5100-101-0120CONTACT - SOCKET14283
Part Number:T3K121398SA1259
Part Name:CONNECTR - ASSY (FIN 4005EV-B)
Manufacturer Code:49367
Part Number:T3K121398SN1259
Part Name:CONNECTR - ASSY (FIN 4005EV-A)
Manufacturer Code:49367
Part Number:T3K1215-19SA
Part Name:PLUG - ASSY CONNECTOR (FIN 4000KC-C)
Manufacturer Code:49367
Part Number:T3K1215-19SN
Part Name:PLUG - ASSY (FIN 4000KC-B)
Manufacturer Code:49367
Part Number:T3K1217-26SN
Part Name:PLUG - ASSY CONNECTOR (FIN 4018KS-B)
Manufacturer Code:49367
Part Number:T3K1221-39SD
Part Name:PLUG - ASSY CONNECTOR (FIN 400KS-J3)
Manufacturer Code:49367
Part Number:T3K1221-39SE
Part Name:PLUG - ASSY (FIN 4000KS-J9)
Manufacturer Code:49367
Part Number:T3K1221-41PA
Part Name:PLUG - ASSY (FIN 4000KS-J2)
Manufacturer Code:49367
Part Number:T3K1221-41PE
Part Name:PLUG - ASSY (FIN 4000KS-J8)
Manufacturer Code:49367
Part Number:T3K1221-41SA
Part Name:PLUG - ASSY (FIN 4000KS-J10)
Manufacturer Code:49367
Part Number:T3K1221-41SB
Part Name:PLUG - ASSY CONNECTOR (FIN 4000KS-J5)
Manufacturer Code:49367
Part Number:T3K1221-41SC
Part Name:PLUG - ASSY (FIN 4000KS-J11)
Manufacturer Code:49367
Part Number:T3K1221-41SN
Part Name:PLUG - ASSY (FIN 4000KS-J4)
Manufacturer Code:49367
Part Number:U324020
Part Name:CABLE - ELECTRICAL
Manufacturer Code:0AM53
Part Number:U440176
Part Name:CABLE
Manufacturer Code:0AM53
Part Number:U440177
Part Name:CABLE - 30 ME, 100 FT REEL
Manufacturer Code:0AM53
Part Number:U440179
Part Name:CABLE - 30 ME, 100 FT REEL
Manufacturer Code:0AM53
Part Number:U440180
Part Name:CABLE - 30 ME, 100 FT REEL
Manufacturer Code:0AM53
Part Number:U440181
Part Name:CABLE - 30ME, 100 FT REEL
Manufacturer Code:0AM53
