POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

DMC:V2500-A1-71-51-41-05A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
05
000	B71514105	POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0057	aa
000	SBE0057-01	POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0060	ab
000	SBE0060-01	POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0158	ac
000	SBE0158-01	POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0110	ad
000	SBE0110-01	POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0119	ae
000	SBE0119-01	POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0302	af
000	SBE0302-01	POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0568	ag
000	SBE0568-01	POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN	ah
440440	6A5740	• BRACKET - ASSY OF POST SBE71-0119	af-ah	1
442442	4W0164	• BOLT - .250 DIA X .625 Optional Part 4W0164 POST SBE71-0119	af-ah	2
444444	4W0002	• NUT - .250 DIA Optional Part 4W0002 POST SBE71-0119	af-ah	2
700700	5W8398	• BRACKET POST SBE71-0110	ae-ah	1
710710	740-5601-507	• RAFT - ASSY 51563 POST SBE71-0110	ae-ah	1
711711	740-0296-505	• • PLATE - IDENT (F.I.N) 51563 POST SBE71-0110	ae-ah	1
712712	SP158-40	• • RIVET K7766 POST SBE71-0110	ae-ah	4
714714	4W0162	• BOLT - .250 DIA X .500 Optional Part 4W0162 POST SBE71-0110	ae-ah	4
720720	740-5620-503	• ANGLE - ATTACHMENT 51563 POST SBE71-0110	ae-ah	1
721721	4W0002	• NUT - .250 DIA Optional Part 4W0002 POST SBE71-0110	ae-ah	2
724724	4W0164	• BOLT - .250 DIA X .625 Optional Part 4W0164 POST SBE71-0110 PRE SBE70-0302	ae-af	2
724724A	4W0167	• BOLT - .250 DIA X .812 Optional Part 4W0167 POST SBE70-0302	ag-ah	2
730730	740-5622-501	• ANGLE - ATTACHMENT 51563 POST SBE71-0110	ae-ah	1
731731	NAS1291C4M	• NUT 80205 ALT H42-4 POST SBE71-0110	ae-ah	2
-731731A	H42-4	• NUT - SELF-LOCKING, .250 DIA 15653 ALT NAS1291C4M POST SBE71-0110	ae-ah	REF
732732	SP155E	• WASHER - FLAT K7766 POST SBE71-0110	ae-ah	2
733733	740-5923-501	• PACKING - PIECE 51563 POST SBE71-0110	ae-ah	1
734734	NAS7204U6	• BOLT - 100 DEGREE HEAD CSK 80205 POST SBE71-0110	ae-ah	2
750750	5W8395	• BRACKET - ASSY OF POST SBE71-0060 PRE SBE71-0119	ac-ae	1
751751	4W0002	• NUT - .250 DIA Optional Part 4W0002 POST SBE71-0060 PRE SBE71-0119	ac-ae	2
754754	4W0170	• BOLT - .250 DIA X 1.000 Optional Part 4W0170 POST SBE71-0060 PRE SBE71-0119	ac-ae	2
760760	5A9168	• BRACKET - A/O	aa-ah	1
820820	5W8383	• BRACKET PRE SBE70-0158	aa-ah	1
820820A	6A4664	• BRACKET POST SBE70-0158 PRE SBE70-0568	aa-ah	1
820820B	6A4664	• BRACKET ALT 5W8383 POST SBE70-0568	aa-ah	1
820820C	5W8383	• BRACKET ALT 6A4664 POST SBE70-0568	ah	1

821821	4W0002	• NUT - .250 DIA	aa-ah	1
824824	4W0164	• BOLT - .250 DIA X .625	aa-ah	1

840840	5W8338	• BRACKET	aa-ah	1

841841	4W0002	• NUT - .250 DIA	aa-ah	2
844844	4W0164	• BOLT - .250 DIA X .625	aa-ah	2

850850	5W8337	• BRACKET PRE SBE70-0158	aa-ah	1
850850A	6A4665	• BRACKET POST SBE70-0158	aa-ah	1

851851	4W0002	• NUT - .250 DIA	aa-ah	2
854854	4W0164	• BOLT - .250 DIA X .625	aa-ah	2

870870	5W8330	• BRACKET	aa-ah	1

871871	4W0002	• NUT - .250 DIA	aa-ah	2
874874	4W0164	• BOLT - .250 DIA X .625	aa-ah	2

880880	5W8329	• BRACKET	aa-ah	1

881881	4W0002	• NUT - .250 DIA	aa-ah	2
884884	4W0164	• BOLT - .250 DIA X .625	aa-ah	2

890890	5W8317	• BRACKET	aa-ah	7

891891	4W0002	• NUT - .250 DIA	aa-ah	9
894894	4W0164	• BOLT - .250 DIA X .625 PRE SBE71-0057	aa	9
894894A	4W0165	• BOLT - .250 DIA X .688 POST SBE71-0057	ab-ah	9

910910	5W8316	• BRACKET PRE SBE70-0158	aa-ah	1
910910A	6A4666	• BRACKET POST SBE70-0158	aa-ah	1

911911	4W0002	• NUT - .250 DIA	aa-ah	2
914914	4W0165	• BOLT - .250 DIA X .688	aa-ah	2

920920	5W8315	• BRACKET PRE SBE70-0158	aa-ah	4
920920A	6A4667	• BRACKET POST SBE70-0158 PRE SBE70-0568	aa-ah	4
920920B	6A4667	• BRACKET ALT 5W8315 POST SBE70-0568	aa-ah	4
920920C	5W8315	• BRACKET ALT 6A4667 POST SBE70-0568	ah	4

921921	4W0002	• NUT - .250 DIA	aa-ah	5
924924	4W0164	• BOLT - .250 DIA X .625	aa-ah	5

940940	5A9186	• BRACKET - A/O PRE SBE70-0158	aa-ah	1
940940A	6A4688	• BRACKET - ASSY OF POST SBE70-0158	aa-ah	1

944944	4W0102	• BOLT - .190 DIA X .438	aa-ah	2

990990	5W8382	• BRACKET PRE SBE70-0158	aa-ae	2
990990A	6A4668	• BRACKET POST SBE70-0158 PRE SBE71-0119	aa-ae	2
990990B	6A4668	• BRACKET POST SBE71-0119 PRE SBE70-0568	af-ag	1
990990C	6A4668	• BRACKET ALT 5W8382 POST SBE70-0568	ah	1
990990D	5W8382	• BRACKET ALT 6A4668 POST SBE70-0568	ah	1

991991	4W0002	• NUT - .250 DIA PRE SBE71-0119	aa-ae	4
991991A	4W0002	• NUT - .250 DIA POST SBE71-0119	af-ah	2
994994	4W0164	• BOLT - .250 DIA X .625 PRE SBE71-0119	aa-ae	4
994994A	4W0164	• BOLT - .250 DIA X .625 POST SBE71-0119	af-ah	2

995995	6A5742	• BRACKET POST SBE71-0119	af-ah	1
997997	4W0002	• NUT - .250 DIA Optional Part 4W0002 POST SBE71-0119	af-ah	2
998998	4W0164	• BOLT - .250 DIA X .625 Optional Part 4W0164 POST SBE71-0119	af-ah	2
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	15653
Enterprise Name:	ALCOA FASTENING SYSTEMS
BU Name:	ALCOA FASTENING SYSTEMS
Department:	FULLERTON OPERATIONS PLANT 1
Street:	800 S.STATE COLLEGE BOULEVARD
City:	FULLERTON
State:	CA
Zip Code:	92831
Country:	USA
Phone Number:	1-714-871-1550
Fax Number:	1-714-680-0175
Internet:	www.alcoa.com

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

Export Control

Copyright

Applicability

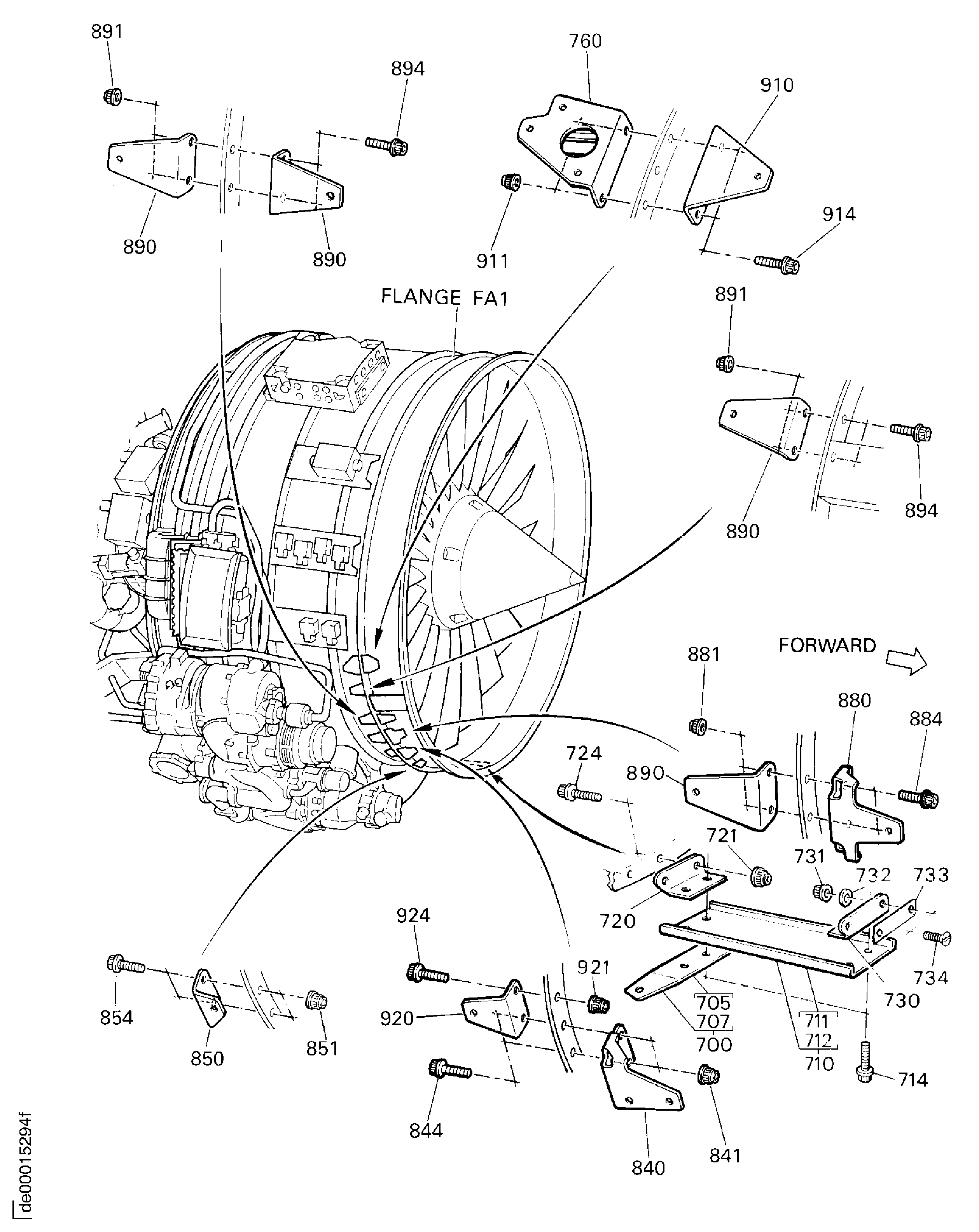

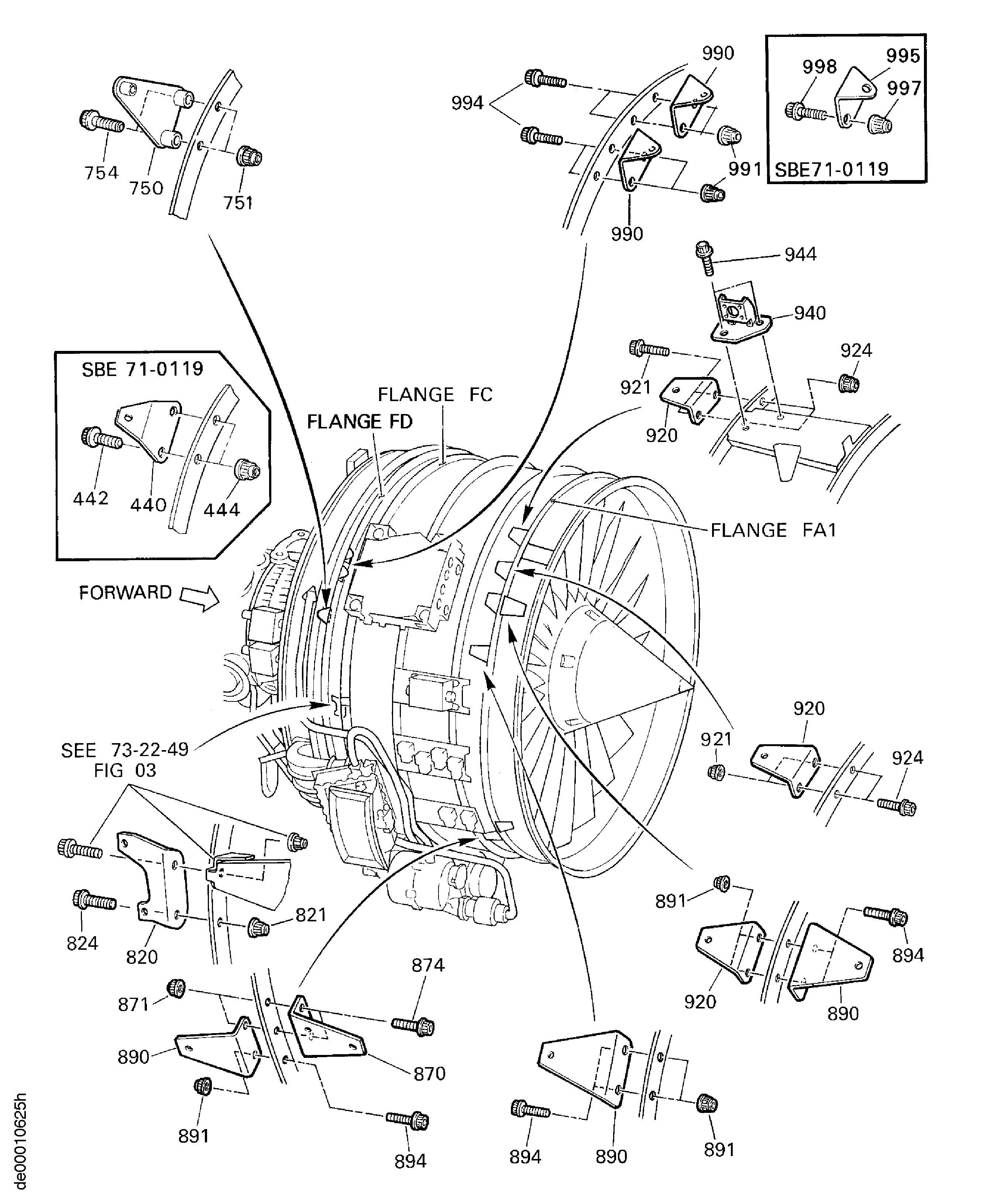

Figure: POWER PLANT-ELECTRICAL HARNESS-EEC HARNESS-FAN

EEC HARNESS FAN

EEC HARNESS FAN

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4W0162
Part Name:	BOLT, MACHINE DOUBLE HEX - .250 DIA X .500
Manufacturer Code:	0AM53

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS48116
Part Name:	BOLT - 0.250 DIA X 1.000
Manufacturer Code:	U1653
