POWER PLANT-FUEL DRAIN TUBES-POWER PLANT

DMC:V2500-A1-71-71-48-03A-941A-D|Issue No:002|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
03
000	B71714803	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, SBN71-0147	aa
000	SBN0147-01	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBE71-0109	ab
000	SBE0109-01	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBE79-0087	ac
000	SBE0087-01	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBE70-0960	ad
000	SBE0960-01	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT	ae
-002002	740-5017-505	ARRANGEMENT - DRAIN SYSTEM 51563	aa-ae	REF
100100	740-5702-505	• TUBE - DRAIN FUEL PUMP, ASSEMBLY OF 51563	aa	1
100100A	740-5702-507	• TUBE - DRAIN, ASSEMBLY OF 51563 PRE SBN71-0147	aa	1
100100B	740-5702-509	• TUBE - ASSY, DRAIN,FUEL PUMP 51563 POST SBN71-0147	aa-ae	1

102102	740-5705-501	• UNION 51563	aa-ae	1
105105	MS28778-06	• PACKING - PREFORMED 96906 PRE SBE70-0960	aa-ae	1
105105A	MS28778-6	• RING - SEAL, 11,89 MM I/D X 1,98 MM 96906 POST SBE70-0960	aa-ae	1
125125	AS21411	• BOLT, .190 DIA X .688 U1653	aa-ae	1
127127	ST1698D47	• SPACER (5MM) K4585	aa-ae	1
129129	400WSS4	• CLIP 83930	aa-ae	1
131131	AS41104	• NUT - 0.19 DIA U1653	aa-ae	1
400400	740-5688-507	• TUBE 51563	aa-ae	1
400400A	740-5688-509	• TUBE 51563 PRE SBN71-0147	aa	1
400400B	740-5688-511	• TUBE 51563 POST SBN71-0147 PRE SBN71-0272	aa	1
400400C	740-5688-513	• TUBE ASSY,DRAIN 51563 POST SBE79-0087	ad-ae	1
410410	AS21508	• BOLT - 0.25 DIA X 0.500 U1653	aa-ae	2
410410A	AS21509	• BOLT, MACHINE DOUBLE HEX - 0.250 DIA X 0.562 U1653 ALT MS9557-07	ae	2
-410410B	MS9557-07	• BOLT - MACHINE, DOUBLE HEX 96906 ALT AS21509	ae	REF
415415	AS20625	• NUT, SELF LOCKING, BIHEX, .250 DIA U1653	aa-ae	2
425425	4W0103	• BOLT - .190 DIA X .500 POST SBE71-0109 PRE SBN71-0272	*****	1
427427	5W1086	• WASHER POST SBE71-0109 PRE SBN71-0272	*****	2

429429	400WSS12	• CLIP 83930 POST SBE71-0109 PRE SBN71-0272	*****	1
431431	400WSS4	• CLIP 83930 POST SBE71-0109 PRE SBN71-0272	*****	1
433433	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBE71-0109 PRE SBN71-0272	*****	1

480480	AS21408	• BOLT - .190 DIA X .500 U1653 POST SBE79-0087	ad-ae	1
480480A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	ae	1
-480480B	MS9556-06	• BOLT 96906 ALT AS21408	ae	REF

481481	SP154D	• WASHER - 0.190 DIA K7766 POST SBE79-0087	ad-ae	1
483483	400WSS4	• CLIP 83930 POST SBE79-0087	ae	1
487487	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001 POST SBE79-0087	ae	1
700700	740-5692-503	• TUBE - DRAIN FUEL BIF.PANEL DRAIN, ASSEMBLY OF 51563	aa-ab	1
700700A	740-5692-505	• TUBE - DRAIN, ASSEMBLY OF 51563 PRE SBN71-0147	aa-ab	1
700700B	740-5692-507	• TUBE - ASSY, DRAIN, FUEL DIFF PANEL 51563 POST SBN71-0147	aa-ae	1
705705	AS21418	• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125 U1653	aa-ae	1
-705705A	MS9556-13	• BOLT - MACHINE DOUBLE HEXAGON 96906 ALT AS21415	ae	REF
705705B	AS21415	• BOLT - BIHEX HD,.190 DIA X .938 U1653 ALT MS9556-13	ae	1
710710	ST1698D49	• SPACER - 15 MM K4585	aa-ae	1
715715	400WSS4	• CLIP 83930	aa-ae	1
720720	SP154D	• WASHER - 0.190 DIA K7766	aa-ae	1
725725	4W0001	• NUT, OPTION - .190 DIA Optional Part 4W0001	aa-ae	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K4585
Enterprise Name:	SHORT BROS PLC
BU Name:	NULL
Street:	AIRPORT ROAD
P.O. Box:	PO BOX 241 BT3
City:	QUEENS ISLAND
State:	BELFAST
Zip Code:	9DZ
Country:	UNITED KINGDOM

POWER PLANT-FUEL DRAIN TUBES-POWER PLANT

Export Control

Copyright

Applicability

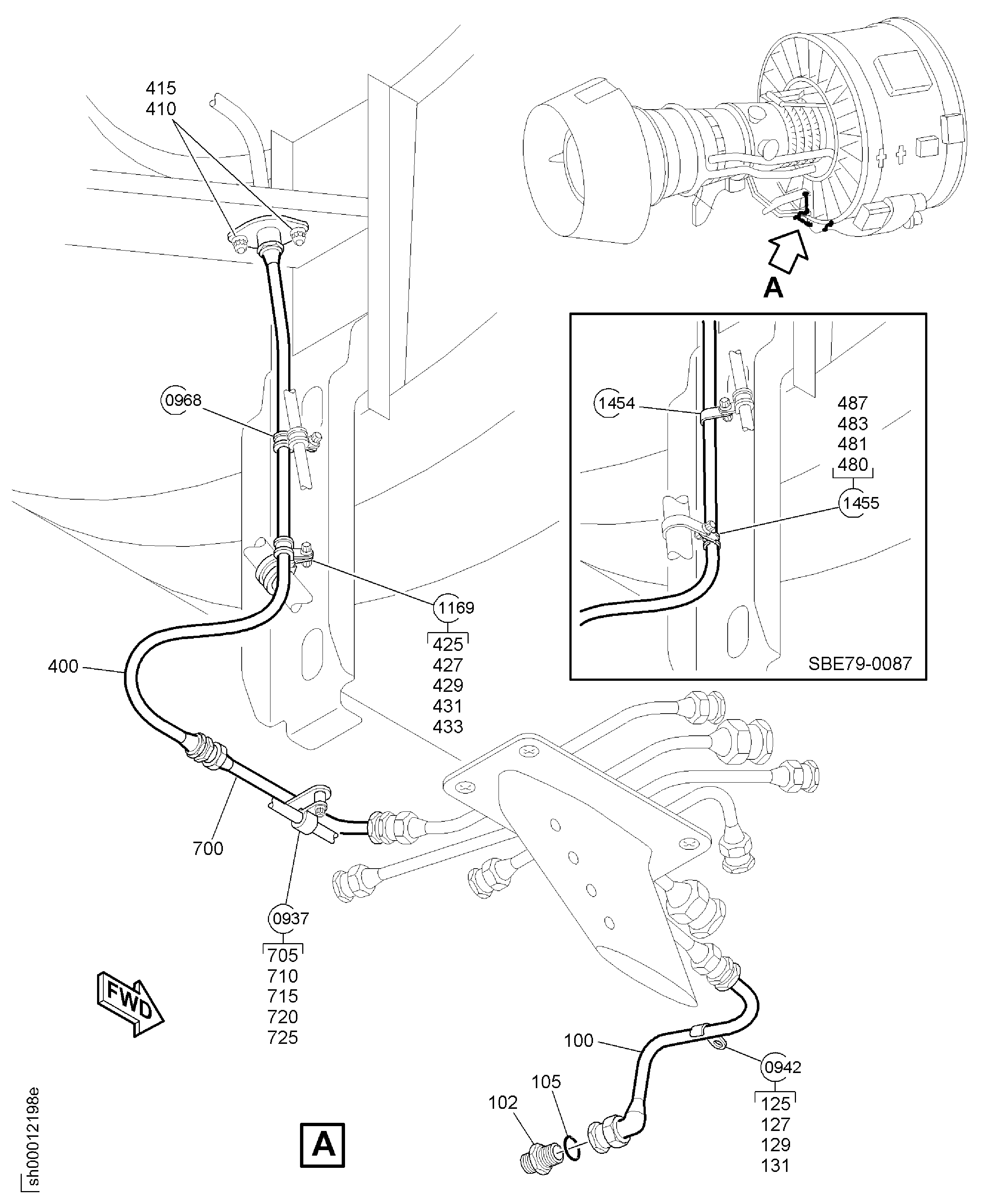

Figure: POWER PLANT-FUEL DRAIN TUBES-POWER PLANT

TUBES FUEL DRAIN

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	740-5017-505
Part Name:	ARRANGEMENT - DRAIN SYSTEM
Manufacturer Code:	51563

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653
