| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72320302 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0024 | aa | ||
| SBE0024-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0081 | ab | ||
| SBE0081-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0051 | ac | ||
| SBE0051-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0163 | ad | ||
| SBE0163-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0202 | ae | ||
| SBE0202-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0175 | af | ||
| SBE0175-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0275 | ag | ||
| SBE0275-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0150 | ah | ||
| SBE0150-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0433 | ai | ||
| SBE0433-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0216 | aj | ||
| SBE0216-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0246 | ak | ||
| SBE0246-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0286 | al | ||
| SBE0286-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0346 | am | ||
| SBE0346-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0435 | an | ||
| SBE0435-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0669 | ao | ||
| SBE0669-01 | ENGINE-INTERMEDIATE STRUCTURE | ap | ||
| 080 | 5A0351 | • DRAIN - PIPE POST SBE72-0051 PRE SBE70-0275 | ad-ao | 1 |
| 080A | 5A1612 | • DRAIN - PIPE POST SBE70-0275 | ad-ao | 1 |
| 100 | 5A2184 | • PANEL - A/O FAIRING NO.6 STRT PRE SBE72-0051 | aa-ac | 1 |
| 100A | 5A0352 | • PANEL - A/O FAIRING NO.6 STRUT POST SBE72-0051 PRE SBE72-0346 | ad-an | 1 |
| 100B | 5A1838 | • PANEL - A/O FAIRING NO.6 STRT POST SBE72-0346 PRE SBE72-0435 | ad-an | 1 |
| 100C | 5A1885 | • PANEL - A/O FAIRING NO.6 POST SBE72-0435 | ao | 1 |
| 100D | 5A1898 | • PANEL - A/O FAIRING NO.6 POST SBE72-0435 | ao | 1 |
| 110 | 4W0002 | • NUT - .250 DIA PRE SBE72-0435 | aa-an | 3 |
| 110A | 4W0002 | • NUT - .250 DIA POST SBE72-0435 | ao | 2 |
| 120 | AN960C416 | • WASHER 81352 PRE SBE72-0081 | aa-an | 3 |
| 120A | MS9321-10 | • WASHER 96906 POST SBE72-0081 PRE SBE72-0435 | aa-an | 3 |
| 120B | MS9321-10 | • WASHER 96906 POST SBE72-0435 | ao | 2 |
| 130 | 4W0166 | • BOLT - .250 DIA X .750 PRE SBE72-0175 | aa-af | 3 |
| 130A | 4W0166 | • BOLT - .250 DIA X .750 POST SBE72-0175 PRE SBE72-0435 | ag-an | 1 |
| 132 | 4W0168 | • BOLT - .250 DIA X .875 Optional Part 4W0168 POST SBE72-0175 | ag-ao | 2 |
| 140 | AN960C10 | • WASHER 81352 PRE SBE72-0081 | aa-ao | 4 |
| 140A | MS9321-09 | • WASHER 96906 POST SBE72-0081 | aa-ao | 4 |
| 150 | 4W0106 | • BOLT - .190 DIA X .688 PRE SBE72-0051 | aa-ac | 4 |
| 150A | MS9714-09 | • BOLT 96906 ALT AS43211 POST SBE72-0051 | ad-ao | 4 |
| -150B | AS43211 | • BOLT - .190 DIA X .688 U1653 ALT AS43611 POST SBE72-0051 | ad-ao | REF |
| -150C | AS43611 | • BOLT - .190 DIA X .688 U1653 ALT AS44011 POST SBE72-0051 | ad-ao | REF |
| -150D | AS44011 | • BOLT U1653 ALT MS9714-09 POST SBE72-0051 | ad-ao | REF |
| 230 | CR2662-3-3 | • • RIVET - FLUSH HEAD, 0.094 DIA X 0.188 81349 PRE SBE70-0433 | aa-ao | 4 |
| 230A | CR2672-3-03 | • • RIVET 81349 ALT CR2662-3-03 POST SBE70-0433 | aa-ao | 4 |
| -230B | CR2662-3-03 | • • RIVET 81349 ALT CR2672-3-03 POST SBE70-0433 | aa-ao | REF |
| 240 | 5A2077 | • • BLOCK - RUBBER | aa-ao | 1 |
| 300 | 5A2183 | • PANEL - A/O FAIRING NO.1 STRT PRE SBE72-0024 | aa | 1 |
| 300A | 5A0212 | • PANEL - A/O FAIRING NO.1 POST SBE72-0024 PRE SBE72-0216 | ab-aj | 1 |
| 300B | 5A1692 | • PANEL - A/O FAIRING POST SBE72-0216 | ak-ao | 1 |
| 305 | 4W0002 | • NUT - .250 DIA | aa-ao | 3 |
| 307 | AN960C416 | • WASHER 81352 PRE SBE72-0081 | aa-ao | 3 |
| 307A | MS9321-10 | • WASHER 96906 POST SBE72-0081 | aa-ao | 3 |
| 310 | 4W0166 | • BOLT - .250 DIA X .750 | aa-ao | 3 |
| 315 | AN960C416 | • WASHER 81352 PRE SBE72-0081 | aa-ao | 3 |
| 315A | MS9321-10 | • WASHER 96906 POST SBE72-0081 | aa-ao | 3 |
| 320 | AN960C10 | • WASHER 81352 PRE SBE72-0081 | aa-ao | 4 |
| 320A | MS9321-09 | • WASHER 96906 POST SBE72-0081 | aa-ao | 4 |
| 330 | 4W0106 | • BOLT - .190 DIA X .688 PRE SBE72-0051 | aa-ac | 4 |
| 330A | MS9714-09 | • BOLT 96906 ALT AS43211 POST SBE72-0051 | ad-ao | 4 |
| -330B | AS43211 | • BOLT - .190 DIA X .688 U1653 ALT AS43611 POST SBE72-0051 | ad-ao | REF |
| -330C | AS43611 | • BOLT - .190 DIA X .688 U1653 ALT AS44011 POST SBE72-0051 | ad-ao | REF |
| -330D | AS44011 | • BOLT U1653 ALT MS9714-09 POST SBE72-0051 | ad-ao | REF |
| 374 | MS21076L04N | • • NUT 96906 POST SBE72-0216 | ak-ao | 4 |
| 376 | CR2662-3-03 | • • RIVET 81349 ALT CR2672-3-03 POST SBE72-0216 | ak-ao | 8 |
| -376A | CR2672-3-03 | • • RIVET 81349 ALT CR2662-3-03 POST SBE72-0216 | ak-ao | REF |
| 390 | 5A2077 | • • BLOCK - RUBBER | aa-ao | 2 |
| 400 | 740-0500-501 | • SHIELD 51563 POST SBE72-0024 PRE SBE70-0163 | ab-ad | 1 |
| 400A | 740-0500-503 | • SHIELD - FIRE 51563 POST SBE70-0163 PRE SBE72-0230 | ab-ad | 1 |
| 405 | MS21043-04 | • NUT 96906 POST SBE72-0024 PRE SBE72-0216 | ab-aj | 2 |
| 407 | AN960C4L | • WASHER 81352 POST SBE72-0024 PRE SBE72-0216 | ab-aj | 2 |
| 410 | NAS1802-04-6 | • SCREW 80205 POST SBE72-0024 PRE SBE72-0230 | ***** | 2 |
| 420 | 740-0500-502 | • SHIELD 51563 POST SBE72-0024 PRE SBE70-0163 | ab-ad | 1 |
| 420A | 740-0500-504 | • SHIELD - FIRE 51563 POST SBE70-0163 PRE SBE72-0230 | ab-ad | 1 |
| 425 | MS21043-04 | • NUT 96906 POST SBE72-0024 PRE SBE72-0216 | ab-aj | 2 |
| 427 | AN960C4L | • WASHER 81352 POST SBE72-0024 PRE SBE72-0216 | ab-aj | 2 |
| 430 | NAS1802-04-6 | • SCREW 80205 POST SBE72-0024 PRE SBE72-0230 | ***** | 2 |
| 450 | 5A0426 | • STOPPER - A/O MOUNT TUBE POST SBE72-0150 POST SBE72-0286 PRE SBE72-0669 | ai-ao | 1 |
| 450A | 5A2210 | • STOPPER - A/O MOUNT TUBE 0JAEC POST SBE72-0669 | ap | 1 |
| 451 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0150 PRE SBE72-0286 | ai-ao | 2 |
| 451A | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0286 | ai-ao | 2 |
| 454 | 4W2326 | • SCREW - .190 DIA X .625 Optional Part 4W2326 POST SBE72-0150 PRE SBE72-0286 | ai-ao | 2 |
| 454A | 4W2326 | • SCREW - .190 DIA X .625 Optional Part 4W2326 POST SBE72-0286 | ai-ao | 2 |
| 500 | 5A0046 | • BRACKET - PANEL SUPPORTING POST SBE70-0202 PRE SBE72-0246 | af-an | 1 |
| 500A | 5A1749 | • BRACKET - PANEL SUPPORTING POST SBE72-0246 PRE SBE72-0435 | af-an | 1 |
| 500B | 5A1886 | • BRACKET - PANEL SUPPORTING POST SBE72-0435 | ao | 1 |
| 510 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 POST SBE70-0202 | af-ao | 2 |
| 520 | 4W0166 | • BOLT - .250 DIA X .750 Optional Part 4W0166 POST SBE70-0202 PRE SBE72-0435 | af-an | 2 |
| 520A | 4W1246 | • BOLT - .250 DIA X .750 Optional Part 4W1246 POST SBE72-0435 | ao | 2 |
| 530 | MS9321-10 | • WASHER - FLAT 96906 POST SBE70-0202 | af-ao | 2 |
| 550 | 5A0046 | • BRACKET - PANEL SUPPORTING POST SBE70-0202 PRE SBE72-0246 | af-ao | 1 |
| 550A | 5A1749 | • BRACKET - PANEL SUPPORTING POST SBE72-0246 | af-ao | 1 |
| 560 | 4W0166 | • BOLT - .250 DIA X .750 Optional Part 4W0166 POST SBE70-0202 | af-ao | 2 |
| 570 | MS9321-10 | • WASHER - FLAT 96906 POST SBE70-0202 | af-ao | 2 |
| 580 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 POST SBE70-0202 | af-ao | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

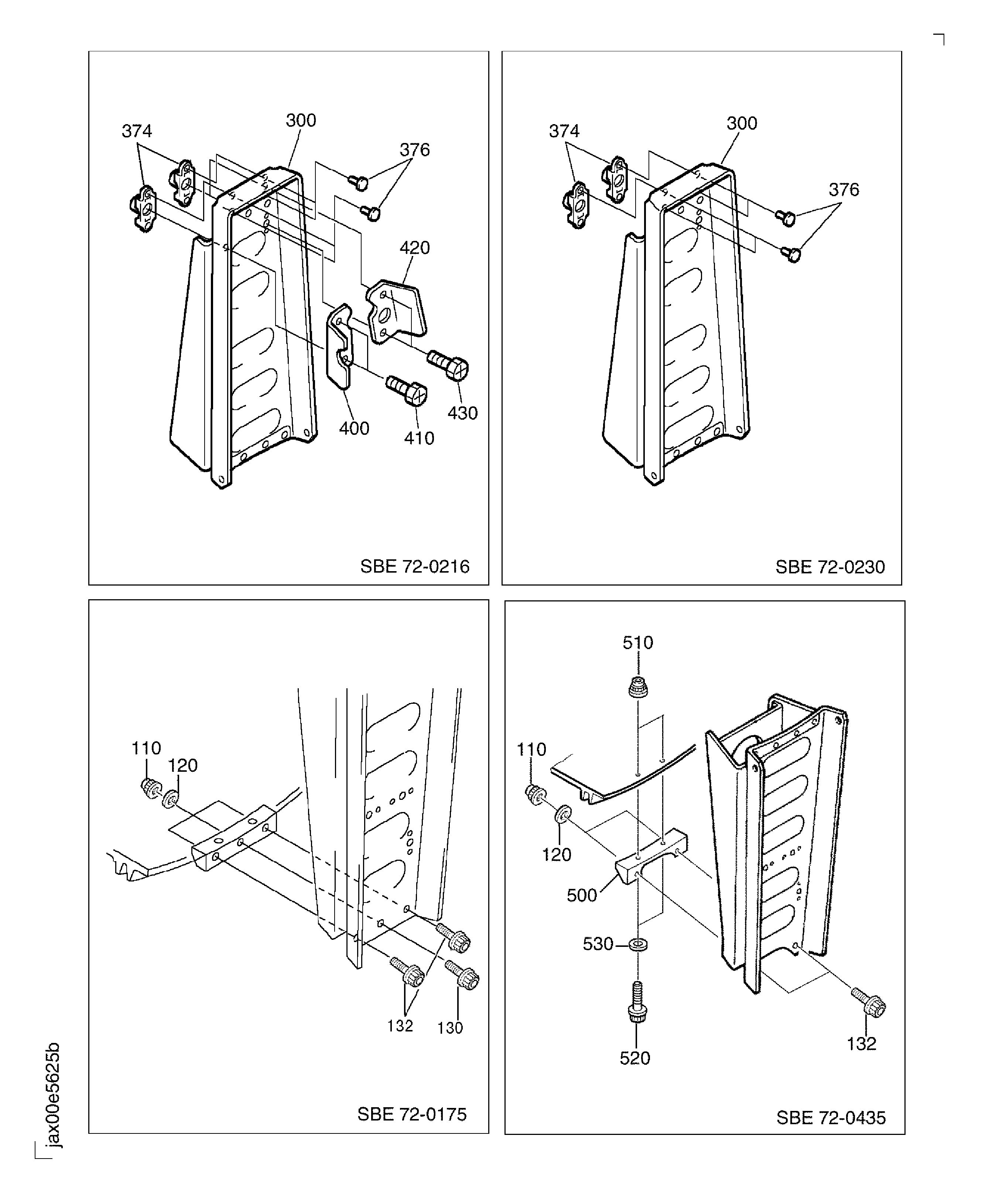

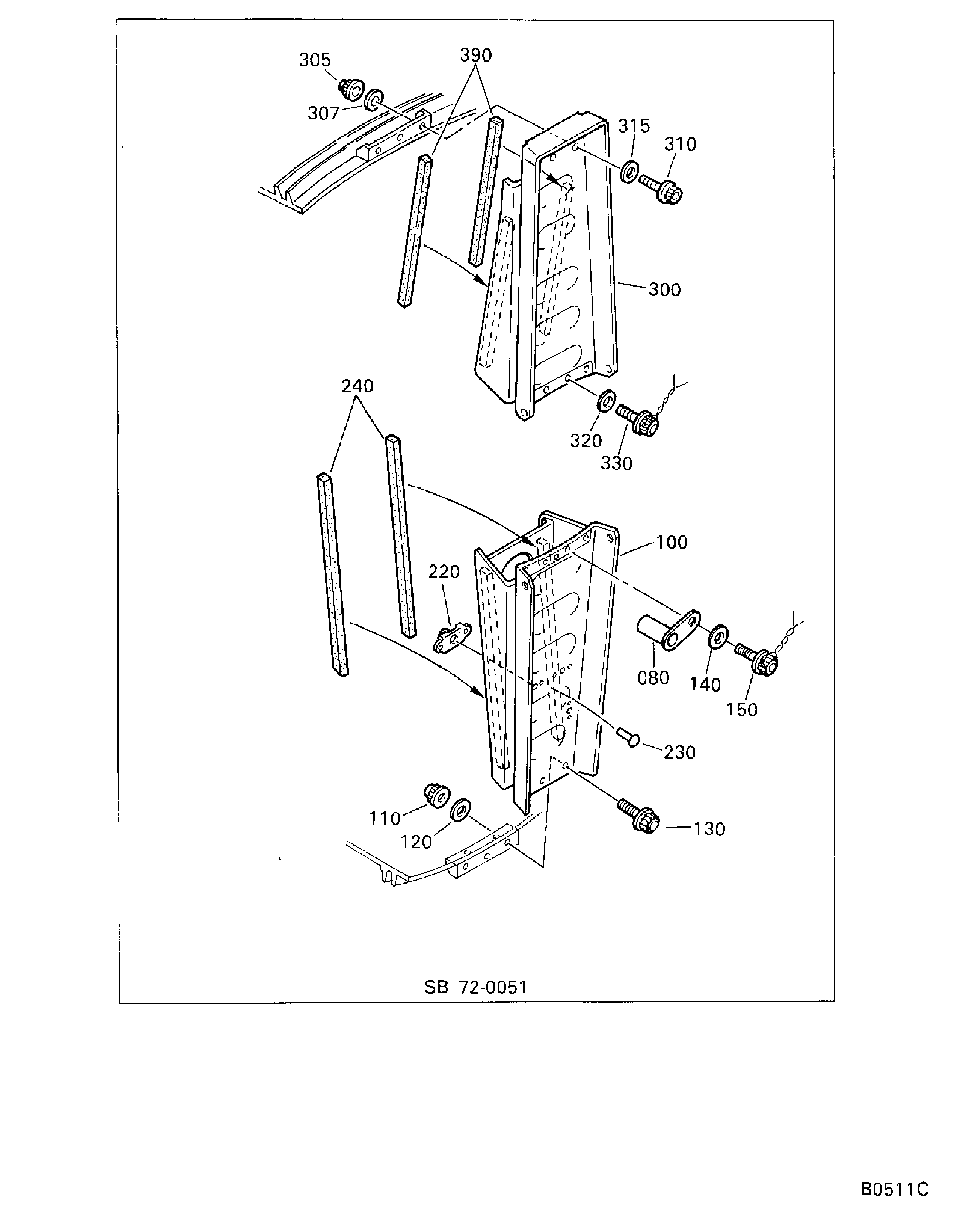

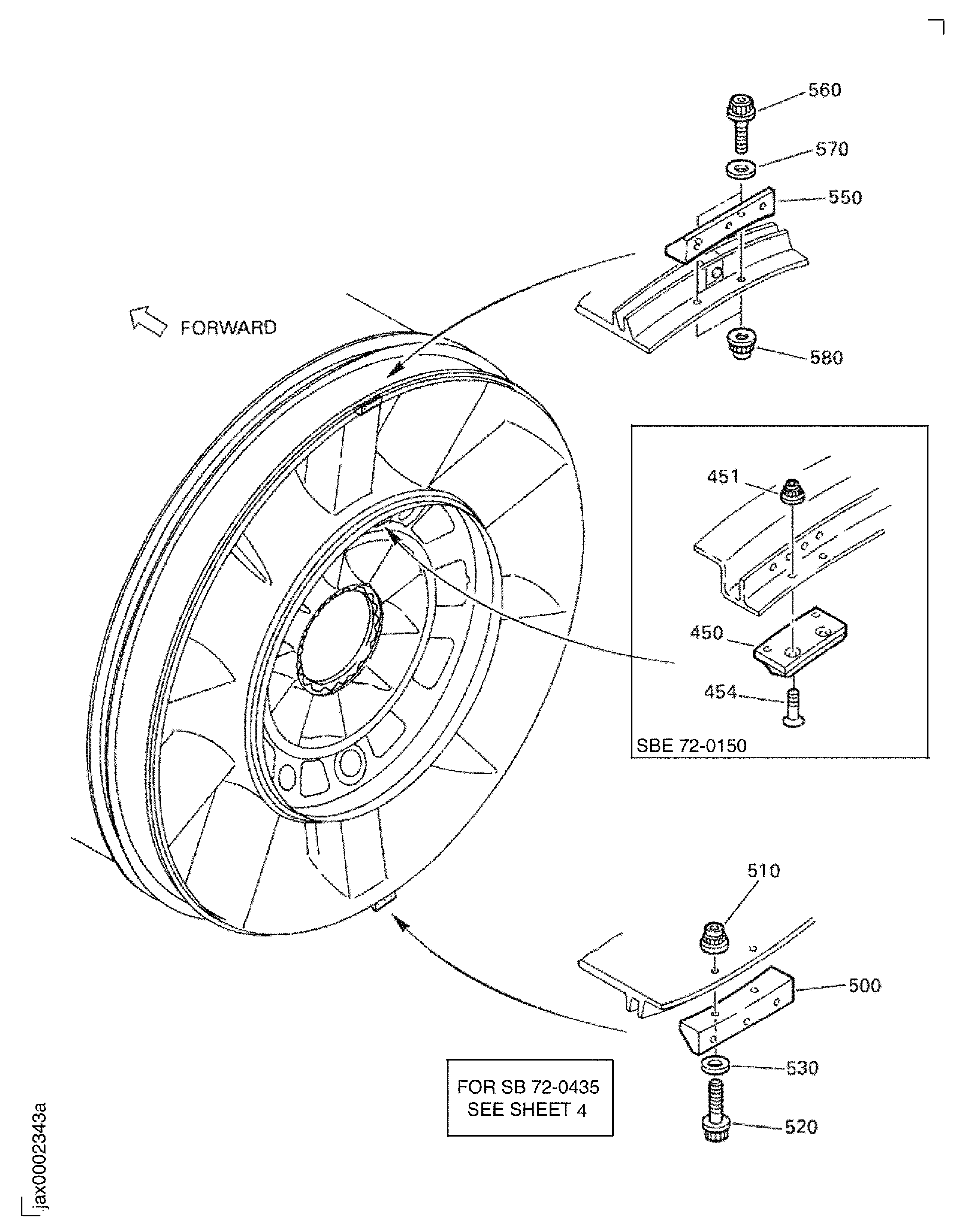

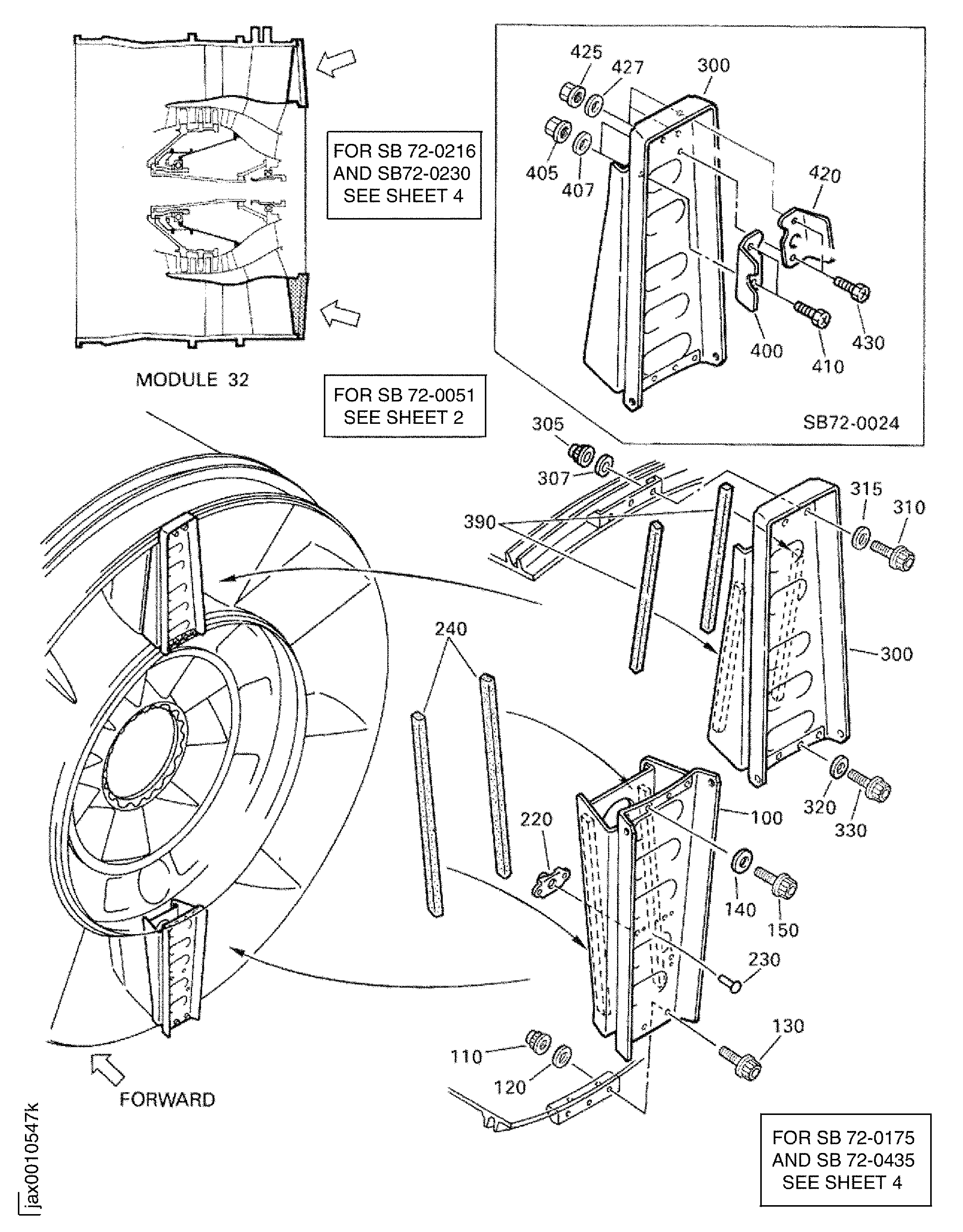

Figure: ENGINE-INTERMEDIATE STRUCTURE
INTERMEDIATE STRUCTURE
INTERMEDIATE STRUCTURE
INTERMEDIATE STRUCTURE
INTERMEDIATE STRUCTURE
