| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72320303 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0002 | aa | ||
| SBE0002-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0077 | ab | ||
| SBE0077-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0009 | ac | ||
| SBE0009-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0051 | ad | ||
| SBE0051-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0160 | ae | ||
| SBE0160-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0132 | af | ||
| SBE0132-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0150 | ag | ||
| SBE0150-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0266 | ah | ||
| SBE0266-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0433 | ai | ||
| SBE0433-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0211 | aj | ||
| SBE0211-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0489 | ak | ||
| SBE0489-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0558 | al | ||
| SBE0558-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE72-0286 | am | ||
| SBE0286-01 | ENGINE-INTERMEDIATE STRUCTURE, PRE SBE70-0706 | an | ||
| SBE0706-01 | ENGINE-INTERMEDIATE STRUCTURE | ao | ||
| 020 | 5A0085 | • GUIDE - DOWEL PIN | aa-ao | 4 |
| 025 | 4W0003 | • NUT - .3125 DIA | aa-ao | 4 |
| 030 | 5A1198 | • WASHER | aa-ao | 4 |
| 050 | 5A1327 | • RING - SEAL PTO INNER | aa-ao | 1 |
| 075 | 5A1272 | • BUSH - MOUNT TUBE FRONT | aa-ao | 1 |
| 100 | 5A6592 | • FRAME - A/O FAN FABRICATION PRE SBE70-0002 | aa | 1 |
| 100A | 5A0256 | • FRAME - A/O FAN ALT 5A0230 POST SBE70-0002 PRE SBE72-0077 | aa-ab | 1 |
| 100B | 5A0230 | • FRAME - A/O FAN ALT 5A0267 POST SBE70-0002 PRE SBE72-0009 | aa-ab | 1 |
| 100C | 5A0267 | • FRAME - A/O FAN ALT 5A0256 POST SBE70-0002 PRE SBE72-0009 | aa-ab | 1 |
| 100D | 5A6596 | • FRAME - A/O FAN POST SBE72-0077 PRE SBE72-0009 | ac-ad | 1 |
| 100E | 5A0364 | • FRAME - A/O FAN POST SBE72-0009 PRE SBE72-0051 | ad-af | 1 |
| 100F | 5A0362 | • FRAME - A/O FAN POST SBE72-0009 PRE SBE72-0051 | ad-af | 1 |
| 100G | 5A0365 | • FRAME - A/O FAN POST SBE72-0009 PRE SBE72-0051 | ac-af | 1 |
| 100H | 5A0363 | • FRAME - A/O FAN ALT 5A0366 POST SBE72-0009 PRE SBE72-0051 | ad-af | 1 |
| 100J | 5A0366 | • FRAME - A/O FAN POST SBE72-0009 PRE SBE72-0051 | ad-af | 1 |
| 100K | 5A0349 | • FRAME - A/O FAN POST SBE72-0051 PRE SBE70-0160 | ae-af | 1 |
| 100L | 5A0405 | • FRAME - A/O FAN POST SBE72-0051 PRE SBE72-0132 | ad-af | 1 |
| 100M | 5A0401 | • FRAME - A/O FAN POST SBE72-0051 PRE SBE72-0132 | ad-af | 1 |
| 100N | 5A0407 | • FRAME - A/O FAN POST SBE72-0051 PRE SBE72-0132 | ac-af | 1 |
| 100P | 5A0403 | • FRAME - A/O FAN ALT 5A0409 POST SBE72-0051 PRE SBE72-0132 | ad-af | 1 |
| 100Q | 5A0409 | • FRAME - A/O FAN POST SBE72-0051 PRE SBE72-0132 | ad-af | 1 |
| 100R | 5A0856 | • FRAME - A/O FAN POST SBE70-0160 PRE SBE72-0132 | ae-af | 1 |
| 100S | 5A1047 | • FRAME - A/O FAN POST SBE72-0132 PRE SBE72-0150 | ag | 1 |
| 100T | 5A1062 | • FRAME - A/O FAN POST SBE72-0132 PRE SBE72-0132 | ***** | 1 |
| 100U | 5A1064 | • FRAME - A/O FAN POST SBE72-0132 PRE SBE72-0132 | ***** | 1 |
| 100V | 5A1049 | • FRAME - A/O FAN POST SBE72-0132 PRE SBE72-0132 | ***** | 1 |
| 100W | 5A1068 | • FRAME - A/O FAN POST SBE72-0132 PRE SBE72-0132 | ***** | 1 |
| 100X | 5A1066 | • FRAME - A/O FAN POST SBE72-0132 PRE SBE72-0132 | ***** | 1 |
| 100Y | 5A1167 | • FRAME - A/O FAN POST SBE72-0132 PRE SBE72-0132 | ***** | 1 |
| 100Z | 5A1087 | • FRAME - FAN ASSY POST SBE72-0150 PRE SBE70-0266 | ah | 1 |
| 100AA | 5A1448 | • FRAME - A/O FAN POST SBE70-0266 PRE SBE72-0211 | ai-aj | 1 |
| 100AB | 5A1652 | • FRAME - A/O FAN POST SBE72-0211 PRE SBE70-0706 | ak-an | 1 |
| 100AC | 5A1782 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AD | 5A1776 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AE | 5A1770 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AF | 5A1781 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AG | 5A1775 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AH | 5A1769 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AJ | 5A1764 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AK | 5A1780 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AL | 5A1774 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AM | 5A1773 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AN | 5A1765 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AP | 5A1783 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AQ | 5A1777 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AR | 5A1771 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AS | 5A1784 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AT | 5A1778 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AU | 5A1772 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AV | 5A1763 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AW | 5A1768 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AX | 5A1779 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AY | 5A1767 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100AZ | 5A1766 | • FRAME - A/O FAN POST SBE72-0286 | an-ao | 1 |
| 100BA | 5A1652 | • FRAME - A/O FAN ALT 5A1828 POST SBE70-0706 | ao | 1 |
| 100BB | 5A1828 | • FRAME - A/O FAN ALT 5A1652 POST SBE70-0706 | ao | 1 |
| 103 | 5A0079 | • • SEAL - RUBBER BLEED VALVE | aa-ao | 1 |
| 104 | 5A0298 | • • PLATE - BRAKING POST SBE72-0132 | ag-ao | 2 |
| 105 | 614U50-0016-1 | • • SEAL - C 15284 POST SBE72-0132 | ag-ao | 2 |
| 106 | 4W0166 | • • BOLT - .250 DIA X .750 Optional Part 4W0166 POST SBE72-0132 | ag-ao | 6 |
| 115 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 POST SBE72-0077 | ac-ao | 3 |
| 118 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 1 |
| 121 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 24 |
| 125 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 PRE SBE70-0238 | ***** | 1 |
| 129 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 20 |
| 133 | 5A1195 | • • • PIN - DOWEL HOLLOW NO.2&3 BRG | aa-ao | 1 |
| 137 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 18 |
| 141 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 PRE SBE72-0150 | aa-ag | 2 |
| 141A | AGS3731 | • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 POST SBE72-0150 PRE SBE72-0211 | ah-aj | 1 |
| 145 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 3 |
| 148 | CR2662-3-4 | • • • RIVET - BLIND 81349 | aa-ao | 34 |
| 148A | CR2662-4-5 | • • • RIVET - FLUSH HEAD 81349 PRE SBE72-0150 | aa-ag | 12 |
| 148B | CR2562M4-5 | • • • RIVET - FLUSH HEAD 81349 POST SBE72-0150 PRE SBE70-0433 | ah-ao | 12 |
| 148C | CR2572-4-05 | • • • RIVET 81349 ALT CR2562M4-05 POST SBE70-0433 | ah-ao | 12 |
| -148D | CR2562M4-05 | • • • RIVET 81349 ALT CR2572-4-05 POST SBE70-0433 | ah-ao | REF |
| 149 | F1968C5 | • • • NUT - PLATE SEALING 15653 | aa-ao | 17 |
| 149A | F1968C5 | • • • NUT - PLATE SEALING 15653 PRE SBE70-0489 | aa-ao | 6 |
| 149B | F1968C5 | • • • NUT - PLATE SEALING 15653 ALT NAS1473C5 POST SBE70-0489 | aa-ao | 6 |
| -149C | NAS1473C5 | • • • NUT - PLATE SEALING 80205 ALT F1968C5 POST SBE70-0489 | al-ao | REF |
| 163 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 PRE SBE72-0132 | aa-af | 1 |
| 169 | MS51992A645-14 | • • STUD - RING 96906 PRE SBE72-0150 | aa-ag | 4 |
| 169A | MS51992D505D17 | • • STUD - RING 96906 POST SBE72-0150 | ah-ao | 1 |
| 171 | MS51997-105P | • • RING - LOCK 96906 | aa-ao | 4 |
| 173 | 5A1761 | • • • MOUNT - A/O STOPPER POST SBE70-0558 | am-ao | 1 |
| -175 | 5A1300 | • • STOPPER - RUBBER MOUNT TUBE PRE SBE72-0150 | aa-ag | 1 |
| 179 | AS16447 | • • RIVET - SOLID CSK HEAD U1653 PRE SBE72-0150 | aa-ag | 4 |
| 198 | AS44806 | • • PIN - SHOULDER,HEADLESS U1653 | aa-ao | 1 |
| 200 | AS44814 | • • PIN - SHOULDER HEADLESS U1653 PRE SBE72-0150 | aa-ag | 1 |
| 200A | 5A1456 | • • PIN - SHOULDER HEADLESS POST SBE72-0150 | ah-ao | 1 |
| 204 | RNCH428-211KLT5 | • • • NUT - BLIND RIVET SELF LOCKED 81349 ALT 5A0086 PRE SBE72-0051 | aa-ad | 2 |
| -204A | 5A0086 | • • • NUT - BLIND RIVET SELF LOCKED ALT RNCH428-211KLT5 | aa-ad | REF |
| 204B | RNSS428-211K | • • • NUT 81349 POST SBE72-0051 | ae-ao | 2 |
| 221 | AS44806 | • • PIN - SHOULDER,HEADLESS U1653 | aa-ao | 1 |
| 223 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 3 |
| 225 | RNCH428-211KLT5 | • • • NUT - BLIND RIVET SELF LOCKED 81349 ALT 5A0086 PRE SBE72-0051 | aa-ad | 2 |
| -225A | 5A0086 | • • • NUT - BLIND RIVET SELF LOCKED ALT RNCH428-211KLT5 | aa-ad | REF |
| 225B | RNSS428-211K | • • • NUT 81349 POST SBE72-0051 | ae-ao | 2 |
| 246 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 3 |
| 248 | 5A1222 | • • PIN - SHOULDER HOLLOW | aa-ao | 2 |
| 286 | 5A1222 | • • PIN - SHOULDER HOLLOW | aa-ao | 3 |
| 288 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 8 |
| 313 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 PRE SBE72-0132 | aa-af | 3 |
| 317 | AS44806 | • • PIN - SHOULDER,HEADLESS U1653 | aa-ao | 1 |
| 336 | RNCH428-211KLT5 | • • • NUT - BLIND RIVET SELF LOCKED 81349 ALT 5A0086 PRE SBE72-0051 | aa-ad | 2 |
| -336A | 5A0086 | • • • NUT - BLIND RIVET SELF LOCKED ALT RNCH428-211KLT5 | aa-ad | REF |
| 336B | RNSS428-211K | • • • NUT 81349 POST SBE72-0051 | ae-ao | 2 |
| 338 | AS44806 | • • PIN - SHOULDER,HEADLESS U1653 | aa-ao | 1 |
| 356 | RNCH428-211KLT5 | • • • NUT - BLIND RIVET SELF LOCKED 81349 ALT 5A0086 PRE SBE72-0051 | aa-ad | 2 |
| -356A | 5A0086 | • • • NUT - BLIND RIVET SELF LOCKED ALT RNCH428-211KLT5 | aa-ad | REF |
| 356B | RNSS428-211K | • • • NUT 81349 POST SBE72-0051 | ae-ao | 2 |
| 376 | AS44814 | • • PIN - SHOULDER HEADLESS U1653 PRE SBE72-0150 | aa-ag | 1 |
| 376A | 5A1456 | • • PIN - SHOULDER HEADLESS POST SBE72-0150 | ah-ao | 1 |
| 380 | AGS3731 | • • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 | aa-ao | 1 |
| 396 | MS51997-105P | • • RING - LOCK 96906 | aa-ao | 4 |
| 400 | MS51992A645-14 | • • • STUD - RING 96906 PRE SBE72-0150 | aa-ag | 1 |
| 400A | MS51992D505D17 | • • • STUD - RING 96906 POST SBE72-0150 | ah-ao | 1 |
| 404 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 20 |
| 421 | 5A1061 | • • • PLUG POST SBE72-0132 | ag-ao | 2 |
| 442 | RNCH1032166KLT5 | • • • NUT - BLIND RIVET COUNTR HEAD 81349 ALT 5A0087 PRE SBE72-0051 | aa-ad | 8 |
| -442A | 5A0087 | • • • NUT - BLIND RIVET COUNT K HEA ALT RNCH1032166KLT5 | aa-ad | REF |
| 442B | RNSS1032-166K | • • • NUT - BLIND RIVET 81349 POST SBE72-0051 | ae-ao | 8 |
| 506 | AGS3731 | • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 | aa-ao | 3 |
| 528 | AGS3733 | • • INSERT - SCREW THREAD U1653 | aa-ao | 10 |
| 579 | AGS3733 | • • INSERT - SCREW THREAD U1653 | aa-ao | 7 |
| 614 | AGS3733 | • • INSERT - SCREW THREAD U1653 | aa-ao | 7 |
| 625 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 3 |
| 653 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 1 |
| 689 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 1 |
| 724 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 10 |
| 728 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ao | 3 |
| 774 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 1 |
| 805 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 1 |
| 839 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 1 |
| 870 | AGS3733 | • • • INSERT - SCREW THREAD U1653 | aa-ao | 1 |
| 874 | AGS3731 | • • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 | aa-ao | 3 |
| -880 | 5A9519 | • • TUBE | aa-ao | REF |
| -882 | 5A9520 | • • TUBE | aa-ao | REF |
| -884 | 5A9521 | • • TUBE | aa-ao | REF |
| 888 | AGS3731 | • • • INSERT - SCREW THREAD, .190 DIA X 1.5D U1653 | aa-ao | 2 |
| 890 | 5A1315 | • • THERMCPL - A/O T2.5CM PRE SBE72-0211 | aa-aj | 3 |
| 890A | 5A1315 | • • THERMCPL - A/O T2.5CM POST SBE72-0211 | ak-ao | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

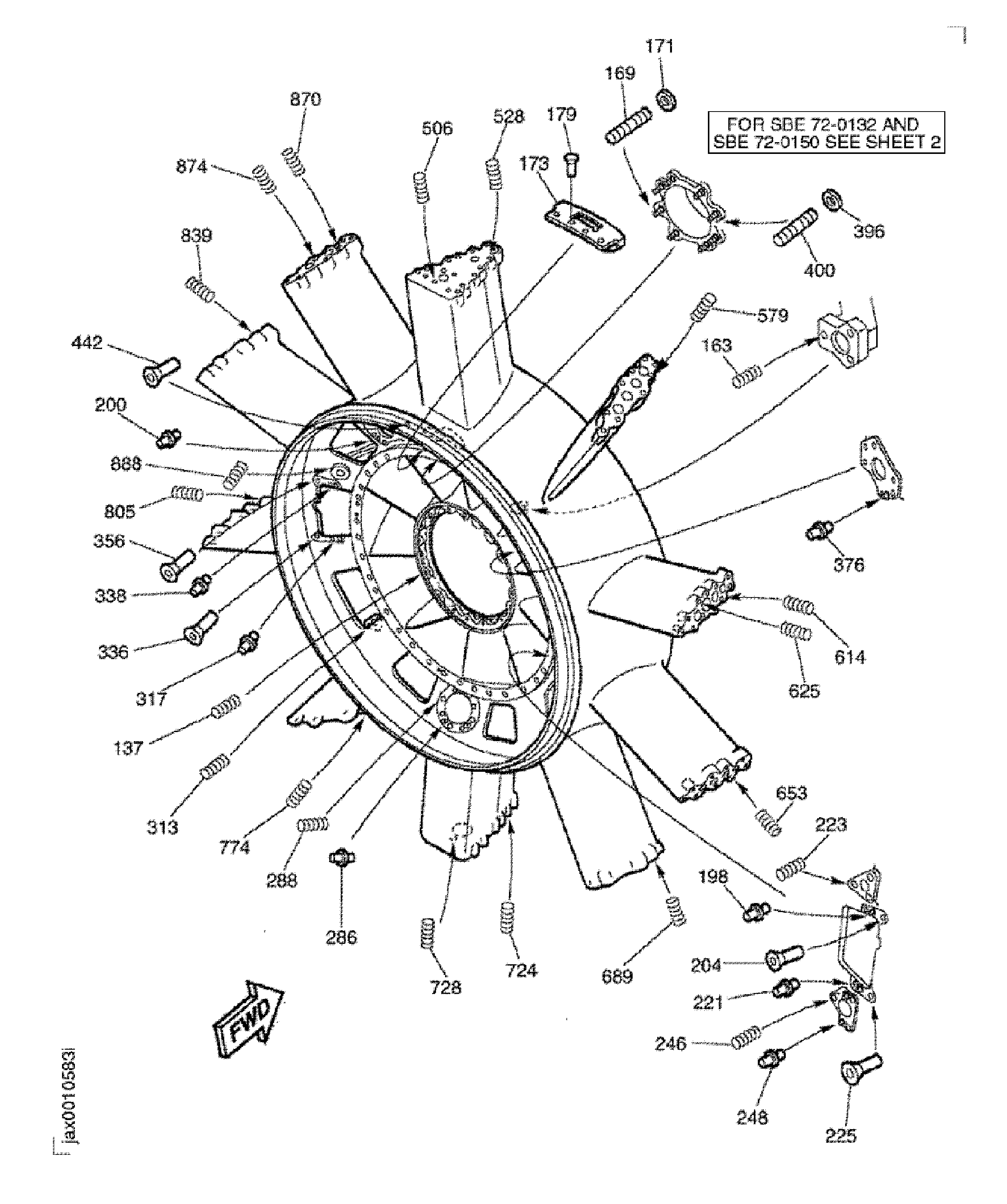

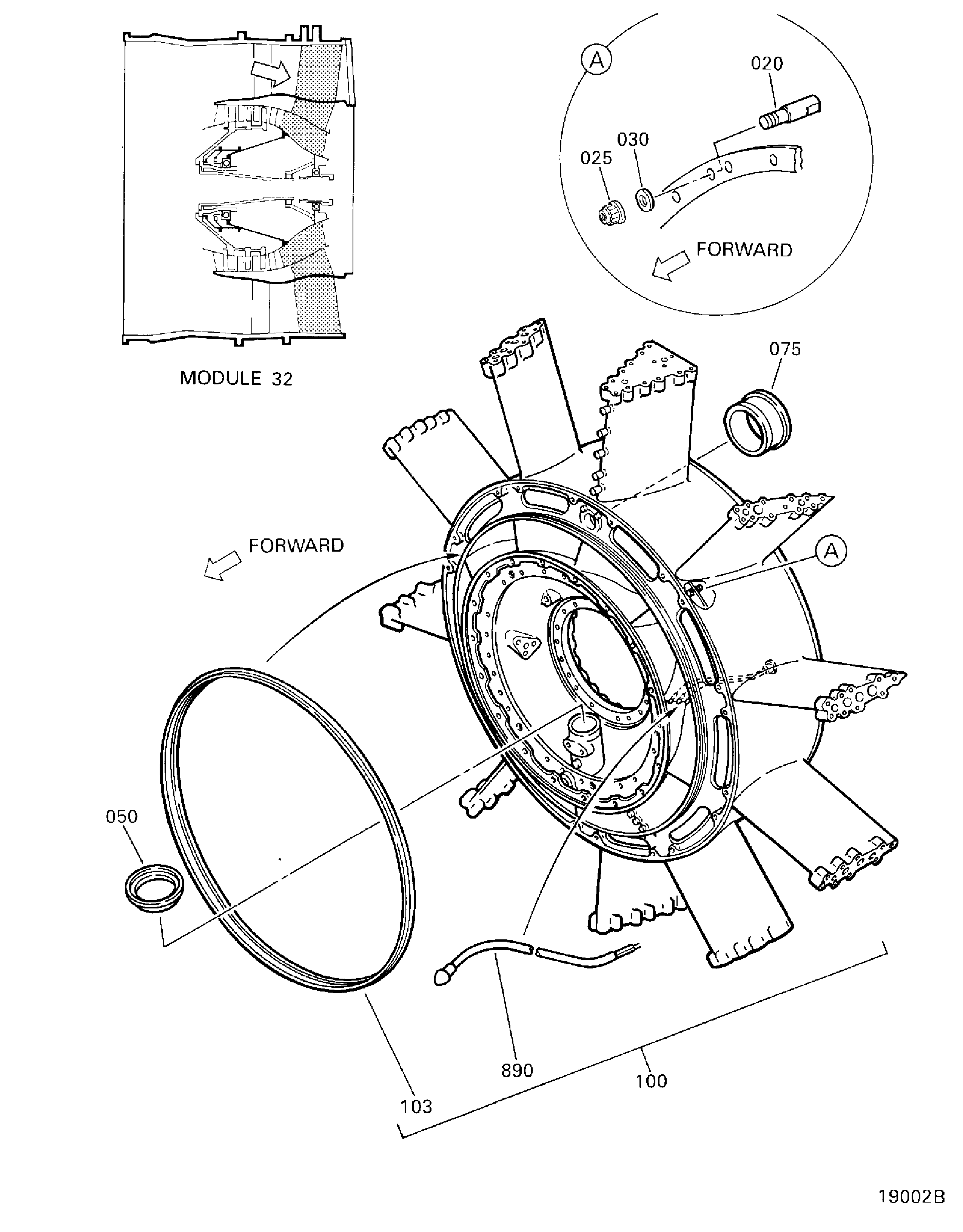

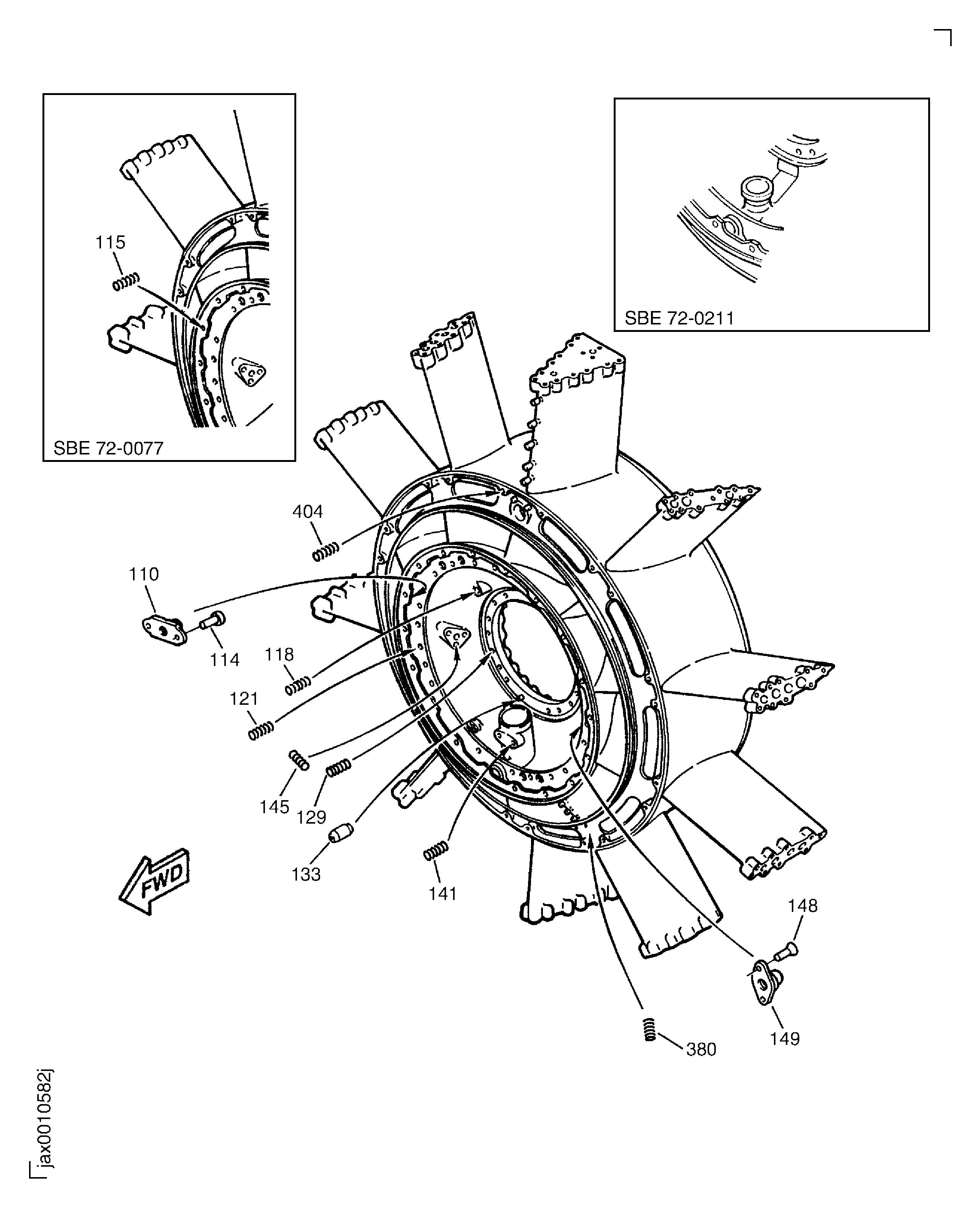

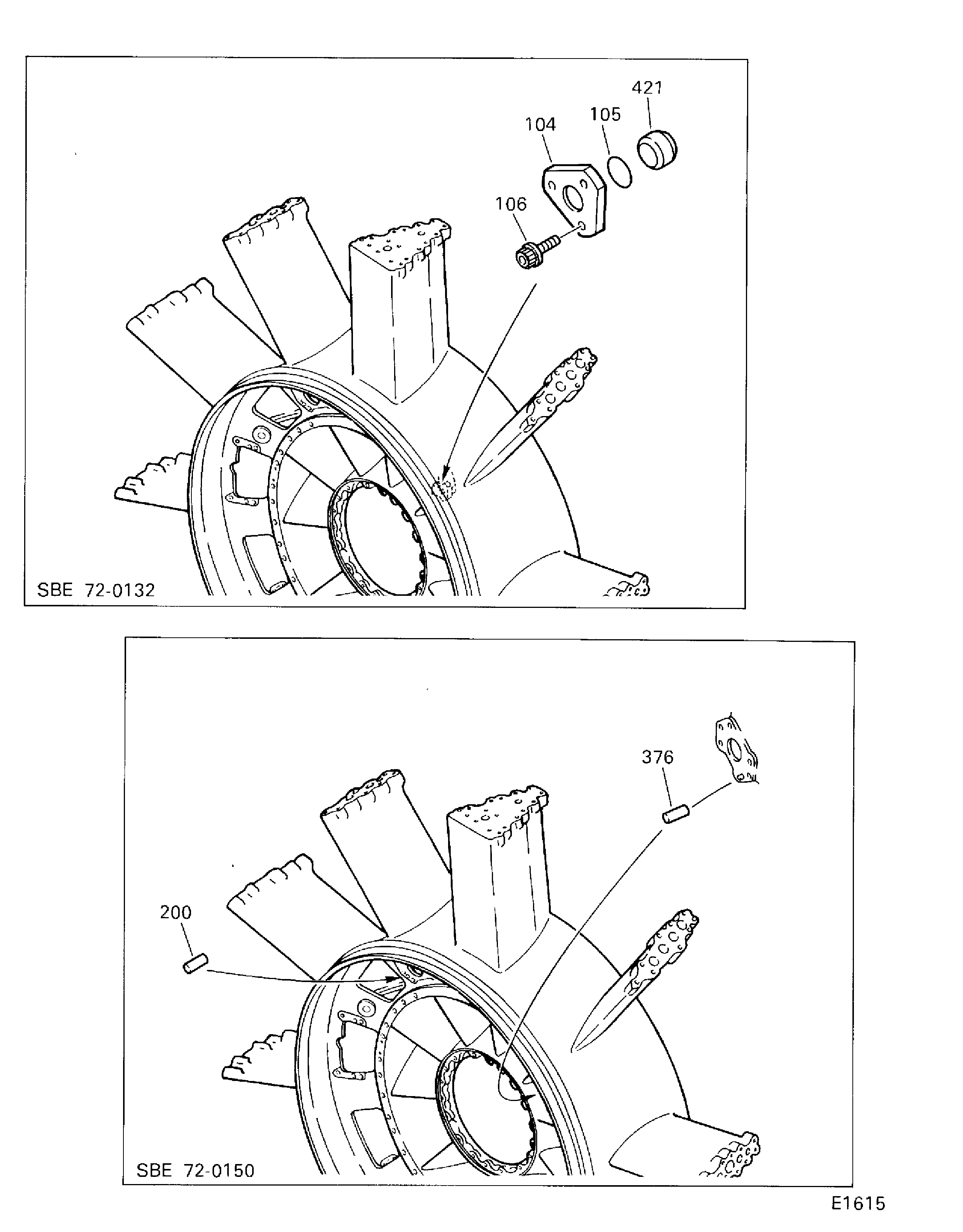

Figure: ENGINE-INTERMEDIATE STRUCTURE
