TASK 72-32-53-300-005 No. 1 Bearing Seal Ring Holder - Replace The Rivets, Repair-005 (VRS3402)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
No. 1 bearing seal ring | - | Corrosion and heat resistant |
holder assembly | steel alloy |
General
The practices and procedures referred to in the procedure by the TASK number are in the SPM.
Price and availability - not applicable
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Drilling equipment | LOCAL | Drilling equipment |
Consumables, Materials and Expendables
NONESafety Requirements
NONEProcedure
Refer to Figure requirements.
Drill the center of the rivet to decrease the wall thickness sufficiently to remove the rivet without damage to the rivet hole inner diameter surfaces.
Remove the loose or cracked rivets.
SUBTASK 72-32-53-350-060 Remove the Loose or Cracked Rivets
Refer to Figure requirements.
No damage permitted.
Examine the rivet holes.
SUBTASK 72-32-53-220-090 Examine the Rivet Holes
Refer to Figure requirements.
Do the procedures given in the SPM TASK 70-39-00-390-501 and SPM TASK 70-39-03-390-501.
Install the new rivets.
SUBTASK 72-32-53-390-051 Install the Rivets
Refer to Figure requirements.
See the requirements given in the SPM TASK 70-39-03-390-501.
Examine the installed rivets.
SUBTASK 72-32-53-220-091 Examine the Repair

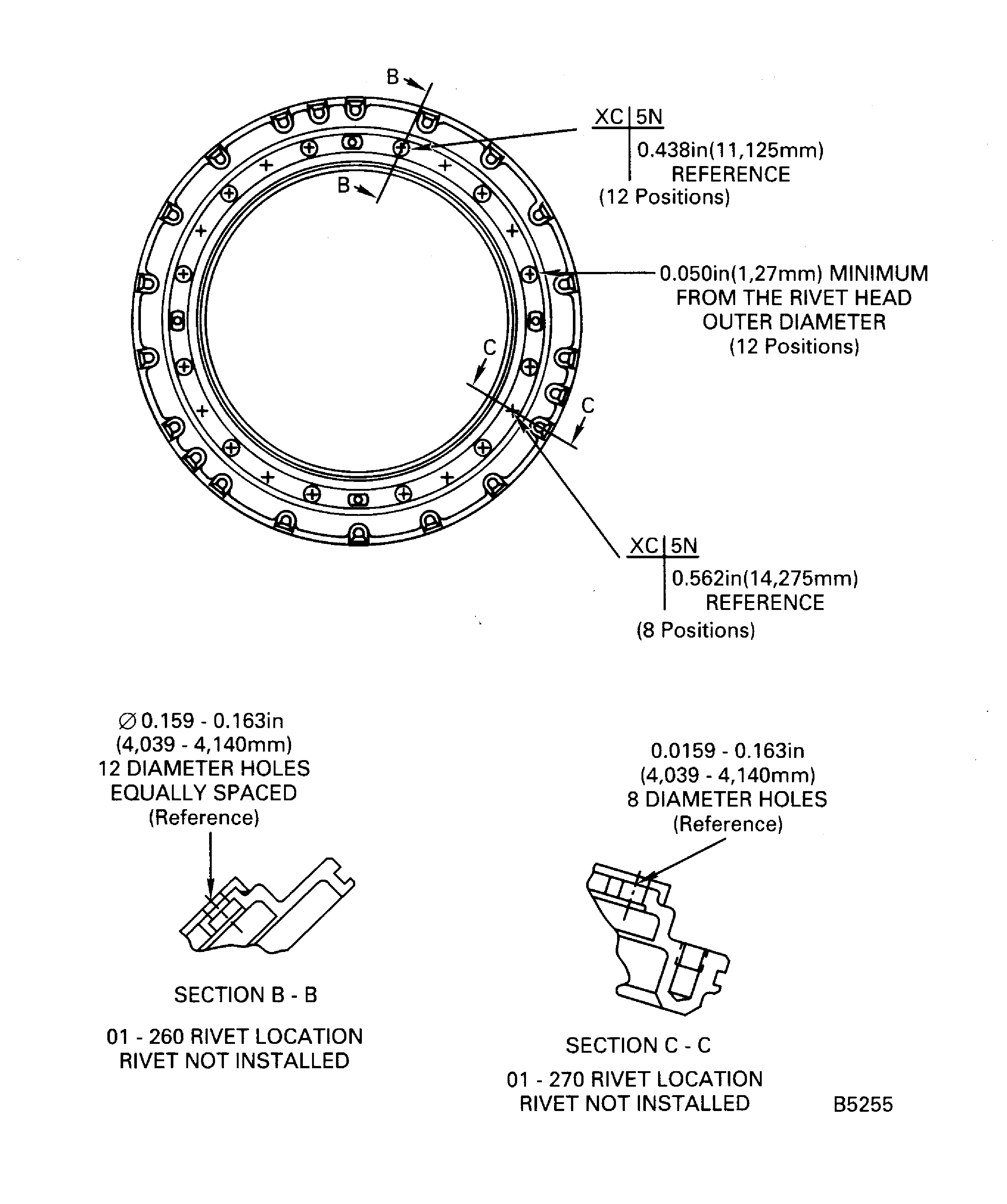

Figure: No. 1 bearing seal ring holder assembly rivet repair areas
No. 1 bearing seal ring holder assembly rivet repair areas
