DMC:V2500-A1-72-32-71-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72327101 | ENGINE-BLEED VALVE SUPPORT AND ARMS, PRE SBE72-0133 | aa | ||
| SBE0133-01 | ENGINE-BLEED VALVE SUPPORT AND ARMS, PRE SBE70-0382 | ab | ||
| SBE0382-01 | ENGINE-BLEED VALVE SUPPORT AND ARMS, PRE SBE70-0491 | ac | ||
| SBE0491-01 | ENGINE-BLEED VALVE SUPPORT AND ARMS, PRE SBE70-0944 | ad | ||
| SBE0944-01 | ENGINE-BLEED VALVE SUPPORT AND ARMS | ae | ||
| 100 | 5A3688 | • ARM - A/O LINK PRE SBE70-0944 | aa-ae | 25 |
| 100A | 5A3688 | • ARM - A/O LINK ALT 5A1923 POST SBE70-0944 | aa-ae | 25 |
| 100B | 5A1923 | • ARM - A/O LINK -MACHINED ALT 5A3688 POST SBE70-0944 | aa-ae | 25 |
| 120 | MS3215-2031 | • RING 96906 | aa-ae | 25 |
| 140 | 5A3653 | • • BEARING - A/O SPHERICAL | aa-ae | 1 |
| 150 | 5A3653 | • • BEARING - A/O SPHERICAL | aa-ae | 1 |
| 160 | AHJ05C012 | • • BEARING - SLEEVE PLN TFE LINE K7766 | aa-ae | 25 |
| 200 | 5A3713 | • LINK - A/O PRE SBE70-0491 | aa-ae | 25 |
| 200A | 5A1731 | • LINK - A/O POST SBE70-0491 | aa-ae | 25 |
| 220 | MS3215-2015 | • RING 96906 | aa-ae | 25 |
| 230 | 5A3710 | • PIN PRE SBE72-0133 | aa | 25 |
| 230A | 5A0794 | • PIN POST SBE72-0133 | ab-ae | 25 |
| 240 | 5A3653 | • • BEARING - A/O SPHERICAL | aa-ae | 1 |
| 300 | 5A3686 | • ARM - A/O POWER PRE SBE70-0944 | aa-ae | 2 |
| 300A | 5A1914 | • ARM - A/O POWER POST SBE70-0944 | aa-ae | 2 |
| 320 | MS21042-4 | • NUT 96906 PRE SBE70-0382 | aa-ab | 2 |
| 320A | 5A1633 | • NUT POST SBE70-0382 | ac-ae | 2 |
| 330 | 4W2622 | • WASHER | aa-ae | 2 |
| 340 | MS14104-4 | • • BEARING 96906 | aa-ae | 2 |
| 360 | AHJF08C018 | • • BEARING - SLEEVE PLN TFE LINE K7766 | aa-ae | 1 |
| 370 | 5A3653 | • • BEARING - A/O SPHERICAL A/O SPHERICAL | aa-ae | 1 |
| 400 | 5A3713 | • LINK - A/O PRE SBE70-0491 | aa-ae | 2 |
| 400A | 5A1731 | • LINK - A/O POST SBE70-0491 | aa-ae | 2 |
| 420 | MS3215-2015 | • RING 96906 | aa-ae | 2 |
| 430 | 5A3710 | • PIN PRE SBE72-0133 | aa | 2 |
| 430A | 5A0794 | • PIN POST SBE72-0133 | ab-ae | 2 |
| 440 | 5A3653 | • • BEARING - A/O SPHERICAL | aa-ae | 1 |
| 500 | 5A3690 | • PIN - STUD | aa-ae | 25 |
| 510 | MS9362-12 | • NUT - .375 DIA 96906 | aa-ae | 25 |
| 520 | MS9581-12 | • WASHER 96906 | aa-ae | 25 |
| 550 | 5A3684 | • PIN - SYUD POWER | aa-ae | 2 |
| 560 | MS9362-14 | • NUT 96906 | aa-ae | 2 |
| 570 | MS9581-14 | • WASHER 96906 | aa-ae | 2 |
| 600 | 5A3703 | • RING - A/O SUPPORT PRE SBE72-0133 | aa | 1 |
| 600A | 5A0950 | • RING - A/O SUPPORT POST SBE72-0133 | ab-ae | 1 |
| 610 | 5A3707 | • • SUPPORT | aa-ae | 25 |
| 615 | 5A1795 | • BUSH | aa-ae | 1 |
| 620 | AS16135 | • • RIVET - SOLID UNIVERSAL HD U1653 | aa-ae | 100 |
| 630 | 5A3707 | • • SUPPORT | aa-ae | 2 |
| 635 | 5A1795 | • BUSH | aa-ae | 1 |
| 640 | AS16135 | • • RIVET - SOLID UNIVERSAL HD U1653 | aa-ae | 4 |
| 650 | AS16535 | • • RIVET - SOLID CSK HEAD U1653 | aa-ae | 4 |
| 670 | 5A1387 | • • SUPPORT - MID POST SBE72-0133 | ab-ae | 27 |
| 675 | 5A1796 | • BUSH | aa-ae | 1 |
| 680 | AS16135 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE72-0133 | ab-ae | 108 |
| 690 | 5A1797 | • BUSH | aa-ae | 1 |
| 700 | 5A1798 | • BUSH | aa-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

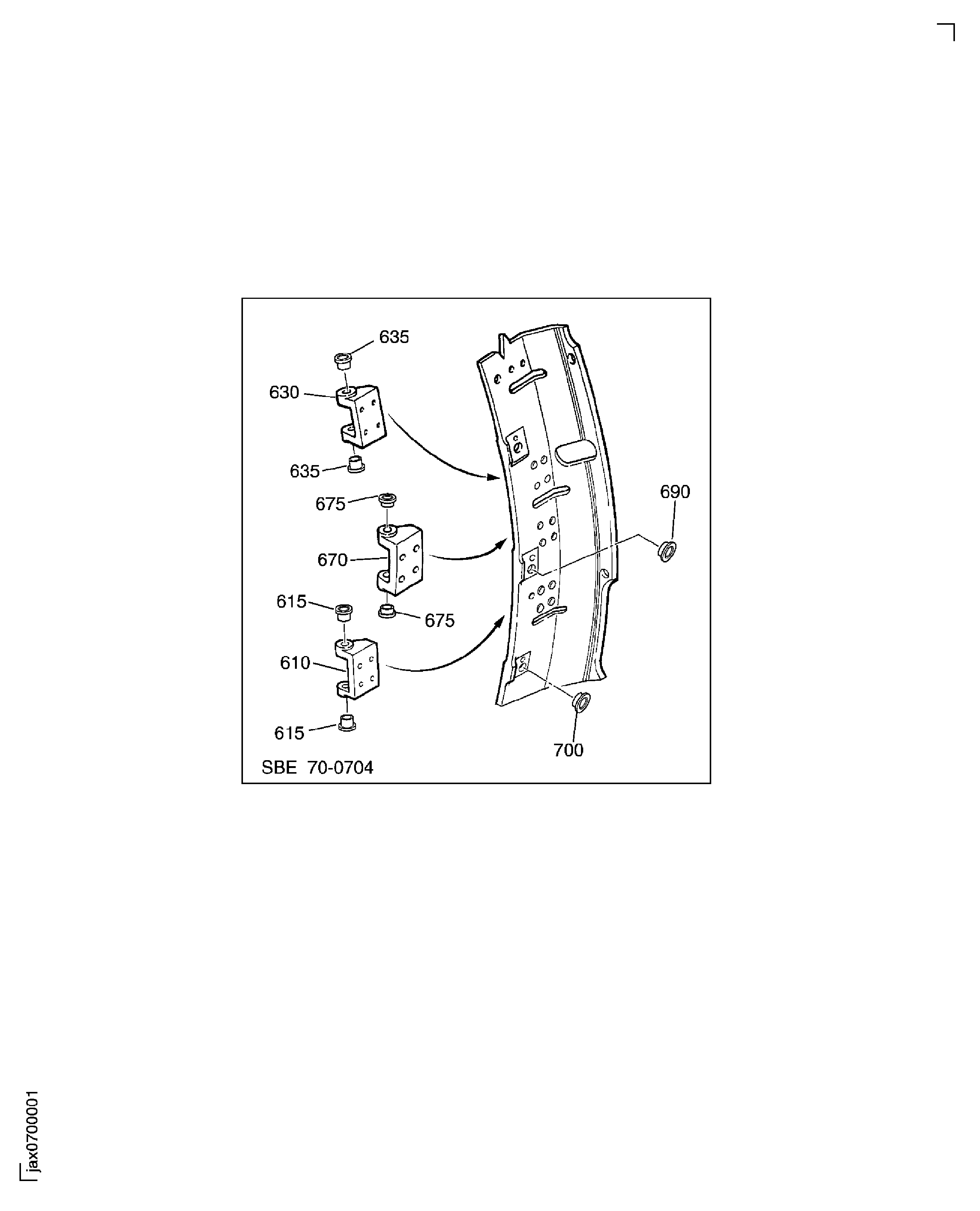

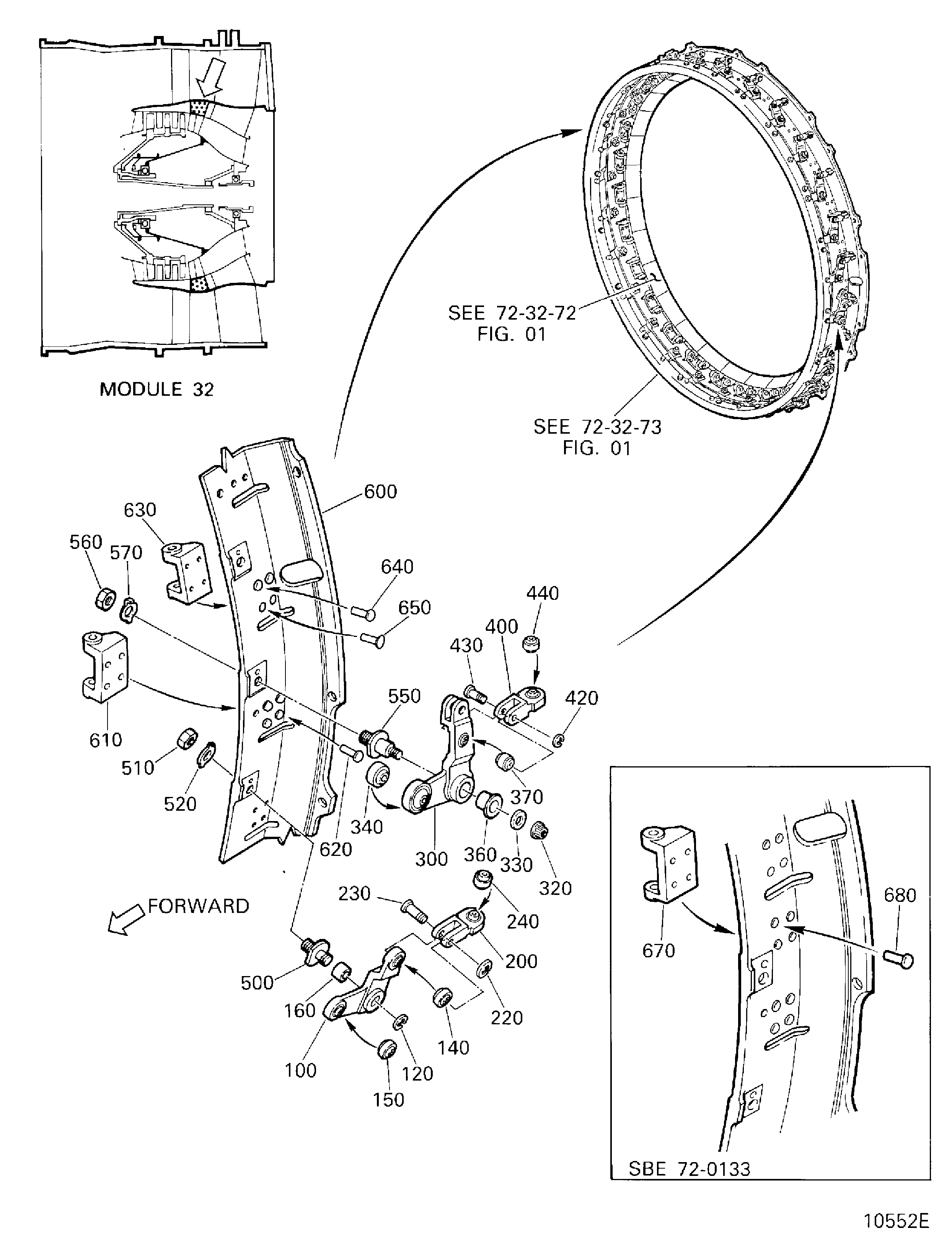

Figure: ENGINE-BLEED VALVE SUPPORT AND ARMS
BLEED VALVE SUPPORT AND ARMS
BLEED VALVE SUPPORT AND ARMS
