TASK 72-32-73-200-002 LPC Bleed Valve Synchronizing Ring Bushes - Examine, Inspection-002

DMC:V2500-A1-72-32-7302-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-32-73-200-002 LPC Bleed Valve Synchronizing Ring Bushes - Examine, Inspection-002

Effectivity

FIG/ITEM

PART NO.

01-100

5A3714

General

This TASK gives the procedure for the inspection of the bushes. For the other parts of the bleed valve actuating ring, refer to TASK 72-32-73-200-000 (INSPECTION-000)

Fig/Item numbers in parentheses in the procedure agree with those used in the IPC

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-73-100-000 (CLEANING-000)

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM

References

Refer to the SPM for the date on these items

Definitions of Damages, SPM TASK 70-02-02-350-501

Inspection of parts, SPM TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-73-220-058 Examine the Bushes (01-100) Diameter

    1. Refer to Figure.

      2. Examine the outer diameter at Location 1.

        1. Worn.

          1. If the diameter is between 0.3932 and 0.3937 in. (9.985 and 10.000 mm)

          1. Accept

          2. Less than 0.3932 in. (9.985 mm)

          1. Reject

        2. Nicked.

          1. Up to 0.0039 in. (0.1 mm) in depth

          1. Accept

          2. More than Step

          1. Reject

      3. Examine the inner diameter at Location 2.

        1. Worn.

          1. If the diameter is between 0.2489 and 0.2494 in. (6.320 and 6.335 mm)

          1. Accept

          2. More than 0.2494 in. (6.335 mm)

          1. Reject

        2. Nicked.

          1. Up to 0.0039 in. (0.1 mm) in depth

          1. Accept

          2. More than Step

          1. Reject

    2. SUBTASK 72-32-03-220-059 Examine the Bushes (01-100) Surface

    1. Refer to Figure.

      2. Examine all other surfaces.

        1. Cracked.

          1. Any cracks

          1. Reject

        2. Nicked.

          1. Up to 0.0039 in. (0.1 mm) in depth

          1. Accept

          2. More than Step

          1. Reject

        3. Galled.

          1. Up to 0.0039 in. (0.1 mm) in depth

          1. Accept

          2. More than Step

          1. Reject

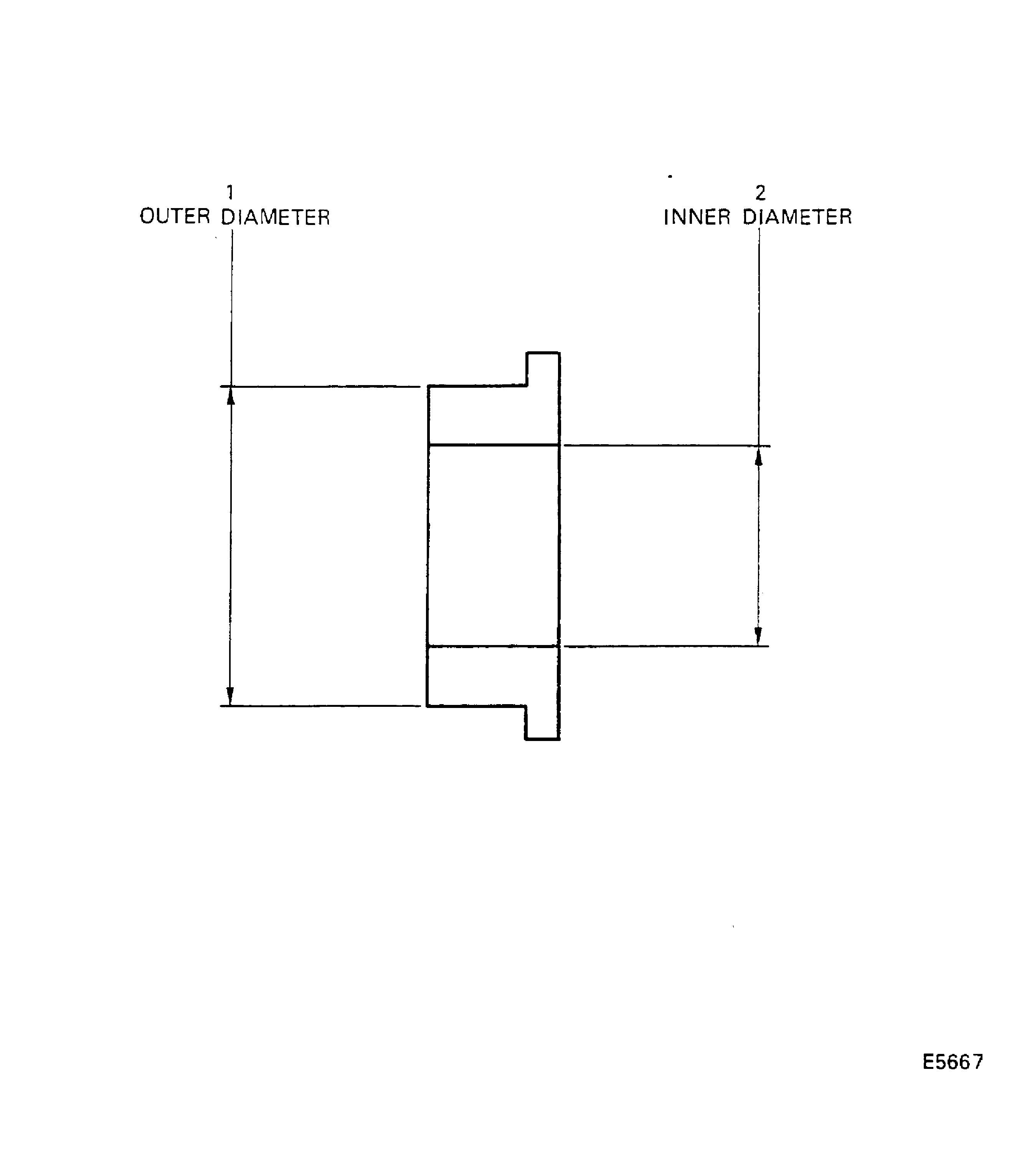

    3. Figure: Bush Inspection Locations

    Bush Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
