DMC:V2500-A1-72-32-83-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72328301 | ENGINE-LP COMPRESSOR STAGE 1.5 AND 2 VANES, PRE SBE72-0008 | aa | ||
| SBE0008-01 | ENGINE-LP COMPRESSOR STAGE 1.5 AND 2 VANES, PRE SBE72-0018 | ab | ||
| SBE0018-01 | ENGINE-LP COMPRESSOR STAGE 1.5 AND 2 VANES, PRE SBE72-0081 | ac | ||
| SBE0081-01 | ENGINE-LP COMPRESSOR STAGE 1.5 AND 2 VANES, PRE SBE72-0042 | ad | ||
| SBE0042-01 | ENGINE-LP COMPRESSOR STAGE 1.5 AND 2 VANES, PRE SBE70-0201 | ae | ||
| SBE0201-01 | ENGINE-LP COMPRESSOR STAGE 1.5 AND 2 VANES | af | ||
| 350 | 5A7399 | • CASE - A/O FRONT LP COMP PRE SBE72-0018 | aa-af | 1 |
| 350A | 5A0062 | • CASE - A/O FRONT LPC POST SBE72-0018 PRE SBE72-0042 | aa-af | 1 |
| 350B | 5A0961 | • CASE - A/O FRONT LPC ALT 5A1814 POST SBE72-0042 | aa-af | 1 |
| 350C | 5A1814 | • CASE - A/O FRONT LPC ALT 5A0961 POST SBE72-0042 | ae-af | 1 |
| 380 | RPNF250-28SM | • • NUT 83324 | aa-af | 8 |
| 382 | RPNF250-28SM | • • NUT 83324 | aa-af | 8 |
| 500 | 5A7376 | • VANE - A/O STG 1.5 LP COMP PRE SBE72-0008 | aa-af | 1 |
| 500A | 5A0069 | • STATOR - A/O STG. 1.5 LPC POST SBE72-0008 PRE SBE70-0201 | aa-af | 1 |
| 500B | 5A1417 | • VANE - STATOR,A/O STG 1.5 LPC POST SBE70-0201 | aa-af | 1 |
| 506 | 4W0001 | • NUT - .190 DIA | aa-af | 96 |
| 508 | 4W2621 | • WASHER | aa-af | 96 |
| 510 | 4W2621 | • WASHER | aa-af | 96 |
| 512 | 4W0109 | • BOLT - .190 DIA X .875 | aa-af | 96 |
| 570 | 5A7377 | • • VANE - STG 1.5 LP COMP PRE SBE72-0008 | aa-af | 96 |
| 570A | 5A0070 | • • VANE - STG 1.5 LPC POST SBE72-0008 | aa-af | 96 |
| 650 | 5W2055 | • CASE - LPC REAR ASSY OF | aa-af | 1 |
| 652 | 4W0001 | • NUT - .190 DIA | aa-af | 49 |
| 656 | AN960C10 | • WASHER 81352 PRE SBE72-0081 | aa-ac | 49 |
| 656A | MS9321-09 | • WASHER 96906 POST SBE72-0081 | ad-af | 49 |
| 658 | 4W2326 | • SCREW - .190 DIA X .625 | aa-af | 49 |
| 670 | RPNF250-28SM | • • NUT 83324 | aa-af | 8 |
| 672 | RLA23SM4 | • • WASHER 81349 | aa-af | 8 |
| 680 | 5W2139 | • • PIN | aa-af | 1 |
| 800 | 5A7378 | • VANE - A/O STG 2.0 LP COMP PRE SBE72-0008 | aa-af | 1 |
| 800A | 5A0071 | • STATOR - A/O STG. 2.0 LPC POST SBE72-0008 PRE SBE70-0201 | aa-af | 1 |
| 800B | 5A1418 | • VANE - STAOR,A/O STG.2.0 LPC POST SBE70-0201 | aa-af | 1 |
| 860 | 5A7379 | • • VANE - STG 2.0 LP COMP TYPE A PRE SBE72-0008 | aa-af | 49 |
| 860A | 5A0072 | • • VANE - STG 2.0 LPC TYPE "A" POST SBE72-0008 | aa-af | 49 |
| 861 | 5A7380 | • • VANE - STG 2.0 LP COMP TYPE B PRE SBE72-0008 | aa-af | 49 |
| 861A | 5A0073 | • • VANE - STG 2.0 LPC TYPE "B" POST SBE72-0008 | aa-af | 49 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

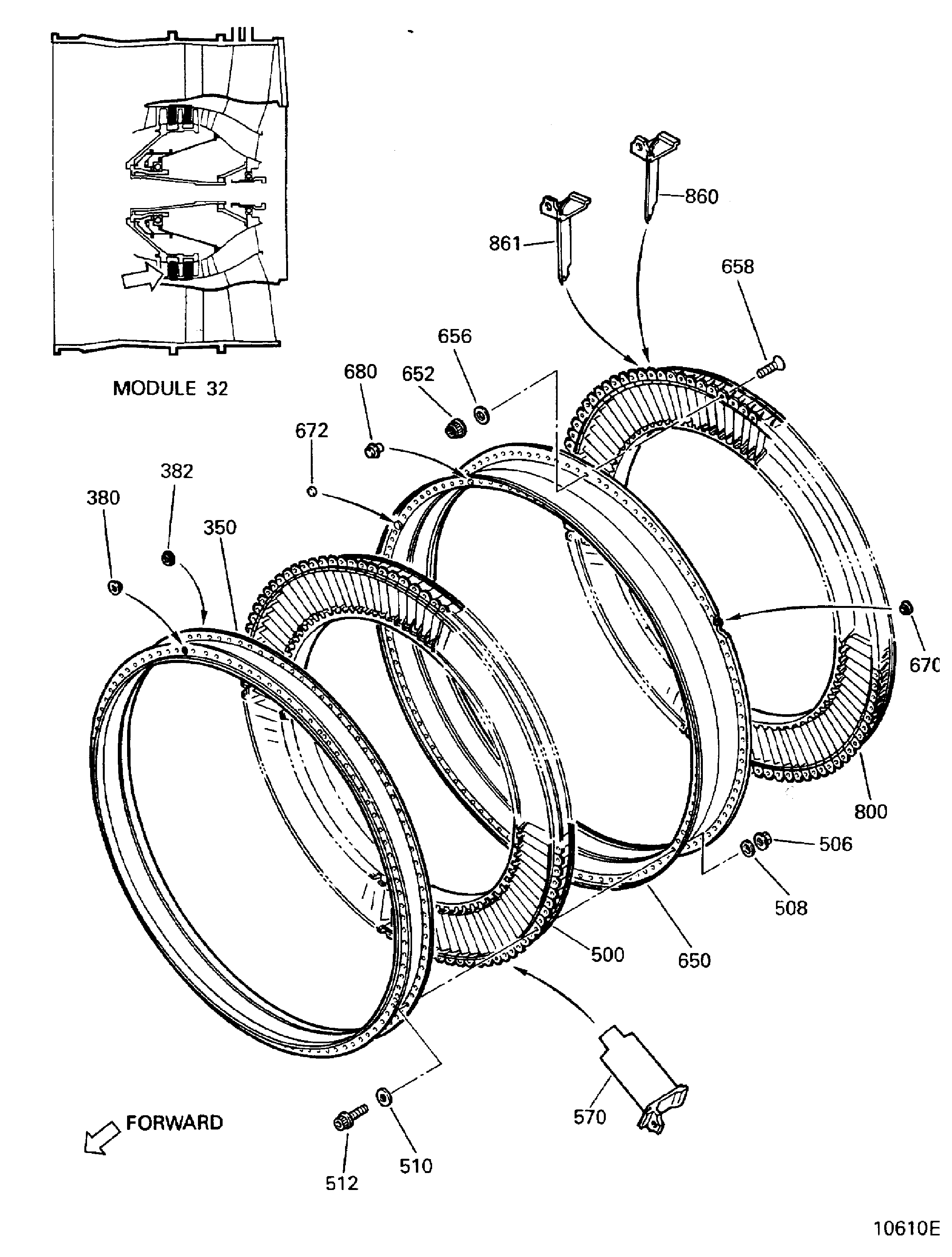

Figure: ENGINE-LP COMPRESSOR STAGE 1.5 AND 2 VANES
LP COMPRESSOR STAGE 1.5 AND 2 VANES
