TASK 72-32-83-300-018 LPC Rear Case - Repair The Rear Outside Diameter By Plasma Spray, Repair-018 (VRS1404)

DMC:V2500-A1-72-32-8340-01A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-32-83-300-018 LPC Rear Case - Repair The Rear Outside Diameter By Plasma Spray, Repair-018 (VRS1404)

Effectivity

FIG/ITEM

PART NO.

01-650

5W2055

01-650

5W2037

Material of component

IAE

DESCRIPTION

SYMBOL

MATERIAL

LPC rear case assembly

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Vertical latheLOCALVertical lathe
Dry blast cabinetLOCALDry blast cabinet
Plasma spray facilityLOCALPlasma spray facility
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Magnifying glass, 7xLOCALMagnifying glass, 7x
Vibrating marking pencilLOCALVibrating marking pencil
External micrometerLOCALExternal micrometer

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)IE200CoMat 03-038
CoMat 05-015 ABRASIVE MEDIUM, ALUMINUM OXIDELOCALCoMat 05-015
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)LOCALCoMat 06-063

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-325-069 Machine the Rear Outside Diameter of the LPC Rear Case Assembly

    1. Refer to Figure

      2. Machine the rear outside diameter.

      1. Use vertical lathe.

    2. SUBTASK 72-32-83-220-222 Examine the Rear Outside Diameter

    1. Refer to Figure.

      2. Measure and record the rear outside diameter.

      1. Use external micrometer.

    3. SUBTASK 72-32-83-230-098 Examine the LPC Rear Case Assembly for Cracks

      1. Do a fluorescent penetrant inspection on the rear outside diameter.

      1. No cracks are permitted.

      4. Refer to the SPM TASK 70-23-05-230-501.

    4. SUBTASK 72-32-83-120-073 Abrasive Blast the Rear Outside Diameter of the LPC Rear Case Assembly

    1. Refer to Figure.

      2. Apply masking tape to the areas which are not to be given plasma spray.

      3. Abrasive blast the rear outside diameter.

      3. Refer to the SPM TASK 70-34-01-340-501.

    5. SUBTASK 72-32-83-340-062 Plasma Spray the Rear Outside Diameter of the LPC Rear Case Assembly

    1. Refer to Figure.

      2. Apply new masking tape, if necessary.

      3. Apply plasma spray to the rear outside diameter.

      1. Refer to the SPM TASK 70-34-01-340-501.

      4. Apply sufficient plasma spray to get the necessary thickness.

      5. Maximum thickness of the plasma spray must be 0.012 in. (0.304 mm).

    4. Remove the masking tape.

    6. SUBTASK 72-32-83-350-123 Remove the Overspray

    1. Refer to Figure.

      2. Remove the overspray.

      1. Use non-metallic hand scraper.

    7. SUBTASK 72-32-83-325-070 Finish Machine the Rear Outside Diameter of the LPC Rear Case Assembly

    1. Refer to Figure.

      2. Set up the LPC rear case assembly on machine.

      1. Use vertical lathe.

      3. Finish machine the rear outside diameter.

      1. The minimum plasma spray coating thickness is 0.003 in. (0.08 mm).

      2. Refer to the SPM TASK 70-34-01-340-501.

    8. SUBTASK 72-32-83-220-223 Examine the Rear Outside Diameter of the LPC Rear Case Assembly

    1. Refer to Figure.

      2. Visually examine the coated area for chips, cracks, lifted material and coating that is not attached to the base metal.

      1. Refer to TASK 72-32-83-200-000 (INSPECTION-000).

      3. Dimensionally examine the rear outside diameter.

      1. Refer to TASK 72-32-83-200-000 (INSPECTION-000).

    9. SUBTASK 72-32-83-350-124 Identify the Repair

      1. Write VRS1404 adjacent to the part number.

      1. Mark a permanent mark.

      2. Refer to the SPM TASK 70-09-00-400-501.

      2. Apply the chromate conversion coating to the marking.

      1. Refer to the SPM TASK 70-38-02-300-503 (SUBTASK 72-38-02-300-002).

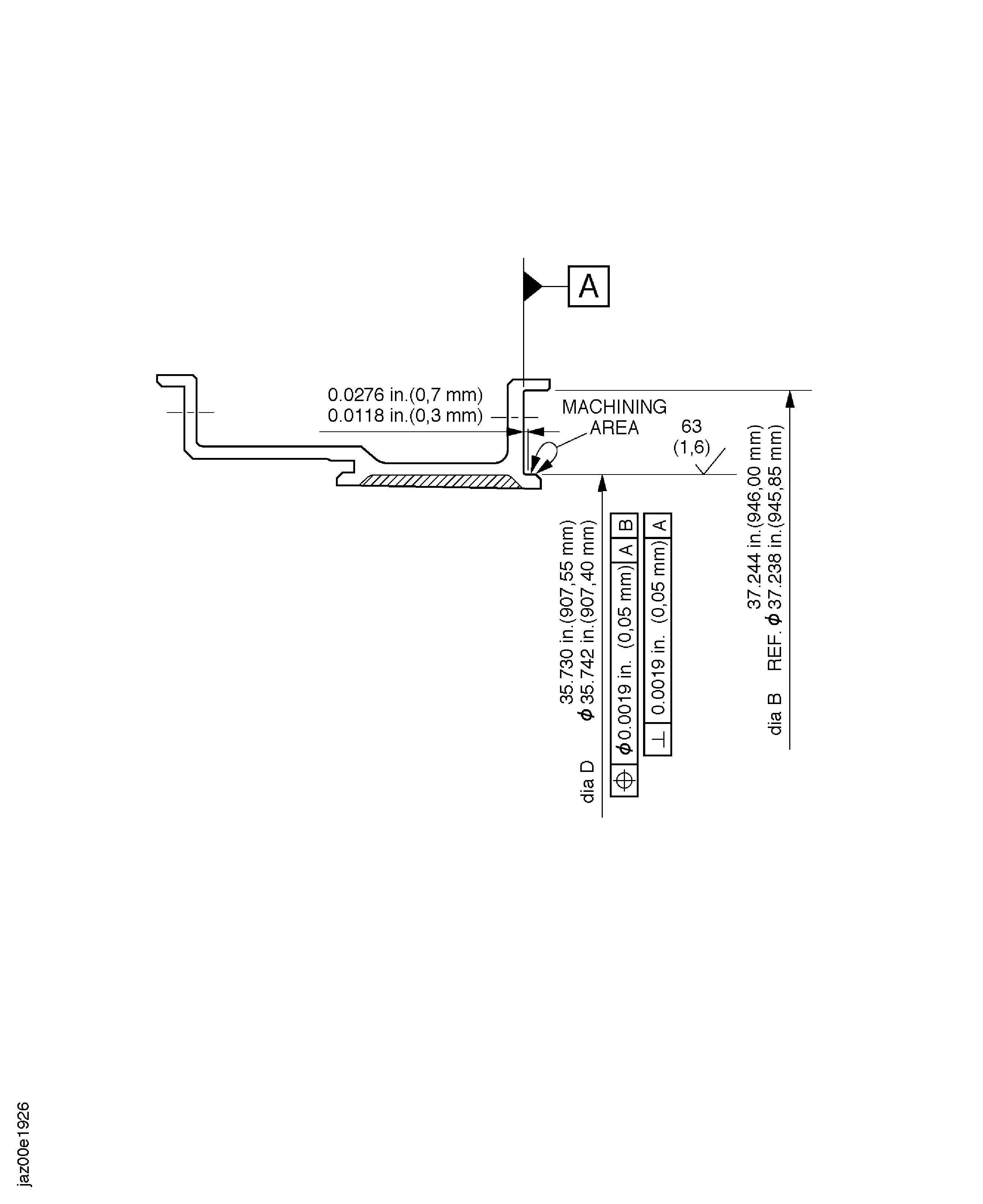

    10. Figure: Repair details and machining dimensions before plasma spray

    Repair details and machining dimensions before plasma spray

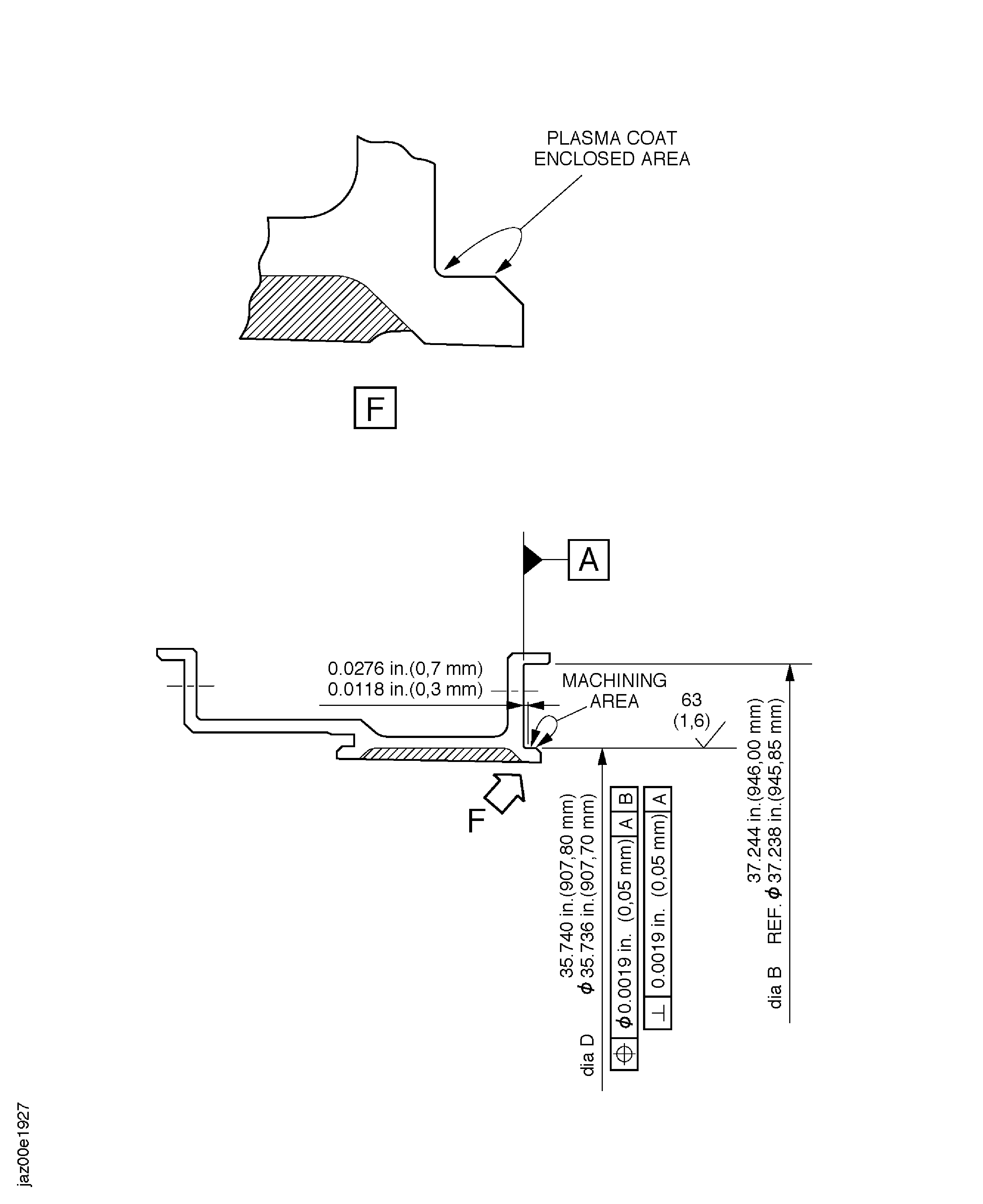

    Figure: Repair details and finish machining dimensions after plasma spray

    Repair details and finish machining dimensions after plasma spray

Requirements After Job Completion

Follow-On Conditions

NONE
