TASK 72-41-00-840-001 HPC Brackets - Rework the Fuel Flow Divider Mount Bracket Assembly to Provide Additional Tool Clearance -SBE 72-0078 - REWORK-001
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Refer to the indicated Service Bulletin for specific application requirements.
The procedure in TASK 72-40-00-840-002 (SBE 72-0078) must be incorporated concurrently when you incorporate this TASK.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Control No./TASK 70-35-09-350-501.
Refer to Fig Figure requirements.
The surface finish requirement is 250 AA (6.3 micro m).
Set-up and machine the 2A1696-01 bracket assembly to the dimensions given in the figure.
SUBTASK 72-41-00-320-051 Machine the Fuel Flow Divider Valve Bracket Assembly
Refer to Figure requirements.
Do the procedure given in TASK 70-09-00-400-501 and use the vibration peen method.
NUMBER BEFORE: 2A1696-01.
NEW NUMBER: 2A1729-01.
Mark the new part number adjacent to the part number that was there before.
SUBTASK 72-41-00-350-053 Identify the Fuel Flow Divider Bracket Assembly

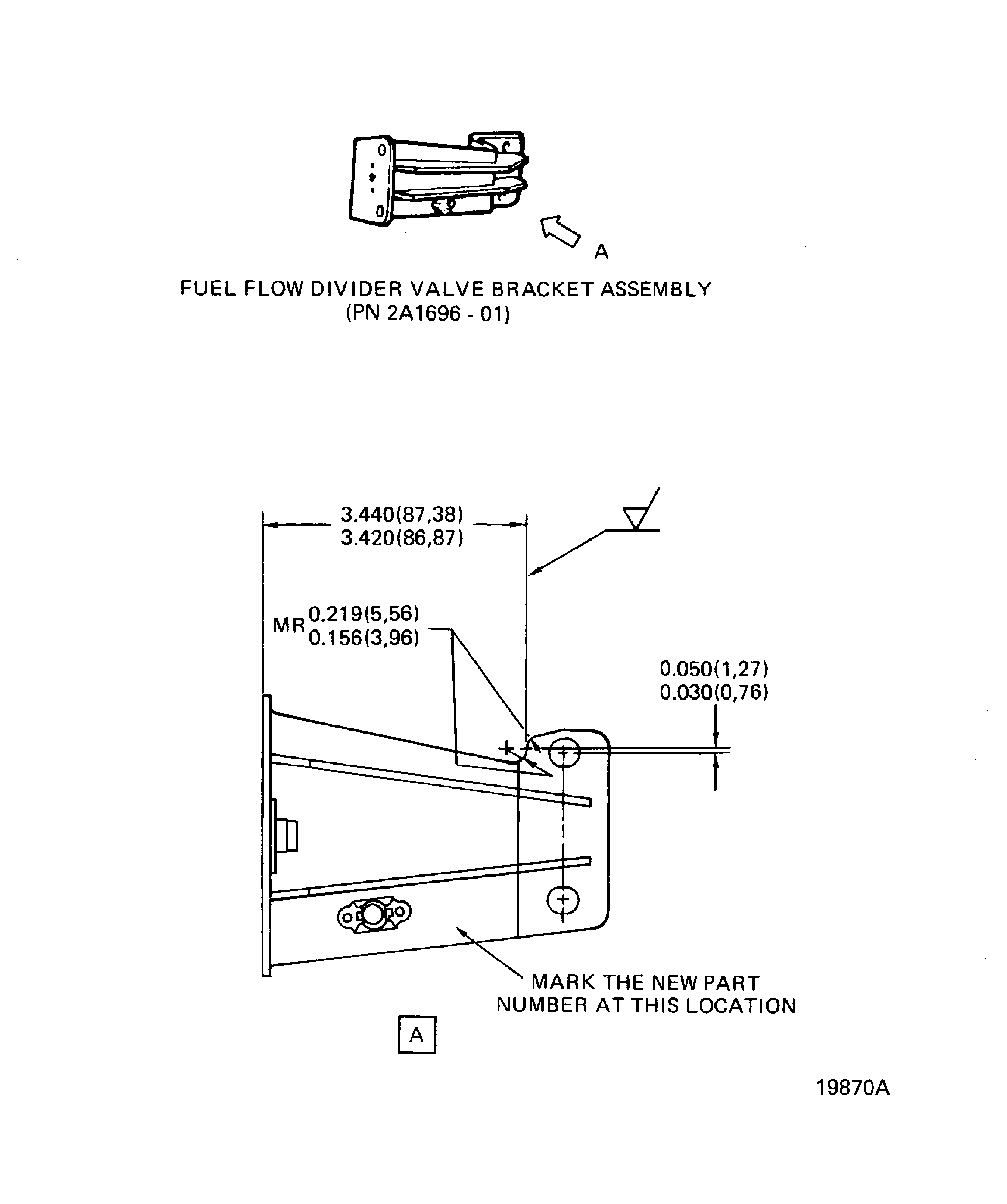

Figure: Modification of the fuel flow divider bracket assembly
Modification of the fuel flow divider bracket assembly
