| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72411501 | ENGINE-HP COMPRESSOR BLADES, PRE SBE70-0024 | aa | ||
| SBE0024-01 | ENGINE-HP COMPRESSOR BLADES, PRE SBE72-0035 | ab | ||
| SBE0035-01 | ENGINE-HP COMPRESSOR BLADES, PRE SBE70-0068 | ac | ||
| SBE0068-01 | ENGINE-HP COMPRESSOR BLADES, PRE SBE72-0490 | ad | ||
| SBE0490-01 | ENGINE-HP COMPRESSOR BLADES, PRE SBE72-0509 | ae | ||
| SBE0509-01 | ENGINE-HP COMPRESSOR BLADES | af | ||
| 050 | 6A1028 | • PLATE - RETAINING PRE SBE70-0068 | aa-ac | 8 |
| 050A | 6A1028 | • PLATE - RETAINING POST SBE70-0068 | ad-af | 7 |
| 070 | 6A3760 | • PLATE PRE SBE70-0068 | aa-ac | 2 |
| 070A | 6A3597 | • PLATE - RETAINING BLADE-STG3 POST SBE70-0068 | ad-af | 2 |
| 125 | 6A1029 | • PLATE - LOCKING PRE SBE70-0068 | aa-ac | 6 |
| 125A | 6A1029 | • PLATE - LOCKING POST SBE70-0068 PRE SBE72-0509 | ad-af | 9 |
| 125B | 6A8524 | • PLATE - LOCKING POST SBE72-0509 | ad-af | 9 |
| 195 | UP10822 | • PLUG - BALANCE,STAGE 3 | aa-af | 1 |
| 200 | 6A3513 | • BLADE PRE SBE72-0035 | aa-af | 31 |
| 200A | 6A3938 | • BLADE POST SBE72-0035 | aa-af | 31 |
| 350 | 6A1033 | • PLATE - RETAINING BLADE,STAGE 4 | aa-af | 9 |
| 425 | 6A1034 | • PLATE - LOCKING BLADE,STAGE 4 PRE SBE72-0509 | aa-ae | 3 |
| 425A | 6A8525 | • PLATE - LOCKING POST SBE72-0509 | af | 3 |
| 500 | 6A3635 | • BLADE - A/O PRE SBE70-0024 | aa-af | 38 |
| 500A | 6A3333 | • BLADE - A/O,COMP HPST4 POST SBE70-0024 PRE SBE72-0035 | aa-af | 38 |
| 500B | 6A3939 | • BLADE - A/O POST SBE72-0035 | aa-af | 38 |
| 520 | 6A1032 | • • STRIP - SEALING BLADE-STAGE 4 COMPR | aa-af | 1 |
| 520A | 6A1032 | • • STRIP - SEALING BLADE STG 4,(VRS6214) POST SBE70-0192 | ***** | 1 |
| 650 | 6A1038 | • PLATE - RETAINING BLADE,STAGE 5 | aa-af | 12 |
| 725 | 6A1039 | • PLATE - LOCKING BLADE,STAGE 5 PRE SBE72-0509 | aa-ae | 3 |
| 725A | 6A8526 | • PLATE - LOCKING POST SBE72-0509 | af | 3 |
| 800 | 6A3637 | • BLADE - A/O PRE SBE70-0024 | aa-af | 64 |
| 800A | 6A3335 | • BLADE - A/O,COMP HPST5 POST SBE70-0024 PRE SBE72-0035 | aa-af | 64 |
| 800B | 6A3941 | • BLADE - A/O STAGE 5 - HPC POST SBE72-0035 PRE SBE72-0490 | aa-af | 64 |
| 800C | 6A8449 | • BLADE - A/O HP COMPRESSOR STG POST SBE72-0490 | aa-af | 64 |
| 820 | 6A1037 | • • STRIP - SEALING | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

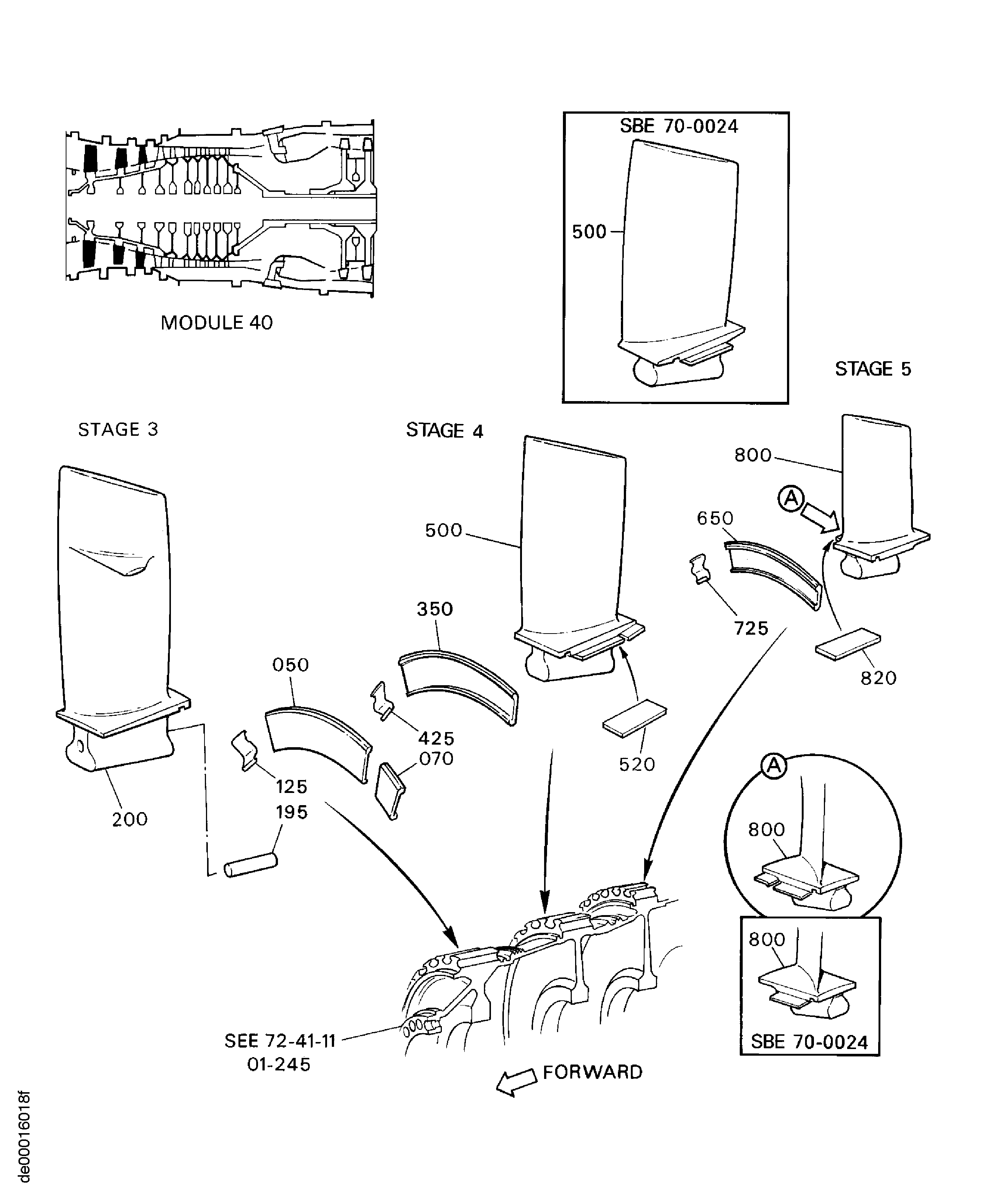

Figure: ENGINE-HP COMPRESSOR BLADES
HP COMPRESSOR BLADES
