DMC:V2500-A1-72-45-20-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452001 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0002 | aa | ||
| SBE0002-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0092 | ab | ||
| SBE0092-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0122 | ac | ||
| SBE0122-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE70-0450 | ad | ||
| SBE0450-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0310 | ae | ||
| SBE0310-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0339 | af | ||
| SBE0339-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0365 | ag | ||
| SBE0365-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0364 | ah | ||
| SBE0364-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0542 | ai | ||
| SBE0542-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0548 | aj | ||
| SBE0548-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY | ak | ||
| -005 | 2A1913 | • CASE - & VANE-ASSY TURB PRE SBE72-0002 | aa | 1 |
| -005A | 2A1918 | • CASE - & VANE-ASSY TURB | aa-ak | 1 |
| -005B | 2A1357 | • CASE&VAN - ASSY,TURB POST SBE72-0002 | ab-ak | 1 |
| -005C | 2A1764 | • CASE - & VANE-ASSY TURB POST SBE72-0092 PRE SBE72-0122 | ac | 1 |
| -005D | 2A2139 | • CASE - & VANE-ASSY POST SBE72-0092 | ac-ak | 1 |
| -005E | 2A2140 | • CASE - & VANE-ASSY POST SBE72-0092 | ac-ak | 1 |
| -005F | 2A2445 | • CASE - & VANE ASSY, TURBINE POST SBE72-0122 | ad-ak | 1 |
| -005G | 2A1718 | • CASE - & VANE ASSY, TURB POST SBE72-0122 | ad-ak | 1 |
| -005H | 2A2446 | • CASE - & VANE ASSY, TURBINE POST SBE72-0122 | ad-ak | 1 |
| -005J | 2A2188 | • CASE - & VANE ASSY, TURB POST SBE72-0122 PRE SBE70-0450 | ad-af | 1 |
| -005K | 2A2640 | • CASE - AND VANES ASSY TURBINE POST SBE70-0450 PRE SBE72-0310 | ad-af | 1 |
| -005L | 2A3365 | • CASE - & VANE POST SBE72-0310 PRE SBE72-0339 | ad-af | 1 |
| -005M | 2A3304 | • CASE - & VANE ASSY, TURB POST SBE72-0339 PRE SBE72-0365 | ag-ah | 1 |
| -005N | 2A2640-001 | • CASE - & VANE ASSY, TURBINE 77445 POST SBE72-0365 | ah-ak | 1 |
| -005P | 2A3468 | • CASE - &VANE ASSY, TURBINE POST SBE72-0365 PRE SBE72-0364 | ag-ai | 1 |
| -005Q | 2A3415 | • CASE - & VANE ASSY, TURB ALT 2A3304-001 POST SBE72-0364 PRE SBE72-0542 | ag-ai | 1 |
| -005R | 2A3304-001 | • CASE - & VANE ASSY , TURB 77445 ALT 2A3415 POST SBE72-0364 PRE SBE72-0542 | ai | 1 |
| 005S | 2A4099 | • CASE - AND VANE ASSY POST SBE72-0542 PRE SBE72-0548 | aj | 1 |
| 005T | 2A3468-001 | • CASE - AND VANE ASSY POST SBE72-0542 PRE SBE72-0548 | aj | 1 |
| 005U | 2A3304-002 | • CASE - AND VANE ASSY POST SBE72-0542 PRE SBE72-0542 | ***** | 1 |
| 005V | 2A3304-003 | • CASE - AND VANE ASSY POST SBE72-0542 PRE SBE72-0542 | ***** | 1 |
| 005W | 2A4203 | • CASE - AND VANE ASSY POST SBE72-0548 | ak | 1 |
| 005X | 2A3468-003 | • CASE - AND VANE ASSY POST SBE72-0548 | ak | 1 |
| 005Y | 2A4099-001 | • CASE - AND VANE ASSY POST SBE72-0548 | ak | 1 |
| 005Z | 2A3468-002 | • CASE - AND VANE ASSY POST SBE72-0548 | ak | 1 |
| 005AA | 2A3415-001 | • CASE - & VANE ASSY, TURB POST SBE72-0548 | ak | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

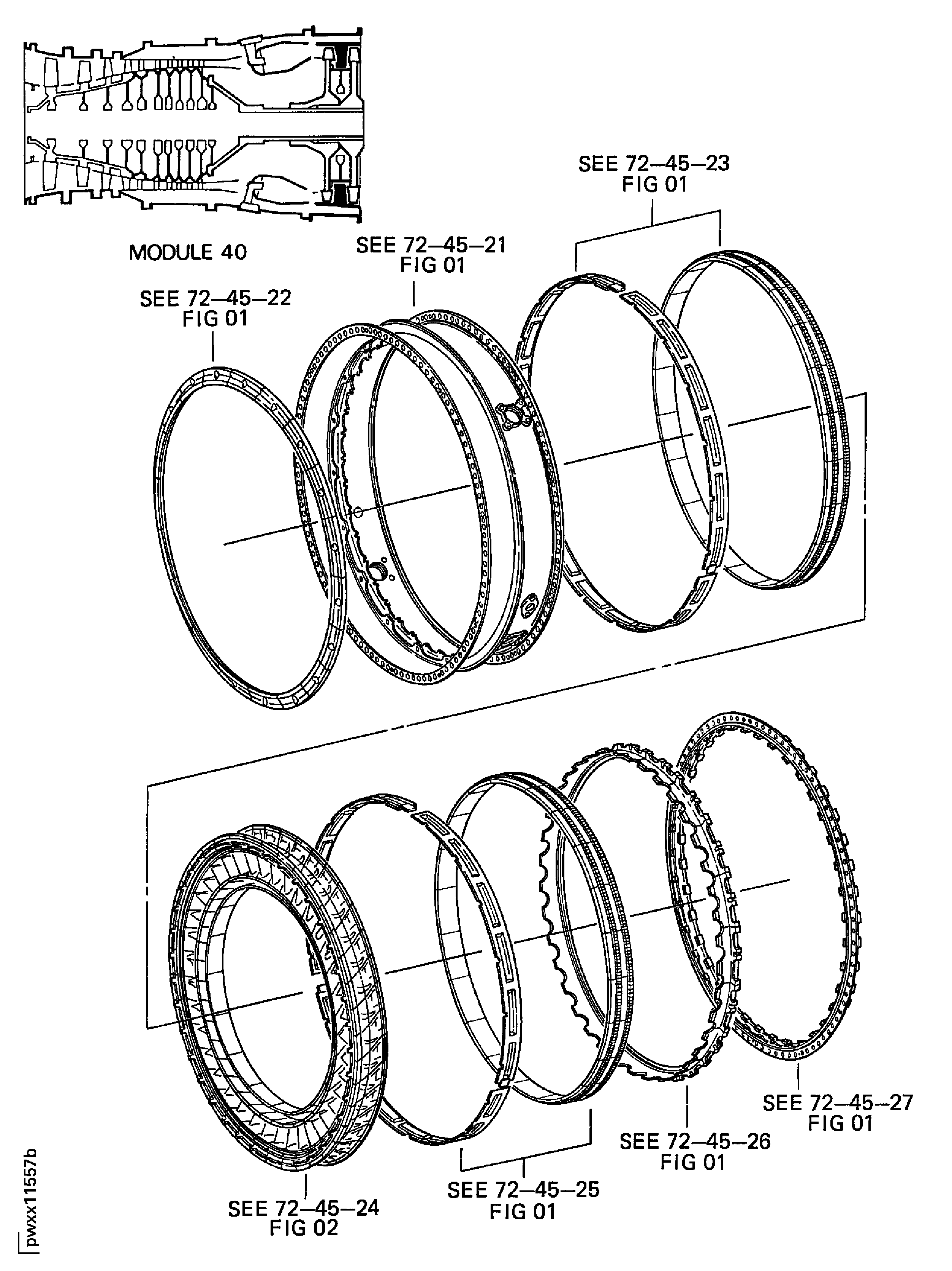

Figure: ENGINE-HP TURBINE CASE AND VANE ASSEMBLY
HPT CASE AND VANE ASSEMBLY
