| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72453201 | ENGINE-STAGE 2 HPT BLADE ASSEMBLY, PRE SBE70-0154 | aa | ||
| SBE0154-01 | ENGINE-STAGE 2 HPT BLADE ASSEMBLY, PRE SBE72-0220 | ab | ||
| SBE0220-01 | ENGINE-STAGE 2 HPT BLADE ASSEMBLY, PRE SBE70-0576 | ac | ||
| SBE0576-01 | ENGINE-STAGE 2 HPT BLADE ASSEMBLY, PRE SBE72-0321 | ad | ||
| SBE0321-01 | ENGINE-STAGE 2 HPT BLADE ASSEMBLY, PRE SBE72-0653 | ae | ||
| SBE0653-01 | ENGINE-STAGE 2 HPT BLADE ASSEMBLY | af | ||
| 010 | 2A0402 | • BLADE - HPT,2STG,ASSY OF PRE SBE70-0154 | aa | 72 |
| 010A | 2A1102 | • BLADE - A/O 2 STAGE,HPT POST SBE70-0154 PRE SBE72-0220 | ab-ad | 72 |
| 010B | 2A1102-001 | • BLADE 77445 POST SBE72-0220 PRE SBE70-0576 | ab-ad | 72 |
| 010C | 2A0402-001 | • BLADE 77445 POST SBE72-0220 PRE SBE72-0220 | ***** | 72 |
| 010D | 2A8602 | • BLADE - HPT 2 STAGE POST SBE70-0576 PRE SBE72-0321 | ab-ae | 72 |
| 010E | 2A8602 | • BLADE - HPT 2 STAGE POST SBE70-0576 PRE SBE70-0576 | ***** | 72 |
| 010F | 2A8902 | • BLADE - HPT,2 STAGE ALT 2A1102-002 POST SBE72-0321 PRE SBE72-0653 | ae | 72 |
| 010G | 2A1102-002 | • BLADE - A/O,HPT,2STAGE 77445 ALT 2A8902 POST SBE72-0321 PRE SBE72-0653 | ae | 72 |
| 010H | 2A0402 | • BLADE - HPT,2STG,ASSY OF PRE SBE72-0653 | aa-ae | 72 |
| 010I | 2A1102 | • BLADE - HPT,2STG,ASSY OF PRE SBE72-0653 | aa-ae | 72 |
| 010J | 2A1102-001 | • BLADE - HPT,2STG,ASSY OF PRE SBE72-0653 | aa-ae | 72 |
| 010K | 2A0402-001 | • BLADE - HPT,2STG,ASSY OF PRE SBE72-0653 | aa-ae | 72 |
| 010L | 2A8602 | • BLADE - HPT,2STG,ASSY OF PRE SBE72-0653 | aa-ae | 72 |
| 010M | 2A4622 | • BLADE - HPT,2STG,ASSY OF POST SBE72-0653 | af | 72 |
| 013 | 2A0159 | • • PLATE - 2STG HPT | aa-ae | 1 |
| 020 | 2A0109 | • DAMPER - HPT,2STG, | aa-ae | 72 |
| 040 | 2A0110 | • SEAL - HPT,2STG, | aa-ae | 72 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

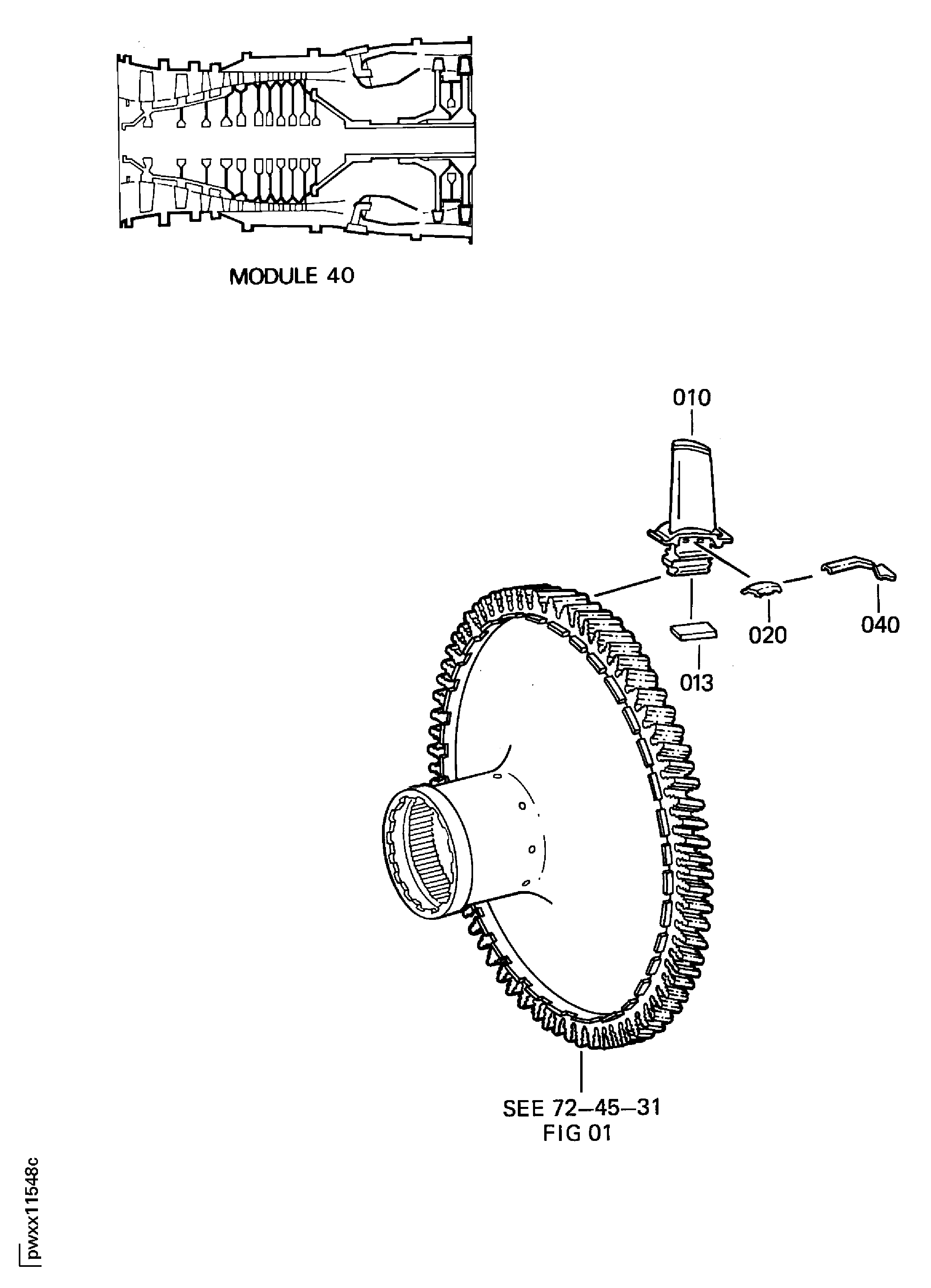

Figure: ENGINE-STAGE 2 HPT BLADE ASSEMBLY
STAGE 2 HPT BLADE ASSEMBLY
