| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72500001 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0014 | aa | ||
| SBE0014-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0061 | ab | ||
| SBE0061-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE77-0002 | ac | ||
| SBE0002-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0039 | ad | ||
| SBE0039-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBN78-0001 | ae | ||
| SBN0001-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0050 | af | ||
| SBE0050-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0007 | ag | ||
| SBE0007-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0053 | ah | ||
| SBE0053-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE70-0078 | ai | ||
| SBE0078-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0107 | aj | ||
| SBE0107-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0063 | ak | ||
| SBE0063-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0567 | al | ||
| SBE0567-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE, PRE SBE72-0626 | am | ||
| SBE0626-01 | ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE | an | ||
| -001 | 4W6013 | TURBINE - LP MODULE POST SBE72-0061 | ac-an | REF |
| -001A | 4W5192 | TURBINE - LP MODULE POST SBE70-0078 PRE SBE72-0567 | aj-al | REF |
| -001B | 4W5222 | MODULE - LP TURBINE POST SBE72-0567 | am-an | REF |
| 050 | 4W0002 | • NUT - .250 DIA PRE SBE77-0002 | aa-ac | 114 |
| 050A | 4W0002 | • NUT - .250 DIA POST SBE77-0002 PRE SBE72-0050 | ad-af | 110 |
| 050B | 4W0002 | • NUT - .250 DIA POST SBE72-0050 | ag-an | 114 |
| 055 | 662138 | • NUT 77445 POST SBE77-0002 PRE SBE72-0050 | ad-af | 4 |
| 100 | 4W0587 | • BOLT - .250 DIA X .812 | aa-an | 108 |

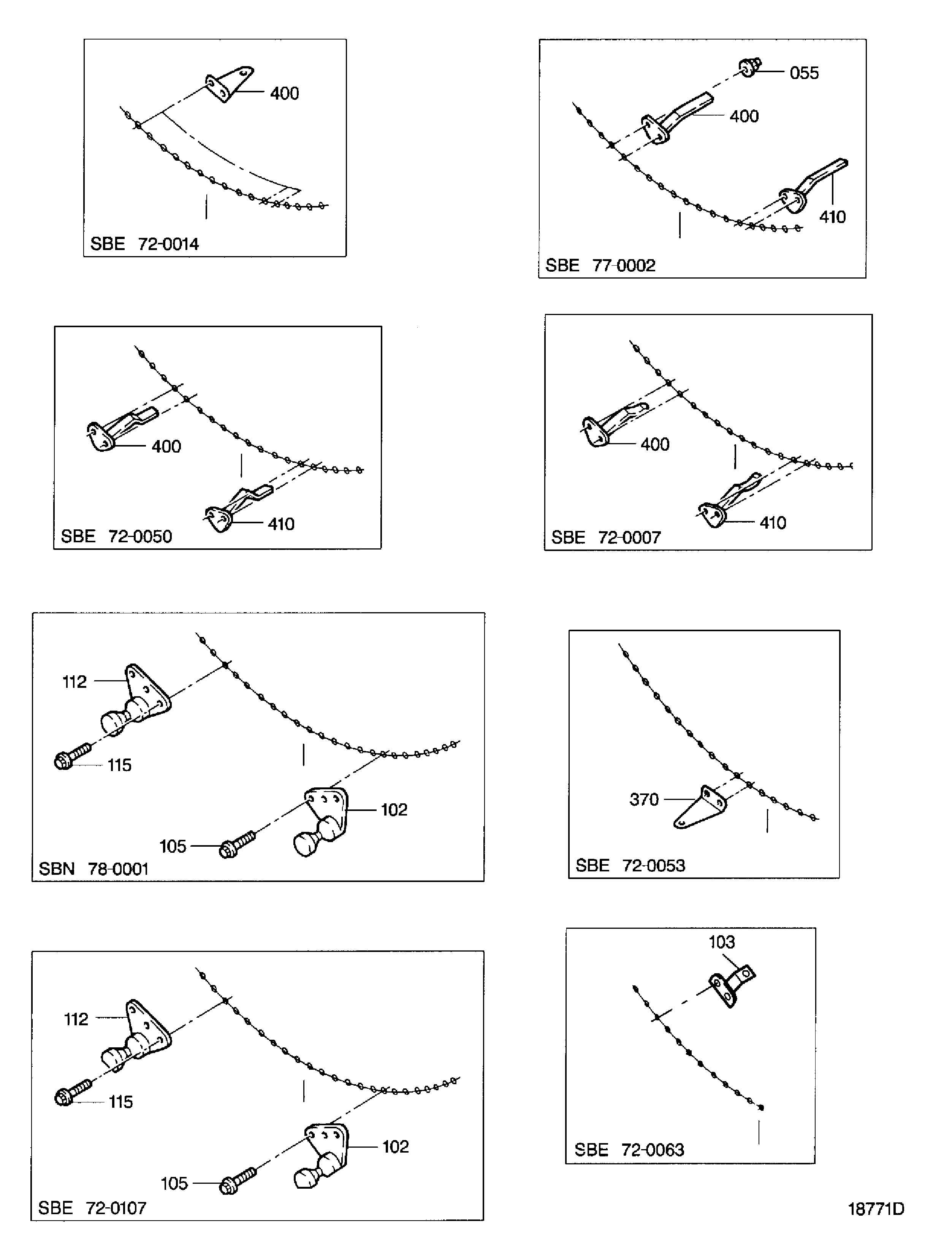

| 102 | 740-0381-505 | • BRACKET - T/R HOLD OPEN LH 51563 ALT 740-0381-507 PRE SBN78-0001 | aa-ae | 1 |
| -102A | 740-0381-507 | • BRACKET - T/R HOLD OPEN LH 51563 ALT 740-0381-505 PRE SBN78-0001 | aa-ae | REF |
| 102B | 740-0381-505 | • BRACKET - T/R HOLD OPEN LH 51563 ALT 740-0381-507 PRE SBN78-0001 | aa-ae | 1 |
| 102C | 740-0508-501 | • FITTING - T/R HOLD OPEN AFT 51563 POST SBN78-0001 PRE SBE72-0107 | af-aj | 1 |
| 102D | 740-0508-503 | • FITTING - T/R HOLD OPEN AFT 51563 POST SBE72-0107 | ak-an | 1 |
| 103 | 6A4448 | • BRACKET - CLIPPING POST SBE72-0063 | al-an | 1 |
| 105 | 4W0590 | • BOLT - .250 DIA X 1.000 | aa-an | 3 |
| 112 | 740-0381-506 | • BRACKET - T/R HOLD OPEN RH 51563 PRE SBN78-0001 | aa-ae | 1 |
| -112A | 740-0381-508 | • BRACKET - T/R HOLD OPEN RH 51563 PRE SBN78-0001 | aa-ae | REF |
| 112B | 740-0508-501 | • FITTING - T/R HOLD OPEN AFT 51563 POST SBN78-0001 PRE SBE72-0107 | af-aj | 1 |
| 112C | 740-0508-503 | • FITTING - T/R HOLD OPEN AFT 51563 POST SBE72-0107 | ak-an | 1 |
| 115 | 4W0590 | • BOLT - .250 DIA X 1.000 | aa-an | 3 |

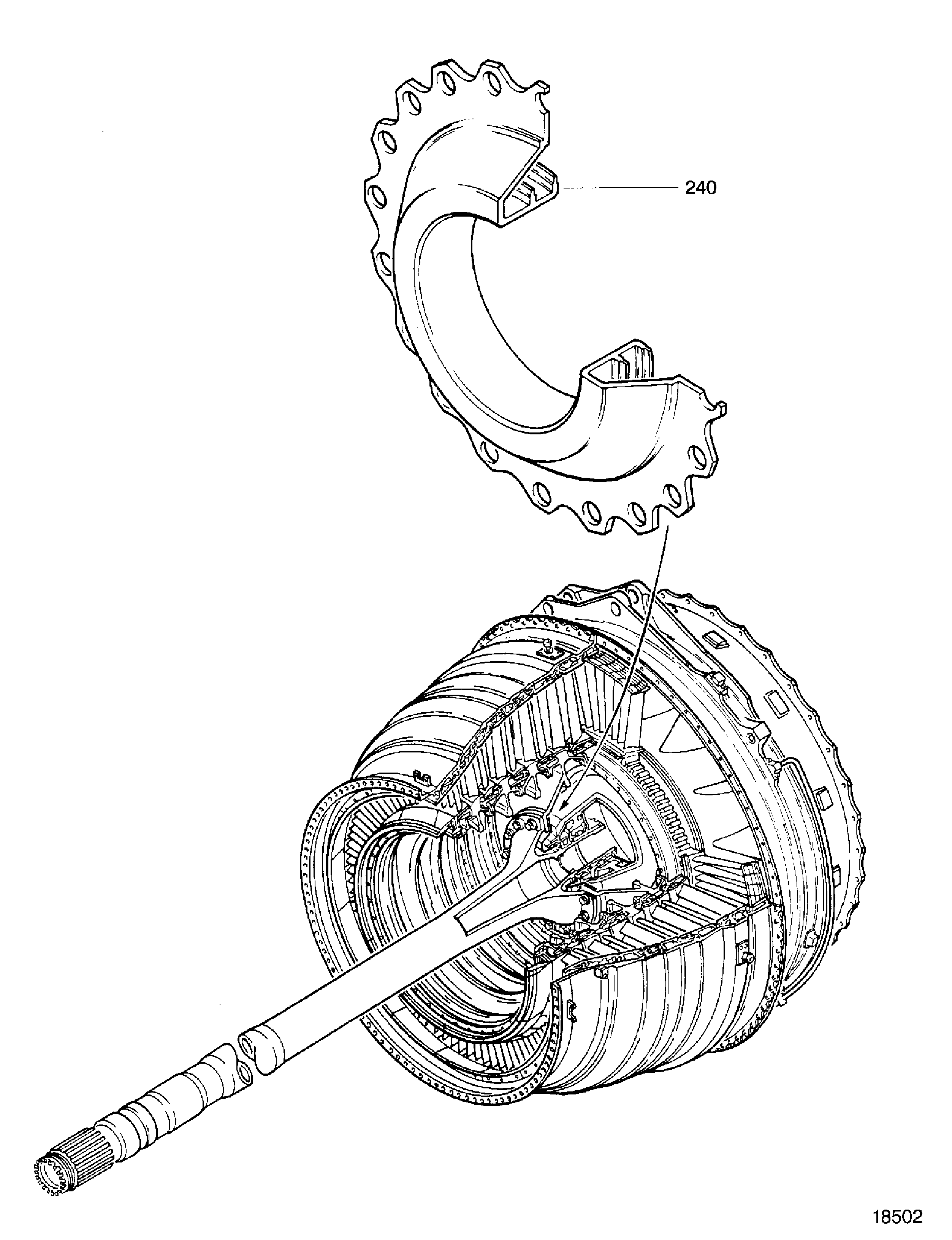

| 240 | 3A0078 | • SEAL - AIR,TURBINE,INNER STG6 PRE SBE72-0567 PRE SBE72-0626 | aa-al | 1 |
| 240A | 3A3063 | • SEAL - AIR,TURBINE,INNER,STG6 POST SBE72-0567 PRE SBE72-0626 | am | 1 |
| 240B | 3A3047 | • SEAL - AIR,TURBINE,INNER,STG6 POST SBE72-0626 | an | 1 |
| 245 | 3A2981 | • RING - DAMPER,INNER POST SBE72-0626 | an | 1 |

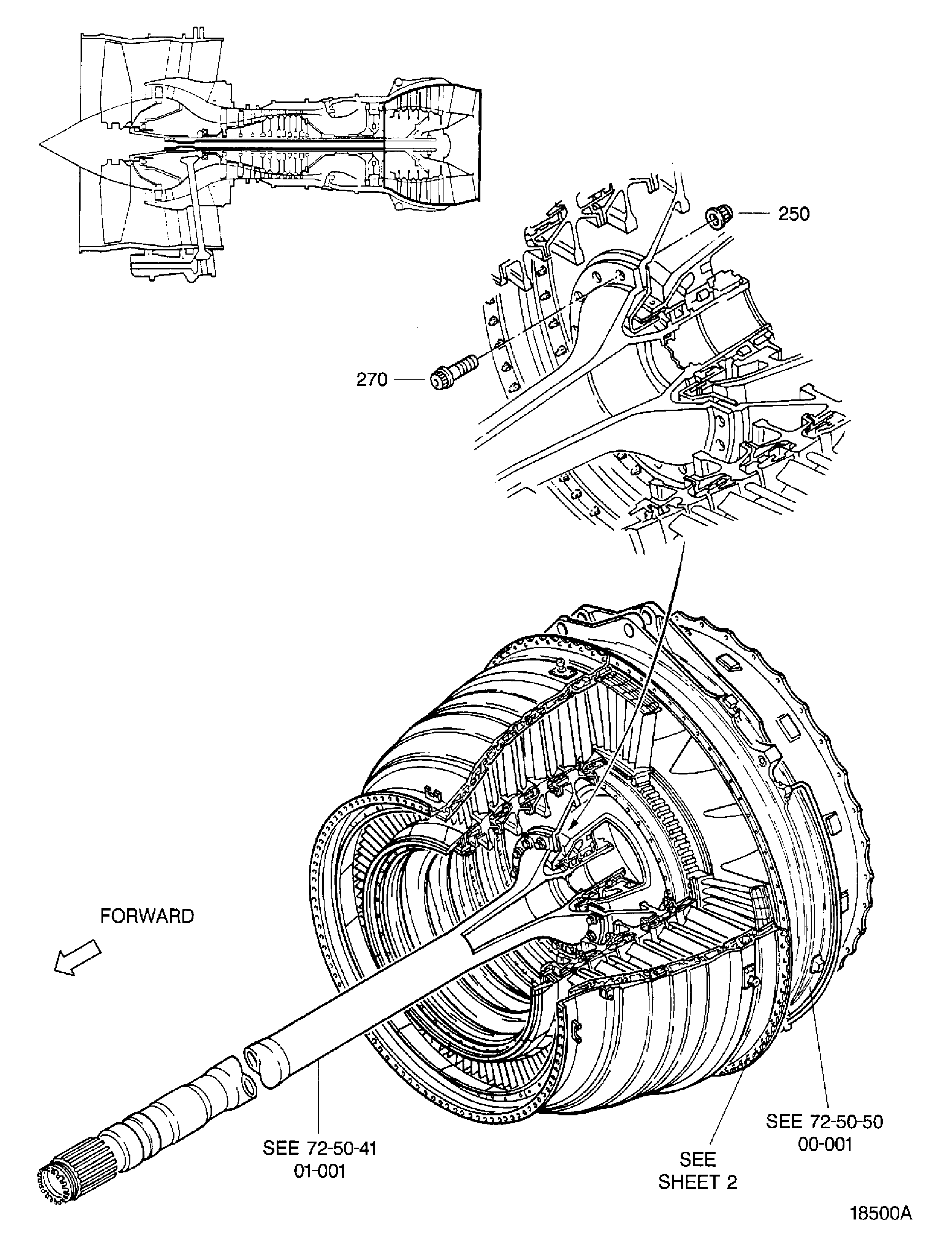

| 250 | AS42915 | • NUT U1653 | aa-an | 20 |
| 270 | 5A0388 | • BOLT | aa-an | 20 |
| 350 | 5W8347 | • BRACKET | aa-an | 1 |
| 370 | 5W8356 | • BRACKET PRE SBE72-0039 | aa-an | 1 |
| 370A | 5W8393 | • BRACKET POST SBE72-0039 PRE SBE72-0053 | aa-an | 1 |
| 370B | 5W8392 | • BRACKET POST SBE72-0053 | aa-an | 1 |
| 390 | 2A1629 | • BRACKET - LOOP CLAMP | aa-an | 8 |
| 400 | 2A1804 | • BRACKET - LOOP CLAMP PRE SBE72-0014 | aa | 1 |
| 400A | 2A1804 | • BRACKET - LOOP CLAMP POST SBE72-0014 PRE SBE77-0002 | ab-ac | 2 |
| 400B | 2A2005 | • BRACKET - LOOP CLAMP POST SBE77-0002 PRE SBE72-0050 | ad-ag | 1 |
| 400C | 2A2050 | • BRACKET POST SBE72-0050 PRE SBE72-0007 | ad-ag | 1 |
| -400D | 2A2065-01 | • BRACKET - LOOP CLAMP-ASSY OF POST SBE72-0007 | ah-an | 1 |
| 400E | 2A2065-01 | • BRACKET - LOOP CLAMP-ASSY OF POST SBE72-0007 | ah-an | 1 |
| 410 | 2A2004 | • BRACKET - LOOP CLAMP POST SBE77-0002 PRE SBE72-0050 | ad-ag | 1 |
| 410A | 2A2050 | • BRACKET POST SBE72-0050 PRE SBE72-0007 | ad-ag | 1 |
| -410B | 2A2065-01 | • BRACKET - LOOP CLAMP-ASSY OF POST SBE72-0007 | ah-an | 1 |
| 410C | 2A2065-01 | • BRACKET - LOOP CLAMP-ASSY OF POST SBE72-0007 | ah-an | 1 |

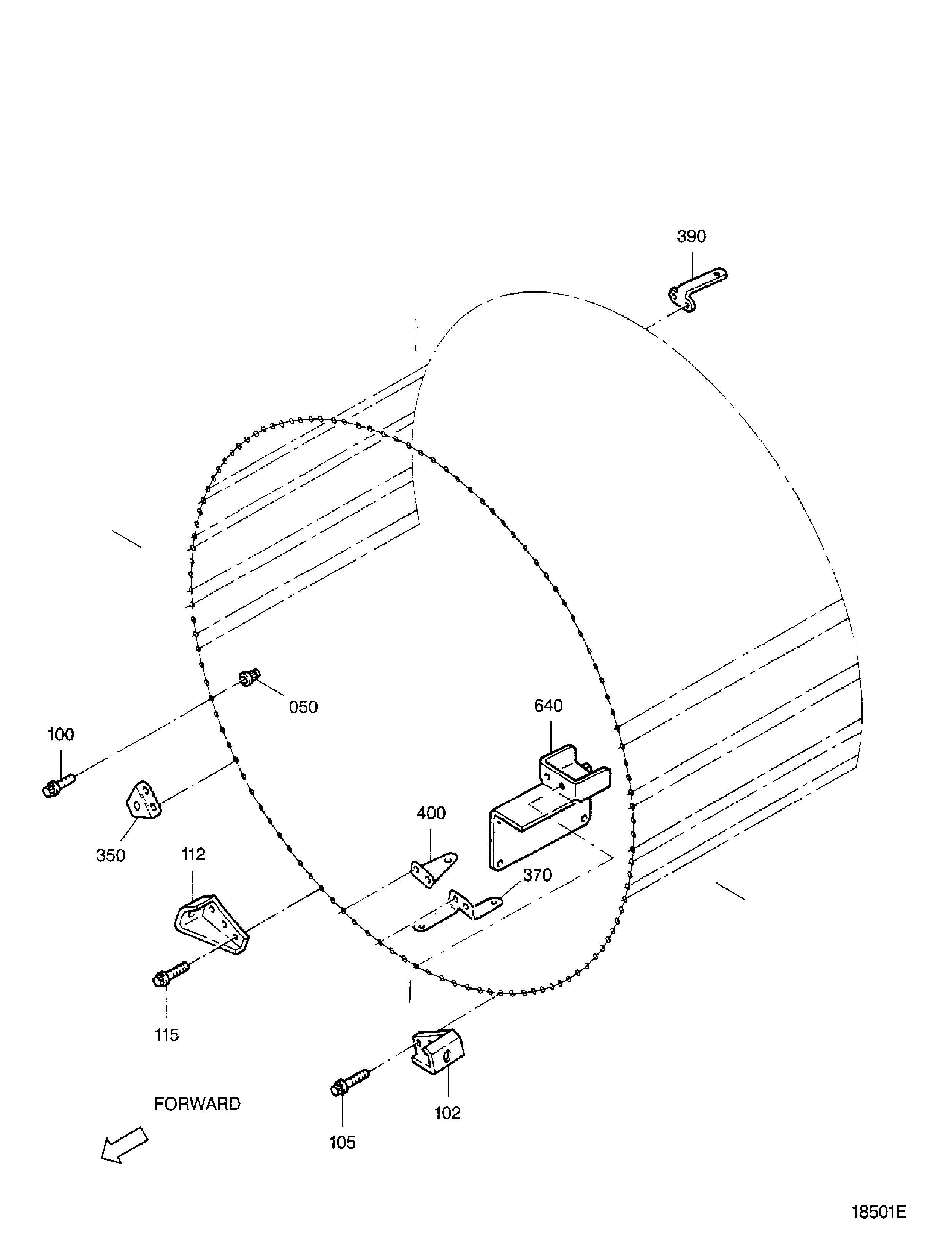

| 640 | 2A1091-01 | • BRACKET - EGT JUNCTION BOX | aa-an | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||
Figure: ATTACH PARTS & FITTINGS-LP TURBINE MINI MODULE
LP TURBINE MODULE (LPT)
LP TURBINE MODULE (LPT)
LP TURBINE MODULE (LPT)
LP TURBINE MODULE (LPT)
