DMC:V2500-A1-72-50-21-01A-941A-DIssue No:002.00Issue Date:2021-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72502101 | ENGINE - LP TURBINE CASE, PRE SBE70-0003 | aa | ||
| SBE0003-01 | ENGINE - LP TURBINE CASE, PRE SBE70-0105 | ab | ||
| SBE0105-01 | ENGINE - LP TURBINE CASE, PRE SBE72-0164 | ac | ||
| SBE0164-01 | ENGINE - LP TURBINE CASE, PRE SBE70-0519 | ad | ||
| SBE0519-01 | ENGINE - LP TURBINE CASE | ae | ||
| 010 | 3A0807 | • CASE - LPT, ASSEMBLY OF | aa-ae | 1 |
| 010A | 3A0990 | • CASE - LPT, ASSEMBLY OF PRE SBE70-0003 | aa-ac | 1 |
| 010B | 3A0991 | • CASE - LPT, ASSEMBLY OF POST SBE70-0003 PRE SBE72-0164 | aa-ac | 1 |
| 010C | 3A2265 | • CASE - LPT, ASSEMBLY OF POST SBE72-0164 PRE SBE70-0519 | ad-ae | 1 |
| 010D | 3A2533 | • CASE - LPT, ASSEMBLY OF POST SBE70-0519 | ad-ae | 1 |
| 040 | 3A0709 | • • PIN | aa-ae | 1 |
| 050 | AGS3707 | • • INSERT - SCREW THREAD, .250 DIA U1653 POST SBE70-0105 | ac-ae | 8 |
| 060 | 3A0478 | • • BOSS - MOUNTING | aa-ae | 8 |
| 070 | AN123337 | • • RIVET 88044 | aa-ae | 32 |
| 090 | 3A0514 | • • BOSS - INTRASCOPE POST SBE70-0105 PRE SBE72-0164 | ac | 2 |
| 090A | 3A2190 | • • BOSS - INTRASCOPE POST SBE72-0164 | ad-ae | 2 |
| 100 | AN123685 | • • RIVET - SOLID, COUNTERSUNK HEAD 88044 POST SBE70-0105 PRE SBE72-0164 | ac | 8 |
| 100A | AN123337 | • • RIVET 88044 POST SBE72-0164 | ad-ae | 8 |
| 110 | 3A0857 | • • BRACKET | aa-ae | 1 |
| 112 | AN123399 | • • RIVET - SOLID UNIVERSAL HD 88044 | aa-ae | 4 |
| 114 | 4W0043 | • • NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA Optional Part 4W0043 | aa-ae | 2 |
| 114A | 4W0043 | • • NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA Optional Part 4W0043 POST SBE70-0105 | ac-ae | 2 |
| 300 | 3A0152 | • HEATSHIELD - 5TH STAGE, ASSEMBLY OF | aa-ae | 1 |
| 350 | 3A0150 | • HEATSHIELD - 4TH STAGE, REAR, ASSEMBLY OF | aa-ae | 1 |
| 380 | 3A0148 | • HEATSHIELD - 4TH STAGE, ASSEMBLY OF | aa-ae | 1 |
| 430 | 3A0859 | • HEATSHIELD SEGMENT - ASSEMBLY OF | aa-ae | 3 |
| -435 | 3A0860 | • • HEATSHIELD SEGMENT | aa-ae | REF |
| -437 | 3A0861 | • • PLATE - RETAINING | aa-ae | REF |
| -438 | 3A0862 | • • PLATE - SEALING | aa-ae | REF |
| -439 | 3A0863 | • • PLATE - SEALING | aa-ae | REF |
| 455 | 3A0806 | • SEAL - RING | aa-ae | 1 |
| 460 | 3A0143 | • HEATSHIELD - 3RD STAGE, ASSEMBLY OF | aa-ae | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

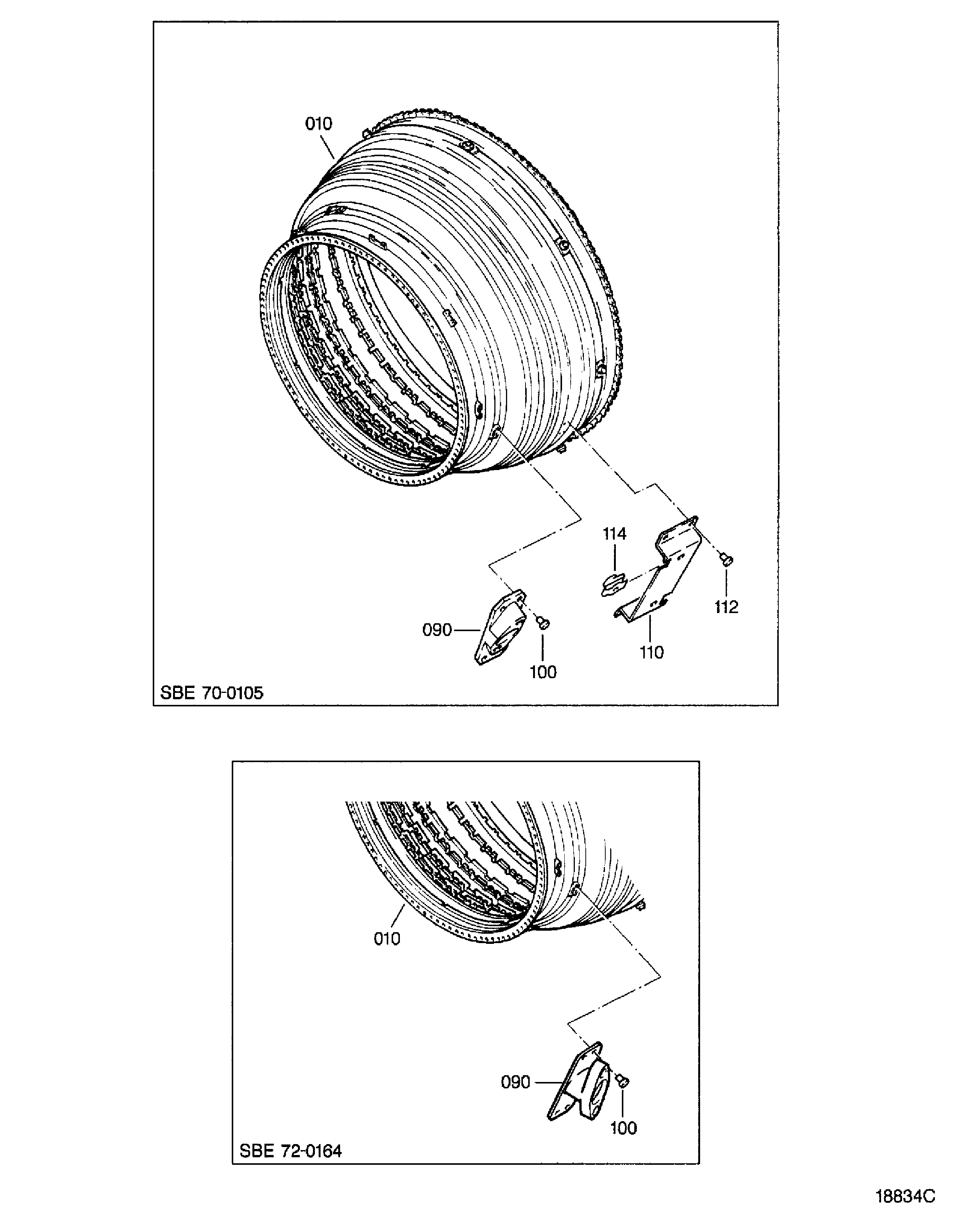

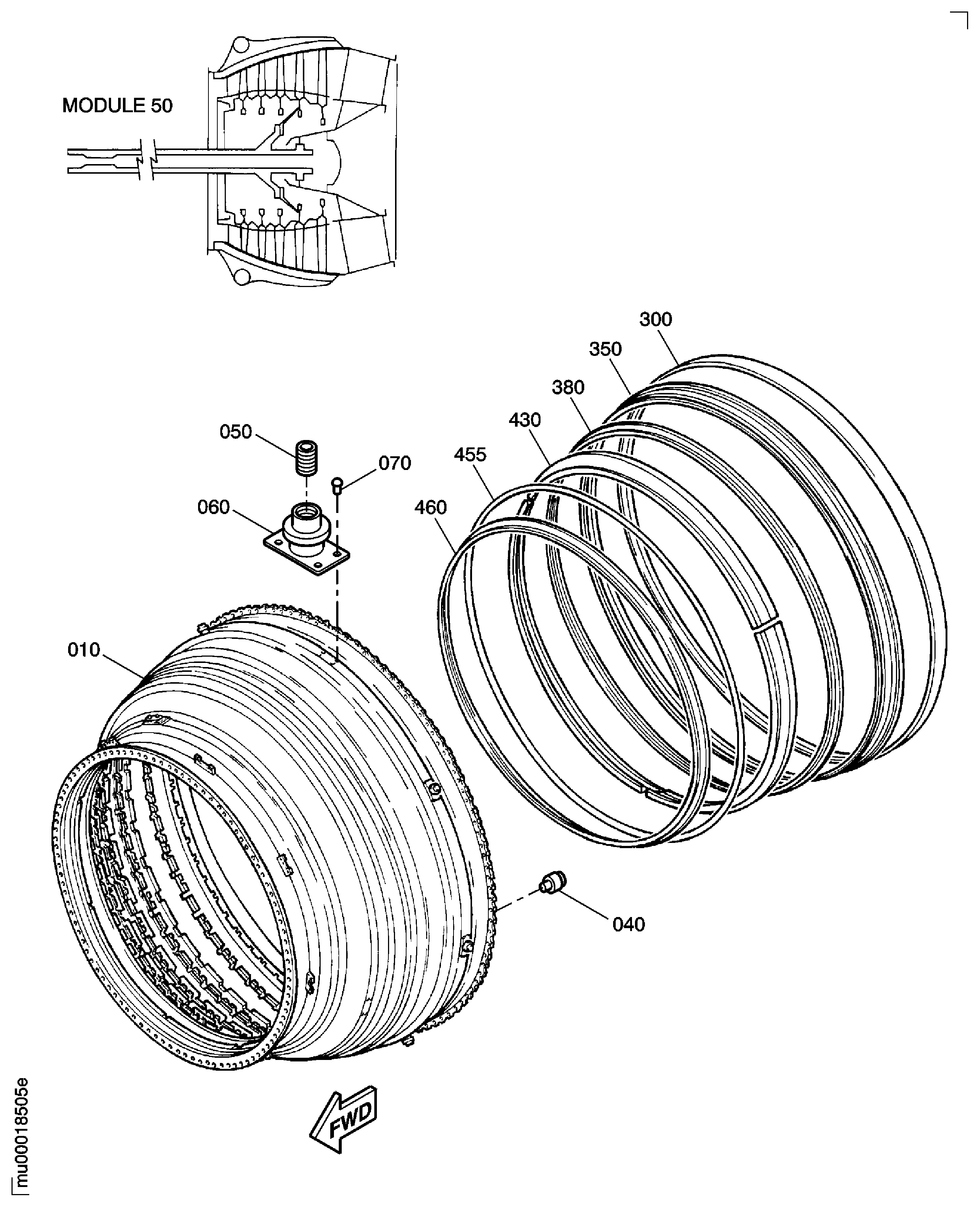

Figure: ENGINE-LP TURBINE CASE
LPT CASE
LPT CASE
