| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72505001 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY, PRE SBE70-0051 | aa | ||
| SBE0051-01 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY, PRE SBE77-0001 | ab | ||
| SBE0001-01 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY, PRE SBE72-0104 | ac | ||
| SBE0104-01 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY, PRE SBE72-0063 | ad | ||
| SBE0063-01 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY, PRE SBE70-0480 | ae | ||
| SBE0480-01 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY, PRE SBE70-0783 | af | ||
| SBE0783-01 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY, PRE SBE73-0202 | ag | ||
| SBE0202-01 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY, PRE SBE72-0590 | ah | ||
| SBE0590-01 | ENGINE-TURBINE EXHAUST CASE ASSEMBLY | ai | ||
| 001 | 4A8015 | CASE - ASSY TUBE EX PRE SBE70-0051 | aa-ai | 1 |
| 001A | 4A8015 | CASE - ASSY TUBE EX POST SBE70-0051 | aa-ai | 1 |
| 001B | 4A8026 | CASE - ASSY TURBINE EXHAUST POST SBE77-0001 PRE SBE72-0104 | ac-ai | 1 |
| 001C | 4A8026 | CASE - ASSY TURBINE EXHAUST POST SBE72-0104 PRE SBE72-0063 | ac-ai | 1 |
| 001D | 2A4700 | GROUP - TURBINE EXHAUST CASE POST SBE72-0063 PRE SBE70-0480 | ac-ai | 1 |
| -001E | 2A8500 | TURBINE POST SBE70-0480 PRE SBE70-0783 | ac-ai | REF |
| 001F | 2A9500 | TURBINE - EXHAUST CASE, GROUP POST SBE70-0783 PRE SBE72-0590 | ac-ai | 1 |
| 001G | 2A4700-004 | TURBINE - GROUP EXH POST SBE73-0202 | ah-ai | 1 |
| 001H | 2A4260 | MODULE - TURBINE EXHAUST CASE 77445 POST SBE72-0590 | ac-ai | 1 |
| 001J | 2A4261 | MODULE - TURBINE EXHAUST CASE 77445 ALT 2A4260 POST SBE72-0590 | ac-ai | 1 |
| 001K | 2A4260 | MODULE - TURBINE EXHAUST CASE 77445 ALT 2A4261 POST SBE72-0590 | ai | 1 |
| 001L | 2A4261 | MODULE - TURBINE EXHAUST CASE 77445 ALT 2A4260 POST SBE72-0590 | ai | 1 |
| 330 | 4T8049 | • SEAL PRE SBE72-0063 | aa-ai | 1 |
| 330A | MS9549-14 | • WASHER - FLAT 96906 POST SBE72-0063 | aa-ai | 1 |
| 350 | AS27467 | • UNION - DOUBLE ENDED TUBE U1653 PRE SBE72-0063 | aa-ai | 1 |
| 350A | AS27467 | • UNION - DOUBLE ENDED TUBE U1653 POST SBE72-0063 | aa-ai | 1 |
| 352 | 4P8048 | • PLUG PRE SBE72-0063 | aa-ad | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

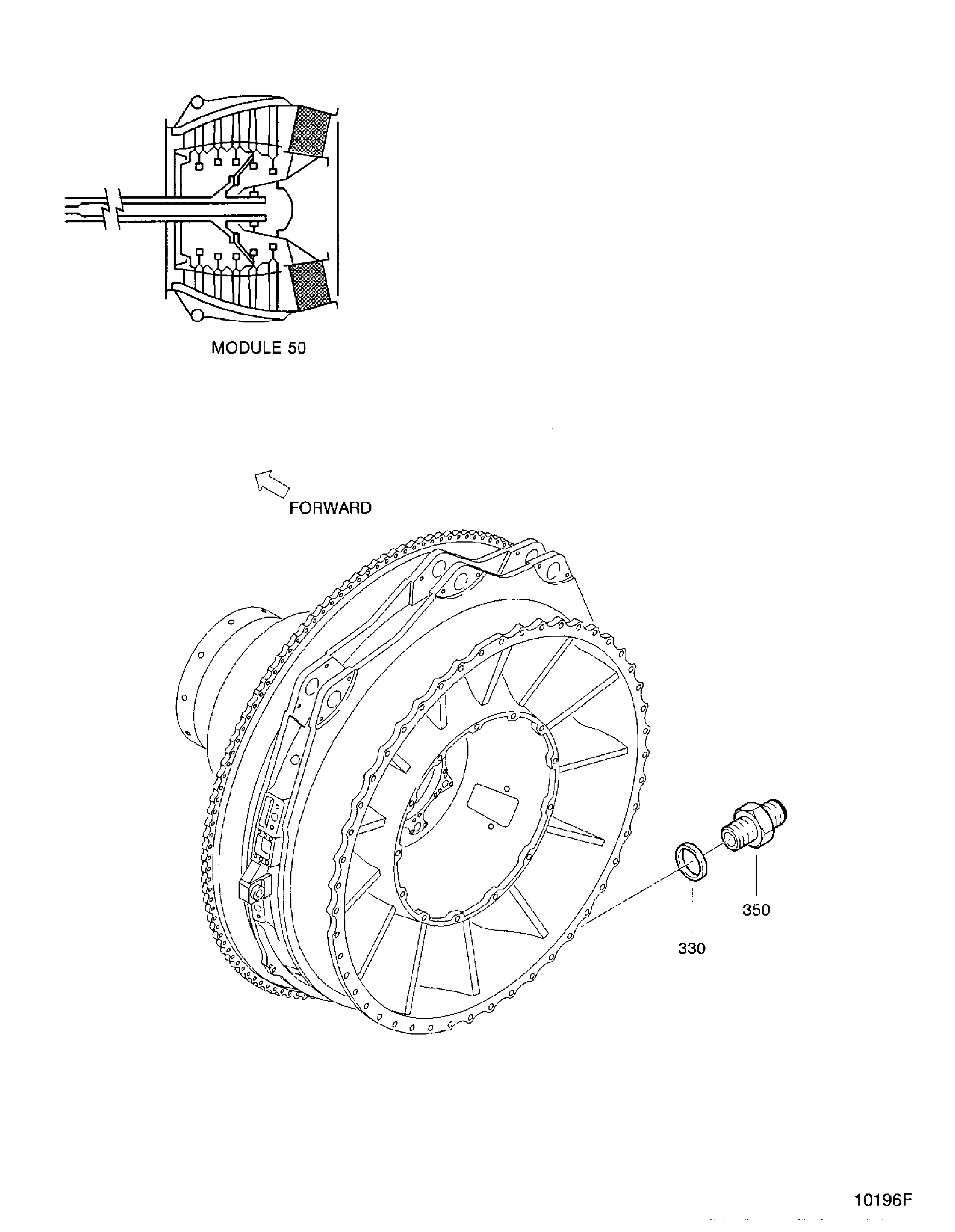

Figure: ENGINE-TURBINE EXHAUST CASE ASSEMBLY
TURBINE EXHAUST CASE ASSEMBLY
