| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72505301 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0057 | aa | ||
| SBE0057-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE77-0001 | ab | ||
| SBE0001-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0056 | ac | ||
| SBE0056-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0104 | ad | ||
| SBE0104-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE70-0162 | ae | ||
| SBE0162-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0063 | af | ||
| SBE0063-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE70-0480 | ag | ||
| SBE0480-01 | ENGINE-EXHAUST CASE AND FITTINGS, PRE SBE72-0498 | ah | ||
| SBE0498-01 | ENGINE-EXHAUST CASE AND FITTINGS | ai | ||
| 001 | 4A8014 | CASE - ASSY TURBINE EXHAUST PRE SBE72-0057 | aa-ai | 1 |
| 001A | 4A8014 | CASE - ASSY TURBINE EXHAUST POST SBE72-0057 | aa-ai | 1 |
| 001B | 4A8025 | CASE - ASSY TURBINE EXHAUST POST SBE77-0001 PRE SBE72-0056 | ac-ai | 1 |
| 001C | 4A8014 | CASE - ASSY TURBINE EXHAUST POST SBE72-0056 PRE SBE72-0498 | ac-ai | 1 |
| 001D | 4A8025 | CASE - ASSY TURBINE EXHAUST POST SBE72-0104 PRE SBE70-0162 | ae-ai | 1 |
| 001E | 4A8025 | CASE - ASSY TURBINE EXHAUST POST SBE70-0162 PRE SBE72-0063 | ae-ai | 1 |
| 001F | 2A4700 | GROUP POST SBE72-0063 PRE SBE70-0480 | ae-ai | 1 |
| 001G | 2A8500 | TURBINE POST SBE70-0480 | ae-ai | 1 |
| 001H | 4A8025-001 | CASE - ASSY,TURBINE EXHAUST 77445 POST SBE72-0498 | ai | 1 |
| 001J | 4A8014-001 | CASE - ASSY,TURBINE EXHAUST 77445 POST SBE72-0498 | ac-ai | 1 |
| 150 | 4P8088 | • FLANGE - OUTER OIL FEED TUBE PRE SBE72-0063 | aa-af | 1 |
| 170 | 4B8046 | • TUBE - A/O OIL FEED PRE SBE72-0056 | aa-ac | 1 |
| 170A | 4B8067 | • TUBE - A/O OIL FEED POST SBE72-0056 PRE SBE72-0104 | ad-af | 1 |
| 170B | 4B8046 | • TUBE - A/O OIL FEED POST SBE72-0104 PRE SBE72-0063 | ad-af | 1 |
| 190 | 4W0002 | • NUT - .250 DIA PRE SBE72-0063 | aa-af | 2 |
| 190A | 4W0002 | • NUT - .250 DIA POST SBE72-0063 | ag-ai | 2 |
| 200 | 4W0165 | • BOLT - .250 DIA X .688 PRE SBE72-0063 | aa-af | 2 |
| 200A | 4W0165 | • BOLT - .250 DIA X .688 POST SBE72-0063 | ag-ai | 2 |
| 220 | 4W0002 | • NUT - .250 DIA PRE SBE72-0063 | aa-af | 1 |
| 230 | 4W0165 | • BOLT - .250 DIA X .688 PRE SBE72-0063 | aa-af | 1 |
| 250 | 4P8044 | • BRACKET PRE SBE72-0063 | aa-af | 1 |
| 270 | 4W0165 | • BOLT - .250 DIA X .688 PRE SBE72-0063 | aa-af | 3 |
| 290 | 4W0002 | • NUT - .250 DIA PRE SBE72-0063 | aa-af | 2 |
| 300 | 4W0165 | • BOLT - .250 DIA X .688 PRE SBE72-0063 | aa-af | 2 |
| 320 | 4P8015 | • BRACKET PRE SBE72-0104 | aa-af | 1 |
| 320A | 4P8113 | • BRACKET POST SBE72-0104 PRE SBE72-0063 | aa-af | 1 |
| 340 | 4W0001 | • NUT - .190 DIA PRE SBE72-0063 | aa-ai | 1 |
| 340A | 4W0001 | • NUT - .190 DIA POST SBE72-0063 | aa-ai | 1 |
| 350 | 4W0102 | • BOLT - .190 DIA X .438 PRE SBE72-0063 | aa-af | 1 |
| 370 | MS21106-6 | • CLAMP 96906 PRE SBE72-0056 | aa-ac | 1 |
| 370A | MS21106-7 | • CLAMP 96906 POST SBE72-0056 PRE SBE72-0104 | ad-af | 1 |
| 370B | 4P8115 | • CLAMP POST SBE72-0104 PRE SBE72-0063 | ad-af | 1 |
| 372 | 4T8046 | • BLANKET - A/O THERMAL LOWER POST SBE72-0104 PRE SBE72-0063 | ae-af | 1 |
| 372A | 2A4226-01 | • SHIELD - ASSY OF POST SBE72-0104 | ae-ai | 1 |
| 382 | 4T8047 | • BLANKET - A/O THERMAL UPPER POST SBE72-0104 PRE SBE72-0063 | ae-af | 1 |
| 382A | 2A4228-01 | • SHIELD - ASSY OF POST SBE72-0104 | ae-ai | 1 |
| 390 | AS42713 | • GASKET U1653 PRE SBE72-0063 | aa-af | 1 |
| 480 | 4B8035 | • TUBE - A/O,OIL SCAVENGE OUTER PRE SBE72-0063 | aa-af | 1 |
| 500 | 4B8047 | • TUBE - A/O OIL SCAV INNER PRE SBE72-0063 | aa-af | 1 |
| 520 | 4B8034 | • TUBE - A/O,OIL SCAV.INTERIM. PRE SBE72-0063 | aa-af | 1 |
| 540 | 4W0002 | • NUT - .250 DIA PRE SBE72-0063 | aa-af | 1 |
| 550 | 4W0165 | • BOLT - .250 DIA X .688 PRE SBE72-0063 | aa-af | 1 |
| 560 | 4W0002 | • NUT - .250 DIA PRE SBE72-0063 | aa-af | 2 |
| 570 | 4W0165 | • BOLT - .250 DIA X .688 PRE SBE72-0057 | aa-af | 2 |
| 570A | 4W1245 | • BOLT - .250 DIA X .688 POST SBE72-0057 PRE SBE72-0063 | aa-af | 2 |
| 590 | 4P8045 | • BRACKET PRE SBE72-0063 | aa-af | 1 |
| 600 | 4W0165 | • BOLT - .250 DIA X .688 PRE SBE72-0063 | aa-af | 3 |
| 610 | 4W0001 | • NUT - .190 DIA PRE SBE72-0063 | aa-af | 1 |
| 620 | 4W0109 | • BOLT - .190 DIA X .875 PRE SBE72-0056 | aa-ac | 1 |
| 620A | 4W0102 | • BOLT - .190 DIA X .438 POST SBE72-0056 PRE SBE72-0063 | ad-af | 1 |
| 630 | 4P8051 | • WASHER PRE SBE72-0056 | aa-ac | 1 |
| 640 | 4P8050 | • SPACER PRE SBE72-0056 | aa-ac | 2 |
| 650 | MS21106-12 | • CLAMP 96906 PRE SBE72-0056 | aa-ac | 1 |
| 650A | MS21106-13 | • CLAMP 96906 POST SBE72-0056 PRE SBE72-0104 | ad-af | 1 |
| 650B | 4P8111 | • CLAMP POST SBE72-0104 PRE SBE72-0063 | ad-af | 1 |
| 660 | 4W0002 | • NUT - .250 DIA PRE SBE72-0063 | aa-af | 2 |
| 670 | 4W0165 | • BOLT - .250 DIA X .688 PRE SBE72-0063 | aa-af | 2 |
| 672 | 4T8044 | • BLANKET - A/O THERMAL UPPER POST SBE72-0104 PRE SBE72-0063 | ae-af | 1 |
| 682 | 4T8045 | • BLANKET - A/O THERMAL LOWER POST SBE72-0104 PRE SBE72-0063 | ae-af | 1 |
| 690 | 4P8049 | • BRACKET PRE SBE72-0104 | aa-af | 1 |
| 690A | 4P8114 | • BRACKET POST SBE72-0104 PRE SBE72-0063 | aa-af | 1 |
| 700 | AS42714 | • GASKET U1653 PRE SBE72-0063 | aa-ai | 1 |
| 700A | AS42714 | • GASKET U1653 POST SBE72-0063 | aa-ai | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

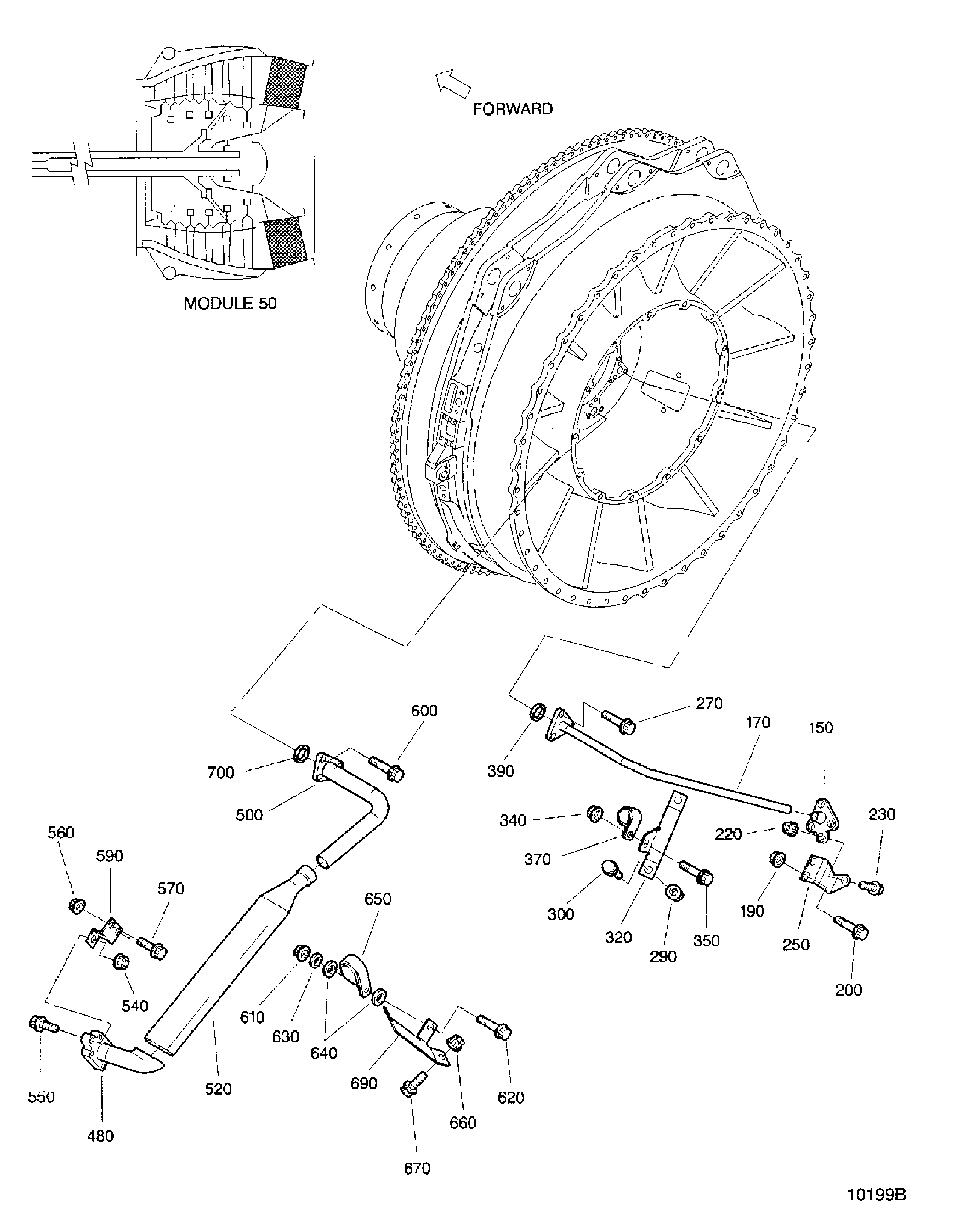

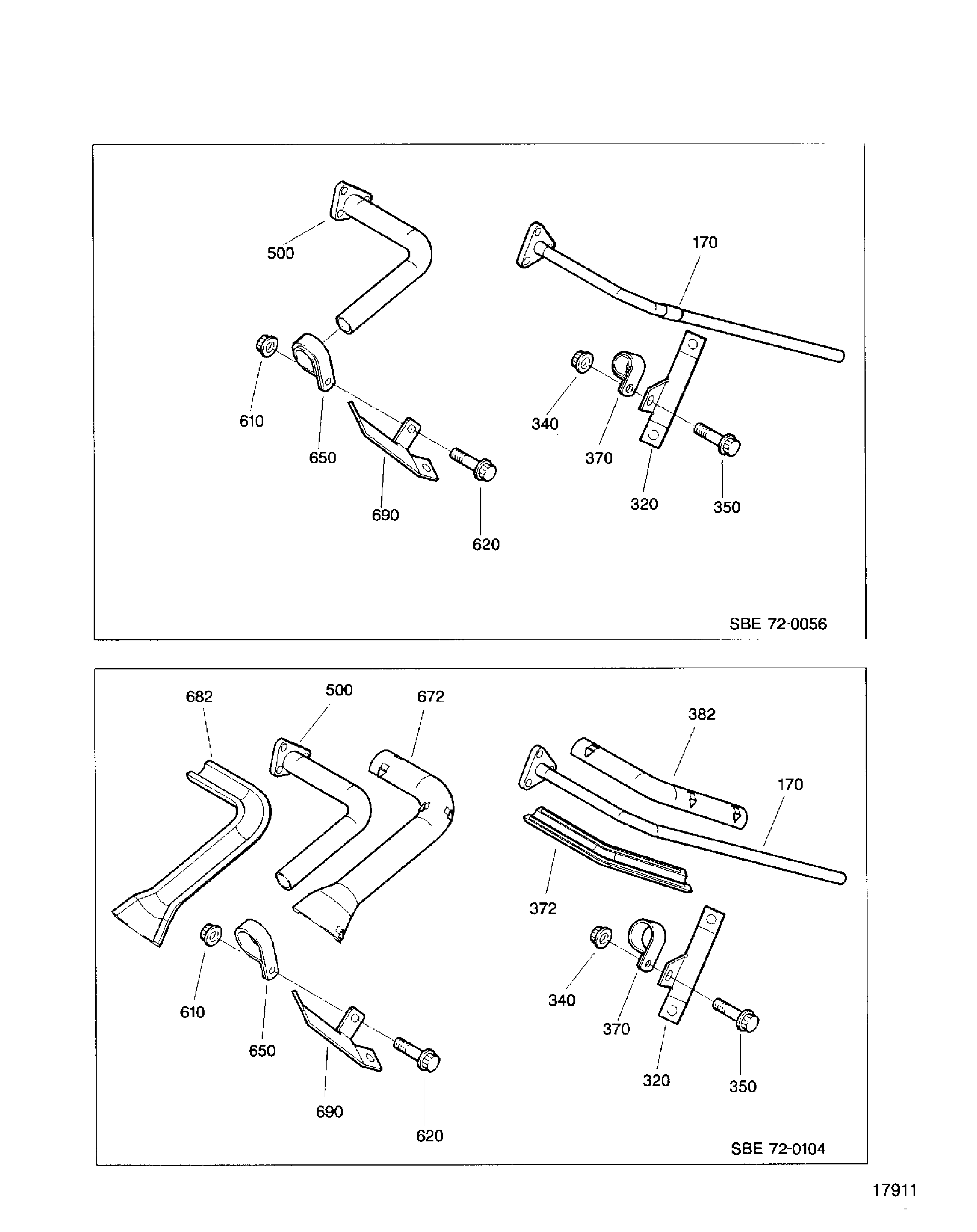

Figure: ENGINE-EXHAUST CASE AND FITTINGS
EXHAUST CASE AND FITTINGS
EXHAUST CASE AND FITTINGS
