TASK 72-50-53-300-003 No. 5 Bearing Carbon Seal Housing - Plasma Coat The Oil Seal Land, Repair-003 (VRS5330)

DMC:V2500-A1-72-50-5302-00A-609A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-50-53-300-003 No. 5 Bearing Carbon Seal Housing - Plasma Coat The Oil Seal Land, Repair-003 (VRS5330)

Effectivity

FIG/ITEM

PART NO.

02-180

4P8036

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Carbon seal housing

Corrosion and heat resistant

iron base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.
Consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Abrasive blasting facilityLOCALAbrasive blasting facility
Metal plasma facilityLOCALMetal plasma facility
Magnifying glass, 4XLOCALMagnifying glass, 4X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 02-007 TEFLON TAPELOCALCoMat 02-007
CoMat 02-148 ADHESIVE TAPE (ELECTRICAL)LOCALCoMat 02-148
CoMat 03-096 PLASMA SPRAY POWDERLOCALCoMat 03-096
CoMat 05-001 ABRASIVE MEDIUM, ALUMINIUM OXIDE, 20/30 GRADELOCALCoMat 05-001

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-53-320-075 Machine Worn Coating of the Carbon Seal Housing

    1. Refer to: Figure

      2. Machine the oil seal land.

      1. The land diameter must be between 5.2205 to 5.2244 in. (132.60 to 132.70 mm) after the removal of the damage.

        Remove all damage and wear.

        Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-50-53-220-133 Examine the Seal Housing

      1. Do a visual inspection.

      1. Plasma coating must be completely removed.

    3. SUBTASK 72-50-53-230-070 Examine the Seal Housing for Cracks

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-02-230-501.

        No cracks are permitted.

    4. SUBTASK 72-50-53-110-061 Clean the Seal Housing

      1. Do the vapor degreasing.

    5. SUBTASK 72-50-53-120-054 Abrasive Blast the Seal Housing

    1. Refer to: Figure

      2. Mask the areas of the seal housing not to be sprayed.

      3. Abrasive blast the oil seal land.

      1. Refer to the SPM TASK 70-12-02-120-501.

        Use abrasive blasting facility.

        Pressure of the air: 42.67 psi (294.2 Kpa).

        Distance of the spraying: 6 to 7.87in. (150 to 200 mm).

    4. Remove the mask.

      5. Clean the seal housing.

      1. Clean with dry air blast.

    6. SUBTASK 72-50-53-370-066 Metal Plasma Spray the Oil Seal Land

      CAUTION

      METAL PLASMA SPRAY THE FRONT FACE AS SOON AS POSSIBLE IN LESS THAN TWO HOURS AFTER THE ABRASIVE BLASTING.
      DO AGAIN THE ABRASIVE BLASTING IF YOU EXCEED THE ABOVE TIME LIMIT.

    1. Refer to: Figure

      2. Mask the areas of the seal housing not to be sprayed.

      3. Preheat the surface to be sprayed.

      1. Preheat temperature: 194 to 248 deg F (90 to 120 deg C).

      4. Metal plasma spray the oil seal land.

      1. Refer to the SPM TASK 70-34-03-340-501.

        Spraying distance .. .. 2.165in. (55 mm)

        Spraying angle .. .. 70 degrees

        Component rotation .. 96 RPM

        Gun traverse speed .. 18.90 in./mm (480 mm/min)

        Maximum working .. .. 392 deg F (200 deg C)

        temperature

    5. Remove the mask.

      6. Clean the seal housing.

      1. Clean with dry air blast.

    7. SUBTASK 72-50-53-220-134 Examine the Plasma Sprayed Surface

      1. Do the visual inspection of the coating for good adhesion.

      1. Use a 4X magnifying glass.

        No cracks or separation from the parent material are permitted.

        Do again the process if cracks are evident.

    8. SUBTASK 72-50-53-350-066 Install the Oil Seal Housing

      1. Install the oil seal housing on the turbine exhaust case.

      1. Refer to VRS5410 TASK 72-50-53-300-026.

    9. SUBTASK 72-50-53-320-076 Machine the Oil Seal Land

    1. Refer to: Figure

      2. Machine the oil seal land.

      1. The last dimension must be between 5.1968 to 5.1984in. (132.00 to 132.04 mm).

        The concentricity of diameter must be 0.003in. (0.07 mm) in relation to surfaces X and Z.

        Chamfer where necessary.

    10. SUBTASK 72-50-53-220-135 Examine the Coated Area

    1. Refer to: Figure

      2. Do the visual inspection.

      1. Use a 4X magnifying glass.

        No cracks or separation from the parent material are permitted.

        Do again the process if cracks are evident.

    11. SUBTASK 72-50-53-350-067 Record the Repair

      1. Vibro engrave VRS5330 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

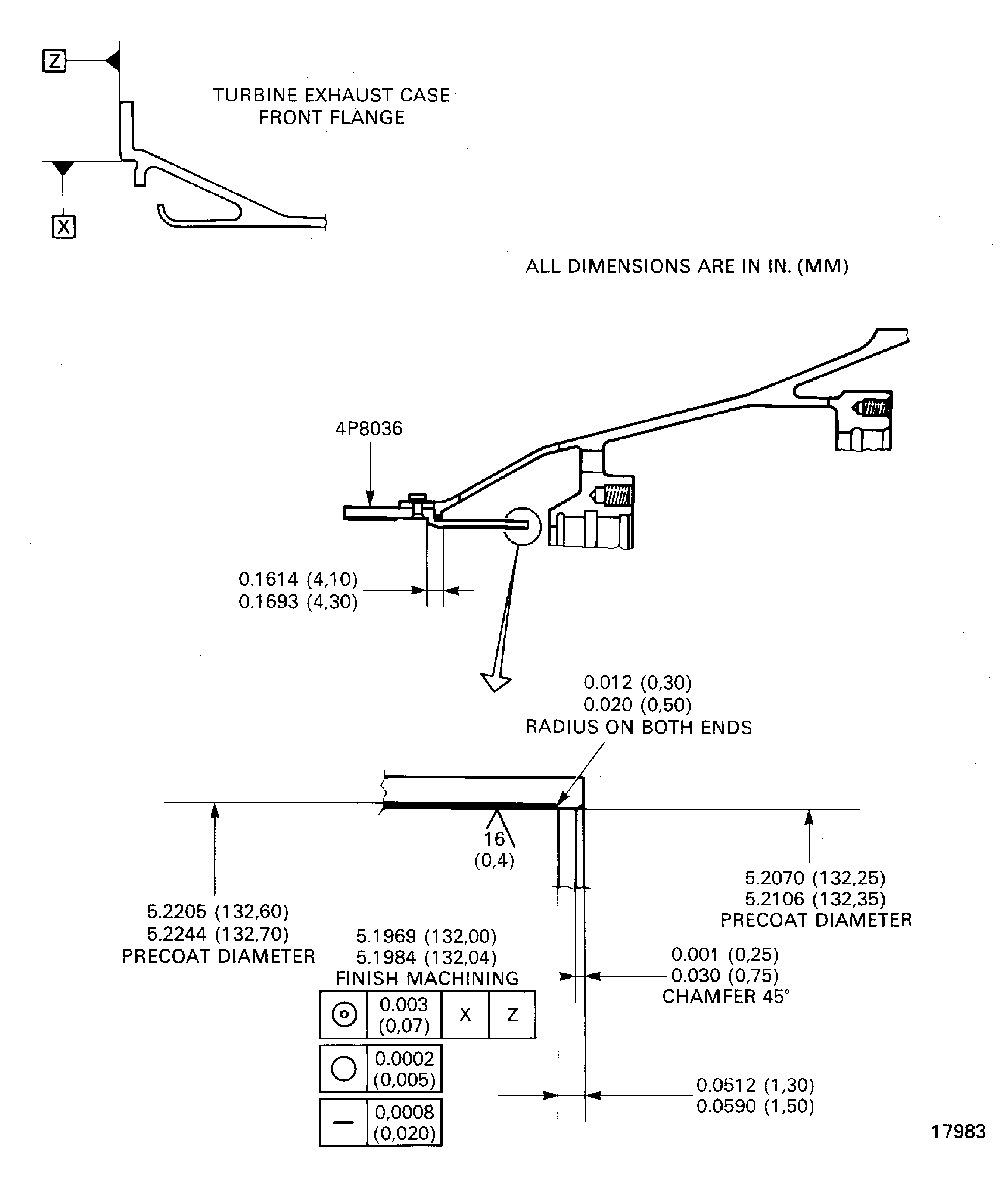

    12. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
