| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72602501 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE72-0054 | aa | ||
| SBE0054-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE70-0095 | ab | ||
| SBE0095-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE70-0111 | ac | ||
| SBE0111-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE70-0057 | ad | ||
| SBE0057-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE70-0124 | ae | ||
| SBE0124-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE72-0414 | af | ||
| SBE0414-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE72-0492 | ag | ||
| SBE0492-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE70-0950 | ah | ||
| SBE0950-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY, PRE SBE70-0948 | ai | ||
| SBE0948-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY | aj | ||
| SBE0645-01 | ENGINE - FUEL PUMP DRIVE GEAR, ASSEMBLY | ak | ||
| 100 | 4P0015 | • SEAL - HOUSING PRE SBE70-0124 | aa-ae | 1 |
| 102 | 4A0300 | • SEAL - ASSEMBLY OF POST SBE70-0124 | af-aj | 1 |
| 120 | 4W1246 | • BOLT - 0.250 DIA X 0.750 | aa-aj | 3 |
| 130 | MS9321-10 | • WASHER - FLAT, 0.500 X 0.276 X 0.062 96906 | aa-aj | 3 |
| 140 | AS3209-141 | • PACKING - PREFORMED U1653 PRE SBE70-0124 | aa-ae | 1 |
| 145 | AS3209-141 | • • PACKING - PREFORMED U1653 POST SBE70-0124 | af-aj | 1 |
| 146 | 4P0015 | • • SEAL - HOUSING POST SBE70-0124 | af-aj | 1 |
| 150 | 7T0472 | • SEAL PRE SBE70-0057 | aa-ae | 1 |
| 150A | 4T0230 | • SEAL - INTERCH. CONTROL DWG POST SBE70-0057 PRE SBE70-0124 | aa-ae | 1 |
| -150B | 7T0472 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ae | REF |
| -150C | 7T0262 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ae | REF |
| -150D | 7T0452 | • SEAL POST SBE70-0057 PRE SBE70-0124 | aa-ae | REF |
| 150E | 4T0230 | • SEAL - INTERCH. CONTROL DWG POST SBE70-0124 | aa-ae | 1 |
| -150F | 7T0472 | • SEAL POST SBE70-0124 | aa-ae | REF |
| -150G | 7T0262 | • SEAL POST SBE70-0124 | ae | REF |
| -150H | 7T0452 | • SEAL | ae | REF |
| 160 | AS3209-130 | • PACKING - PREFORMED U1653 | aa-aj | 1 |
| 170 | 7T0473 | • RING - MATING PRE SBE72-0054 | aa-aj | 1 |
| 170A | 7T0273 | • RING - MATING POST SBE72-0054 PRE SBE70-0057 | aa-aj | 1 |
| 170B | 4T0233 | • RING - INTERCH. CONTROL DWG POST SBE70-0057 | aa-aj | 1 |
| -170C | 7T0273 | • RING - MATING POST SBE70-0057 | ae-aj | REF |
| -170D | 7T0453 | • RING - MATING POST SBE70-0057 | ae-aj | REF |
| -170E | 7T0473 | • RING - MATING POST SBE70-0057 | ab-ad | REF |
| 175 | 4B0246 | • SHROUD PRE SBE70-0111 | aa-aj | 1 |
| 175A | 4B0282 | • SHROUD POST SBE70-0111 | aa-aj | 1 |
| 180 | 4T0071 | • BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645 | aa-ab | 1 |
| 180A | 4T0070 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | 1 |
| -180B | 4T0071 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | REF |
| -180C | 4T0073 | • BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | REF |
| 180D | 4T0070 | • BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | ag-ai | 1 |
| 180E | 4T0071 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 180F | 4T0073 | • BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 180G | 4T0074 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 180H | 4T0070 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | aj | 1 |
| -180J | 4T0071 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -180K | 4T0073 | • BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -180L | 4T0074 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -180M | 4T0075 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -180N | 4T0076 | • BEARING, ROLLER POST SBE72-0645 | ak | REF |
| 190 | 4W0002 | • NUT - 0.250 DIA PRE SBE72-0492 | aa-ag | 3 |
| 190A | 4W0165 | • BOLT - 0.250 DIA X 0.688 POST SBE72-0492 | ah-aj | 3 |
| 200 | 4P0264 | • GEAR - FUEL PUMP DRIVE | aa-aj | 1 |
| 210 | 4B0087 | • HOUSING - FUEL PUMP DRIVE, ASSEMBLY OF PRE SBE72-0492 | aa-ah | 1 |
| 210A | 4B0351 | • HOUSING - FUEL PUMP DRIVE, ASSEMBLY OF A3460 POST SBE72-0492 PRE SBE70-0950 | aa-ah | 1 |
| 210B | 4B0373 | • HOUSING - FUEL PUMP DRIVE, ASSEMBLY OF A3460 POST SBE70-0950 | aa-aj | 1 |
| 211 | 4L0005 | • • BUSHING - ,(VRS5052) A3460 | ***** | 1 |
| 212 | 4L0006 | • • BUSHING - ,(VRS5030) A3460 | ***** | 1 |
| 213 | 4L0007 | • • BUSHING - ,(VRS5054) A3460 | ***** | 1 |
| 214 | 4L0008 | • • BUSHING - ,(VRS5051) A3460 | ***** | 1 |
| 220 | 4P0097 | • • PIN | aa-aj | 1 |
| 230 | 4P0040 | • • INSERT PRE SBE72-0492 | aa-ag | 3 |
| 230A | 1518M33P01 | • • INSERT - SCREW THREAD 07482 POST SBE72-0492 PRE SBE70-0950 | ah | 3 |
| 230B | 4T0318 | • • INSERT - SCREW THREAD A3460 POST SBE70-0950 | ah-aj | 3 |
| 235 | MS51990E106P | • • RING - LOCKING 96906 | aa-aj | 1 |
| 250 | MS51991E206L | • • INSERT - SCREW 96906 | aa-aj | 1 |
| 260 | MS51990E105P | • • RING - LOCKING 96906 PRE SBE72-0492 | aa-ag | 1 |
| 270 | MS51551C205-9 | • • STUD 96906 PRE SBE72-0492 | aa-ag | 1 |
| 270A | MS21209F4-20L | • • INSERT 96906 POST SBE72-0492 | ah-aj | 1 |
| 290 | 4T0121 | • BEARING - ROLLER A3460 PRE SBE70-0095 PRE SBE72-0645 | aa-ab | 1 |
| 290A | 4T0120 | • BEARING - ROLLER A3460 POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | 1 |
| -290B | 4T0121 | • BEARING - ROLLER A3460 POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | REF |
| -290C | 4T0123 | • BEARING - ROLLER A3460 POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645 | ac-af | REF |
| 290D | 4T0120 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645 | ag-ai | 1 |
| 290E | 4T0121 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 290F | 4T0123 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 290G | 4T0124 | • BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645 | ag-aj | 1 |
| 290H | 4T0120 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | 1 |
| -290J | 4T0121 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -290K | 4T0123 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -290L | 4T0124 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -290M | 4T0122 | • BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645 | aj | REF |
| -290N | 4T0119 | • BEARING - ROLLER POST SBE72-0645 | ak | REF |
| 300 | 4W0002 | • NUT - 0.250 DIA | aa-aj | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

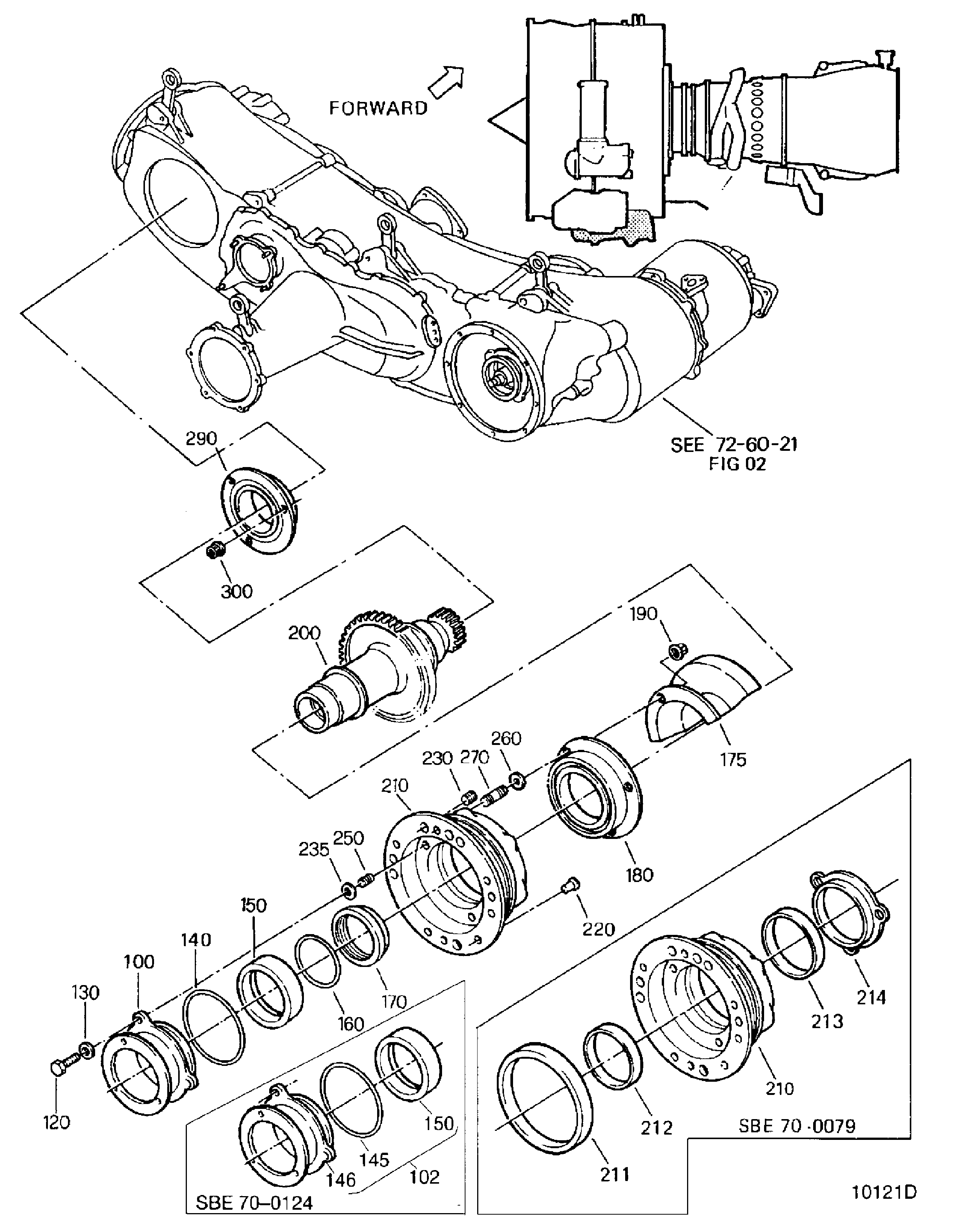

Figure: ENGINE-FUEL PUMP DRIVE GEAR ASSEMBLY
Fuel Pump Drive Gear Assembly
