ENGINE-ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY

DMC:V2500-A1-72-60-42-01A-941A-D|Issue No:002|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B72604201	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE72-0012	aa
000	SBE0012-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE70-0095	ab
000	SBE0095-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE70-0153	ac
000	SBE0153-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE70-0169	ad
000	SBE0169-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE72-0414	ae
000	SBE0414-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE72-0482	af
000	SBE0482-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE72-0492	ag
000	SBE0492-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE70-0950	ah
000	SBE0950-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY, PRE SBE70-0948	ai
000	SBE0948-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY	aj
000	SBE0645-01	ENGINE - ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY	ak
060060	4P0027	• PLUG	aa-aj	1

070070	4W0002	• NUT - 0.250 DIA PRE SBE72-0492	aa-ag	3
070070A	4W1246	• BOLT - 0.250 DIA X 0.750 POST SBE72-0492	ah-aj	3
075075	MS9321-10	• WASHER - FLAT, 0.500 X 0.276 X 0.062 96906	aa-aj	3
080080	AS3209-137	• PACKING - PREFORMED U1653	aa-aj	1

100100	4T0209	• SEGMENT	aa-aj	1
110110	4T0208	• WASHER - LOCK	aa-aj	1
120120	4T0207	• NUT - 2.000 DIA	aa-aj	1
130130	4B0259	• DUCT - OIL PRE SBE70-0169	aa-aj	1
130130A	4B0297	• DUCT - OIL POST SBE70-0169	aa-aj	1
210210	4P0198	• SHAFT - RADIAL COUPLING	aa-aj	1
220220	AS3215-130	• RING - RETAINING U1653	aa-aj	1
230230	4B0211	• SUPPORT - RADIAL GEAR, ASSEMBLY OF PRE SBE72-0012	aa-ah	1
230230A	4B0272	• SUPPORT - RADIAL GEAR, ASSEMBLY OF POST SBE72-0012 PRE SBE72-0492	aa-ah	1
230230B	4B0355	• SUPPORT - RADIAL GEAR, ASSEMBLY OF A3460 POST SBE72-0492 PRE SBE70-0950	aa-ah	1
230230C	4B0375	• SUPPORT - RADIAL GEAR, ASSEMBLY OF A3460 POST SBE70-0950	aa-aj	1

232232	4W0002	• NUT - 0.250 DIA PRE SBE72-0492	aa-ag	4
232232A	4W0170	• BOLT - 0.250 DIA X 1.000 POST SBE72-0492	ah-aj	4

233233	4L0033	• • BUSHING - ,(VRS5091) A3460	*****	1
234234	4L0034	• • BUSHING - ,(VRS5093) A3460	*****	1
235235	4L0035	• • BUSHING - ,(VRS5094) A3460	*****	1
236236	4L0032	• • BUSHING - ,(VRS5096) A3460	*****	1
240240	4P0040	• • INSERT PRE SBE72-0492	aa-ag	3
240240A	1518M33P01	• • INSERT - SCREW THREAD 07482 POST SBE72-0492 PRE SBE70-0950	ah	3
240240B	4T0318	• • INSERT - SCREW THREAD A3460 POST SBE70-0950	ah-aj	3
250250	MS51990E105P	• • RING - LOCKING 96906 PRE SBE72-0492	aa-ag	4
260260	MS51551C205-12	• • STUD 96906 PRE SBE72-0492	aa-ag	4
260260A	MS21209F4-20L	• • INSERT 96906 POST SBE72-0492	ah-aj	4
270270	MS51990E105P	• • RING - LOCKING 96906 PRE SBE72-0492	aa-ag	3
280280	MS51551C205-10	• • STUD 96906 PRE SBE72-0492	aa-ag	3
280280A	MS21209F4-20L	• • INSERT 96906 POST SBE72-0492	ah-aj	3
310310	4T0206	• SEGMENT	aa-aj	1
320320	4T0205	• WASHER - LOCK	aa-aj	1
330330	4T0204	• NUT - 2.375 DIA	aa-aj	1
340340	4T0013	• BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645	ac-aj	1
340340A	4T0010	• BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	1
-340340B	4T0013	• BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	REF
-340340C	4T0011	• BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	REF
340340D	4T0010	• BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645	af-ai	1
-340340E	4T0013	• BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-ai	REF
-340340F	4T0011	• BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-ai	REF
-340340G	4T0014	• BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-ai	REF
340340H	4T0010	• BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645	aj	1
-340340J	4T0013	• BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645	aj	REF
-340340K	4T0011	• BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645	aj	REF
-340340L	4T0014	• BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645	aj	REF
-340340M	4T0015	• BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645	aj	REF
-340340M	4T0016	• BEARING - ROLLER POST SBE72-0645	ak	REF
350350	4T0021	• BEARING - BALL PRE SBE70-0095 PRE SBE72-0645	aa-ab	1
350350A	4T0020	• BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	1
-350350B	4T0021	• BEARING - BALL POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	REF
-350350C	4T0023	• BEARING POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	REF
350350D	4T0020	• BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645	af-ai	1
-350350E	4T0021	• BEARING - BALL POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-aj	REF
-350350F	4T0023	• BEARING POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-aj	REF
-350350G	4T0024	• BEARING - BALL A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-aj	REF
350350H	4T0020	• BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645	aj	1
-350350J	4T0021	• BEARING - BALL POST SBE70-0948 PRE SBE72-0645	aj	REF
-350350K	4T0023	• BEARING POST SBE70-0948 PRE SBE72-0645	aj	REF
-350350L	4T0024	• BEARING - BALL A3460 POST SBE70-0948 PRE SBE72-0645	aj	REF
-350350M	4T0025	• BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645	aj	REF
-350350N	4T0026	• BEARING - BALL A3460 POST SBE72-0645	ak	REF
360360	4P0028	• SHIM PRE SBE70-0153	aa-af	1
360360A	4P0303	• SHIM POST SBE70-0153 PRE SBE72-0482	aa-af	1
360360B	4P0328	• SHIM - LAMINATED POST SBE72-0482	ag-aj	1
362362	4P0303CL01	• SHIM - 0.024INS (0.60 MM) POST SBE70-0153	ad-aj	1
363363	4P0303CL02	• SHIM - 0.026INS (0.65 MM) POST SBE70-0153	ad-aj	1
364364	4P0303CL03	• SHIM - 0.028INS (0.70 MM) POST SBE70-0153	ad-aj	1
365365	4P0303CL04	• SHIM - 0.030INS (0.75 MM) POST SBE70-0153	ad-aj	1
366366	4P0303CL05	• SHIM - 0.031INS (0.80 MM) POST SBE70-0153	ad-aj	1
367367	4P0303CL06	• SHIM - 0.033INS (0.85 MM) POST SBE70-0153	ad-aj	1
370370	4B0024	• HOUSING - BEARING, ASSEMBLY OF	aa-aj	1
400400	4B0196	• GEARSHAFT - BEVEL RAD, ASSEMBLY OF	aa-aj	1
430430	4T0013	• BEARING - ROLLER PRE SBE70-0095 PRE SBE72-0645	aa-ac	1
430430A	4T0010	• BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	1
-430430B	4T0013	• BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	REF
-430430C	4T0011	• BEARING - ROLLER POST SBE70-0095 PRE SBE72-0414 PRE SBE72-0645	ac-ae	REF
430430D	4T0010	• BEARING - ROLLER POST SBE72-0414 PRE SBE70-0948 PRE SBE72-0645	af-ai	1
-430430E	4T0013	• BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-aj	REF
-430430F	4T0011	• BEARING - ROLLER POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-aj	REF
-430430G	4T0014	• BEARING - ROLLER A3460 POST SBE72-0414 PRE SBE72-0414 PRE SBE72-0645	af-aj	REF
-430430H	4T0010	• BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645	aj	1
-430430J	4T0013	• BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645	aj	REF
-430430K	4T0011	• BEARING - ROLLER POST SBE70-0948 PRE SBE72-0645	aj	REF
-430430L	4T0014	• BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645	aj	REF
-430430M	4T0015	• BEARING - ROLLER A3460 POST SBE70-0948 PRE SBE72-0645	aj	REF
-430430N	4T0016	• BEARING - ROLLER POST SBE72-0645	ak	REF

440440	4W1246	• BOLT - 0.250 DIA X 0.750	aa-aj	4
450450	4T0210	• WASHER	aa-aj	4

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	07482
Enterprise Name:	GENERAL ELECTRIC COMPANY
BU Name:	GENERAL ELECTRIC COMPANY
Street:	1 NEUMANN WAY
City:	CINCINNATI
State:	OHIO
Zip Code:	45215-1915
Country:	USA

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	A3460
Enterprise Name:	DELETED, SEE CAGE CODE U0406

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

ENGINE-ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY

Export Control

Copyright

Applicability

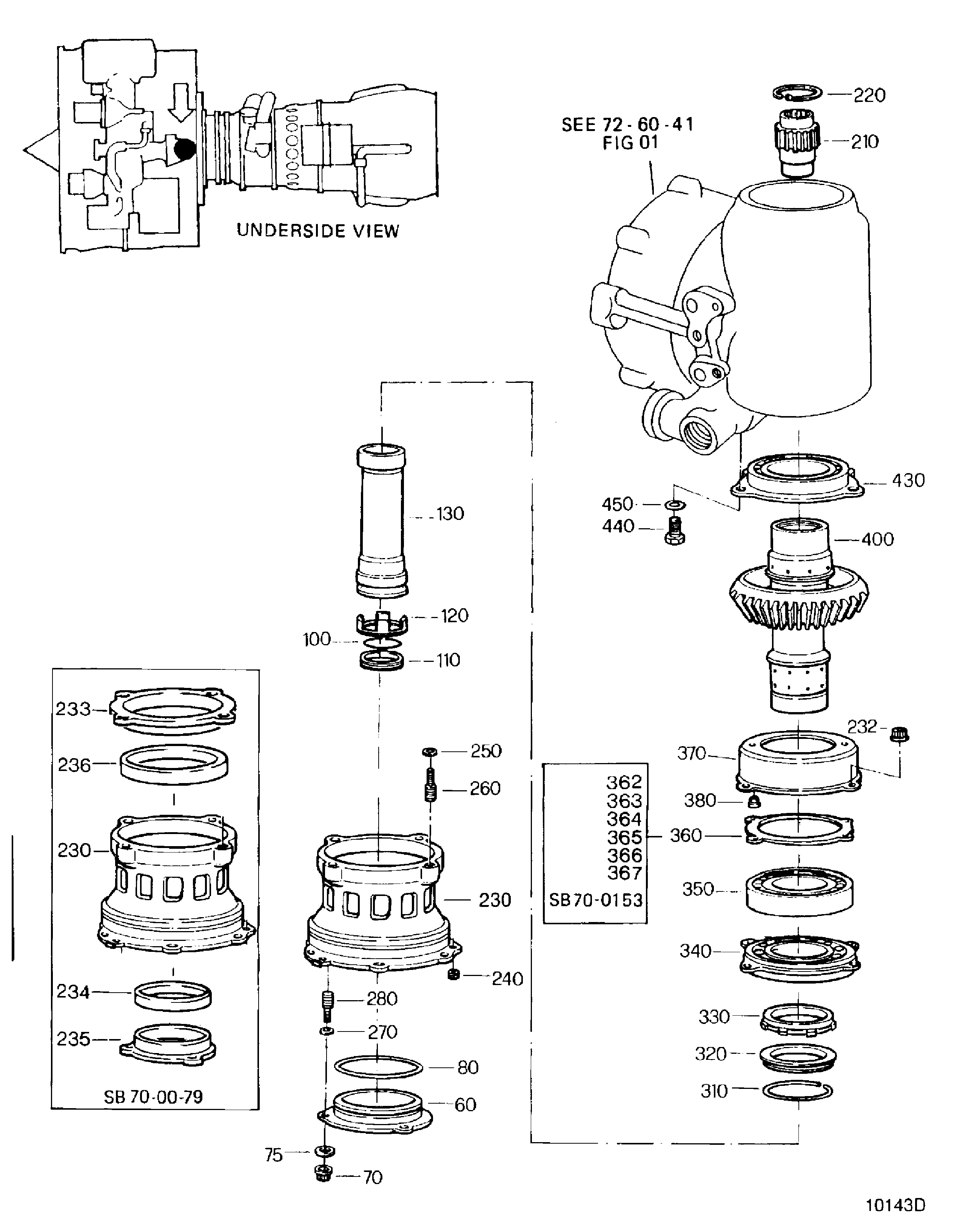

Figure: ENGINE-ANGLE GEARBOX DRIVING BEVEL GEAR ASSEMBLY

Angle Gearbox Driving Bevel Gear Assembly

Part Number:	1518M33P01
Part Name:	INSERT - SCREW THREAD
Manufacturer Code:	07482

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS48116
Part Name:	BOLT - 0.250 DIA X 1.000
Manufacturer Code:	U1653
