DMC:V2500-A1-73-13-41-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73134101 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE75-0005 | aa | ||
| SBE0005-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE70-0041 | ab | ||
| SBE0041-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE73-0008 | ac | ||
| SBE0008-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE70-0063 | ad | ||
| SBE0063-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE75-0049 | ae | ||
| SBE0049-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE70-0431 | af | ||
| SBE0431-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE70-0573 | ag | ||
| SBE0573-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE73-0144 | ah | ||
| SBE0144-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE73-0149 | ai | ||
| SBE0149-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE73-0164 | aj | ||
| SBE0164-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE70-0781 | ak | ||
| SBE0781-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE73-0147 | al | ||
| SBE0147-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE, PRE SBE70-0896 | am | ||
| SBE0896-01 | ENGINE FUEL AND CONTROL-FUEL NOZZLE | an | ||
| 010 | 2A1226 | • GASKET - OPTION | aa-an | 20 |
| 010A | 2A1226 | • GASKET - OPTION | aa-an | 20 |
| 010B | 2A1195 | • GASKET - 1.860 OD X .095 | aa-an | 20 |
| 010C | 2A1227 | • GASKET | aa-an | 20 |
| 011 | 2A3370 | • NOZZLE - ASSY, FUEL POST SBE73-0164 | ak-an | 1 |
| 015 | 2A3135 | • • BAFFLE POST SBE73-0164 | ak-an | 1 |
| 020 | 2A0994 | • NZZL&SPP - ASSY,FUEL PRE SBE70-0041 | aa-an | 20 |
| 020A | 2A1637 | • NOZZLE - & SUPPORT POST SBE70-0041 PRE SBE73-0149 | aa-an | 20 |
| 020B | 2A3453 | • NOZZLE - & SUPPORT ASSY, FUEL POST SBE73-0149 | aa-an | 20 |
| 040 | MS9575-13 | • BOLT - .250-28 96906 | aa-an | 60 |
| 082 | 2A3135 | • • • BAFFLE - FUEL NOZZLE POST SBE70-0431 | ag-an | 1 |
| 086 | 2A3434 | • • • FAIRING - UPPER RIGHT POST SBE70-0781 | al-an | 1 |
| 087 | 2A3435 | • • • FAIRING - UPPER LEFT POST SBE70-0781 | al-an | 1 |
| 088 | 2A3368 | • • • FAIRING - LOWER RIGHT POST SBE70-0781 | al-an | 1 |
| 089 | 2A3369 | • • • FAIRING - LOWER LEFT POST SBE70-0781 | al-an | 1 |
| 092 | 2A3370 | • • • NOZZLE - ASSY, FUEL POST SBE73-0149 | aj-an | 1 |
| 102 | 2A3897 | • • • INSERT - FUEL NOZZLE SUPPORT POST SBE70-0896 | an | 1 |
| 103 | 2A3456 | • • • FITTING - FUEL NOZZLE SUPPORT POST SBE70-0896 | an | 1 |
| 110 | 2A1043 | • • PLUG - METERING, FUEL | aa-an | 1 |
| 115 | 1A9050-01 | • • STRAINER - ELEMENT | aa-an | 1 |
| 120 | 2A1466 | • BRACKET - TCA NO.1 PRE SBE70-0573 | aa-ah | 1 |
| 120A | 6A6559 | • BRACKET ALT 2A1466 POST SBE70-0573 PRE SBE73-0144 | aa-ah | 1 |
| -120B | 2A1466 | • BRACKET - TCA NO.1 ALT 6A6559 POST SBE70-0573 PRE SBE73-0144 | aa-ah | REF |
| 120C | 6A7452 | • BRACKET POST SBE73-0144 | aa-an | 1 |
| 130 | 2A1045 | • SPACER - FUEL NOZZLE 77445 POST SBE73-0164 | ak-an | 1 |
| 131 | 2A1045CL1 | • SPACER POST SBE73-0164 | ak-an | 1 |
| 132 | 2A1045CL2 | • SPACER POST SBE73-0164 | ak-an | 1 |
| 133 | 2A1045CL3 | • SPACER POST SBE73-0164 | ak-an | 1 |
| 134 | 2A1045CL4 | • SPACER POST SBE73-0164 | ak-an | 1 |
| 135 | 2A1045CL5 | • SPACER POST SBE73-0164 | ak-an | 1 |
| 136 | 2A1045CL6 | • SPACER POST SBE73-0164 | ak-an | 1 |
| 140 | 2A3377-01 | • BRACKET - ASSY OF,LOOP CLAMP POST SBE73-0147 | am-an | 1 |
| 150 | 2A3382 | • BRACKET - LOOP CLAMP POST SBE73-0147 | am-an | 1 |
| 160 | 2A3280 | • BRACKET - LOOP CLAMP POST SBE73-0147 | am-an | 1 |
| 180 | 2A1436 | • BRACKET - NO.2 T.C.A PRE SBE70-0573 | aa-an | 1 |
| 180A | 6A6558 | • BRACKET ALT 2A1436 POST SBE70-0573 | aa-an | 1 |
| -180B | 2A1436 | • BRACKET - NO.2 T.C.A ALT 6A6558 POST SBE70-0573 | aa-an | REF |
| 190 | 5W2082 | • BRACKET - A/O | aa-an | 1 |
| 260 | 5W8360 | • BRACKET PRE SBE75-0049 | aa-ae | 1 |
| 260A | 6A5555 | • BRACKET - CLIPPING POST SBE75-0049 | af-an | 1 |
| 340 | 2A1479 | • BRACKET - TCA NO.3 PRE SBE70-0573 | aa-an | 1 |
| 340A | 6A6557 | • BRACKET ALT 2A1479 POST SBE70-0573 | aa-an | 1 |
| -340B | 2A1479 | • BRACKET ALT 6A6557 POST SBE70-0573 | aa-an | REF |
| 400 | 2A1488 | • BRACKET - TCA NO.4 PRE SBE70-0573 | aa-an | 1 |
| 400A | 6A6556 | • BRACKET ALT 2A1488 POST SBE70-0573 PRE SBE73-0144 | aa-an | 1 |
| -400B | 2A1488 | • BRACKET ALT 6A6556 POST SBE70-0573 PRE SBE73-0144 | aa-ah | REF |
| 400C | 6A7453 | • BRACKET POST SBE73-0144 | aa-an | 1 |
| 450 | 5W8379 | • BRACKET | aa-an | 1 |
| 480 | 6A3996 | • BRACKET - A/O POST SBE75-0005 PRE SBE73-0008 | ab-ac | 1 |
| 480A | 6A4115 | • BRACKET - A/O POST SBE73-0008 PRE SBE70-0063 | ad-an | 1 |
| 480B | 6A4117 | • BRACKET - A/O AIR,DEFLECTOR POST SBE70-0063 | ad-an | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

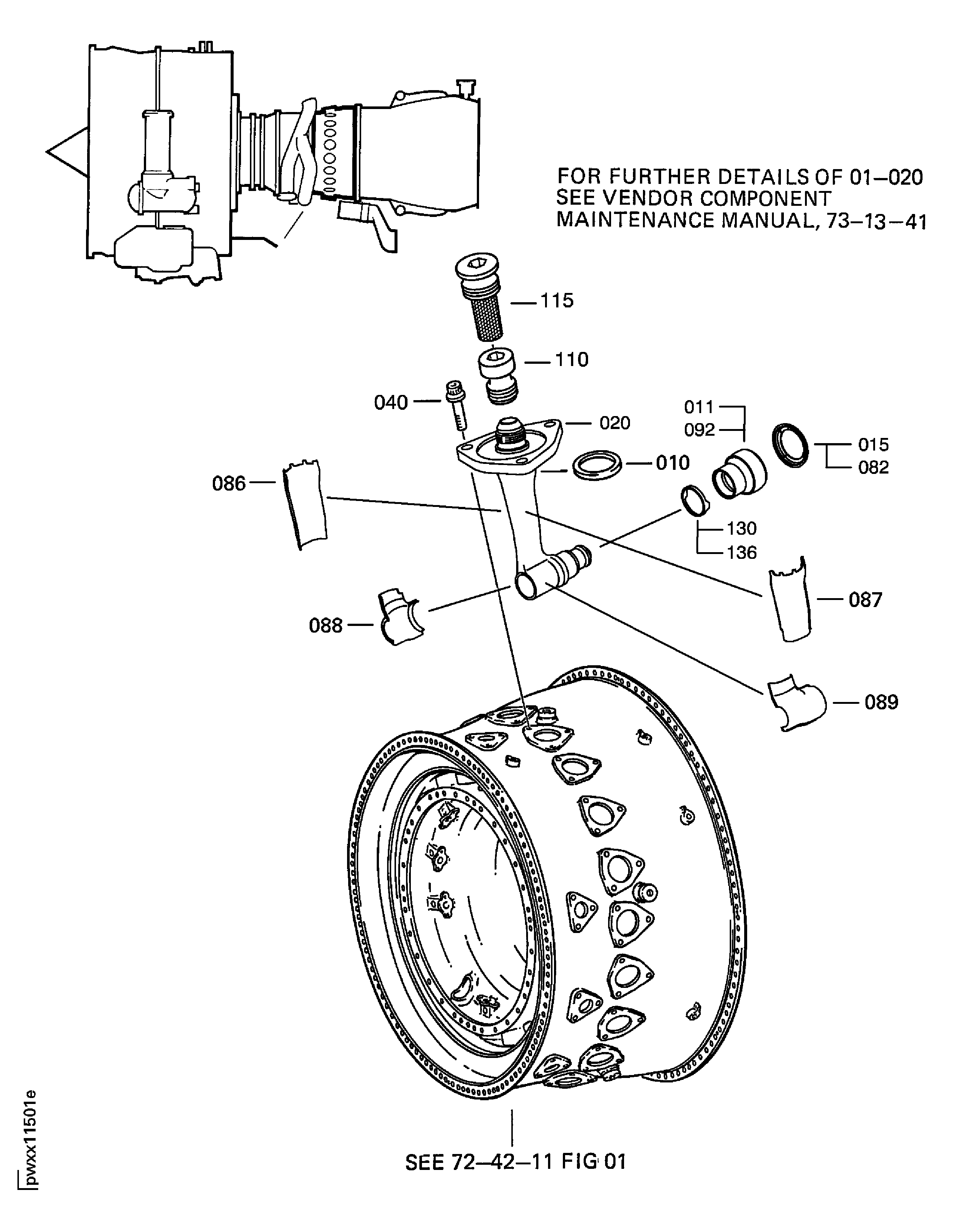

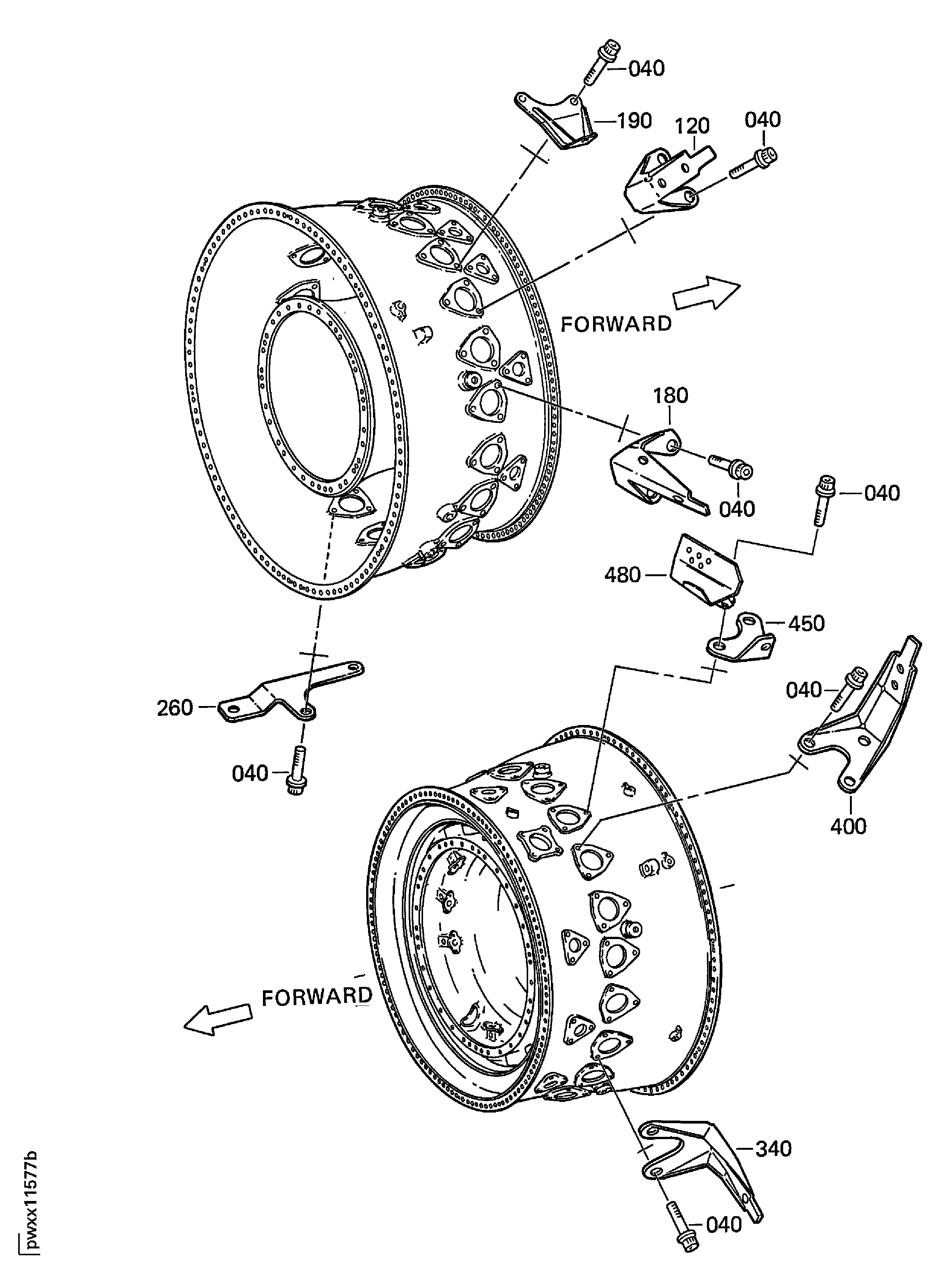

Figure: ENGINE FUEL AND CONTROL-FUEL NOZZLE
FUEL NOZZLE
FUEL NOZZLE
