ELECTRONIC ENGINE CONTROL (EEC)

DMC:V2500-A1-73-22-34-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B73223401ELECTRONIC ENGINE CONTROL (EEC), PRE SBE72-0029aa
000SBE0029-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0016ab
000SBE0016-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE70-0158ac
000SBE0158-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0007ad
000SBE0007-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0015ae
000SBE0015-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0024af
000SBE0024-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE70-0056ag
000SBE0056-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE71-0019ah
000SBE0019-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0027ai
000SBE0027-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0031aj
000SBE0031-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0032ak
000SBE0032-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0037al
000SBE0037-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE70-0145am
000SBE0145-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0044an
000SBE0044-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE70-0336ao
000SBE0336-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE70-0152ap
000SBE0152-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE71-0119aq
000SBE0119-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0069ar
000SBE0069-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0082as
000SBE0082-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0112at
000SBE0112-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0141au
000SBE0141-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0163av
000SBE0163-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0137aw
000SBE0137-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0186ax
000SBE0186-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE70-0832ay
000SBE0832-01ELECTRONIC ENGINE CONTROL (EEC), PRE SBE73-0220az
000SBE0220-01ELECTRONIC ENGINE CONTROL (EEC)ba
0100102A1349-01• SUPPORT - EEC,ASSY OF
PRE SBE73-0016		aa-ba1
010010A2A1370-01• SUPPORT - EEC,ASSY OF
POST SBE73-0016		aa-ba1
020020AS3228-102• • RIVET - TUBULAR C/S
U1653		aa-ba2
040040744382• • NUT - OPTION
77445		aa-ba1
0600602A0954-01• SUPPORT - EEC,ASSY OF
PRE SBE73-0016		aa-ba1
060060A2A1367-01• SUPPORT - EEC,ASSY OF
POST SBE73-0016		aa-ba1
080080744382• • NUT - OPTION
77445		aa-ba1
100100AS3228-102• • RIVET - TUBULAR C/S
U1653		aa-ba2
1201202A0955-01• SUPPORT - EEC,ASSY OF
PRE SBE73-0016		aa-ba1
120120A2A1368-01• SUPPORT - EEC,ASSY OF
POST SBE73-0016		aa-ba1
140140744382• • NUT - OPTION
77445		aa-ba1
160160AS3230-102• • RIVET - TUBULAR COUNTERSUNK
U1653		aa-ba2
1801802A0956-01• SUPPORT - EEC,ASSY OF
PRE SBE73-0016		aa-ba1
180180A2A1369-01• SUPPORT - EEC,ASSY OF
POST SBE73-0016		aa-ba1
198198AS3230-102• • RIVET - TUBULAR COUNTERSUNK
U1653		aa-ba2
200200744382• • NUT - OPTION
77445		aa-ba1
2402404W0168• BOLT - .250 DIA X .875
Optional Part
4W0168		aa-ba16
2502502A1019• SHIM - .062 X 4 HOLE
PRE SBE70-0152		aa-ap2
250250A2A1019• SHIM - LAMINATED, .062 X 4 HOLE
POST SBE70-0152
PRE SBE73-0163		aq-ba1
250250B2A3467• SHIM - .012 X 2 HOLE
POST SBE73-0163		aq-ba1
2602604W0002• NUT - .250 DIA
Optional Part
4W0002		aa-ba16

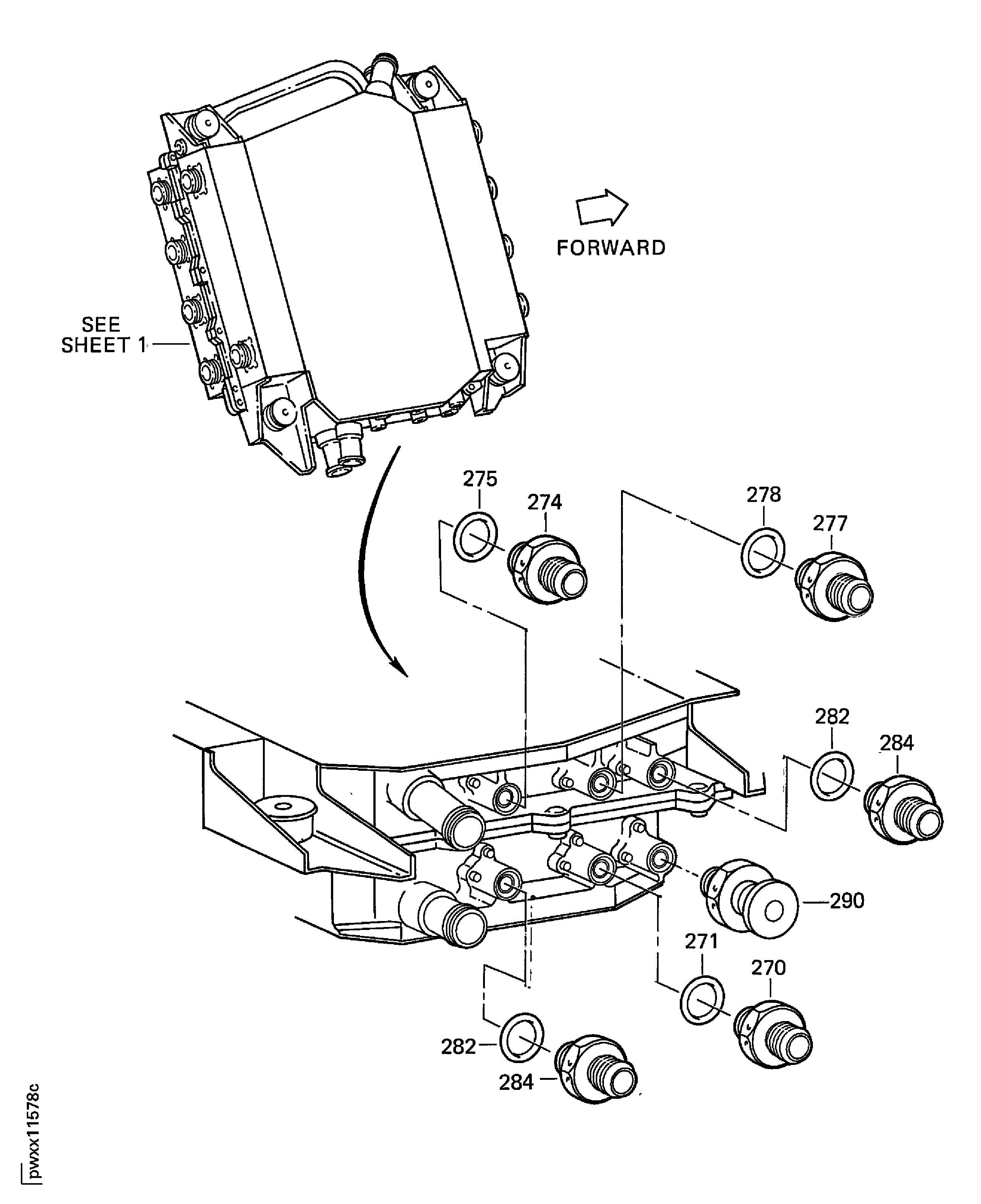

2702705A8234• UNIONaa-ba1
271271NAS1595-4• PACKING
80205		aa-ba1
2742745A8419• UNIONaa-ba1
275275NAS1595-5• RING - SEALING
80205		aa-ba1
2772775A8228• UNIONaa-ba1
278278AS43003-907• RING - SEALING TOROIDAL, .530 I/DIA X .082
U1653		aa-ba1
2802802A1965• CONTROL - ELECTRONIC ENGINE (SCN 8B; REF NO 798300-4-020)aa-ba1
280280A2A1989• CONTROL - ELECTRONIC ENGINE (SCN 10B; REF NO 798300-8-026)
ALT 2A1988
PRE SBE73-0007		aa-ae1
-280280B2A1988• CONTROL - ELECTRONIC ENGINE (SCN 10B; REF NO 798300-8-026)
ALT 2A2995
PRE SBE73-0007		aa-adREF
280280C2A2039• CONTROL - ELECTRONIC ENGINE
POST SBE73-0007
PRE SBE73-0015		aa-ae1
280280D2A2189• CONTROL - ELECTRONIC ENGINE (SCN 11E; REF NO 798300-8-032)
POST SBE73-0015
PRE SBE73-0024		af1
280280E2A2189• CONTROL - ELECTRONIC ENGINE (SCN11E)
ALT 2A2166
POST SBE73-0024
PRE SBE73-0027		ag-ai1
280280F2A2166• CONTROL - ELECTRONIC ENGINE (SCN 11E; REF NO 798300-10
ALT 2A2356
POST SBE73-0024
PRE SBE70-0056		ag-ai1
280280G2A2285• CONTROL - ELECTRONIC ENGINE (SCN11E; REF NO 798300-14-032)
POST SBE70-0056		ah-ba1
280280H2A2284• CONTROL - ELECTRONIC ENGINE (SCN 11E; REF NO 798300-12
POST SBE70-0056
PRE SBE73-0027		ah-ak1
280280J2A2283• CONTROL - ELECTRONIC ENGINE (SCN 11E; REF NO 798300-12
POST SBE70-0056		ah-ba1
280280K2A2392• CONTROL - ELECTRONIC ENGINE (SCN 11G; REF NO 798300-14
POST SBE73-0027
PRE SBE73-0032		aj-ak1
280280L2A2356• CONTROL - ELECTRONIC ENGINE (SCN 11G/J; REF NO 798300-8
ALT 2A2390
POST SBE73-0027
PRE SBE73-0032		ag-ai1
-280280M2A2390• CONTROL - ELECTRONIC ENGINE (SCN 11G; 798300-10-037)
ALT 2A2475
POST SBE73-0027
PRE SBE73-0032		ag-aiREF
280280N2A2356• CONTROL - ELECTRONIC ENGINE (SCN 11G; REF NO 798300-8-037)
POST SBE73-0027
PRE SBE73-0027		ag-ai1
280280P2A2391• CONTROL - ELECTRONIC ENGINE (SCN 11G; REF NO 798300-12
POST SBE73-0027
PRE SBE73-0032		ah-al1
280280Q2A2475• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-8
ALT 2A2478
POST SBE73-0032
PRE SBE73-0037		ag-ai1
-280280R2A2478• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-10
ALT 2A2757
POST SBE73-0032
PRE SBE73-0037		ag-aiREF
280280S2A2475• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-8
POST SBE73-0032
PRE SBE73-0032		*****1
280280T2A2479• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-12
POST SBE73-0032
PRE SBE73-0037		ah-al1
280280U2A2475• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-8
ALT 2A2478
POST SBE73-0032
PRE SBE73-0032		*****1
-280280V2A2478• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-10
ALT 2A2757
POST SBE73-0032
PRE SBE73-0032		*****REF
280280W2A2479• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-12
POST SBE73-0032
PRE SBE73-0032		*****1
280280X2A2480• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-14
POST SBE73-0032
PRE SBE73-0037		al1
280280Y2A2480• CONTROL - ELECTRONIC ENGINE (SCN 11H/K; REF NO 798300-14
POST SBE73-0032
PRE SBE73-0032		aj-ak1
280280Z2A2757• CONTROL - ELECTRONIC ENGINE (SCN 12A; REF 798300-8-041)
ALT 2A2690
POST SBE73-0037
PRE SBE73-0044		*****1
-280280AA2A2690• CONTROL - ELECTRONIC ENGINE (SCN 12A; REF NO 798300-10
ALT 2A2990
POST SBE73-0037
PRE SBE73-0044		*****REF
280280AB2A2757• CONTROL - ELECTRONIC ENGINE (SCN 12A; REF NO 798300-8
POST SBE73-0037
PRE SBE73-0037		*****1
280280AC2A2691• CONTROL - ELECTRONIC ENGINE (SCN 12A; REF NO 798300-12
POST SBE73-0037
PRE SBE73-0044		ah-an1
280280AD2A2757• CONTROL - ELECTRONIC ENGINE (SCN 12A; REF NO 798300-8
ALT 2A2690
POST SBE73-0037
PRE SBE73-0037		*****1
-280280AE2A2690• CONTROL - ELECTRONIC ENGINE (SCN 12A; REF NO 798300-10
ALT 2A2475
POST SBE73-0037
PRE SBE73-0037		ag-aiREF
280280AF2A2692• CONTROL - ELECTRONIC ENGINE (SCN 12A; REF NO 798300-14
POST SBE73-0037
PRE SBE73-0044		al-ao1
280280AG2A2692• CONTROL - ELECTRONIC ENGINE (SCN 12A; REF NO 798300-14
POST SBE73-0037
PRE SBE73-0037		al1
280280AH2A2993• CONTROL - ELECTRONIC ENGINE (SCN 12B/N; REF NO 798300-14
POST SBE73-0044
PRE SBE70-0336		al-ar1
280280AJ2A2990• CONTROL - ELECTRONIC ENGINE (SCN 12B/N; REF NO 798300-8
ALT 2A1989
POST SBE73-0044
PRE SBE70-0336		aa-ad1
-280280AK2A2991• CONTROL - ELECTRONIC ENGINE (SCN 12B/N; REF NO 798300-10
POST SBE73-0044
PRE SBE70-0336		aoREF
280280AL2A2992• CONTROL - ELECTRONIC ENGINE (SCN 12B/N; REF NO 798300-12
POST SBE73-0044
PRE SBE73-0069		ah-as1
280280AM2A3105• CONTROL - ELECTRONIC ENGINE (SCN 12B/N; REF NO 808050-4
POST SBE70-0336
PRE SBE73-0069		al-as1
280280AN2A2995• CONTROL - ELECTRONIC ENGINE (SCN 12B/N; REF NO 808050-3
ALT 2A2995
POST SBE70-0336
PRE SBE70-0336		af1
-280280AP2A2995• CONTROL - ELECTRONIC ENGINE (SCN 12B/N; REF NO 808050-3
ALT 2A2189
POST SBE70-0336
PRE SBE70-0336		afREF
280280AQ2A3153• CONTROL - ELECTRONIC ENGINE (SCN12C/O; REF 798300-18-046)
POST SBE73-0069
PRE SBE73-0082		as-at1
280280AR2A3149• CONTROL - ELECTRONIC ENGINE (SCN12C/O; REF NO 798300-15
POST SBE73-0069
PRE SBE73-0082		as-at1
280280AS2A3150• CONTROL - ELECTRONIC ENGINE (SCN12C/O; REF NO 798300-16
POST SBE73-0069
PRE SBE73-0082		as-at1
280280AT2A3151• CONTROL - ELECTRONIC ENGINE (SCN12C/O; REF 798300-17-046)
POST SBE73-0069
PRE SBE73-0082		ah-at1
280280AU2A3148• CONTROL - ELECTRONIC ENGINE (SCN12C/O; REF NO 808050-4
POST SBE73-0069
PRE SBE73-0082		al-au1
280280AV2A3224• CONTROL - ELECTRONIC ENGINE (SCN12D; REF NO 808050-04
POST SBE73-0082
PRE SBE73-0112		al-au1
280280AW2A3225• CONTROL - ELECTRONIC ENGINE (SCN12D; 798300-15-048)
ALT 2A3226
POST SBE73-0082
PRE SBE73-0112		as-au1
280280AX2A3226• CONTROL - ELECTRONIC ENGINE (SCN12D; REF NO 798300-16
ALT 2A3225
POST SBE73-0082
PRE SBE73-0112		as-au1
280280AY2A3227• CONTROL - ELECTRONIC ENGINE (SCN12D; REF NO 798300-17
POST SBE73-0082
PRE SBE73-0112		ah-au1
280280AZ2A3228• CONTROL - ELECTRONIC ENGINE (SCN12D; REF NO 798300-18
POST SBE73-0082
PRE SBE73-0112		as-au1
280280BA2A3289• CONTROL - ELECTRONIC ENGINE (SCN13/Q; REF NO 808050-04
POST SBE73-0112
PRE SBE73-0141		al-ax1
280280BB2A3290• CONTROL - ELECTRONIC ENGINE (SCN13/Q; REF NO 798300-15
ALT 2A3291
POST SBE73-0112
PRE SBE73-0141		as-ay1
280280BC2A3291• CONTROL - ELECTRONIC ENGINE (SCN13/Q; REF NO 798300-16
ALT 2A3290
POST SBE73-0112
PRE SBE73-0141		as-ay1
280280BD2A3292• CONTROL - ELECTRONIC ENGINE (SCN13/Q; REF NO 798300-17
POST SBE73-0112
PRE SBE73-0141		ah-ax1
280280BE2A3293• CONTROL - ELECTRONIC ENGINE (SCN13/Q; REF NO 798300-18
POST SBE73-0112
PRE SBE73-0141		as-ax1
280280BF2A3417• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 808050-04
POST SBE73-0141
PRE SBE73-0186		al-ba1
280280BG2A3418• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 798300-15
ALT 2A3419
POST SBE73-0141
PRE SBE70-0832		as-ba1
280280BH2A3419• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 798300-16
ALT 2A3418
POST SBE73-0141
PRE SBE73-0186		as-ba1
280280BJ2A3420• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 798300-17
POST SBE73-0141
PRE SBE73-0186		ah-ba1
280280BK2A3422• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 798300-18
POST SBE73-0141
PRE SBE73-0186		as-ba1
280280BL2A3902• CONTROL - ELECTRONIC ENGINE
POST SBE73-0186		al-ba1
280280BM2A3906• CONTROL - ELECTRONIC ENGINE
POST SBE73-0186		ay-ba1
280280BN2A3907• CONTROL - ELECTRONIC ENGINE
POST SBE73-0186		ah-ba1
280280BP2A3908• CONTROL - ELECTRONIC ENGINE
POST SBE73-0186		as-ba1
280280BQ2A3905• CONTROL - ELECTRONIC ENGINE
POST SBE73-0186		ay-ba1
280280BR2A3417• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 808050-04
POST SBE70-0832		az-ba1
280280BS2A3902• CONTROL - ELECTRONIC ENGINE
POST SBE70-0832		az-ba1
280280BT2A3419• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 798300-16
POST SBE70-0832		as-ba1
280280BU2A3906• CONTROL - ELECTRONIC ENGINE
POST SBE70-0832		az-ba1
280280BV2A3420• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 798300-17
POST SBE70-0832		az-ba1
280280BW2A3907• CONTROL - ELECTRONIC ENGINE
POST SBE70-0832		az-ba1
280280BX2A3422• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 798300-18
POST SBE70-0832		az-ba1
280280BY2A3908• CONTROL - ELECTRONIC ENGINE
POST SBE70-0832		az-ba1
280280BZ2A3418• CONTROL - ELECTRONIC ENGINE (SCN14/R; REF NO 798300-15
POST SBE70-0832		as-ba1
280280CA2A3905• CONTROL - ELECTRONIC ENGINE
POST SBE70-0832		az-ba1
280280CB2A3909• CONTROL - ELECTRONIC ENGINE
POST SBE70-0832
PRE SBE73-0220		az-ba1
280280CC2A3910• CONTROL - ELECTRONIC ENGINE
POST SBE73-0220		az-ba1
280280CD2A4029• CONTROL - ELECTRONIC ENGINE
POST SBE73-0220		ba1
280280CE2A4254• CONTROL - ELECTRONIC ENGINE
POST SBE73-0220		ba1
282282AS43003-906• RING - SEALING TOROIDAL
U1653		aa-ba2
284284UP11134• ADAPTORaa-ba2
2902901B2288-01• PLUG - VENT-EEC,aa-ba1
3003004W0252• BOLT - .3125 DIA X 2.875
Optional Part
4W0252		aa-ba4
3053054W2623• WASHERaa-ba4
3203205001456-01• CABLE - GROUND
77445		aa-ba1
3403404W0162• BOLT - .250 DIA X .500
PRE SBE73-0031		aa-aj2
340340A4W0164• BOLT - .250 DIA X .625
POST SBE73-0031		aa-ba2
3503504W0002• NUT - .250 DIA
PRE SBE72-0029		aa-ba1
350350A4W0002• NUT - .250 DIA
POST SBE72-0029		aa-ba1
4204205A0024• BRACKETaa-ba1
4404405A0023• BRACKETaa-ba1
5005005W1985• BRACKET - A/Oaa-ba1
5015014W0002• NUT - .250 DIAaa-ba1
5035034W0164• BOLT - .250 DIA X .625aa-ba1
5205205W8512• BRACKET
PRE SBE70-0158		aa-aq1
520520A6A4711• BRACKET
POST SBE70-0158
PRE SBE71-0119		aa-aq1
520520B6A5743• BRACKET - ASSY OF
POST SBE71-0119		ar-ba1
560560740-5435-505• TERMINAL - ASSY,BLOCK
51563		aa-ba1
560560A740-5435-505• TERMINAL - ASSY,BLOCK
51563
PRE SBE70-0037		aa-am1
560560B740-5435-507• TERMINAL - ASSY BLOCK
51563
POST SBE70-0037
PRE SBE70-0145		aa-aw1
560560C740-5435-509• TERMINAL - ASSY BLOCK
51563
POST SBE70-0145
PRE SBE73-0137		aa-aw1
560560D745-5435-501• TERMINAL - ASSY BLOCK
51563
POST SBE73-0137		ax-ba1
562562740-5455-503• • COVER - TERMINAL MODULE
51563
PRE SBE70-0037		aa-al1
562562A740-5455-505• • COVER - TERMINAL MODULE
51563
POST SBE70-0037
PRE SBE73-0137		am-aw1
562562B745-5455-501• • COVER - TERMINAL MODULE
51563
POST SBE73-0137		ax-ba1
563563A218B14• • SCREW - MACHINE PAN HEAD
K7766		aa-ba1
564564SP154B• • WASHER - FLAT
K7766
POST SBE70-0037		am-ba1
566566A218D14• • SCREW - MACHINE PAN HEAD
K7766		aa-ba4
567567G9728L03M• • TUBE - STUFFING AFI/EMI
51563		aa-ba1
568568A218A8• • SCREW - MACHINE PAN HEAD
K7766		aa-ba4
569569A105AP• • NUT - HEXAGON
K7766		aa-ba4
570570740-5454-507• • BRACKET - TERMINAL MODULE
51563
PRE SBE73-0137		aa-aw1
570570A745-5454-501• • BRACKET - TERMINAL MODULE
51563
POST SBE73-0137		ax-ba1
571571740-5453-507• • BRACKET - TERMINAL MODULE
51563
PRE SBE70-0037		aa-al1
571571A740-5453-509• • BRACKET - TERMINAL MODULE
51563
POST SBE70-0037
PRE SBE73-0137		am-aw1
571571B745-5453-501• • BRACKET - TERMINAL MODULE
51563
POST SBE73-0137		ax-ba1
572572MRTB2• • RAIL
51563
PRE SBE73-0137		aa-aw1
572572AM81714-29-1• • BRACKET - TERMINAL MOUNTING
81349
POST SBE73-0137		ax-ba2
573573A218B14• • SCREW - MACHINE PAN HEAD
K7766
PRE SBE70-0037		aa-al2
573573AA206B14• • SCREW - MACHINE CSK HEAD
K7766
POST SBE70-0037
PRE SBE73-0137		am-aw2
573573BA218B14• • SCREW - MACHINE PAN HEAD
K7766
POST SBE73-0137		ax-ba4
574574M81714-3BA1• • TERMINAL - MODULE
81349
PRE SBE73-0137		aa-aw1
574574AM81714-3DA1• • TERMINAL - MODULE
81349
POST SBE73-0137		aa-ba1
575575M81714-3BB1• • TERMINAL - MODULE
81349
PRE SBE73-0137		aa-aw1
575575AM81714-3DB1• • TERMINAL - MODULE
81349
POST SBE73-0137		aa-ba1
576576592558-1• • TUBE - END BLOCK
51563
PRE SBE73-0137		aa-aw1
577577592556-2• • PLATE - END BLOCK
51563
PRE SBE73-0137		aa-aw1
578578592144-1• • SCREW - LOCKING
51563
PRE SBE73-0137		aa-aw1
580580740-5429-501• BRACKET
51563
PRE SBE71-0019		aa-ah1
580580A740-5477-501• BRACKET
51563		aa-ba1
580580B740-5477-501• BRACKET
51563
POST SBE71-0019		ai-ba1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

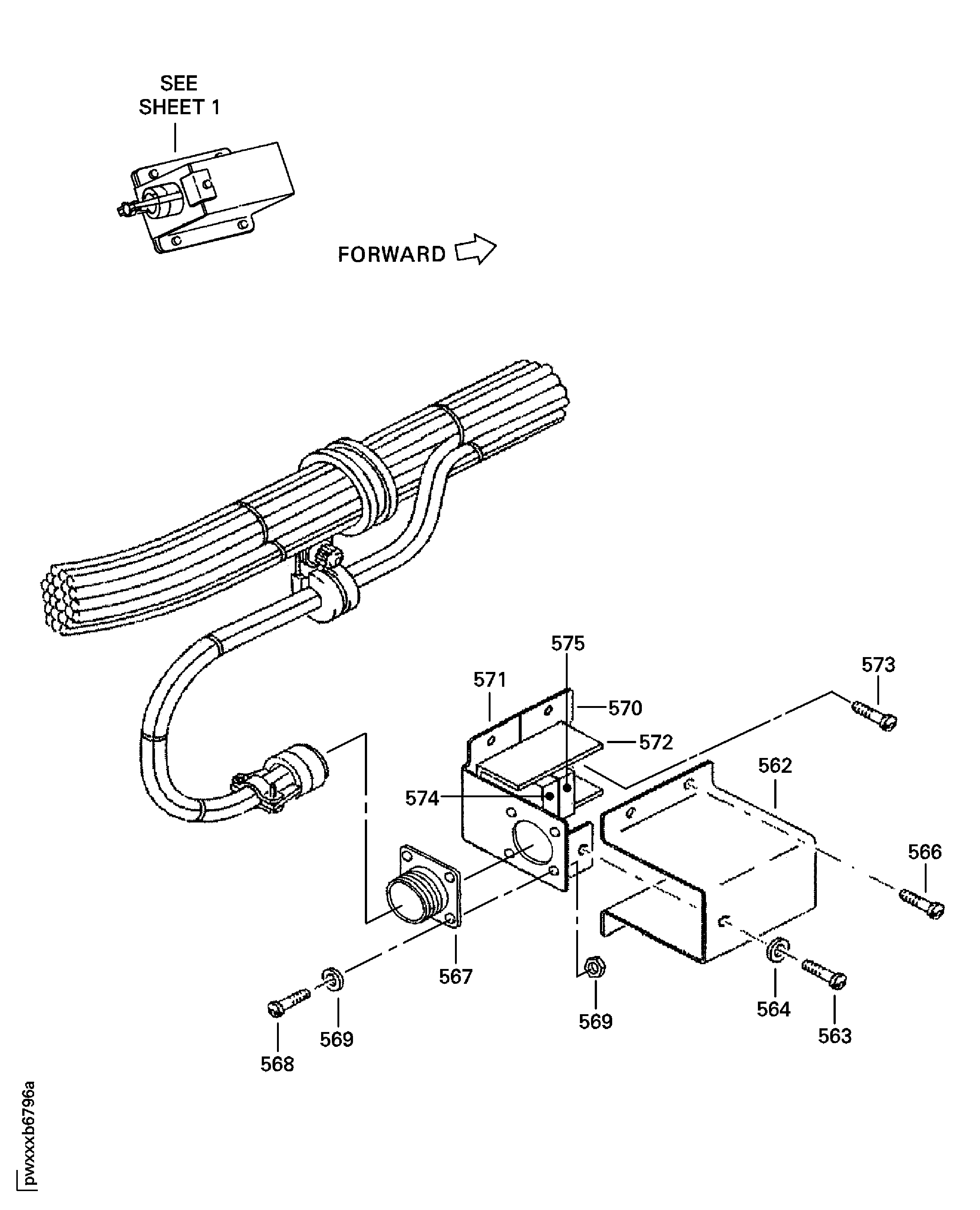

Figure: ELECTRONIC ENGINE CONTROL (EEC)

ELECTRONIC ENGINE CONTROL

ELECTRONIC ENGINE CONTROL

ELECTRONIC ENGINE CONTROL

ELECTRONIC ENGINE CONTROL

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:1B2288-01
Part Name:PLUG - VENT-EEC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0954-01
Part Name:SUPPORT - ELECTRONIC ENGINE CONTROL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0955-01
Part Name:SUPPORT - ELECTRONIC ENGINE CONTROL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A0956-01
Part Name:SUPPORT - ELECTRONIC ENGINE CONTROL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1019
Part Name:SHIM - 0.062 X 4 HOLE
Manufacturer Code:0AM53
Part Number:2A1349-01
Part Name:SUPPORT - ELECTRONIC ENGINE CONTROL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1367-01
Part Name:SUPPORT - EEC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1368-01
Part Name:SUPPORT - EEC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1369-01
Part Name:SUPPORT - EEC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1370-01
Part Name:SUPPORT - EEC, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A1965
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A1988
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A1989
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2039
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2166
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2189
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2283
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2284
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2285
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2356
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2390
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2391
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2392
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2475
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2478
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2479
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2480
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2690
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2691
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2692
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2757
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2990
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2991
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2992
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2993
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A2995
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3105
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3148
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3149
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3150
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3151
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3153
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3224
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3225
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3226
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3227
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3228
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3289
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3290
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3291
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3292
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3293
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3417
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3418
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3419
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3420
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3422
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3467
Part Name:SHIM - .012 X 2 HOLE
Manufacturer Code:0AM53
Part Number:2A3902
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3905
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3906
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3907
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3908
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3909
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A3910
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A4029
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:2A4254
Part Name:CONTROL - ELECTRONIC ENGINE
Manufacturer Code:0AM53
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0162
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .500
Manufacturer Code:0AM53
Part Number:4W0164
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21510BOLT - .250 DIA X .625U1653
Part Number:4W0168
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .875
Manufacturer Code:0AM53
Part Number:4W0252
Part Name:BOLT - MACHINE DOUBLE HEX, .3125 DIA X 2.875
Manufacturer Code:0AM53
Part Number:4W2623
Part Name:WASHER
Manufacturer Code:0AM53
Part Number:5001456-01
Part Name:CABLE - GROUND
Manufacturer Code:77445
Part Number:592144-1
Part Name:SCREW - LOCKING
Manufacturer Code:51563
Part Number:592556-2
Part Name:PLATE - END BLOCK
Manufacturer Code:51563
Part Number:592558-1
Part Name:TUBE - END BLOCK
Manufacturer Code:51563
Part Number:5A0023
Part Name:BRACKET - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0024
Part Name:BRACKET - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A8228
Part Name:UNION
Manufacturer Code:0AM53
Part Number:5A8234
Part Name:UNION
Manufacturer Code:0AM53
Part Number:5A8419
Part Name:UNION
Manufacturer Code:0AM53
Part Number:5W1985
Part Name:BRACKET - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W8512
Part Name:BRACKET
Manufacturer Code:0AM53
Part Number:6A4711
Part Name:BRACKET
Manufacturer Code:0AM53
Part Number:6A5743
Part Name:BRACKET - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:740-5429-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:740-5435-505
Part Name:TERMINAL - BLOCK, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5435-507
Part Name:TERMINAL - BLOCK, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5435-509
Part Name:TERMINAL - BLOCK, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5453-507
Part Name:BRACKET - TERMINAL MODULE
Manufacturer Code:51563
Part Number:740-5453-509
Part Name:BRACKET - TERMINAL MODULE
Manufacturer Code:51563
Part Number:740-5454-507
Part Name:BRACKET - TERMINAL MODULE
Manufacturer Code:51563
Part Number:740-5455-503
Part Name:COVER - TERMINAL MODULE
Manufacturer Code:51563
Part Number:740-5455-505
Part Name:COVER - TERMINAL MODULE
Manufacturer Code:51563
Part Number:740-5477-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:744382
Part Name:NUT - OPTION
Manufacturer Code:77445
Part Number:745-5435-501
Part Name:TERMINAL - BLOCK, ASSEMBLY OF
Manufacturer Code:51563
Part Number:745-5453-501
Part Name:BRACKET - TERMINAL MODULE
Manufacturer Code:51563
Part Number:745-5454-501
Part Name:BRACKET - TERMINAL MODULE
Manufacturer Code:51563
Part Number:745-5455-501
Part Name:COVER - TERMINAL MODULE
Manufacturer Code:51563
Part Number:A105AP
Part Name:NUT - HEXAGON
Manufacturer Code:K7766
Part Number:A206B14
Part Name:SCREW - CSK 6 - 32
Manufacturer Code:K7766
Part Number:A218A8
Part Name:SCREW - PAN HD 4 - 40
Manufacturer Code:K7766
Part Number:A218B14
Part Name:SCREW - PAN HEAD, 6-32
Manufacturer Code:K7766
Part Number:A218D14
Part Name:SCREW - PAN HD 10 - 32
Manufacturer Code:K7766
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21510
Part Name:BOLT - .250 DIA X .625
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9557-08BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.62596906
Part Number:AS3228-102
Part Name:RIVET - TUBULAR, COUNTERSUNK
Manufacturer Code:U1653
Part Number:AS3230-102
Part Name:RIVET - TUBULAR, COUNTERSUNK
Manufacturer Code:U1653
Part Number:AS43003-906
Part Name:SEAL, RING
Manufacturer Code:U1653
Part Number:AS43003-907
Part Name:SEAL, RING - .530 I/DIA X .082
Manufacturer Code:U1653
Part Number:G9728L03M
Part Name:TUBE - STUFFING AFI/EMI
Manufacturer Code:51563
Part Number:M81714-29-1
Part Name:BRACKET - TERMINAL MOUNTING
Manufacturer Code:81349
Part Number:M81714-3BA1
Part Name:TERMINAL - MODULE (TM817)
Manufacturer Code:81349
Part Number:M81714-3BB1
Part Name:TERMINAL - MODULE (TM824)
Manufacturer Code:81349
Part Number:M81714-3DA1
Part Name:TERMINAL - MODULE (TM817)
Manufacturer Code:81349
Part Number:M81714-3DB1
Part Name:TERMINAL - MODULE (TM824)
Manufacturer Code:81349
Link not Found
Part Number:MS9557-08
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21010BOLT - .250 DIA X .625U1653
AS21510BOLT - .250 DIA X .625U1653
Part Number:NAS1595-4
Part Name:SEAL - RING
Manufacturer Code:80205
Part Number:NAS1595-5
Part Name:RING - SEALING
Manufacturer Code:80205
Part Number:SP154B
Part Name:WASHER
Manufacturer Code:K7766
Part Number:UP11134
Part Name:ADAPTOR
Manufacturer Code:0AM53
