IGNITION-EXCITER IGNITION UNITS

DMC:V2500-A1-74-11-38-01A-941A-D|Issue No:002|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B74113801	IGNITION - EXCITER IGNITION UNITS, PRE SBE70-0021	aa
000	SBE0021-01	IGNITION - EXCITER IGNITION UNITS, PRE SBE70-0019	ab
000	SBE0019-01	IGNITION - EXCITER IGNITION UNITS, PRE SBE70-0033	ac
000	SBE0033-01	IGNITION - EXCITER IGNITION UNITS, PRE SBE70-0026	ad
000	SBE0026-01	IGNITION - EXCITER IGNITION UNITS, PRE SBE70-0047	ae
000	SBE0047-01	IGNITION - EXCITER IGNITION UNITS, PRE SBE70-0158	af
000	SBE0158-01	IGNITION - EXCITER IGNITION UNITS, PRE SBE70-0260	ag
000	SBE0260-01	IGNITION - EXCITER IGNITION UNITS, PRE SBE74-0002	ah
000	SBE0002-01	IGNITION - EXCITER IGNITION UNITS	ai
090090	9048464	• NUT - LOCKING WASHER 59501 POST SBE74-0002	ai	12
095095	9048465	• BRACKET 59501 POST SBE74-0002 PRE SBE74-0003	*****	2
100100	9045428	• BOX - COOLER IGNITION FRONT 77820	aa-ai	1
100100A	9045428	• BOX - COOLER IGNITION FRONT 77820 PRE SBE70-0260	aa-ag	1
100100B	9054840	• BOX - COOLER IGNITION FRONT 59501 POST SBE70-0260 PRE SBE74-0002	ah	1
100100C	9048467	• BOX - COOLER IGNITION FRONT 59501 ALT 9048457 POST SBE74-0002	ai	1
-100100D	9048457	• BOX - COOLER IGNITION FRONT 59501 ALT 9048467 POST SBE74-0002	ai	REF
102102	9045429	• BOX - COOLER IGNITION REAR 77820	aa-ai	1
102102A	9045429	• BOX - COOLER IGNITION REAR 77820 PRE SBE74-0002	aa-ah	1
102102B	9048466	• BOX - COOLER IGNITION REAR 59501 ALT 9048462 POST SBE74-0002	ai	1
-102102C	9048462	• BOX - COOLER IGNITION REAR 59501 ALT 9048466 POST SBE74-0002	ai	REF
110110	9045455-2	• SEAL- AIR, WASHER 59501	aa-ai	1
110110A	9045455-2	• SEAL- AIR, WASHER 59501 PRE SBE70-0021	aa	1
110110B	9047587-2	• AIR, SEAL WASHER 59501 POST SBE70-0021	ab-ai	1
120120	9045330-2	• EXCITER - IGNITION 59501	aa-ai	1

130130	4W0001	• NUT, OPTION - .190 DIA	aa-ai	1
135135	4W0125	• BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.875	aa-ai	1
145145	4W0001	• NUT, OPTION - .190 DIA	aa-ai	2
150150	4W0119	• BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.500	aa-ai	2

200200	5T0032	• BRACKET - SUPPORT, REAR, ASSEMBLY OF PRE SBE70-0019	aa-ai	1
200200A	5T0032	• BRACKET - SUPPORT, REAR, ASSEMBLY OF ALT 5T0051 POST SBE70-0019	aa-ai	1
-200200B	5T0051	• BRACKET - SUPPORT, ASSEMBLY OF ALT 5T0032 POST SBE70-0019	aa-ai	REF

210210	4W0162	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .500	aa-ai	1
220220	4W0162	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .500	aa-ai	1
225225	AS41105	• NUT - 0.25 DIA U1653 PRE SBE70-0047	aa-ai	1
225225A	4W0044	• NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA POST SBE70-0047	aa-ai	1

235235	AS16088	• • RIVET - SOLID HEAD U1653	aa-ai	4
240240	5U0020	• • MOUNT,ANTI VIBRATION 59501 VENDOR PN (9045452-2)	aa-ai	1
270270	5T0038	• BRACKET - SUPPORT, FRONT, ASSEMBLY OF PRE SBE70-0026	aa-ad	1
270270A	5T0041	• BRACKET ALT 5T0043 POST SBE70-0026	ae-ai	1
270270B	5T0043	• BRACKET ALT 5T0041 POST SBE70-0026	ae-ai	1

280280	4W0164	• BOLT OPTION - .250 DIA X .625	aa-ai	1
290290	4W2388	• SCREW - 0.250 DIA X 0.750	aa-ai	2
295295	AS41105	• NUT - 0.25 DIA U1653 PRE SBE70-0047	aa-ai	2
295295A	4W0044	• NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA POST SBE70-0047	aa-ai	2

305305	AS16088	• • RIVET - SOLID HEAD U1653	aa-ai	4
310310	5U0020	• • MOUNT,ANTI VIBRATION 59501 VENDOR PN (9045452-2)	aa-ai	1
315315	AS16088	• • RIVET - SOLID HEAD U1653	aa-ai	2
320320	AS16488	• • RIVET - SOLID, COUNTERSUNK HEAD U1653	aa-ai	2
325325	5U0020	• • MOUNT,ANTI VIBRATION 59501 VENDOR PN (9045452-2)	aa-ai	1
330330	AS16490	• • RIVET U1653 PRE SBE70-0026	aa-ad	2
332332	5W0085	• • BRACKET - SUSTAINING TUBE PRE SBE70-0026	aa-ad	1
350350	5T0023	• BRACKET PRE SBE70-0033	aa-ai	1
350350A	5T0047	• BRACKET ALT 5T0048 POST SBE70-0033	aa-ai	1
-350350B	5T0048	• BRACKET ALT 5T0047 POST SBE70-0033	aa-ai	REF
351351	6A3860	• BRACKET	aa-ai	1
355355	5T0003	• TUBE - SUPPORT, ASSEMBLY OF	aa-ai	1

365365	4W0162	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .500	aa-ai	1
370370	AS41105	• NUT - 0.25 DIA U1653 PRE SBE70-0047	aa-ai	1
370370A	4W0044	• NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA POST SBE70-0047	aa-ai	1
375375	4W0163	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .562	aa-ai	1
377377	AS41105	• NUT - 0.25 DIA U1653 PRE SBE70-0047	aa-ai	1
377377A	4W0044	• NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA POST SBE70-0047	aa-ai	1
380380	4W0106	• BOLT - .190 DIA X .688	aa-ai	2
380380A	AS23012	• BOLT, MACHINE DOUBLE HEX U1653	aa-ai	2
381381	4W2621	• WASHER	aa-ai	4
381381A	5T0012	• WASHER PRE SBE70-0019	aa-ai	2
381381B	5T0012	• WASHER ALT 4W2622 POST SBE70-0019	aa-ai	2
-381381C	4W2622	• WASHER OPTION ALT 5T0012 POST SBE70-0019	aa-ai	REF
382382	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-ai	2

450450	9045450-2	• STRAP - BONDING 59501	aa-ai	1

451451	HL584-10AW	• COLLAR, HI LOC 73197	aa-ai	1
453453	4W2623	• WASHER	aa-ai	1
454454	HL12V10-4	• PIN, HI LOC 73197	aa-ai	1

490490	9048464	• NUT - LOCKING WASHER 59501 POST SBE74-0002	ai	12
495495	9048465	• BRACKET 59501 POST SBE74-0002	ai	2
500500	9045428	• BOX - COOLER IGNITION FRONT 77820	aa-ai	1
500500A	9045428	• BOX - COOLER IGNITION FRONT 77820 PRE SBE70-0260	aa-ag	1
500500B	9054840	• BOX - COOLER IGNITION FRONT 59501 POST SBE70-0260 PRE SBE74-0002	ah	1
500500C	9048467	• BOX - COOLER IGNITION FRONT 59501 ALT 9048457 POST SBE74-0002	ai	1
-500500D	9048457	• BOX - COOLER IGNITION FRONT 59501 ALT 9048467 POST SBE74-0002	ai	REF
502502	9045429	• BOX - COOLER IGNITION REAR 77820	aa-ai	1
502502A	9045429	• BOX - COOLER IGNITION REAR 77820 PRE SBE74-0002	aa-ah	1
502502B	9048466	• BOX - COOLER IGNITION REAR 59501 ALT 9048462 POST SBE74-0002	ai	1
-502502C	9048462	• BOX - COOLER IGNITION REAR 59501 ALT 9048466 POST SBE74-0002	ai	REF
510510	9045455-2	• SEAL- AIR, WASHER 59501	aa-ai	1
510510A	9045455-2	• SEAL- AIR, WASHER 59501 PRE SBE70-0021	aa	1
510510B	9047587-2	• AIR, SEAL WASHER 59501 POST SBE70-0021	ab-ai	1
520520	9045330-2	• EXCITER - IGNITION 59501	aa-ai	1

530530	4W0001	• NUT, OPTION - .190 DIA	aa-ai	1
535535	4W0125	• BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.875	aa-ai	1
545545	4W0001	• NUT, OPTION - .190 DIA	aa-ai	2
550550	4W0119	• BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.500	aa-ai	2

590590	5W8267	• BRACKET PRE SBE70-0158	aa-ai	1
590590A	6A4678	• BRACKET POST SBE70-0158	aa-ai	1
595595	5W8305	• BRACKET	aa-ai	1
600600	5T0032	• BRACKET - SUPPORT, REAR, ASSEMBLY OF PRE SBE70-0019	aa-ai	1
600600A	5T0032	• BRACKET - SUPPORT, REAR, ASSEMBLY OF ALT 5T0051 POST SBE70-0019	aa-ai	1
-600600B	5T0051	• BRACKET - SUPPORT, ASSEMBLY OF ALT 5T0032 POST SBE70-0019	aa-ai	REF

610610	4W0162	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .500	aa-ai	1
620620	4W0163	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .562	aa-ai	1
625625	AS41105	• NUT - 0.25 DIA U1653 PRE SBE70-0047	aa-ai	1
625625A	4W0044	• NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA POST SBE70-0047	aa-ai	1

635635	AS16088	• • RIVET - SOLID HEAD U1653	aa-ai	4
640640	5U0020	• • MOUNT,ANTI VIBRATION 59501 VENDOR PN (9045452-2)	aa-ai	1
670670	5T0030	• BRACKET - SUPPORT, FRONT, ASSEMBLY OF PRE SBE70-0026	aa-ai	1
670670A	5T0030	• BRACKET - SUPPORT, FRONT, ASSEMBLY OF ALT 5T0045 POST SBE70-0026	aa-ai	1
-670670B	5T0045	• BRACKET ALT 5T0030 POST SBE70-0026	aa-ai	REF

680680	4W0163	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .562	aa-ai	1
690690	4W2388	• SCREW - 0.250 DIA X 0.750	aa-ai	2
695695	AS41105	• NUT - 0.25 DIA U1653 PRE SBE70-0047	aa-ai	2
695695A	4W0044	• NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA POST SBE70-0047	aa-ai	2

705705	AS16088	• • RIVET - SOLID HEAD U1653	aa-ai	4
710710	5U0020	• • MOUNT,ANTI VIBRATION 59501 VENDOR PN (9045452-2)	aa-ai	1
715715	AS16088	• • RIVET - SOLID HEAD U1653	aa-ai	2
720720	AS16488	• • RIVET - SOLID, COUNTERSUNK HEAD U1653	aa-ai	2
725725	5U0020	• • MOUNT,ANTI VIBRATION 59501 VENDOR PN (9045452-2)	aa-ai	1
740740	5W8380	• BRACKET PRE SBE70-0158	aa-ai	1
740740A	6A4679	• BRACKET POST SBE70-0158	aa-ai	1
750750	5T0005	• BRACKET PRE SBE70-0033	aa-ai	1
750750A	5T0049	• BRACKET ALT 5T0050 POST SBE70-0033	aa-ai	1
-750750B	5T0050	• BRACKET ALT 5T0049 POST SBE70-0033	aa-ai	REF
755755	5T0003	• TUBE - SUPPORT, ASSEMBLY OF	aa-ai	1

765765	4W0162	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .500	aa-ai	1
770770	AS41105	• NUT - 0.25 DIA U1653 PRE SBE70-0047	aa-ai	1
770770A	4W0044	• NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA POST SBE70-0047	aa-ai	1
775775	4W0163	• BOLT, MACHINE DOUBLE HEX - .250 DIA X .562	aa-ai	1
776776	AS41105	• NUT - 0.25 DIA U1653 PRE SBE70-0047	aa-ae	1
776776A	4W0044	• NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA POST SBE70-0047	af-ai	1
777777	4W0106	• BOLT - .190 DIA X .688	aa-ai	2
777777A	AS23012	• BOLT, MACHINE DOUBLE HEX U1653	aa-ai	2
778778	4W0002	• NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA	aa-ai	2
779779	4W2621	• WASHER	aa-ai	4
779779A	5T0012	• WASHER PRE SBE70-0019	aa-ai	2
779779B	5T0012	• WASHER ALT 4W2622 POST SBE70-0019	aa-ai	2
-779779C	4W2622	• WASHER OPTION ALT 5T0012 POST SBE70-0019	ac-ai	REF

850850	9045450-2	• STRAP - BONDING 59501	aa-ai	1

851851	HL584-10AW	• COLLAR, HI LOC 73197	aa-ai	1
853853	4W2623	• WASHER	aa-ai	1
854854	HL12V10-4	• PIN, HI LOC 73197	aa-ai	1

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	59501
Enterprise Name:	UNISON INDUSTRIES
BU Name:	UNISON INDUSTRIES
Department:	EUROPEAN OUTLET:
Street:	7575 BAYMEADOWS WAY
City:	JACKSONVILLE
State:	FLORIDA
Zip Code:	32256-8514
Country:	USA

Manufacturer Code:	73197
Enterprise Name:	HI SHEAR CORP
BU Name:	HI SHEAR CORP
Street:	2600 SKYPARK DRIVE
City:	TORRANCE
State:	CALIFORNIA
Zip Code:	90509-2975
Country:	USA

Manufacturer Code:	77820
Enterprise Name:	AMPHENOL CORPORATION
BU Name:	AMPHENOL CORPORATION
Department:	BENDIX CONNECTOR OPERATIONS
Street:	40-60 DELAWARE AVENUE
City:	SIDNEY
State:	NEW YORK
Zip Code:	13838-1395
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

IGNITION-EXCITER IGNITION UNITS

Export Control

Copyright

Applicability

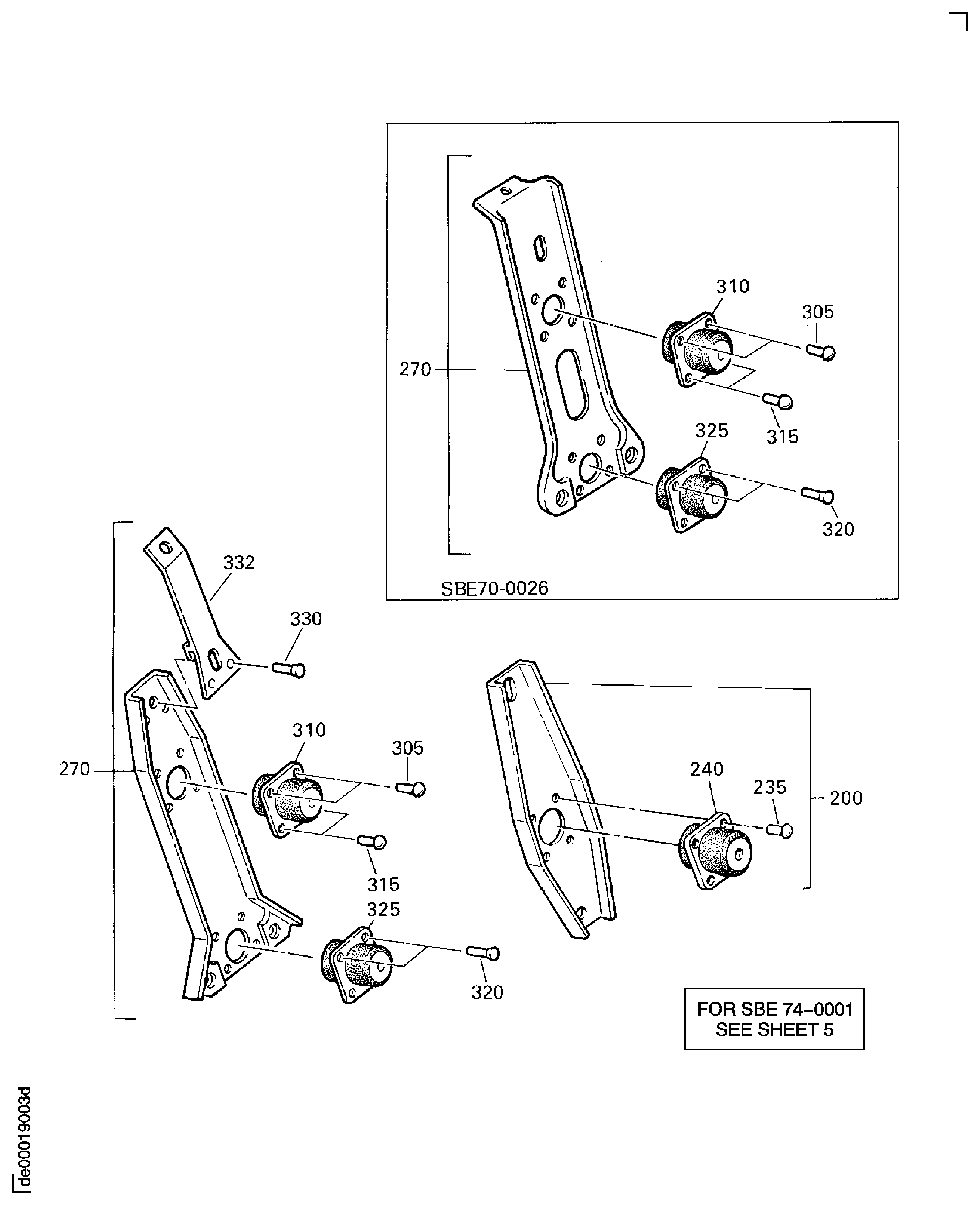

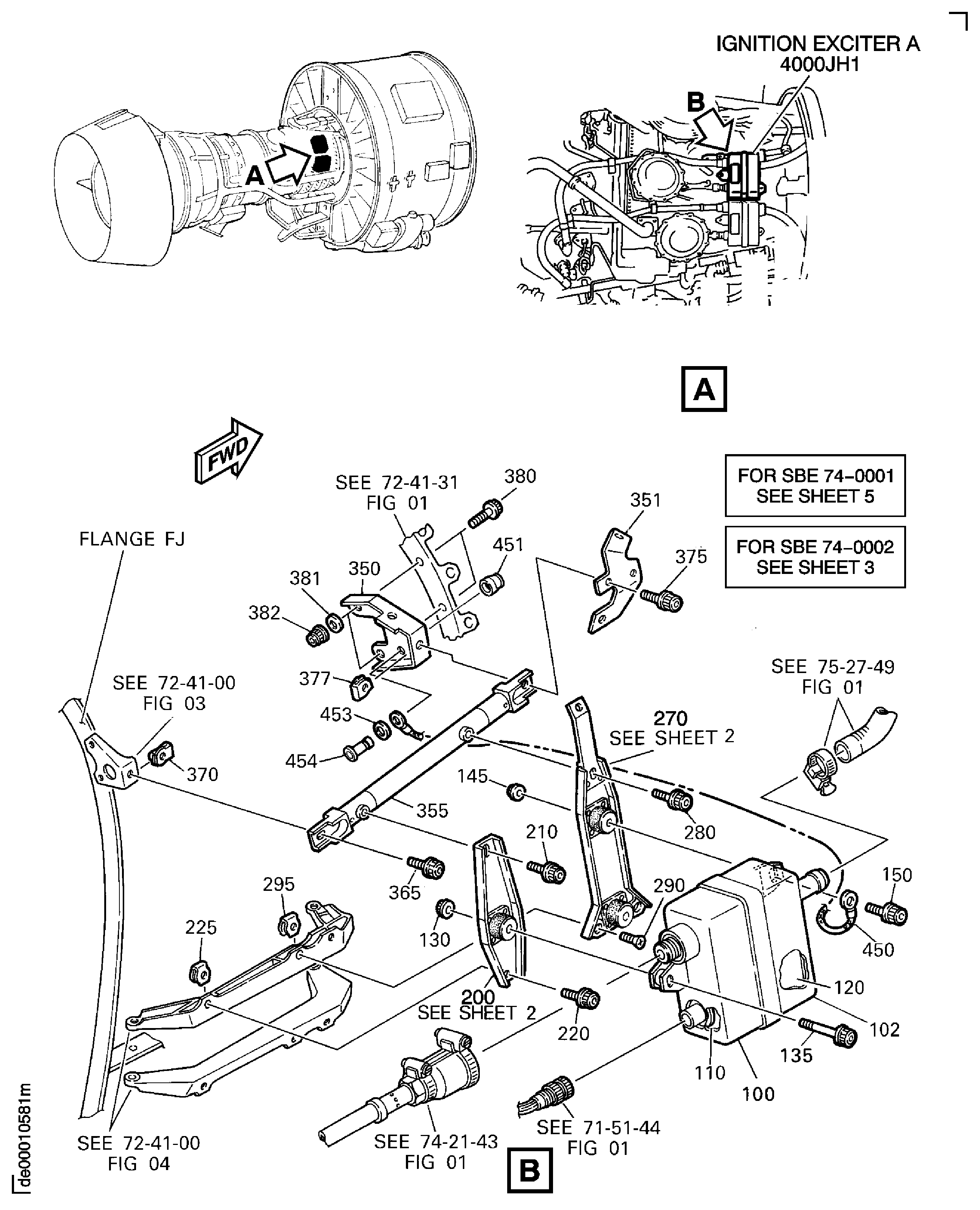

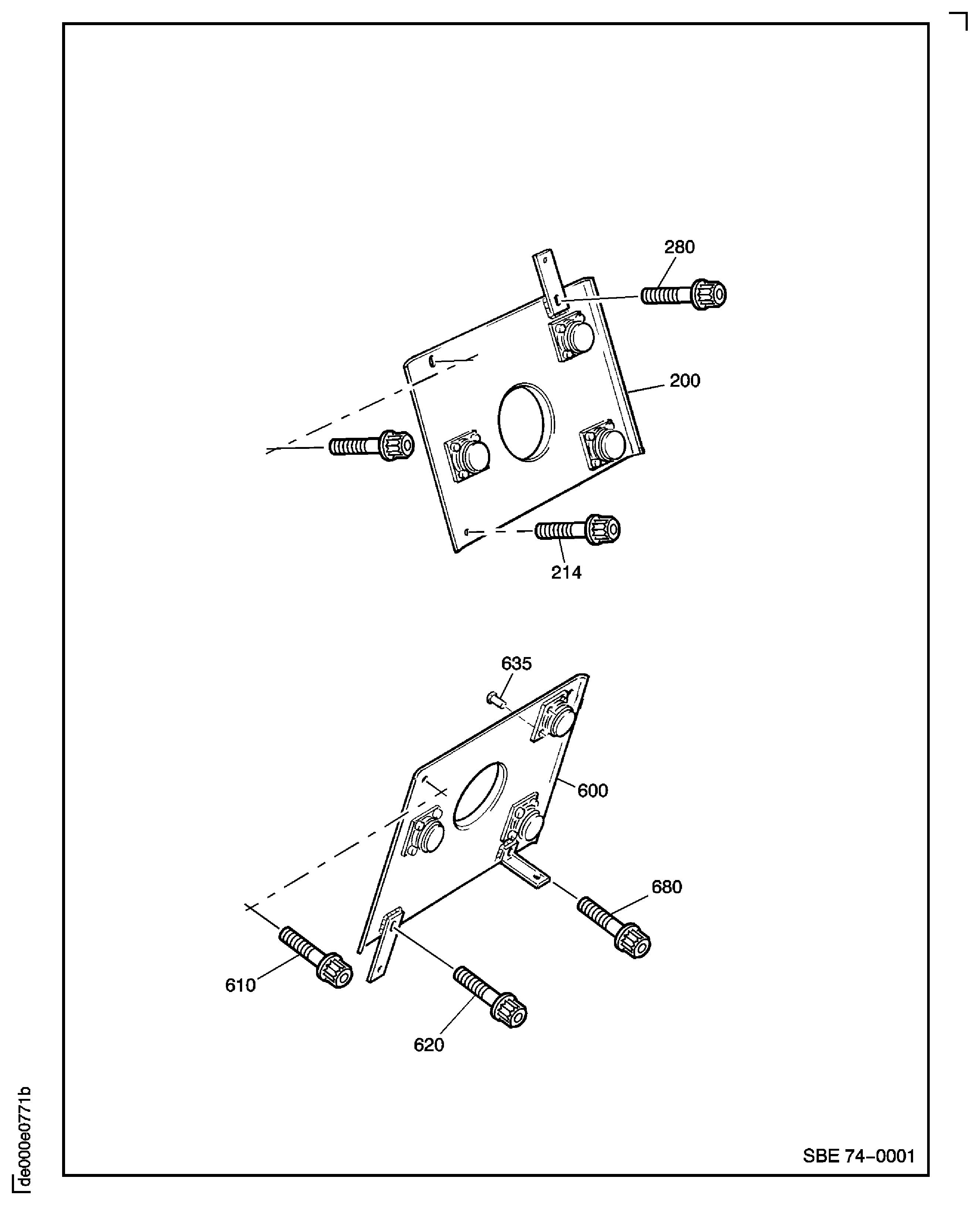

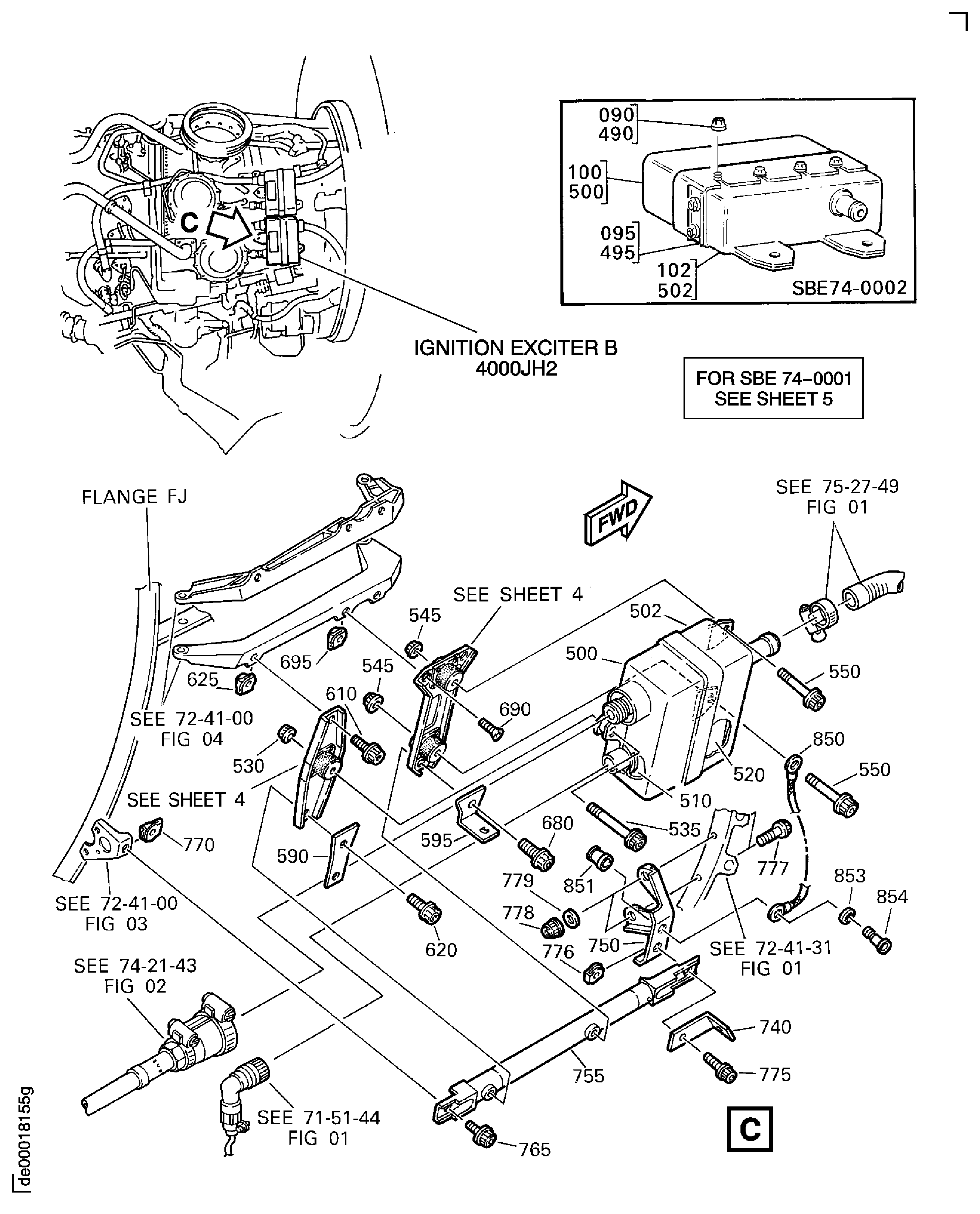

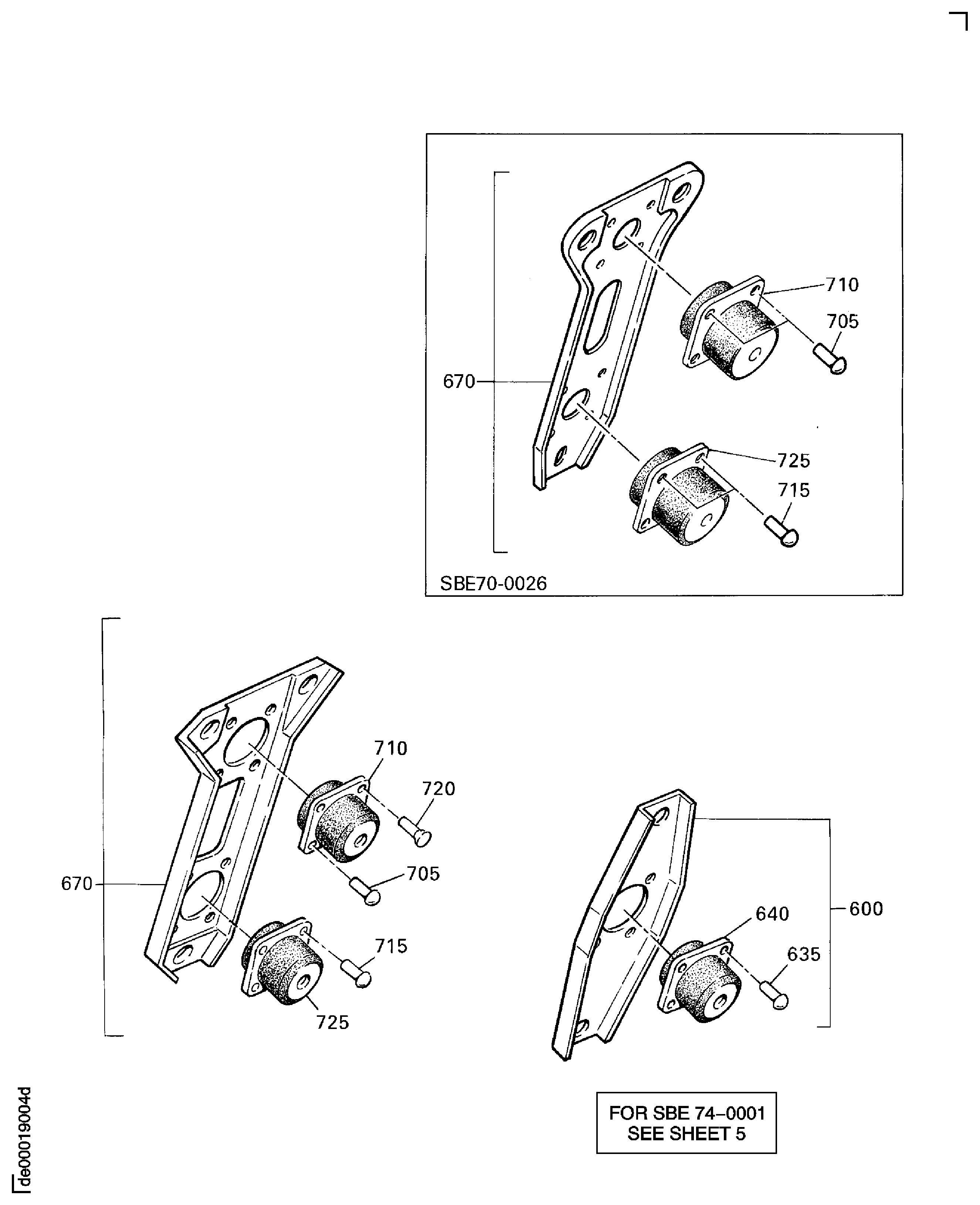

Figure: IGNITION-EXCITER IGNITION UNITS

IGNITION EXCITERS

IGNITION EXCITERS

IGNITION EXCITERS

IGNITION EXCITERS

IGNITION EXCITERS

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4W0044
Part Name:	NUT - SELF LOCKING, ASSEMBLY OF, .250 DIA
Manufacturer Code:	0AM53

Part Number:	AS12943
Part Name:	WASHER - FLAT
Manufacturer Code:	U1653

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA
