DMC:V2500-A1-75-24-51-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75245101 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0006 | aa | ||
| SBE0006-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE70-0050 | ab | ||
| SBE0050-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0009 | ac | ||
| SBE0009-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0012 | ad | ||
| SBE0012-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE72-0074 | ae | ||
| SBE0074-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE70-0099 | af | ||
| SBE0099-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0018 | ag | ||
| SBE0018-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0021 | ah | ||
| SBE0021-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0021 | ai | ||
| SBE0021-02 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE70-0161 | aj | ||
| SBE0161-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0031 | ak | ||
| SBE0031-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0030 | al | ||
| SBE0030-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0060 | am | ||
| SBE0060-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0063 | an | ||
| SBE0063-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0090 | ao | ||
| SBE0090-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0094 | ap | ||
| SBE0094-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE, PRE SBE75-0119 | aq | ||
| SBE0119-01 | AIR-ACTIVE CLEARANCE CONTROL VALVE | ar | ||
| 100 | 5860016-102 | • VALVE - AIR-HP/LP TURBINE ACC 92003 REF No. 5W7500 | aa-ar | 1 |
| 100A | 5860016-107 | • VALVE 92003 (REF NO 5W2083) | aa-ad | 1 |
| 100B | 5860016-109 | • VALVE 92003 (REF NO 5W2162) | aa-ad | 1 |
| 100C | 5860016-111 | • VALVE - AIR HPT/LPT TURBN ACC 92003 REF No. 5W2184 POST SBE75-0012 | ae-ar | 1 |
| 100D | 5860016-113 | • VALVE - AIR HPT/LPT TURBN ACC 92003 REF No. 5W2185 POST SBE75-0012 | ae-ar | 1 |
| 100E | 5860016-117 | • VALVE - AIR HPT/LPT ACC (PART NO 5W2216) 92003 POST SBE75-0018 | ah-ar | 1 |
| 100F | 5860016-122 | • VALVE - AIR HPT/LPT ACC 92003 POST SBE75-0021 PRE SBE75-0031 | aj-ak | 1 |
| 100G | 5860016-119 | • VALVE 92003 (PART NO 5W2226) | ai-ak | 1 |
| 100H | 5860016-121 | • VALVE 92003 (PART NO 5W2228) | aj-ak | 1 |
| 100J | 5860016-120 | • VALVE 92003 (PART NO 5W2227) | ai-ak | 1 |
| 100K | 5860016-123 | • VALVE - AIR HPT/LPT ACC 92003 REF No. 5W2233 POST SBE75-0031 PRE SBE75-0063 | al-ao | 1 |
| 100L | 5860016-124 | • VALVE - AIR HPT/LPT ACC (PART NO 5W2234) 92003 POST SBE75-0031 PRE SBE75-0063 | al-ao | 1 |
| 100M | 5860016-125 | • VALVE - AIR HPT/LPT ACC (PART NO 5W2245) 92003 POST SBE75-0031 PRE SBE75-0063 | al-ao | 1 |
| 100N | 5860016-126 | • VALVE - AIR HPT/LPT ACC (PART NO 5W2246) 92003 POST SBE75-0031 PRE SBE75-0063 | al-ao | 1 |
| 100P | 5860016-131 | • VALVE - AIR (VENDOR P/N 5W2313) 92003 POST SBE75-0063 PRE SBE75-0090 | al-ar | 1 |
| 100Q | 5860016-127 | • VALVE - AIR (VENDOR P/N 5W2309) 92003 POST SBE75-0063 PRE SBE75-0063 | ***** | 1 |
| 100R | 5860016-128 | • VALVE - AIR (VENDOR P/N 5W2310) 92003 POST SBE75-0063 PRE SBE75-0063 | ***** | 1 |
| 100S | 5860016-129 | • VALVE - AIR (VENDOR P/N 5W2311) 92003 POST SBE75-0063 PRE SBE75-0063 | ***** | 1 |
| 100T | 5860016-130 | • VALVE - AIR (VENDOR P/N 5W2312) 92003 POST SBE75-0063 PRE SBE75-0063 | ***** | 1 |
| 100U | 5860016-132 | • VALVE - AIR (VENDOR P/N 5W2314) 92003 POST SBE75-0063 PRE SBE75-0090 | al-ar | 1 |
| 100V | 5860016-133 | • VALVE - AIR (VENDOR P/N 5W2315) 92003 POST SBE75-0063 PRE SBE75-0090 | al-ar | 1 |
| 100W | 5860016-134 | • VALVE - AIR (VENDOR P/N 5W2316) 92003 POST SBE75-0063 PRE SBE75-0090 | al-ar | 1 |
| 100X | 5860016-139 | • VALVE - AIR 92003 POST SBE75-0090 | al-ar | 1 |
| 100Y | 5860016-142 | • VALVE - AIR 92003 POST SBE75-0090 | al-ar | 1 |
| 100Z | 5860016-141 | • VALVE - AIR 92003 POST SBE75-0090 | al-ar | 1 |
| 100AA | 5860016-140 | • VALVE - AIR 92003 POST SBE75-0090 | al-ar | 1 |
| 102 | BRES4985 | • • ROD - END POST SBE70-0099 PRE SBE75-0063 | ag-ar | 1 |
| 102A | 5952015-101 | • • ROD - END 92003 POST SBE75-0063 | ag-ar | 1 |
| 103 | NAS509-5C | • • NUT - JAM 80205 POST SBE70-0099 | ag-ar | 1 |
| 104 | 5874117-102 | • • WASHER - LOCKING POST SBE70-0099 | ag-ar | 1 |
| 105 | 5953091-101 | • • • BALL - RODEND 92003 POST SBE75-0063 | ao-ar | 1 |
| 110 | MS24665-151 | • PIN 96906 | aa-ar | 1 |
| 115 | MS9364-10 | • NUT 96906 | aa-ar | 1 |
| 120 | 5W2091 | • BOLT | aa-ar | 1 |
| 136 | MS24665-151 | • PIN 96906 | aa-ar | 1 |
| 140 | AN310C4 | • NUT 81352 | aa-ar | 1 |
| 145 | MS24665-151 | • PIN 96906 PRE SBE75-0030 | aa-al | 1 |
| 150 | AN310C4 | • NUT 81352 PRE SBE75-0030 | aa-al | 1 |
| 155 | 5W1634 | • CRANK PRE SBE75-0030 | aa-al | 1 |
| 155A | NAS6704DU14 | • BOLT 80205 POST SBE75-0030 | am-ar | 1 |
| 170 | 5903264-101 | • • BUSH 92003 POST SBE75-0021 | ai-ar | 4 |
| 172 | 5903265-101 | • • WASHER 92003 POST SBE75-0021 | ai-ar | 4 |
| 175 | NAS679C06 | • • NUT 80205 POST SBE75-0021 | ai-ar | 4 |
| 177 | MS16995-18 | • • SCREW 96906 POST SBE75-0021 | ai-ar | 4 |
| 190 | 5W2059 | • BUSH PRE SBE75-0119 | aa-aq | 2 |
| 190A | 6B1465 | • BUSH POST SBE75-0119 | aa-ar | 2 |
| 200 | 5W2087 | • BUSH PRE SBE75-0030 | aa-al | 1 |
| 210 | 5W2059 | • BUSH PRE SBE75-0030 | aa-al | 1 |
| 210A | 5W2059 | • BUSH POST SBE75-0030 PRE SBE75-0119 | am-aq | 2 |
| 210B | 6B1465 | • BUSH POST SBE75-0119 | am-ar | 2 |
| 275 | 2A1412 | • JOINT - A/O SPHERICAL ACC PRE SBE75-0030 | aa-al | 1 |
| 275A | 2A1534 | • HOUSING - A/O ACC ALT 2A1512 POST SBE75-0030 | am-ar | 1 |
| -275B | 2A1512 | • HOUSING - A/O ACC ALT 2A1534 POST SBE75-0030 | am-ar | REF |
| -276 | 2A1587 | • HOUSING - A/O ACC,REPAIRED POST SBE75-0094 | aq-ar | REF |
| -276A | 2A3735 | • HOUSING - A/O,ACC,REPAIRED POST SBE75-0094 | aq-ar | REF |
| -286 | 2A1588 | • HOUSING - A/O,ACC,REPAIRED POST SBE75-0094 | aq-ar | REF |
| -286A | 2A3736 | • HOUSING - A/O,ACC,REPAIRED POST SBE75-0094 | aq-ar | REF |
| -287 | 2A1589 | • HOUSING - A/O,ACC,REPAIRED POST SBE75-0094 | aq-ar | REF |
| -287A | 2A3737 | • HOUSING - A/O,ACC,REPAIRED POST SBE75-0094 | aq-ar | REF |
| 290 | 4W0164 | • BOLT - .250 DIA X .625 PRE SBE75-0030 | aa-al | 6 |
| 290A | 4W0162 | • BOLT - .250 DIA X .500 POST SBE75-0030 | am-ar | 5 |
| 294 | MS21209F4-10 | • • INSERT - SCREW THREAD 96906 POST SBE75-0030 | am-ar | 5 |
| 295 | 2A3648 | • • BALL POST SBE70-0161 PRE SBE75-0030 | ak-al | 1 |
| 296 | MS21209F1-15 | • • INSERT 96906 POST SBE75-0030 | am-ar | 4 |
| 300 | 2A3647 | • • HOUSING - ASSY POST SBE70-0161 PRE SBE75-0030 | ak-al | 1 |
| 300A | 2A1533 | • • HOUSING - ACC ALT 2A3662 POST SBE75-0030 | am-ar | 1 |
| -300B | 2A3662 | • • HOUSING - ACC ALT 2A1533 POST SBE75-0030 | am-ar | REF |
| 304 | MS21209F4-15 | • • • INSERT 96906 POST SBE70-0161 PRE SBE75-0030 | ak-al | 6 |
| 350 | 2A1530 | • SEAL - ACC POST SBE75-0030 | am-ar | 1 |
| 360 | 2A1514 | • SHIELD - HEAT A/O POST SBE75-0030 | am-ar | 1 |
| 370 | 2A1531 | • RETAINER - SEAL A.C.C. POST SBE75-0030 | am-ar | 1 |
| 375 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE75-0030 | am-ar | 4 |
| 400 | 5W2060 | • ROD - A/O ACTUATOR | aa-ar | 1 |
| 410 | MS24665-151 | • PIN 96906 | aa-ar | 1 |
| 415 | MS9364-10 | • NUT 96906 | aa-ar | 1 |
| 420 | 5W2091 | • BOLT | aa-ar | 1 |
| 470 | 5W2059 | • BUSH PRE SBE75-0119 | aa-aq | 2 |
| 470A | 6B1465 | • BUSH POST SBE75-0119 | aa-ar | 2 |
| 485 | 5W8232 | • ROD - A/O STATOR PRE SBE75-0006 | aa-ar | 1 |
| 485A | 5W2096 | • ROD - STATOR ASSY OF POST SBE75-0006 PRE SBE75-0060 | aa-ar | 1 |
| 485B | 6A6491 | • ROD - STATOR ASSY OF POST SBE75-0060 | aa-ar | 1 |
| 495 | MS24665-151 | • PIN 96906 | aa-ar | 1 |
| 500 | AN310C4 | • NUT 81352 PRE SBE72-0074 | aa-ae | 1 |
| 500A | MS9359-10 | • NUT 96906 POST SBE72-0074 | af-ar | 1 |
| 505 | NAS6704DU20 | • BOLT 80205 PRE SBE75-0009 | aa-ac | 1 |
| 505A | 5W2093 | • BUSH POST SBE75-0009 PRE SBE72-0074 | ad-ae | 1 |
| 505B | 5W2167 | • BOLT POST SBE72-0074 | af-ar | 1 |
| 555 | 5W2061 | • BUSH PRE SBE75-0009 | aa-ac | 2 |
| 555A | 5W2061 | • BUSH POST SBE75-0009 | ad-ar | 1 |
| 820 | 5W2097 | • • BEARING - ,(VRS6250) POST SBE70-0434 PRE SBE75-0060 | ***** | 1 |
| 820A | ABK4V302 | • • BEARING - ,(VRS6250) K7766 POST SBE70-0434 | ***** | 1 |
| 822 | VTB12351 | • • • BEARING - SPHERICAL 06710 POST SBE75-0060 | an-ar | 1 |
| 822A | P25001 | • • • BEARING - SPHERICAL 57606 POST SBE75-0060 | an-ar | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

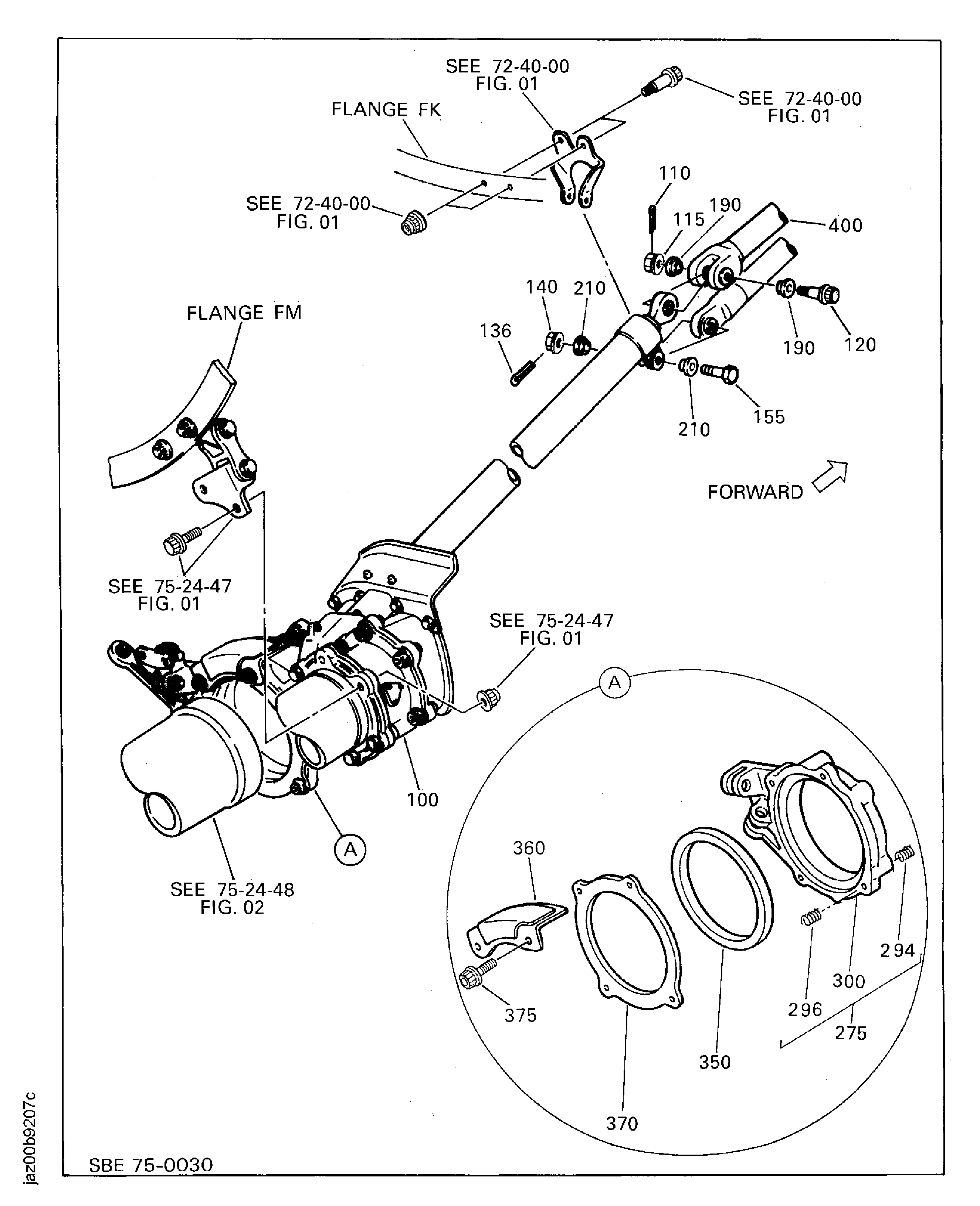

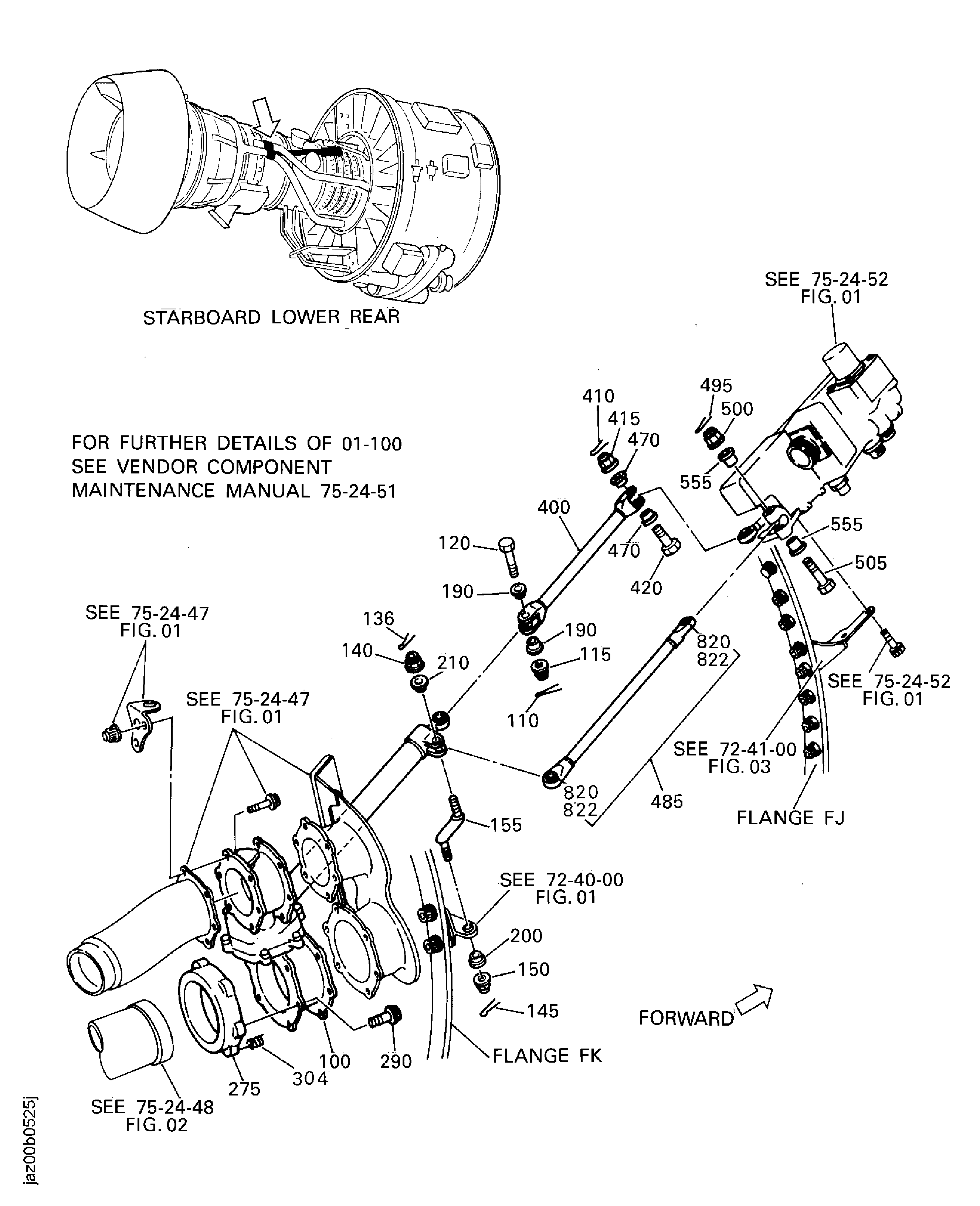

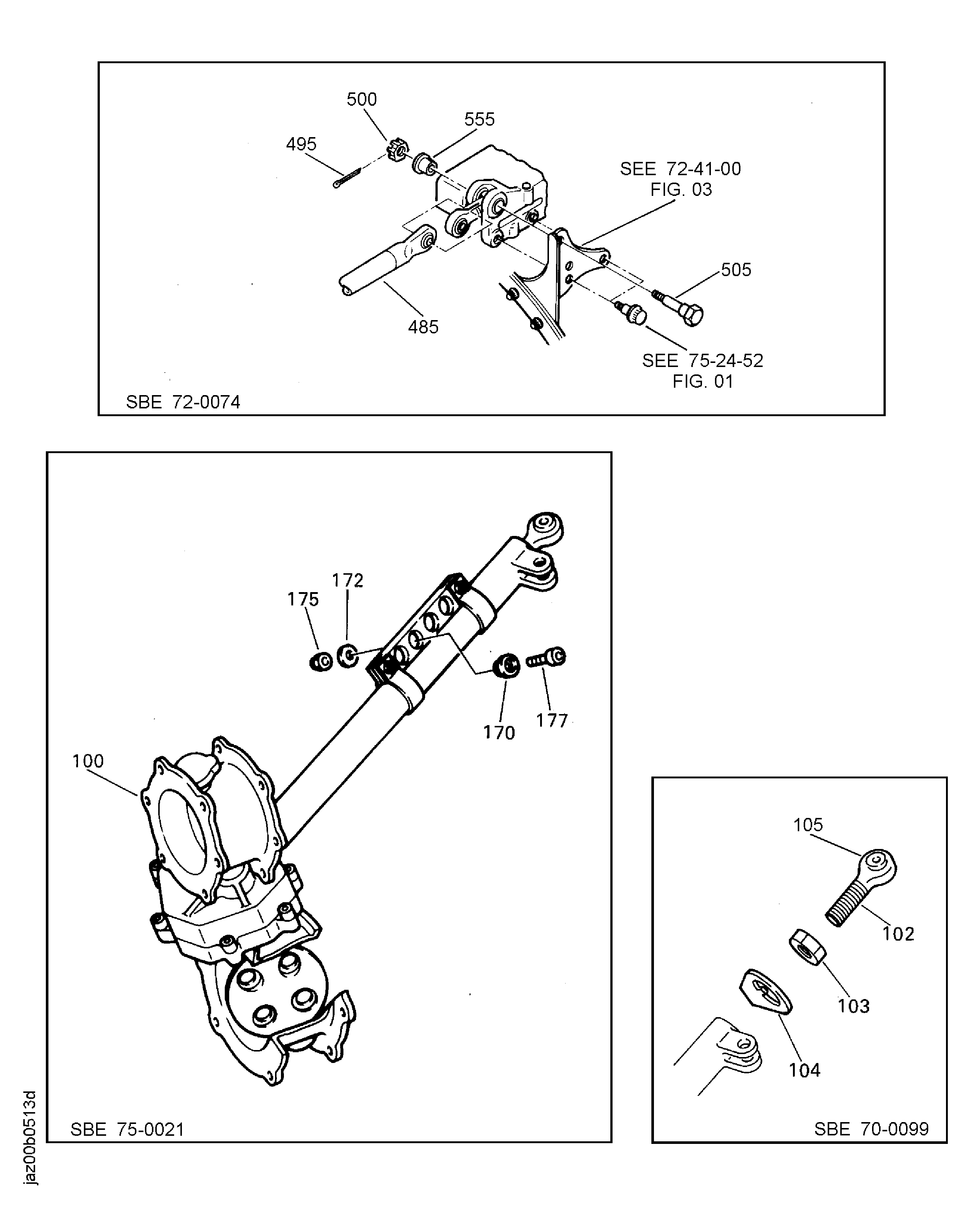

Figure: AIR-ACTIVE CLEARANCE CONTROL VALVE
ACTIVE CLEARANCE CONTROL VALVE
ACTIVE CLEARANCE CONTROL VALVE
ACTIVE CLEARANCE CONTROL VALVE
