| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75245201 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR, PRE SBE75-0008 | aa | ||
| SBE0008-01 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR, PRE SBE70-0099 | ab | ||
| SBE0099-01 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR, PRE SBE70-0113 | ac | ||
| SBE0113-01 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR, PRE SBE75-0027 | ad | ||
| SBE0027-01 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR, PRE SBE70-0281 | ae | ||
| SBE0281-01 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR, PRE SBE75-0046 | af | ||
| SBE0046-01 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR, PRE SBE75-0059 | ag | ||
| SBE0059-01 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR, PRE SBE75-0096 | ah | ||
| SBE0096-01 | AIR-ACTIVE CLEARANCE CONTROL ACTUATOR | ai | ||
| 100 | 5W2070 | • ACTUATOR - VALVE HPT/LPT ACC | aa-ai | 1 |
| 100A | 5860017-109 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2085 PRE SBE75-0008 | aa-ai | 1 |
| 100B | 5860017-113 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2186 POST SBE75-0008 PRE SBE70-0113 | aa-ai | 1 |
| 100C | 5860017-114 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2189 POST SBE70-0113 PRE SBE75-0027 | aa-ai | 1 |
| 100D | 5860017-119 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2261 POST SBE75-0027 PRE SBE70-0281 | aa-ai | 1 |
| 100E | 5860017-115 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2257 POST SBE75-0027 PRE SBE70-0281 | ae-ai | 1 |
| 100F | 5860017-116 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2258 POST SBE75-0027 PRE SBE70-0281 | ae-ai | 1 |
| 100G | 5860017-117 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2259 POST SBE75-0027 PRE SBE70-0281 | ae-ai | 1 |
| 100H | 5860017-118 | • ACTUATOR - VALVE HPT/LPT 92003 ALT 5860017-119 REF No. 5W2260 POST SBE75-0027 PRE SBE70-0281 | ae-ai | 1 |
| 100J | 5860017-126 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2287 POST SBE70-0281 | ae-ai | 1 |
| 100K | 5860017-127 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2288 POST SBE70-0281 | ae-ai | 1 |
| 100L | 5860017-128 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2289 POST SBE70-0281 | ae-ai | 1 |
| 100M | 5860017-125 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2286 POST SBE70-0281 | ae-ai | 1 |
| 100N | 5860017-129 | • ACTUATOR - VALVE HPT/LPT ACC 92003 REF No. 5W2290 POST SBE70-0281 | aa-ai | 1 |
| 100P | 5860017-124 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2279 POST SBE70-0281 PRE SBE75-0046 | af-ag | 1 |
| 100Q | 5860017-134 | • ACTUATOR - VALVE 92003 REF No. 5W2296 POST SBE75-0046 PRE SBE75-0059 | ag | 1 |
| 100R | 5860017-130 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2292 POST SBE75-0046 PRE SBE75-0059 | ag-ah | 1 |
| 100S | 5860017-131 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2293 POST SBE75-0046 PRE SBE75-0059 | ag-ah | 1 |
| 100T | 5860017-132 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2294 POST SBE75-0046 PRE SBE75-0059 | ag-ah | 1 |
| 100U | 5860017-133 | • ACTUATOR - VALVE HPT/LPT 92003 REF No. 5W2295 POST SBE75-0046 PRE SBE75-0059 | af-ah | 1 |
| 100V | 5860017-139 | • ACTUATOR - VALVE HPT/LPT ACC 92003 REF No. 5W2303 POST SBE75-0059 PRE SBE75-0096 | ah-ai | 1 |
| 100W | 5860017-135 | • ACTUATOR - VALVE 92003 REF No. 5W2299 POST SBE75-0059 PRE SBE75-0096 | ag-ai | 1 |
| 100X | 5860017-136 | • ACTUATOR - VALVE 92003 REF No. 5W2300 POST SBE75-0059 PRE SBE75-0096 | ag-ai | 1 |
| 100Y | 5860017-137 | • ACTUATOR - VALVE 92003 REF No. 5W2301 POST SBE75-0059 PRE SBE75-0096 | ag-ai | 1 |
| 100Z | 5860017-138 | • ACTUATOR - VALVE 92003 REF No. 5W2302 POST SBE75-0059 PRE SBE75-0096 | af-ai | 1 |
| 100AA | 5860017-139 | • ACTUATOR - VALVE 92003 REF No. 5W2303 POST SBE75-0059 PRE SBE75-0059 | ag | 1 |
| 100AB | 5860017-144 | • ACTUATOR - VALVE 92003 POST SBE75-0096 | ah-ai | 1 |
| 100AC | 5860017-143 | • ACTUATOR - VALVE 92003 POST SBE75-0096 | af-ai | 1 |
| 100AD | 5860017-142 | • ACTUATOR - VALVE 92003 ALT 5860017-141 POST SBE75-0096 | ag-ai | 1 |
| 100AE | 5860017-141 | • ACTUATOR - VALVE 92003 ALT 5860017-140 POST SBE75-0096 | ag-ai | 1 |
| 100AF | 5860017-140 | • ACTUATOR - VALVE 92003 POST SBE75-0096 | ag-ai | 1 |
| -102 | MS16995-16 | • • SCREW - SOCKET HEAD 96906 POST SBE70-0099 | ac-ai | 2 |
| -103 | NAS620C6 | • • WASHER 80205 POST SBE70-0099 | ac-ai | 2 |
| 104 | BRES4-2580 | • • ROD - END 92003 POST SBE70-0099 PRE SBE75-0046 | ac-af | 1 |
| 104A | 5943051-101 | • • ROD - END 92003 POST SBE75-0046 | ag-ai | 1 |
| 105 | NAS509-4C | • • NUT 80205 POST SBE70-0099 | ac-ai | 1 |
| 106 | 5874117-101 | • • WASHER - LOCKING 92003 POST SBE70-0099 | ac-ai | 1 |
| 107 | MS16995-16 | • • SCREW - SOCKET HEAD 96906 POST SBE70-0099 | ac-ai | 4 |
| 108 | NAS620C6 | • • WASHER 80205 POST SBE70-0099 | ac-ai | 4 |
| 114 | 4W0002 | • NUT - .250 DIA | aa-ai | 2 |
| 120 | 4W0161 | • BOLT - .250 DIA X .438 | aa-ai | 2 |
| 152 | 5873785-101 | • • FITTING - RETURN 92003 POST SBE70-0099 | ac-ai | 1 |
| 153 | M25988-1-905 | • • PACKING - PREFORMED 81349 POST SBE70-0099 | ac-ai | 1 |
| 155 | 5873784-101 | • • FITTING - PRESSURE 92003 POST SBE70-0099 | ac-ai | 1 |
| 156 | M25988-1-906 | • • PACKING 81349 POST SBE70-0099 | ac-ai | 1 |
| 158 | 5863142-101 | • • FITTING - DRAIN 92003 POST SBE70-0099 | ac-ai | 1 |
| 159 | M25988-1-904 | • • PACKING 81349 POST SBE70-0099 | ac-ai | 1 |
| 161 | 5863143-105 | • • BLANKET - INS. 92003 POST SBE70-0099 | ac-ai | 1 |
| 170 | 5W2065 | • BRACKET - ACTUATOR FRONT | aa-ai | 1 |
| 171 | 4W0001 | • NUT - .190 DIA | aa-ai | 2 |
| 174 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ai | 2 |
| -400 | MS9967-012 | • PACKING 96906 Optional Part MS9967-012 (SEE 73-11-49-13-096 ) | aa-ai | REF |
| -410 | MS9967-011 | • PACKING 96906 Optional Part MS9967-011 (SEE 73-11-49-18-096 ) | aa-ai | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

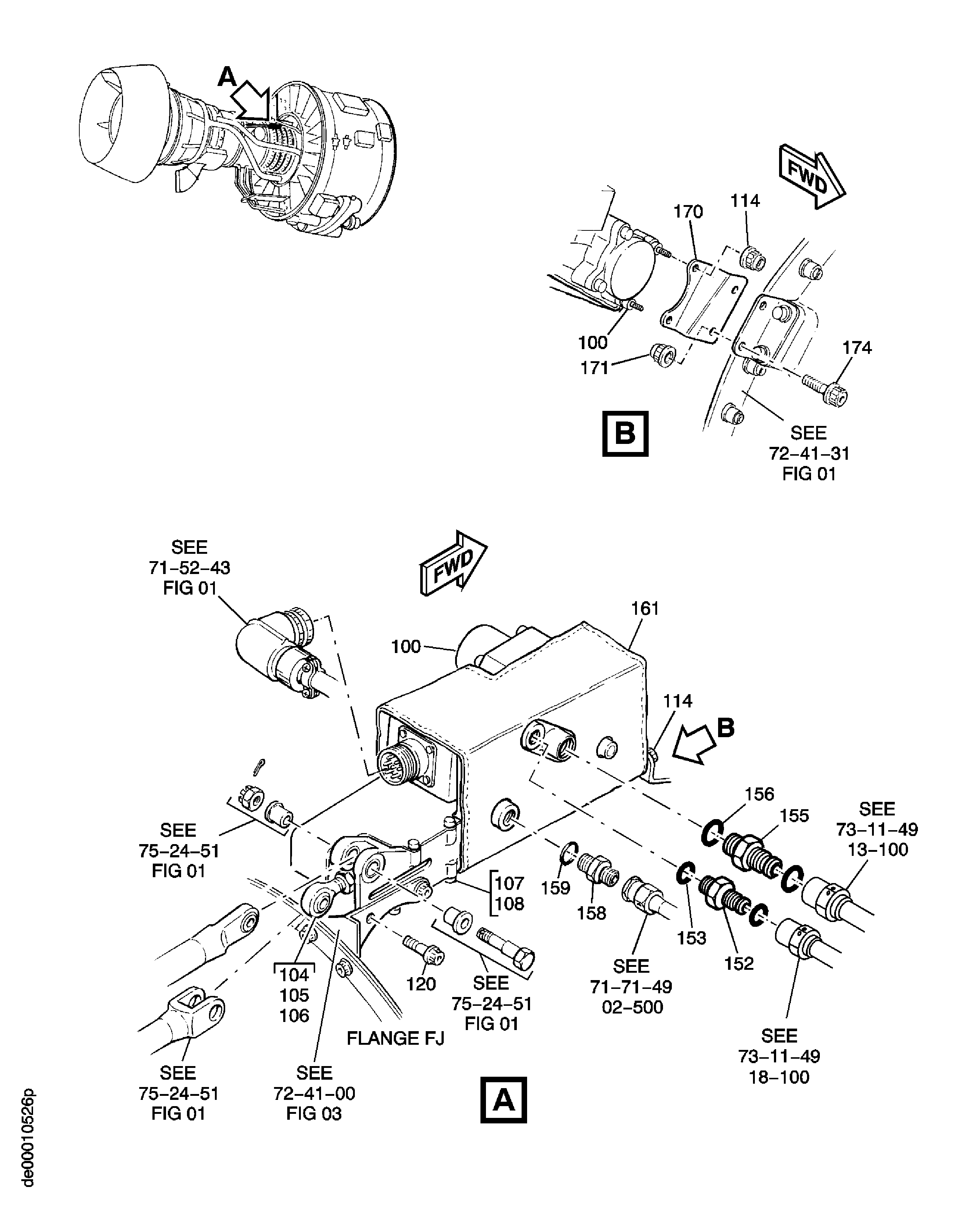

Figure: AIR-ACTIVE CLEARANCE CONTROL ACTUATOR
ACTIVE CLEARANCE CONTROL ACTUATOR
