DMC:V2500-A1-79-22-49-01A-941A-DIssue No:002.00Issue Date:2017-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79224901 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0001 | aa | ||
| SBE0001-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0011 | ab | ||
| SBE0011-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE70-0044 | ac | ||
| SBE0044-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE70-0045 | ad | ||
| SBE0045-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE72-0063 | ae | ||
| SBE0063-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0035 | af | ||
| SBE0035-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE75-0049 | ag | ||
| SBE0049-01 | OIL-SCAVENGE OIL TUBES-ENGINE, PRE SBE79-0087 | ah | ||
| SBE0087-01 | OIL-SCAVENGE OIL TUBES-ENGINE | ai | ||
| 070 | 5W8312 | • BRACKET | aa-ai | 1 |
| 074 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ai | 2 |
| 100 | 5R8032 | • TUBE - A/O NO.5 SCAV, .750O/D X .028T PRE SBE70-0044 | aa-ai | 1 |
| 100A | 5R8140 | • TUBE POST SBE70-0044 | aa-ai | 1 |
| 110 | 4W0002 | • NUT - .250 DIA PRE SBE79-0011 | aa-ab | 4 |
| 110A | 5T0057 | • PLATE POST SBE79-0011 | ac-ai | 2 |
| 114 | 4W0168 | • BOLT - .250 DIA X .875 PRE SBE79-0011 | aa-ab | 4 |
| 114A | MS9566-11 | • BOLT 96906 POST SBE79-0011 | ac-ai | 4 |
| 116 | AS42714 | • GASKET U1653 PRE SBE72-0063 | aa-ai | 1 |
| 116A | AS42714 | • GASKET U1653 POST SBE72-0063 | aa-ai | 1 |
| 117 | AS42714 | • GASKET - SEAL,METALLIC OIL SCAVENGE U1653 POST SBE72-0063 REF SBE72-0660 | af-ai | 1 |
| 125 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ai | 1 |
| 126 | 5W1086 | • WASHER | aa-ai | 1 |
| 128 | 5W1115 | • CLIP | aa-ai | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa-ai | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ai | 1 |
| 134 | 5W1086 | • WASHER | aa-ai | 1 |
| 136 | 5W1115 | • CLIP | aa-ai | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-ai | 1 |
| 141 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ai | 1 |
| 142 | 5W1086 | • WASHER | aa-ai | 1 |
| 144 | 5W1115 | • CLIP | aa-ai | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-ai | 1 |
| 202 | 5T8153 | • • ADAPTOR - FLANGED | aa-ai | 1 |
| 212 | 5W1103 | • • SLEEVE - HALF | aa-ai | 6 |
| 216 | 5T8089 | • • TUBE - FLAT SECTION, .750O/D X .028T | aa-ai | 1 |
| 218 | 5W1549 | • • RING - WELDING | aa-ai | 1 |
| 240 | AS15783 | • • WIRE - THRUST U1653 | aa-ai | 1 |
| 241 | AS15707 | • • NUT - TUBE COUPLING U1653 | aa-ai | 1 |
| 242 | AS15734 | • • FERRULE - WELDING TUBE U1653 | aa-ai | 1 |
| 500 | 5R8112 | • TUBE - A/O NO.5 SCAV PRE SBE79-0001 | aa | 1 |
| 500A | 5R8139 | • TUBE - A/O NO.5 SCAV POST SBE79-0001 PRE SBE70-0045 | ab-ah | 1 |
| 500B | 5R8141 | • TUBE POST SBE70-0045 PRE SBE79-0087 | ab-ah | 1 |
| 500C | 6A6196 | • TUBE - A/O OIL - NO.5BRG SCAV DISCONNECT TO BIF PANEL POST SBE79-0087 | ai | 1 |
| 525 | 4W0116 | • BOLT - .190 DIA X 1.312 PRE SBE79-0001 | aa | 1 |
| 525A | 4W0115 | • BOLT - .190 DIA X 1.250 POST SBE79-0001 PRE SBE79-0087 | ab-ah | 1 |
| 526 | 5W1086 | • WASHER PRE SBE79-0001 | aa | 2 |
| 526A | 5W1086 | • WASHER POST SBE79-0001 PRE SBE79-0087 | ab-ah | 1 |
| 528 | 5W1115 | • CLIP PRE SBE79-0001 | aa | 1 |
| 530 | 5W1030 | • SPACER - (10MM) PRE SBE79-0001 | aa-ah | 1 |
| 530A | 5W1030 | • SPACER - (10MM) POST SBE79-0001 PRE SBE79-0087 | aa-ah | 1 |
| 531 | 5W1029 | • SPACER - (5MM) PRE SBE79-0001 | aa-ah | 1 |
| 531A | 5W1029 | • SPACER - (5MM) POST SBE79-0001 PRE SBE79-0087 | aa-ah | 1 |
| 532 | 4W0001 | • NUT - .190 DIA PRE SBE79-0001 | aa-ah | 1 |
| 532A | 4W0001 | • NUT - .190 DIA POST SBE79-0001 PRE SBE79-0087 | aa-ah | 1 |
| 533 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ai | 1 |
| 534 | 5W1086 | • WASHER | aa-ai | 1 |
| 536 | 5W1115 | • CLIP | aa-ai | 1 |
| 540 | 4W0001 | • NUT - .190 DIA | aa-ai | 1 |
| 541 | 4W0102 | • BOLT - .190 DIA X .438 PRE SBE75-0049 | aa-ag | 1 |
| 541A | 4W0116 | • BOLT - .190 DIA X 1.312 POST SBE75-0049 | ah-ai | 1 |
| 542 | 5W1086 | • WASHER PRE SBE75-0049 | aa-ag | 1 |
| 544 | 5W1115 | • CLIP | aa-ai | 1 |
| 546 | LK56556 | • SPACER POST SBE75-0049 | ah-ai | 1 |
| 548 | 4W0043 | • NUT - .190 DIA PRE SBE75-0049 | aa-ag | 1 |
| 548A | 4W0001 | • NUT - .190 DIA POST SBE75-0049 | ah-ai | 1 |
| 549 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ah | 1 |
| 550 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ah | 1 |
| 553 | 5W1115 | • CLIP PRE SBE79-0087 | aa-ah | 1 |
| 556 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ah | 1 |
| 557 | 4W0107 | • BOLT - .190 DIA X .750 PRE SBE79-0035 | aa-af | 1 |
| 557A | 4W0117 | • BOLT - .190 DIA X 1.375 POST SBE79-0035 PRE SBE79-0087 | aa-ah | 1 |
| 558 | 5W1086 | • WASHER PRE SBE79-0035 | aa-af | 2 |
| 560 | 5W1115 | • CLIP PRE SBE79-0087 | aa-ah | 1 |
| 562 | 5W1029 | • SPACER - (5MM) PRE SBE79-0087 | aa-ah | 1 |
| 563 | 5W1031 | • SPACER - SLEEVE, (15MM) POST SBE79-0035 PRE SBE79-0087 | ag-ah | 1 |
| 564 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ah | 1 |
| 565 | 4W0109 | • BOLT - .190 DIA X .875 Optional Part 4W0109 POST SBE79-0035 PRE SBE79-0087 | ag-ah | 1 |
| -566 | 740-5290-501 | • BRACKET - OVERHEAT AND F/DET 51563 POST SBE79-0087 | ai | 1 |
| 568 | TA025022-12 | • CLAMP - LOOP STYLE,CUSHION, 19.05 MM (0.750) 84971 POST SBE79-0035 PRE SBE79-0087 | ag-ah | 1 |
| 570 | 5W1030 | • SPACER - SLEEVE, (10MM) POST SBE79-0035 PRE SBE79-0087 | ag-ah | 1 |
| 572 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE79-0035 PRE SBE79-0087 | ag-ah | 1 |
| -581 | AS21411 | • BOLT - BIHEX HD, .190 DIA X .688 U1653 POST SBE79-0087 | ai | 1 |
| -588 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ai | 1 |
| -590 | AS21412 | • BOLT - BIHEX HD, .190 DIA X .750 U1653 POST SBE79-0087 | ai | 1 |
| -594 | TA025074-04 | • CLAMP - LOOP STYLE,CUSHION, .250 DIA 84971 ALT AS61902 POST SBE79-0087 | ai | 1 |
| -594A | AS61902 | • CLAMP - LOOP STYLE,CUSHION, 6.35 MM (0.250) U1653 ALT TA025074-04 POST SBE79-0087 | ai | REF |
| -598 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ai | 1 |
| 602 | AS15814 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ai | 1 |
| 612 | 5W1103 | • • SLEEVE - HALF PRE SBE79-0001 | aa | 10 |
| 612A | 5W1103 | • • SLEEVE - HALF POST SBE79-0001 PRE SBE79-0087 | ab-ah | 8 |
| 612B | 5W1103 | • • SLEEVE - HALF POST SBE79-0087 | ai | 4 |
| 614 | 5W1066 | • • LUG - BRAZED PRE SBE79-0001 | aa | 1 |
| 614A | 5W1066 | • • LUG - BRAZED POST SBE79-0001 PRE SBE79-0087 | ab-ah | 3 |
| 614B | UP11157 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ai | 6 |
| 640 | AS15783 | • • WIRE - THRUST U1653 | aa-ai | 1 |
| 641 | AS15707 | • • NUT - TUBE COUPLING U1653 | aa-ai | 1 |
| 642 | AS15734 | • • FERRULE - WELDING TUBE U1653 | aa-ai | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

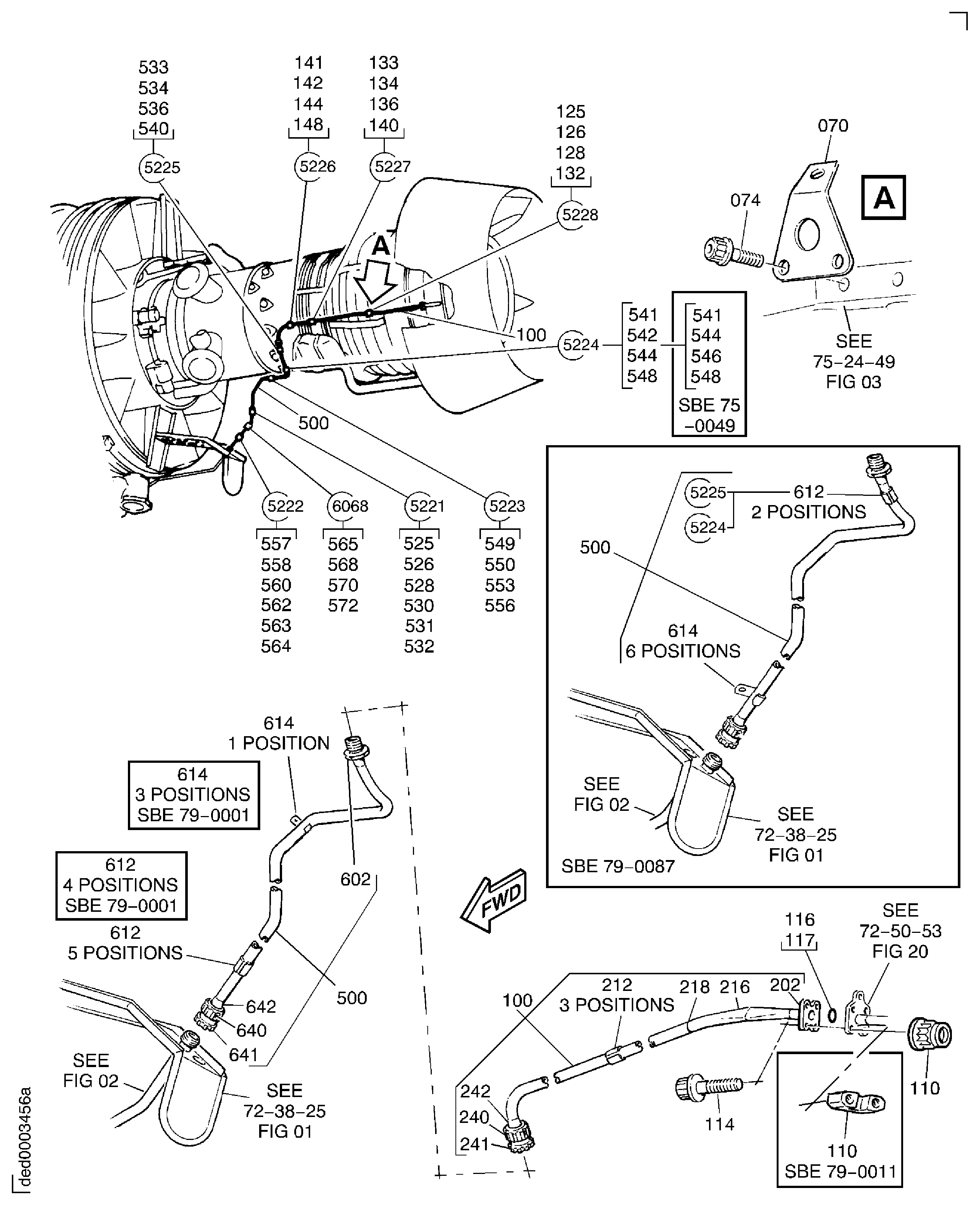

Figure: OIL-SCAVENGE OIL TUBES-ENGINE
SCAVENGE OIL TUBES ENGINE
