STARTING-PNEUMATIC STARTER

DMC:V2500-A1-80-13-41-01A-941A-D|Issue No:003|Issue Date:2021-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B80134101	STARTING - PNEUMATIC STARTER, PRE SBE80-0002	aa
000	SBE0002-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0003	ab
000	SBE0003-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0005	ac
000	SBE0005-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0007	ad
000	SBE0007-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0008	ae
000	SBE0008-01	STARTING - PNEUMATIC STARTER, PRE SBE70-0395	af
000	SBE0395-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0013	ag
000	SBE0013-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0014	ah
000	SBE0014-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0015	ai
000	SBE0015-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0016	aj
000	SBE0016-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0016	ak
000	SBE0016-02	STARTING - PNEUMATIC STARTER, PRE SBE80-0016	al
000	SBE0016-03	STARTING - PNEUMATIC STARTER, PRE SBE80-0019	am
000	SBE0019-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0020	an
000	SBE0020-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0024	ao
000	SBE0024-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0025	ap
000	SBE0025-01	STARTING - PNEUMATIC STARTER, PRE SBE80-0026	aq
000	SBE0026-01	STARTING - PNEUMATIC STARTER	ar
102102	728805-6	• HOUSING - ADAPTER SG215 POST SBE80-0008	af-ao	1

106106	U760215	• NUT - SELF LOCKING, 0.375 DIA	aa-ao	6

200200	790425-2	• STARTER - PNEUMATIC SG215	aa-ao	1
200200A	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0002 PRE SBE80-0003	ab-ac	1
200200B	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0003 PRE SBE80-0005	ab-ac	1
200200C	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0005 PRE SBE80-0007	ad-ae	1
200200D	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0007 PRE SBE80-0008	ad-ae	1
200200E	790425A4	• STARTER - PNEUMATIC SG215 POST SBE80-0008 PRE SBE80-0013	af-ag	1
200200F	790425A3	• STARTER - PNEUMATIC SG215 POST SBE70-0395 PRE SBE80-0013	ag-ah	1
200200G	790425A4	• STARTER - PNEUMATIC SG215 POST SBE80-0013 PRE SBE80-0014	ah	1
200200H	790425A3	• STARTER - PNEUMATIC SG215 POST SBE80-0013 PRE SBE80-0014	ag-ai	1
200200J	790425A4	• STARTER - PNEUMATIC SG215 POST SBE80-0014 PRE SBE80-0015	ai-aj	1
200200K	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0014 PRE SBE80-0016	ai-am	1
200200L	790425A3	• STARTER - PNEUMATIC SG215 POST SBE80-0014 PRE SBE80-0015	ag-ao	1
200200M	790425A6	• STARTER - PNEUMATIC SG215 POST SBE80-0015 PRE SBE80-0016	ai-am	1
200200N	790425A5	• STARTER - PNEUMATIC SG215 POST SBE80-0015	ag-ao	1
200200P	790425A6	• STARTER - PNEUMATIC SG215 POST SBE80-0016 PRE SBE80-0019	ai-an	1
200200Q	790425A5	• STARTER - PNEUMATIC SG215 POST SBE80-0016 PRE SBE80-0016	*****	1
200200R	790425A3	• STARTER - PNEUMATIC SG215 POST SBE80-0016 PRE SBE80-0016	*****	1
200200S	790425A4	• STARTER - PNEUMATIC SG215 POST SBE80-0016 PRE SBE80-0019	al-an	1
200200T	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0016 PRE SBE80-0019	ai-an	1
200200U	790425A6	• STARTER - PNEUMATIC SG215 POST SBE80-0019 PRE SBE80-0020	ai-ao	1
200200V	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0019 PRE SBE80-0020	ai-ao	1
200200W	790425A4	• STARTER - PNEUMATIC SG215 POST SBE80-0019 PRE SBE80-0020	al-ao	1
200200X	790425A6	• STARTER - PNEUMATIC SG215 POST SBE80-0020 PRE SBE80-0024	ao	1
200200Y	790425A4	• STARTER - PNEUMATIC SG215 POST SBE80-0020 PRE SBE80-0024	ao	1
200200Z	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0020 PRE SBE80-0024	ao	1
200200AA	790425A5	• STARTER - PNEUMATIC SG215 POST SBE80-0020 PRE SBE80-0024	ao	1
200200AB	790425A3	• STARTER - PNEUMATIC SG215 POST SBE80-0020 PRE SBE80-0024	ao	1
200200AC	790425-2	• STARTER - PNEUMATIC SG215 POST SBE80-0024	ap-aq	1
200200AD	790425A4	• STARTER - PNEUMATIC SG215 POST SBE80-0024	ap-aq	1
200200AE	790425A6	• STARTER - PNEUMATIC SG215 POST SBE80-0024 PRE SBE80-0024	*****	1
200200AF	790425A3	• STARTER - PNEUMATIC SG215 POST SBE80-0024	ap-aq	1
200200AG	790425A5	• STARTER - PNEUMATIC SG215 POST SBE80-0024 PRE SBE80-0024	*****	1
200200AH	790425A7	• STARTER - PNEUMATIC SG215 POST SBE80-0024	ap-aq	1
200200AI	790425A8	• STARTER - PNEUMATIC SG215 POST SBE80-0024 PRE SBE80-0025	ap	1
200200AJ	790425A6	• STARTER - PNEUMATIC SG215 PRE SBE80-0025	aa-ap	1
200200AK	790425A9	• STARTER - PNEUMATIC SG215 POST SBE80-0025 PRE SBE80-0026	aq	1
210210	43176AC	• CLAMP - QUICK DETACH 94581 POST SBE80-0008	af-ao	1
240240	69490D216	• • RING - SEALING 73030	aa-ao	1
250250	43176AC	• • CLAMP - QUICK DETACH 94581 PRE SBE80-0008	aa-ae	1
260260	728805-6	• • HOUSING - ADAPTER SG215 PRE SBE80-0008	aa-ae	1
288288	720752-9	• • RING - SEALING SG215 POST SBE80-0003 PRE SBE80-0007	ac-ad	1
290290	MS9954-03	• • PLUG - OIL, FILLER 96906 POST SBE80-0003 PRE SBE80-0007	ac-ad	1
290290A	MS9954-07	• • PLUG - BLANKING 96906 POST SBE80-0007	ae-ao	1
298298	720752-10	• • RING - SEALING 73030	aa-ao	1
300300	3806454	• • PLUG - DRAIN, ASSEMBLY OF ALT VP13	aa-ao	1
300300A	VP13	• • PLUG - DRAIN, ASSEMBLY OF 36540 ALT 3806454	aa-ao	1
308308	720752-14	• • RING - SEALING 73030 PRE SBE80-0007	aa-ad	1
308308A	720752-74	• • RING - SEALING 73030 POST SBE80-0007	ae-ao	1
310310	MS9954-06	• • PLUG - OIL, DRAIN 96906 PRE SBE80-0003	aa-ab	1
310310A	806217-1	• • ADAPTER SG215 POST SBE80-0003 PRE SBE80-0007	ac-ad	1
318318	720752-58	• • RING - SEALING 73030 POST SBE80-0005	ad-ao	1
320320	MS9954-08	• • PLUG 96906 POST SBE80-0005	ad-ao	1
328328	NAS1595-2	• • RING - SEALING 80205 ALT M83248-1-902	aa-ao	1
328328A	M83248-1-902	• • SEAL - RING 81349 ALT NAS1595-2	aa-ao	1
338338	720752-33	• • RING - SEALING 73030 POST SBE80-0003	ac-ao	1
340340	738277-3	• • PLUG - OIL, SIGHT LEVEL 73030 POST SBE80-0003	ac-ao	1
340340A	797845-1	• • ADAPTER SG215 (CUSTOMER OPTION)	ag-ao	1
342342	720752-14	• • RING - SEALING 73030 POST SBE70-0395	ag-ao	1
344344	MS9954-06	• • PLUG - OIL, DRAIN 96906 (CUSTOMER OPTION)	ag-ao	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	36540
Enterprise Name:	LISLE CORP
BU Name:	LISLE CORP
Street:	805 EAST MAIN STREET
City:	CLARINDA
State:	IOWA
Country:	USA

Manufacturer Code:	73030
Enterprise Name:	UNITED TECHNOLOGIES INTERNATIONAL INC
BU Name:	UNITED TECHNOLOGIES INTERNATIONAL INC
Department:	HAMILTON STANDARD DIVISION
Street:	ONE HAMILTON ROAD
City:	WINDSOR LOCKS
State:	CONNECTICUT
Zip Code:	06096
Country:	USA

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	81349
Enterprise Name:	DELETED, SEE CAGE CODE 81348

Manufacturer Code:	94581
Enterprise Name:	NATIONAL UTITLITIES
BU Name:	NATIONAL UTITLITIES
Department:	DIV OF VIJ CORP
Street:	1700 HICKORY DRIVE
P.O. Box:	14639
City:	FORT WORTH
State:	TEXAS
Zip Code:	76117-6020
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	SG215
Enterprise Name:	SUMITOMO PRECISION PRODUCTS CO LTD
BU Name:	SUMITOMO PRECISION PRODUCTS CO LTD
Street:	1-10 FUSO-CHO
P.O. Box:	660
City:	AMAGASAKI HYOGO
Zip Code:	0891
Country:	JAPAN

Part Number:	3806454
Part Name:	PLUG - DRAIN, ASSEMBLY OF
Manufacturer Code:	0AM53

STARTING-PNEUMATIC STARTER

Export Control

Copyright

Applicability

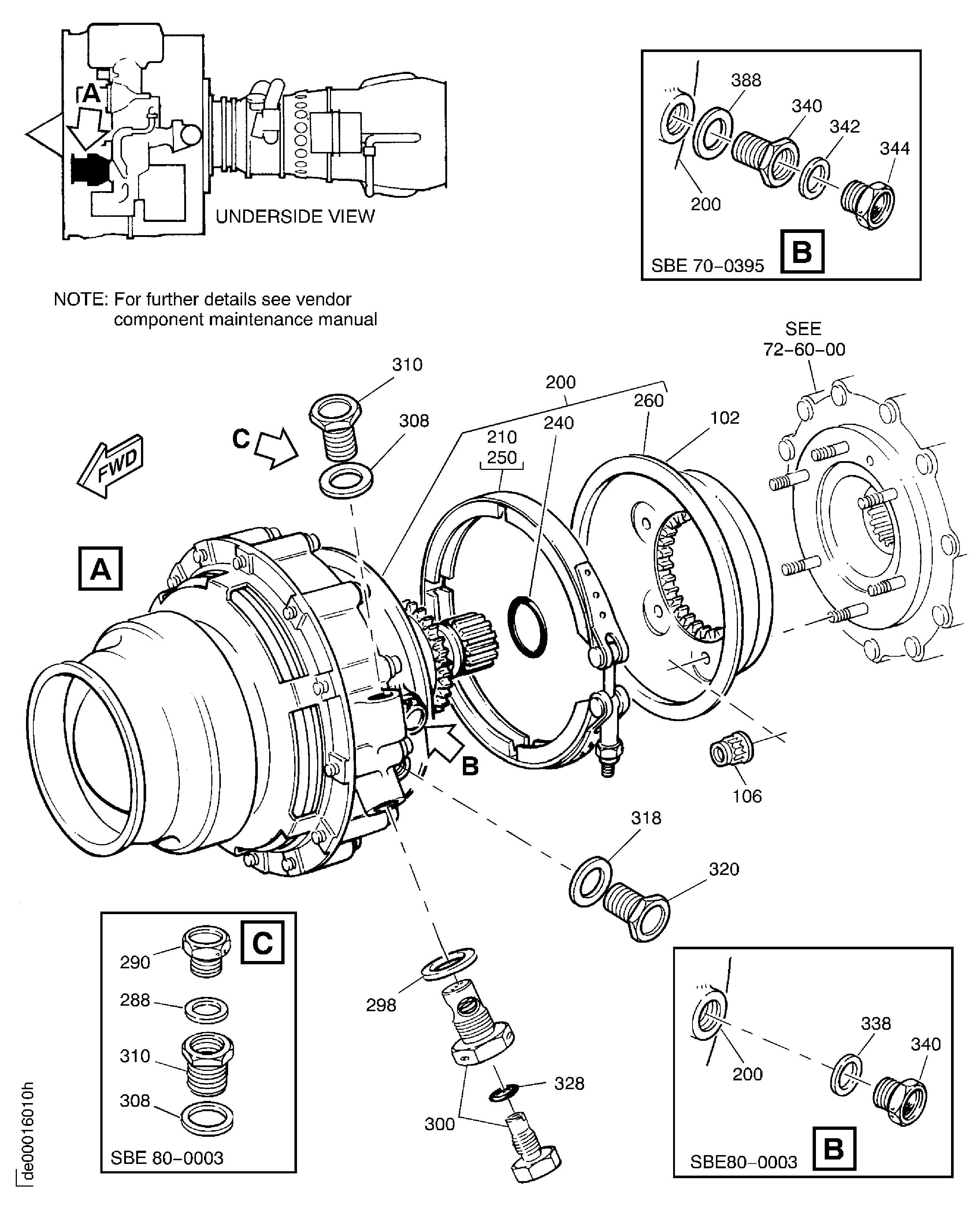

Figure: STARTING-PNEUMATIC STARTER
