DMC:V2500-A5-24-21-43-01A-941A-DIssue No:002.00Issue Date:2021-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B24214301 | ELECTRICAL POWER - IDG CABLES, PRE SBE79-0038 | aa | ||
| SBE0038-01 | ELECTRICAL POWER - IDG CABLES, PRE SBE79-0045 | ab | ||
| SBE0045-01 | ELECTRICAL POWER - IDG CABLES, PRE SBN70-0736 | ac | ||
| SBN0736-01 | ELECTRICAL POWER - IDG CABLES, PRE SBN24-0020 | ad | ||
| SBN0020-01 | ELECTRICAL POWER - IDG CABLES | ae | ||
| 010 | 740-5869-505 | • CABLE - ASSEMBLY OF 51563 PRE SBN70-0736 | aa-ae | 1 |
| 010A | 740-5869-507 | • CABLE - ASSEMBLY OF 51563 POST SBN70-0736 | aa-ae | 1 |
| 020 | AS21410 | • BOLT - 0.19 DIA X 0.625 U1653 | aa-ae | 2 |
| 020A | AS21410 | • BOLT - 0.19 DIA X 0.625 U1653 ALT MS9556-08 | aa-ae | 2 |
| -020B | MS9556-08 | • BOLT 96906 ALT AS21410 | aa-ae | REF |
| 030 | TA30900001-01 | • CLAMP 84971 | aa-ae | 1 |
| 030A | TA30900001-02 | • CLAMP - HINGED 84971 | aa-ae | 1 |
| 040 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ae | 2 |
| 125 | AS21410 | • BOLT - 0.19 DIA X 0.625 U1653 | aa-ae | 5 |
| 125A | AS21410 | • BOLT - 0.19 DIA X 0.625 U1653 ALT MS9556-08 | aa-ae | 5 |
| -125B | MS9556-08 | • BOLT 96906 ALT AS21410 | aa-ae | REF |
| 129 | TA025074-18 | • CLAMP - LOOP, CUSHION, 1.125 DIA 84971 ALT AS61916 | aa-ae | 6 |
| -129A | AS61916 | • CLAMP - LOOP, CUSHION U1653 ALT TA025074-18 | aa-ae | REF |
| 130 | SP154D | • WASHER - 0.190 DIA K7766 | aa-ae | 5 |
| 132 | AS20624 | • NUT, SELF LOCKING DBL HEX - .190 DIA U1653 | aa-ae | 5 |
| 140 | AS8623J | • NUT U1653 | aa-ae | 1 |
| 140A | AS8623J | • NUT U1653 ALT MS21043-06 | aa-ae | 1 |
| -140B | MS21043-06 | • NUT 96906 ALT AS8623J | aa-ae | REF |
| 900 | 740-5925-505 | • BRACKET 51563 | aa-ae | 1 |
| 902 | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 | aa-ae | 2 |
| 902A | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 ALT MS9557-08 | aa-ae | 2 |
| -902B | MS9557-08 | • BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625 96906 ALT AS21510 | aa-ae | REF |
| 905 | AS20625 | • NUT, SELF LOCKING, BIHEX, .250 DIA U1653 | aa-ae | 2 |
| 910 | 740-5465-503 | • RACEWAY - ASSEMBLY OF 51563 | aa-ae | 1 |
| 912 | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 | aa-ae | 1 |
| 915 | AS20625 | • NUT, SELF LOCKING, BIHEX, .250 DIA U1653 | aa-ae | 1 |
| 920 | 740-5898-505 | • BRACKET 51563 | aa-ae | 1 |
| 922 | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 | aa-ae | 2 |
| 922A | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 ALT MS9557-08 | aa-ae | 2 |
| -922B | MS9557-08 | • BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625 96906 ALT AS21510 | aa-ae | REF |
| 925 | AS20625 | • NUT, SELF LOCKING, BIHEX, .250 DIA U1653 | aa-ae | 2 |
| 930 | 740-5892-505 | • BRACKET 51563 | aa-ae | 1 |
| 932 | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 | aa-ae | 2 |
| 932A | AS21510 | • BOLT - 0.25 DIA X 0.625 U1653 ALT MS9557-08 | aa-ae | 2 |
| -932B | MS9557-08 | • BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.2500 - 28 X 0.625 96906 ALT AS21510 | aa-ae | REF |
| 935 | AS20625 | • NUT, SELF LOCKING, BIHEX, .250 DIA U1653 | aa-ae | 2 |
| 940 | 740-5894-501 | • BRACKET 51563 PRE SBN24-0020 | aa-ad | 1 |
| 940A | 740-5894-503 | • BRACKET 51563 POST SBN24-0020 | ae-ae | 1 |
| 942 | AS21513 | • BOLT - 0.25 DIA X 0.812 U1653 | aa-ae | 2 |
| 942A | AS21513 | • BOLT - 0.25 DIA X 0.812 U1653 ALT MS9557-11 | aa-ae | 2 |
| -942B | MS9557-11 | • BOLT 96906 ALT AS21513 | aa-ae | REF |
| 945 | AS20625 | • NUT, SELF LOCKING, BIHEX, .250 DIA U1653 | aa-ae | 2 |
| 950 | 740-5964-501 | • BRACKET 51563 | aa-ae | 1 |
| 952 | 740-5965-503 | • BRACKET 51563 | aa-ae | 1 |
| 955 | AS21513 | • BOLT - 0.25 DIA X 0.812 U1653 | aa-ae | 2 |
| 955A | AS21513 | • BOLT - 0.25 DIA X 0.812 U1653 ALT MS9557-11 | aa-ae | 2 |
| -955B | MS9557-11 | • BOLT 96906 ALT AS21513 | aa-ae | REF |
| 957 | AS20625 | • NUT, SELF LOCKING, BIHEX, .250 DIA U1653 | aa-ae | 2 |
| -960 | 740-5951-505 | • BRACKET 51563 PRE SBE79-0038 | aa | REF |
| -960A | 745-5951-501 | • BRACKET - IDG CABLE 51563 POST SBE79-0038 | ab-ae | REF |
| -960B | 745-5951-503 | • BRACKET - IDG CABLE 51563 POST SBE79-0045 | ac-ae | REF |
| -965 | 740-5980-503 | • BRACKET - TIE STRAP 51563 PRE SBE79-0038 | aa | REF |
| -965A | 745-5980-501 | • BRACKET - SUPPORT 51563 POST SBE79-0038 | ab-ae | REF |
| -965B | 745-5980-503 | • BRACKET - SUPPORT 51563 POST SBE79-0045 | ac-ae | REF |
| -970 | 740-5926-505 | • BRACKET 51563 | aa-ae | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

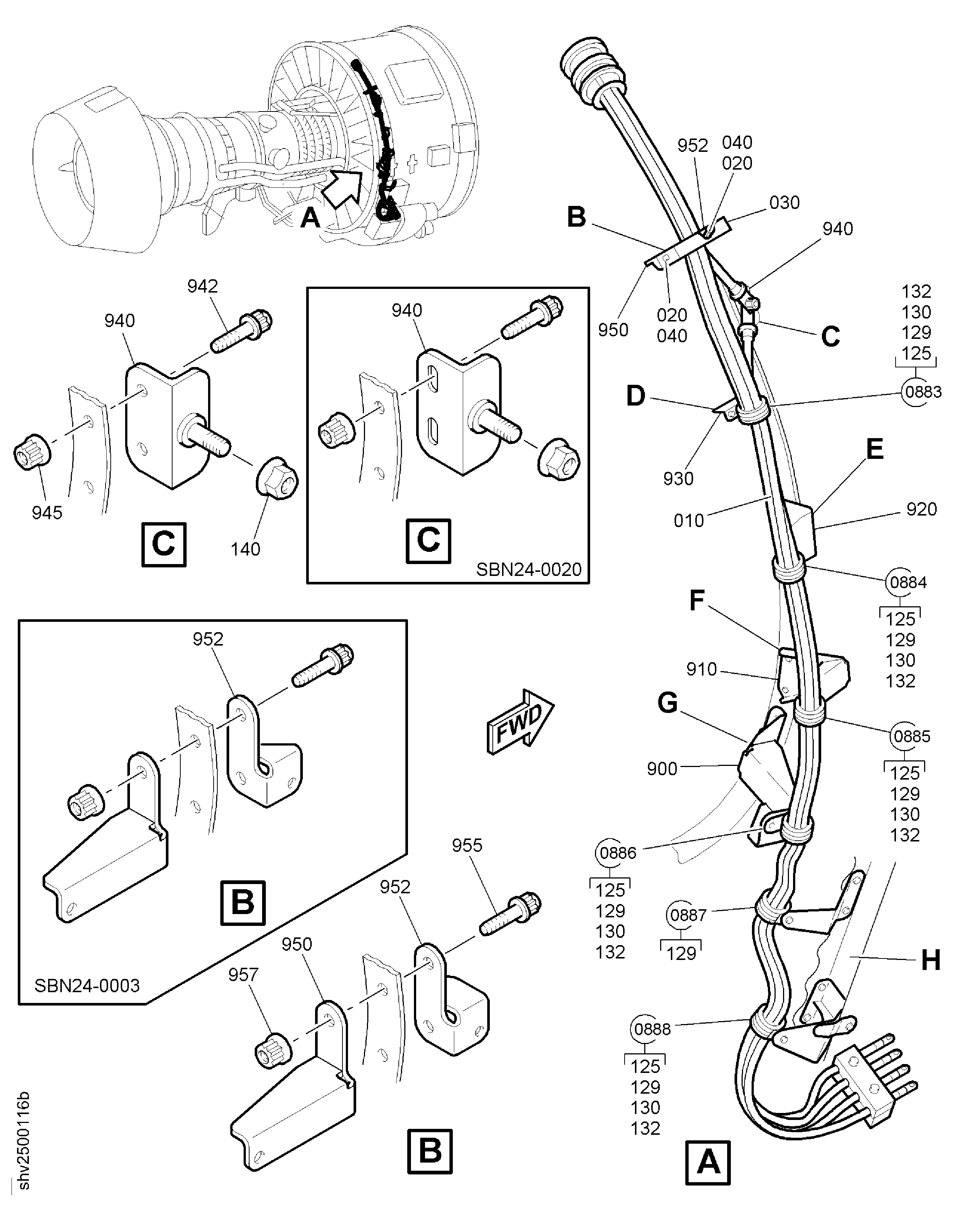

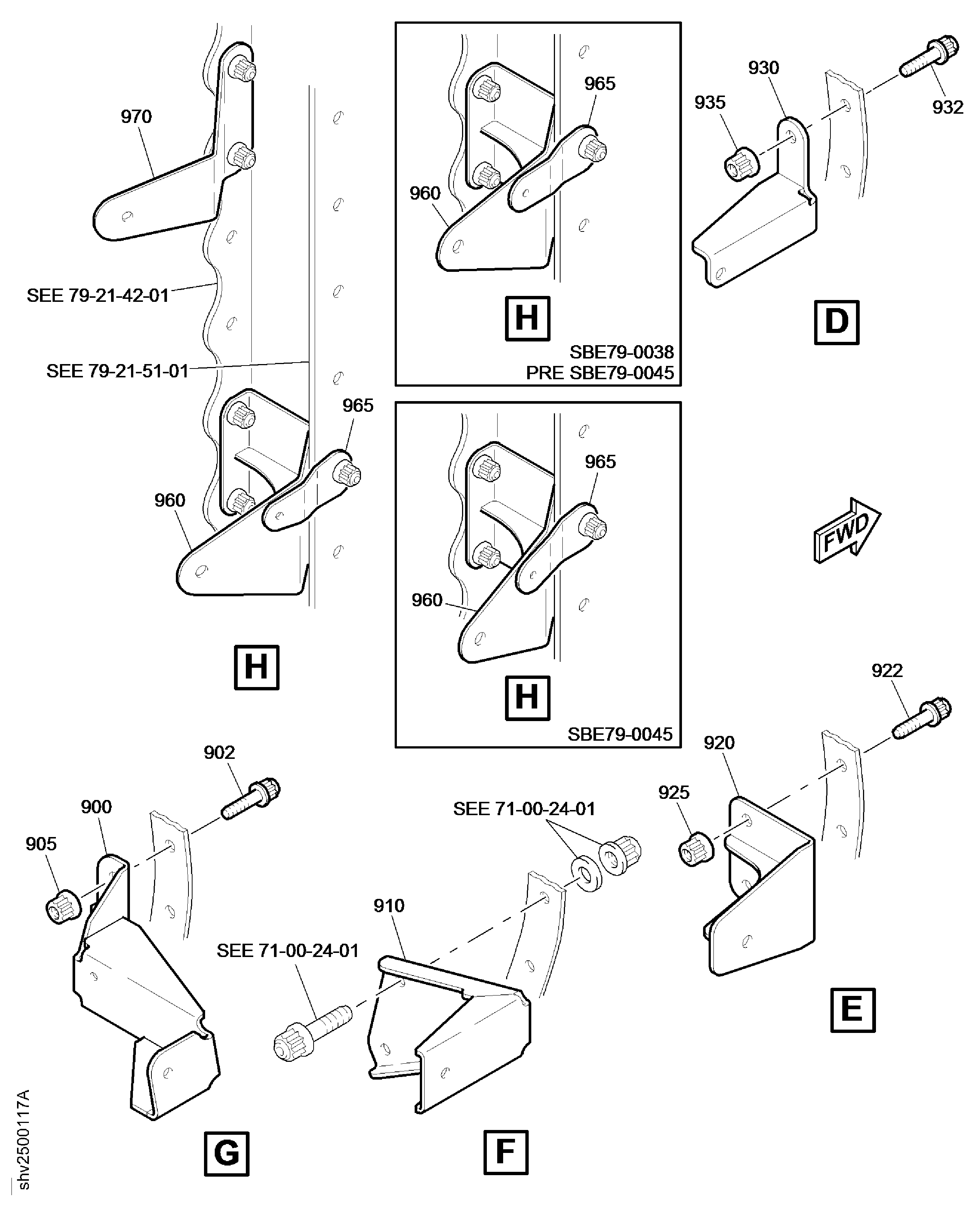

Figure: ELECTRICAL POWER-IDG CABLES
CABLES IDG
CABLES IDG
